| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_110T04_9000004094_28486cztM0_level2.evt | modeM0/AS1A10_110T04_9000004094_28486cztM0_level2_quad_clean.evt |
| Size (bytes) | 718,228,800 | 75,329,280 |
| Size | 685.0 MB | 71.8 MB |
| Events in quadrant A | 4,504,594 | 485,520 |
| Events in quadrant B | 4,483,692 | 499,805 |
| Events in quadrant C | 3,669,069 | 492,738 |
| Events in quadrant D | 8,674,148 | 368,138 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17659 | 2 |
| B | 0 | 17500 | 2 |
| C | 0 | 15147 | 3 |
| D | 0 | 30110 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6221 | 411 | 6.606655% |
| B | 6221 | 312 | 5.015271% |
| C | 6220 | 167 | 2.684887% |
| D | 6220 | 1953 | 31.398714% |

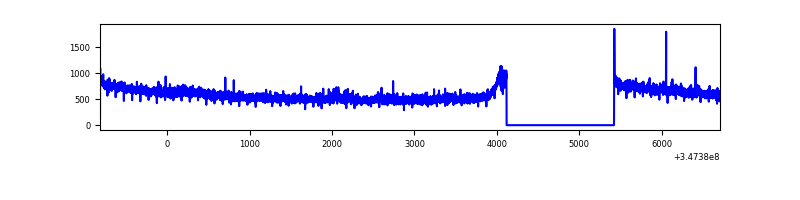

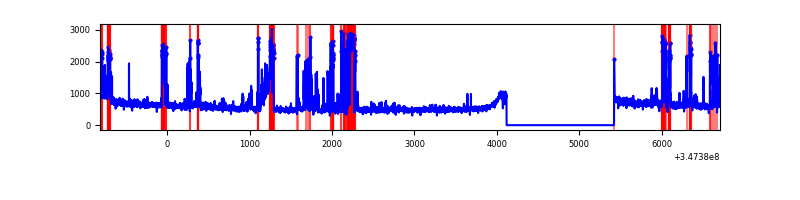

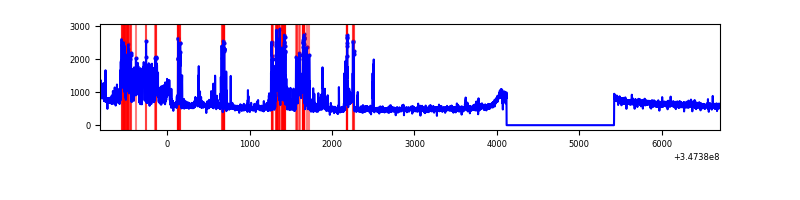

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6221 | 269 | 269 | 3.57% | 4.32% |  |
| B | 7526 | 6221 | 127 | 127 | 1.69% | 2.04% |  |
| C | 7525 | 6220 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7525 | 6220 | 1787 | 1787 | 23.75% | 28.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1080841 | 6146.73 | 886 | 870 | 175.7 |
| A | 13 | 254 | 10834 | 56.71 | 886 | 870 | 175.7 |
| A | 3 | 137 | 7798 | 39.43 | 886 | 870 | 175.7 |
| B | 10 | 245 | 982314 | 5981.31 | 889 | 871 | 164.1 |
| B | 12 | 111 | 18925 | 110.03 | 889 | 871 | 164.1 |
| B | 11 | 111 | 17356 | 100.47 | 889 | 871 | 164.1 |
| C | 14 | 238 | 144840 | 710.6 | 884 | 895 | 202.6 |
| C | 7 | 247 | 58906 | 286.38 | 884 | 895 | 202.6 |
| C | 3 | 233 | 14340 | 66.37 | 884 | 895 | 202.6 |
| D | 1 | 52 | 3760538 | 20860.01 | 760 | 745 | 180.2 |
| D | 8 | 195 | 1593034 | 8834.3 | 760 | 745 | 180.2 |
| D | 12 | 233 | 297770 | 1647.95 | 760 | 745 | 180.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

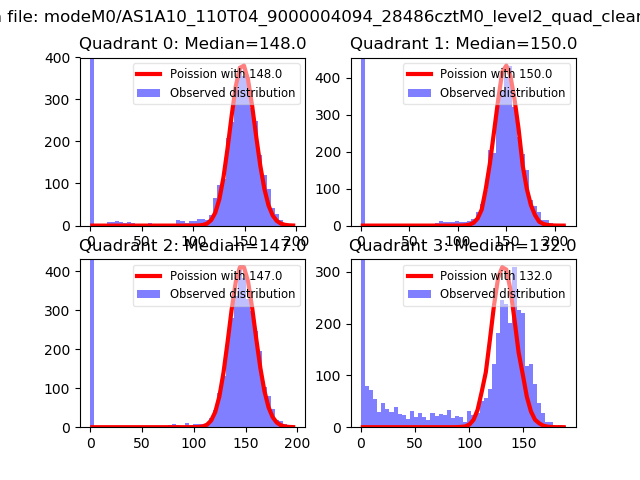

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

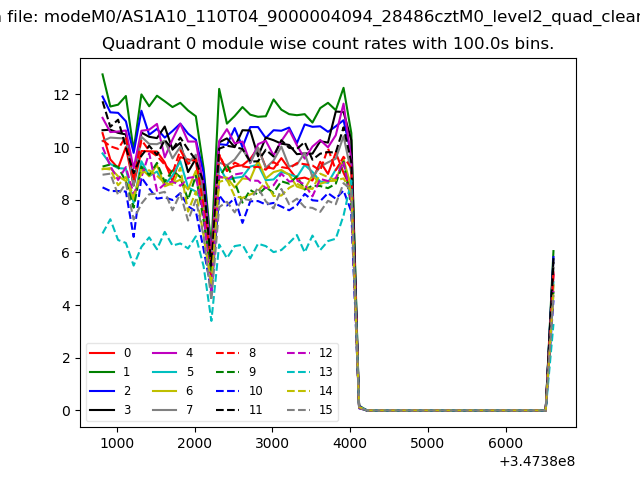

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

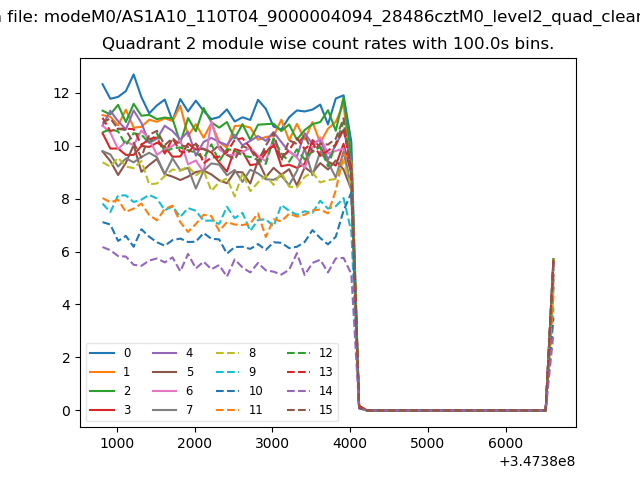

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

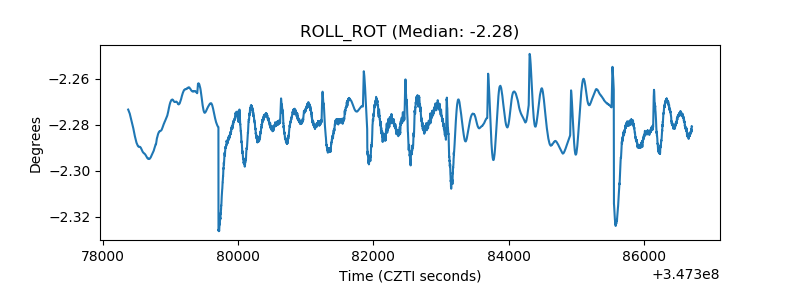

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

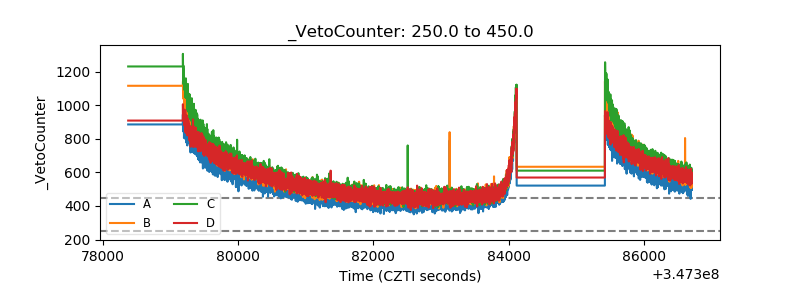

| Veto Counter |  |
