| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_110T04_9000004094_28487cztM0_level2.evt | modeM0/AS1A10_110T04_9000004094_28487cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,778,560 | 95,538,240 |
| Size | 544.3 MB | 91.1 MB |
| Events in quadrant A | 3,657,425 | 630,295 |
| Events in quadrant B | 3,431,605 | 645,291 |
| Events in quadrant C | 3,455,371 | 632,752 |
| Events in quadrant D | 6,337,737 | 568,212 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14767 | 1 |
| B | 0 | 14053 | 1 |
| C | 0 | 14189 | 1 |
| D | 0 | 22897 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5961 | 174 | 2.918973% |
| B | 5962 | 110 | 1.845018% |
| C | 5962 | 147 | 2.465616% |
| D | 5962 | 1049 | 17.594767% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7316 | 5961 | 89 | 89 | 1.22% | 1.49% |  |
| B | 7317 | 5962 | 15 | 15 | 0.21% | 0.25% |  |
| C | 7317 | 5962 | 4 | 4 | 0.05% | 0.07% |  |
| D | 7316 | 5961 | 826 | 826 | 11.29% | 13.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 467230 | 2869.71 | 823 | 812 | 162.5 |
| A | 13 | 254 | 10346 | 58.66 | 823 | 812 | 162.5 |
| A | 12 | 16 | 7988 | 44.15 | 823 | 812 | 162.5 |
| B | 10 | 245 | 124951 | 809.05 | 825 | 804 | 153.4 |
| B | 14 | 207 | 47219 | 302.48 | 825 | 804 | 153.4 |
| B | 12 | 111 | 17927 | 111.59 | 825 | 804 | 153.4 |
| C | 14 | 238 | 132825 | 704.49 | 816 | 824 | 187.4 |
| C | 3 | 233 | 96835 | 512.41 | 816 | 824 | 187.4 |
| C | 7 | 247 | 39292 | 205.3 | 816 | 824 | 187.4 |
| D | 1 | 52 | 2071509 | 11479.97 | 764 | 746 | 180.4 |
| D | 8 | 195 | 1175720 | 6513.86 | 764 | 746 | 180.4 |
| D | 12 | 233 | 69407 | 380.65 | 764 | 746 | 180.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

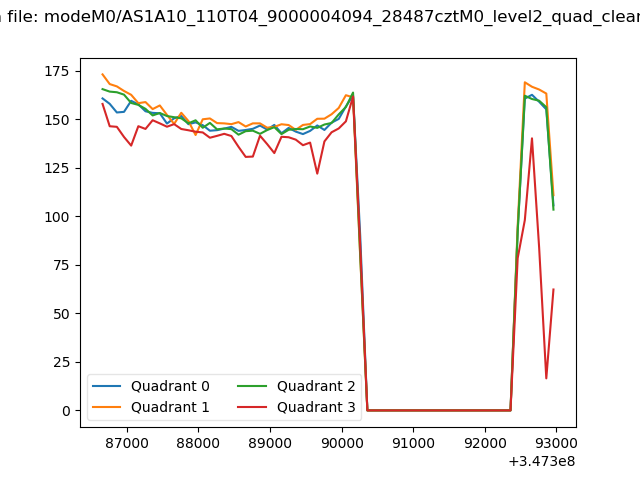

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

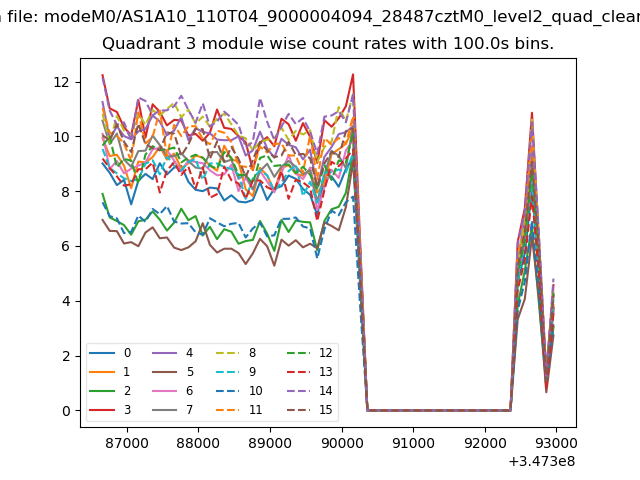

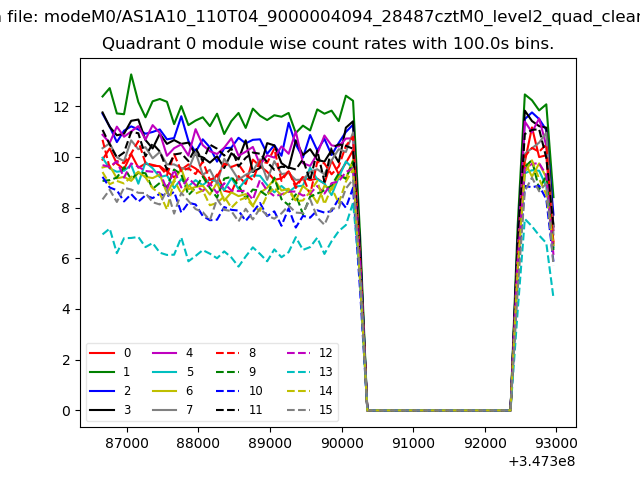

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

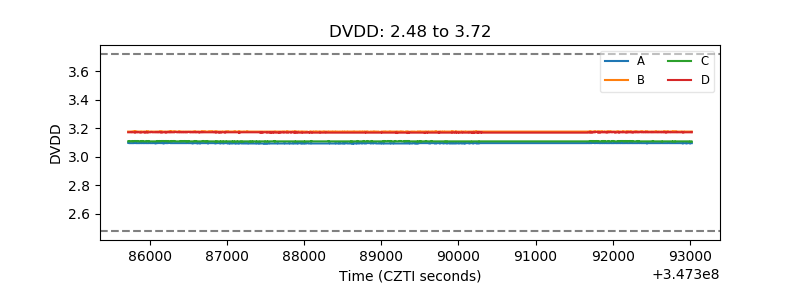

| D_VDD |  |

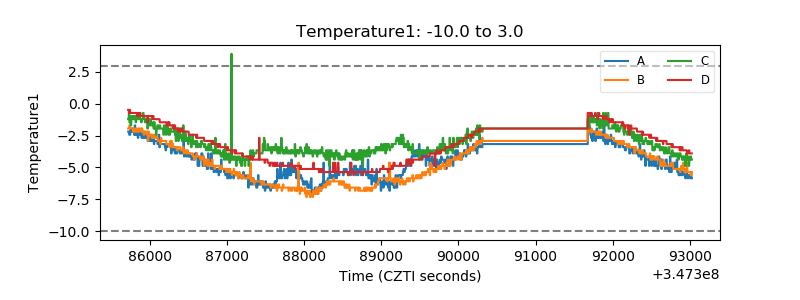

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

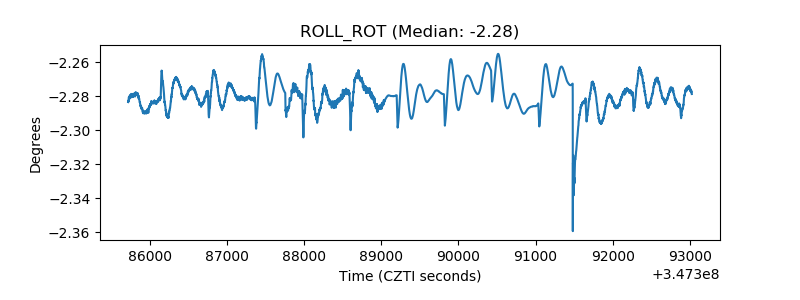

| _ROLL_ROT |  |
| _Roll_DEC |  |

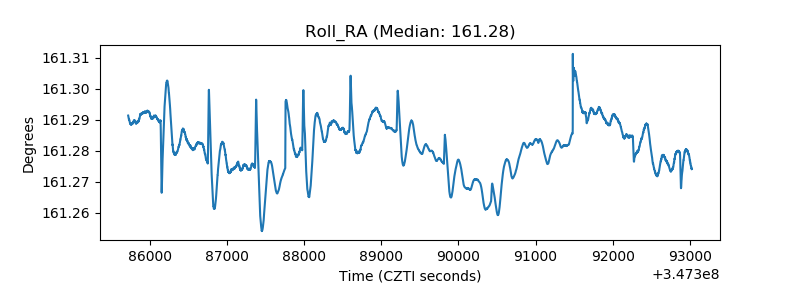

| _Roll_RA |  |

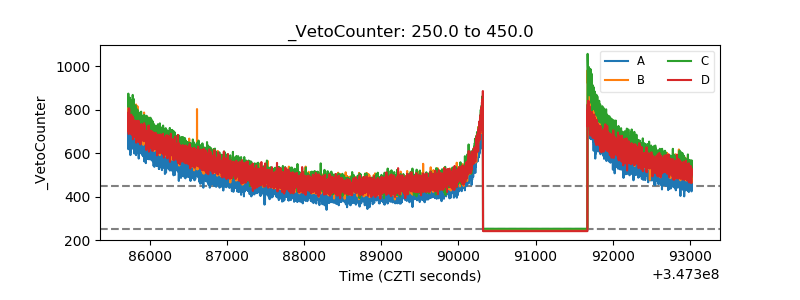

| Veto Counter |  |
