| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_110T05_9000004098_28507cztM0_level2.evt | modeM0/AS1A10_110T05_9000004098_28507cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,011,200 | 124,099,200 |
| Size | 536.9 MB | 118.4 MB |
| Events in quadrant A | 3,556,134 | 815,235 |
| Events in quadrant B | 3,608,455 | 829,718 |
| Events in quadrant C | 3,690,567 | 801,899 |
| Events in quadrant D | 5,671,364 | 774,236 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15979 | 2 |
| B | 0 | 15989 | 2 |
| C | 0 | 16078 | 3 |
| D | 0 | 22088 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7730 | 39 | 0.504528% |
| B | 7731 | 65 | 0.840771% |
| C | 7730 | 111 | 1.435964% |
| D | 7730 | 453 | 5.860285% |

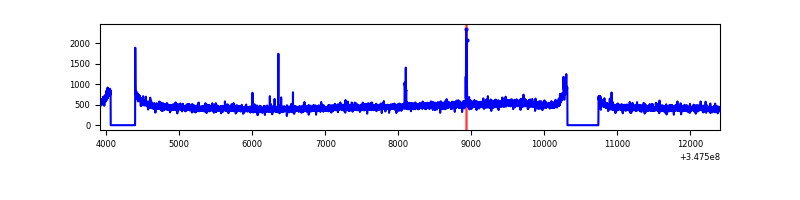

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

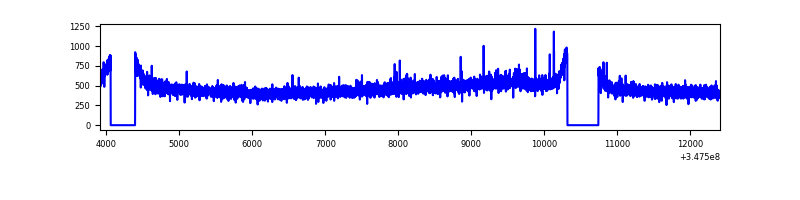

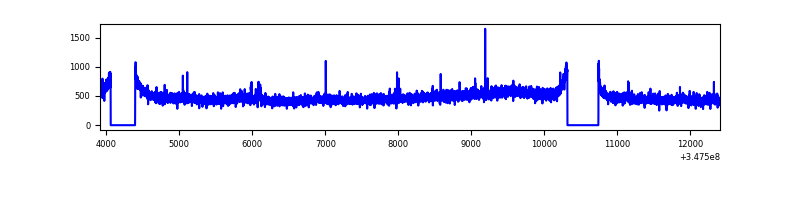

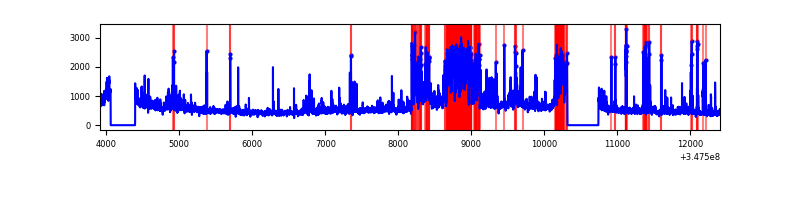

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8490 | 7731 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8491 | 7731 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8490 | 7732 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8490 | 7732 | 326 | 326 | 3.84% | 4.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30443 | 161.13 | 910 | 890 | 183.4 |
| A | 13 | 254 | 12534 | 63.49 | 910 | 890 | 183.4 |
| A | 3 | 137 | 9162 | 45.1 | 910 | 890 | 183.4 |
| B | 12 | 111 | 22410 | 123.54 | 910 | 887 | 174.2 |
| B | 11 | 111 | 19626 | 107.56 | 910 | 887 | 174.2 |
| B | 0 | 230 | 18314 | 100.03 | 910 | 887 | 174.2 |
| C | 14 | 238 | 143356 | 690.83 | 879 | 882 | 206.2 |
| C | 3 | 233 | 82295 | 394.76 | 879 | 882 | 206.2 |
| C | 7 | 247 | 26574 | 124.58 | 879 | 882 | 206.2 |
| D | 8 | 195 | 1262595 | 6094.21 | 867 | 840 | 207.0 |
| D | 1 | 52 | 810457 | 3910.4 | 867 | 840 | 207.0 |
| D | 12 | 233 | 154120 | 740.33 | 867 | 840 | 207.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

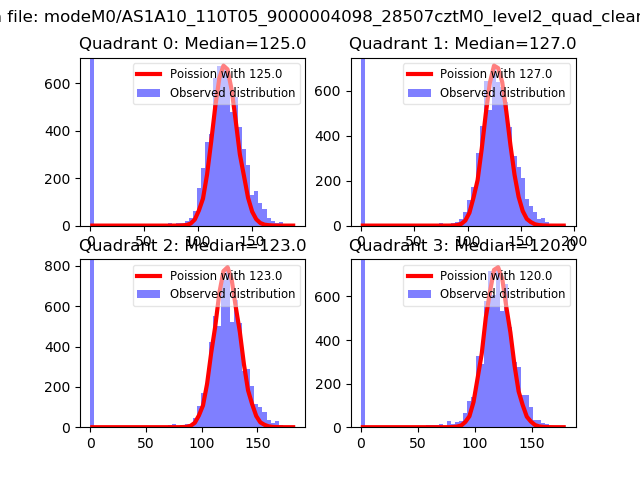

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

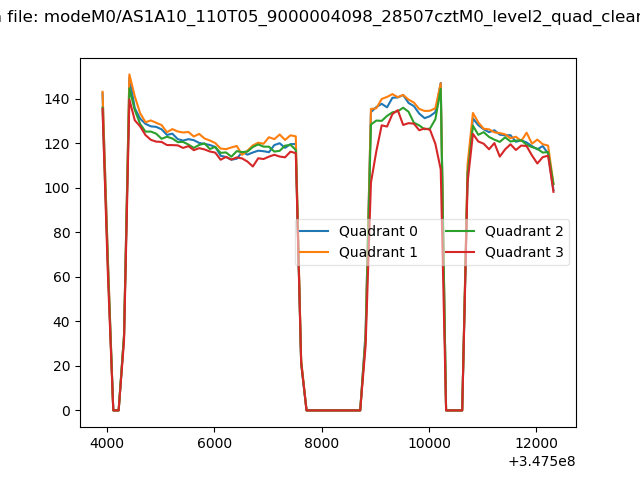

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

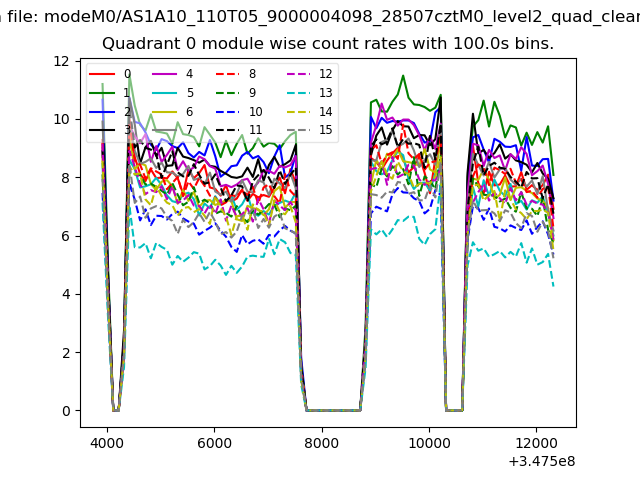

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

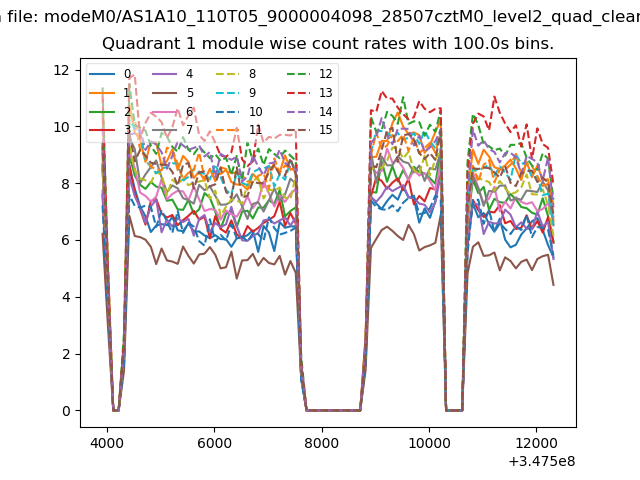

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

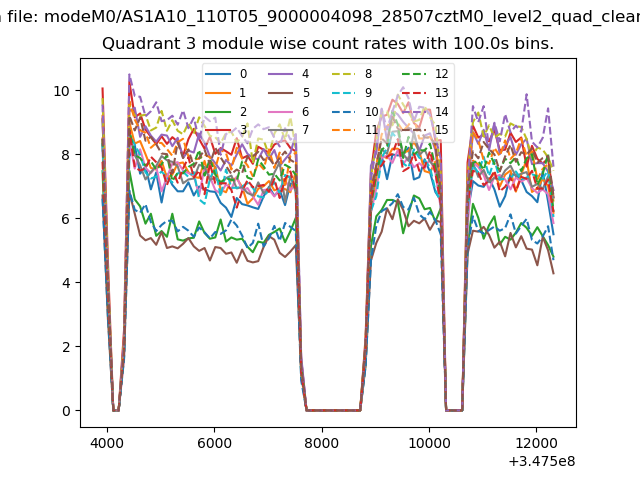

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

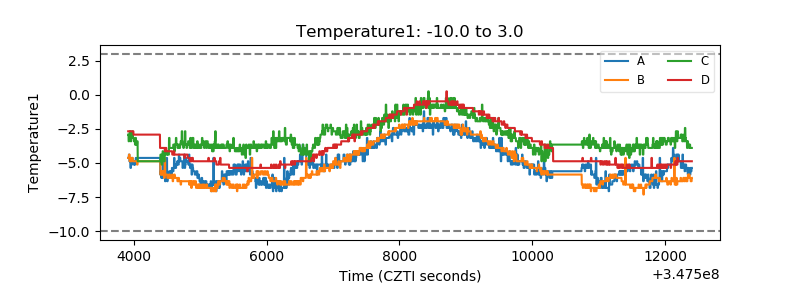

| Temperature 1 |  |
| Veto HV Monitor |  |

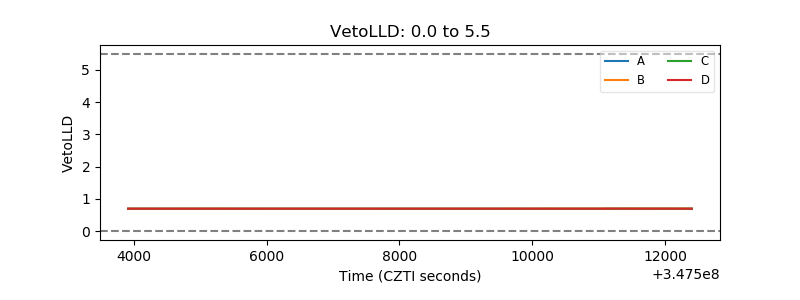

| Veto LLD |  |

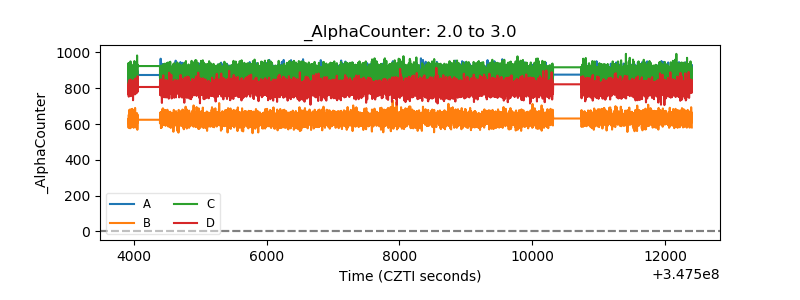

| Alpha Counter |  |

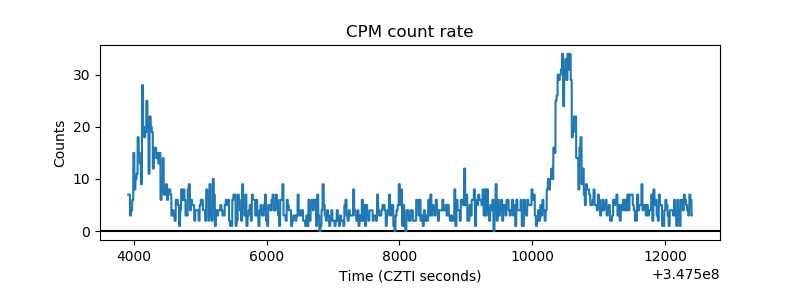

| _CPM_Rate |  |

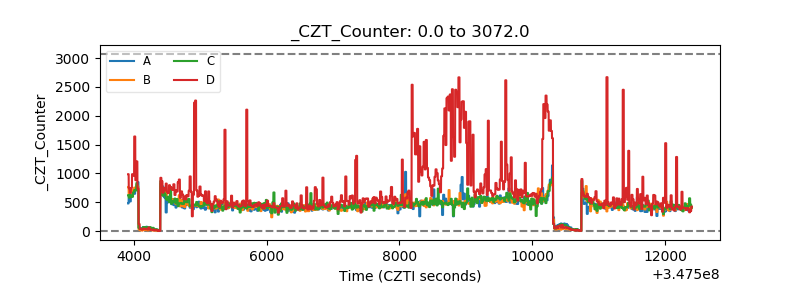

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

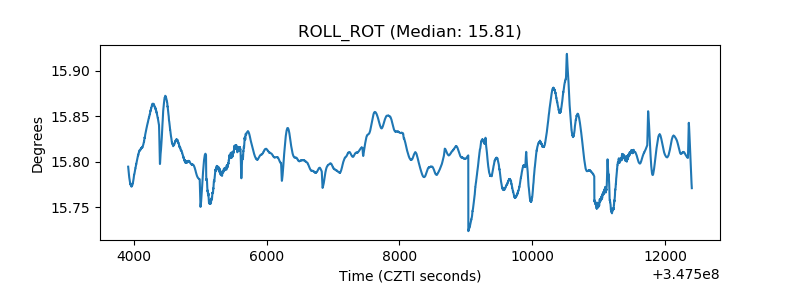

| _ROLL_ROT |  |

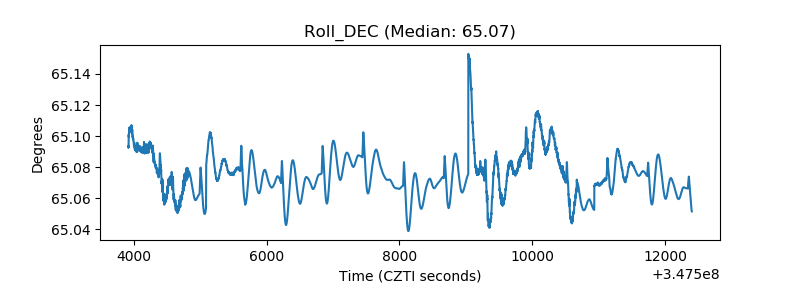

| _Roll_DEC |  |

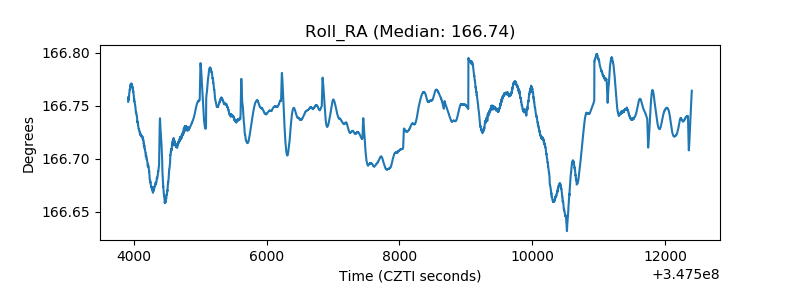

| _Roll_RA |  |

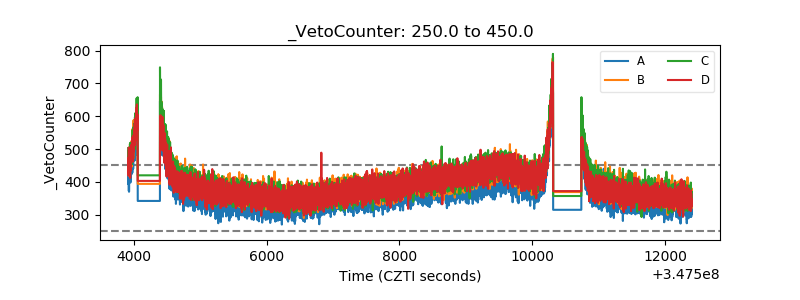

| Veto Counter |  |
