| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_110T05_9000004098_28510cztM0_level2.evt | modeM0/AS1A10_110T05_9000004098_28510cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,102,400 | 93,611,520 |
| Size | 456.9 MB | 89.3 MB |
| Events in quadrant A | 2,844,746 | 618,571 |
| Events in quadrant B | 3,033,380 | 628,500 |
| Events in quadrant C | 2,935,327 | 602,151 |
| Events in quadrant D | 5,283,469 | 561,151 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12386 | 1 |
| B | 0 | 12828 | 1 |
| C | 0 | 12500 | 1 |
| D | 0 | 19716 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6077 | 48 | 0.789863% |
| B | 6078 | 71 | 1.168147% |
| C | 6078 | 63 | 1.036525% |
| D | 6078 | 527 | 8.670615% |

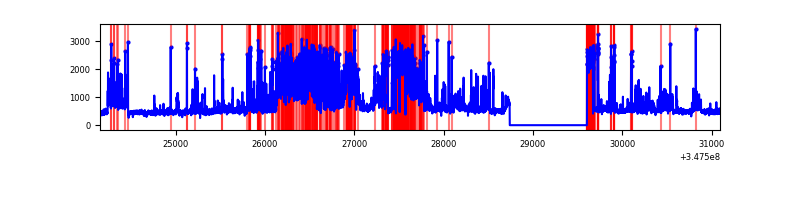

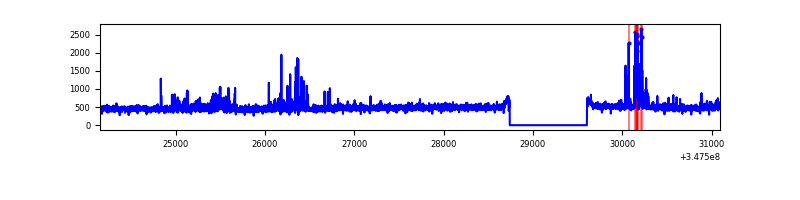

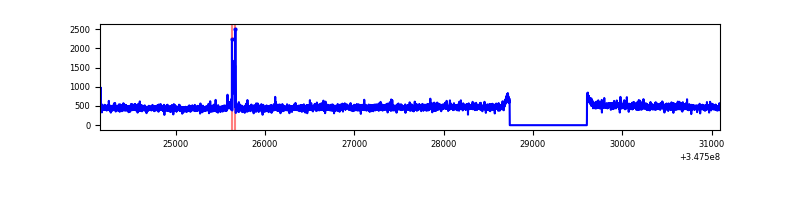

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6942 | 6077 | 2 | 2 | 0.03% | 0.03% |  |
| B | 6943 | 6078 | 11 | 11 | 0.16% | 0.18% |  |
| C | 6943 | 6078 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6943 | 6078 | 497 | 497 | 7.16% | 8.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 35819 | 238.62 | 728 | 712 | 147.1 |
| A | 13 | 254 | 9240 | 57.96 | 728 | 712 | 147.1 |
| A | 3 | 137 | 7081 | 43.29 | 728 | 712 | 147.1 |
| B | 10 | 245 | 90051 | 652.59 | 717 | 698 | 136.9 |
| B | 0 | 230 | 71463 | 516.83 | 717 | 698 | 136.9 |
| B | 5 | 255 | 31543 | 225.28 | 717 | 698 | 136.9 |
| C | 14 | 238 | 115428 | 712.43 | 691 | 695 | 161.0 |
| C | 3 | 233 | 82205 | 506.13 | 691 | 695 | 161.0 |
| C | 7 | 247 | 32864 | 199.75 | 691 | 695 | 161.0 |
| D | 1 | 52 | 1672612 | 10367.39 | 679 | 664 | 161.3 |
| D | 8 | 195 | 925125 | 5732.38 | 679 | 664 | 161.3 |
| D | 12 | 233 | 41929 | 255.88 | 679 | 664 | 161.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

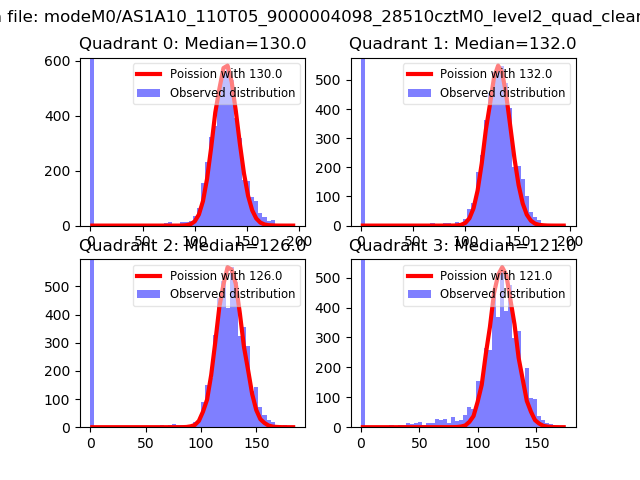

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

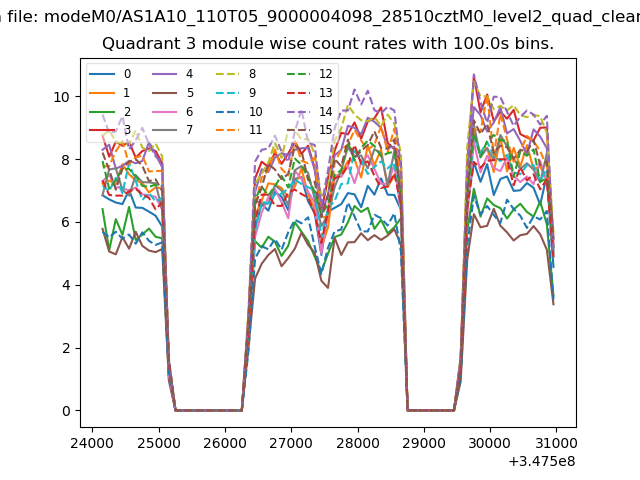

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

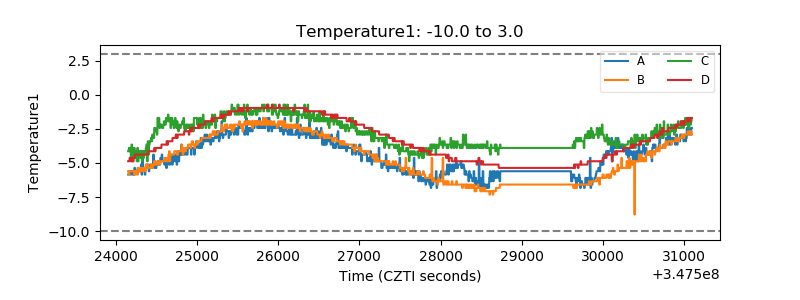

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

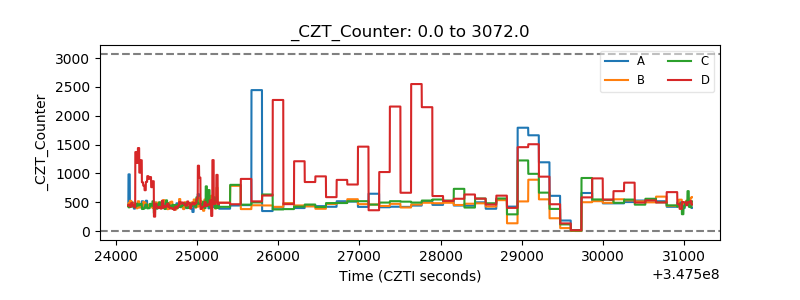

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

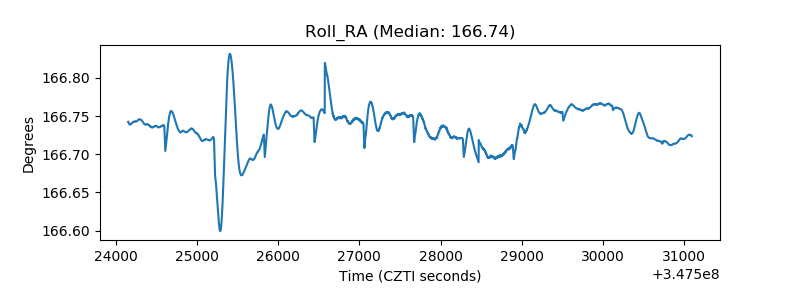

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
