| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T03_9000004096_28499cztM0_level2.fits | modeM0/AS1A10_123T03_9000004096_28499cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,030,400 | 129,611,520 |
| Size | 491.2 MB | 123.6 MB |
| Events in quadrant A | 3,583,177 | 924,588 |
| Events in quadrant B | 3,696,106 | 948,411 |
| Events in quadrant C | 3,511,957 | 894,222 |
| Events in quadrant D | 7,776,103 | 710,800 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14759 | 0 |
| B | 0 | 15076 | 0 |
| C | 0 | 14420 | 0 |
| D | 0 | 27586 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6407 | 118 | 1.841736% |
| B | 6407 | 85 | 1.326674% |
| C | 6408 | 124 | 1.935081% |
| D | 6407 | 1286 | 20.071796% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

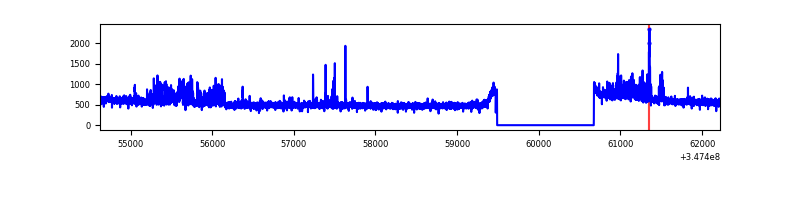

| A | 7592 | 6407 | 46 | 46 | 0.61% | 0.72% |  |
| B | 7592 | 6407 | 2 | 2 | 0.03% | 0.03% |  |

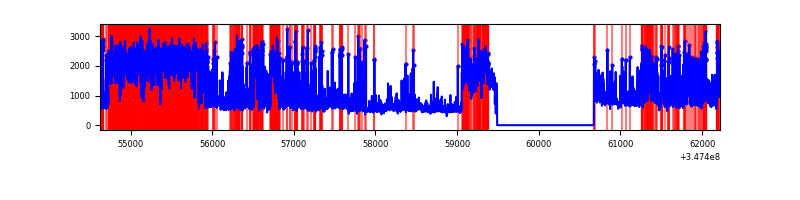

| C | 7593 | 6408 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7591 | 6406 | 1154 | 1154 | 15.20% | 18.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 155704 | 879.25 | 883 | 868 | 176.1 |
| A | 12 | 96 | 15317 | 82.05 | 883 | 868 | 176.1 |
| A | 13 | 254 | 12109 | 63.83 | 883 | 868 | 176.1 |
| B | 0 | 230 | 279225 | 1716.59 | 870 | 853 | 162.2 |
| B | 12 | 111 | 19194 | 113.1 | 870 | 853 | 162.2 |
| B | 11 | 111 | 17415 | 102.13 | 870 | 853 | 162.2 |
| C | 14 | 238 | 138343 | 699.9 | 854 | 862 | 196.4 |
| C | 3 | 233 | 31531 | 156.13 | 854 | 862 | 196.4 |
| C | 7 | 247 | 15883 | 76.47 | 854 | 862 | 196.4 |
| D | 8 | 195 | 2414028 | 12538.37 | 815 | 794 | 192.5 |
| D | 1 | 52 | 2058783 | 10692.63 | 815 | 794 | 192.5 |
| D | 2 | 250 | 143860 | 743.32 | 815 | 794 | 192.5 |

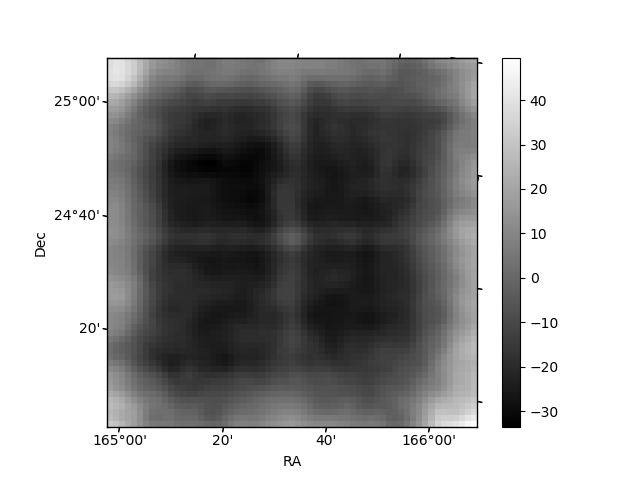

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

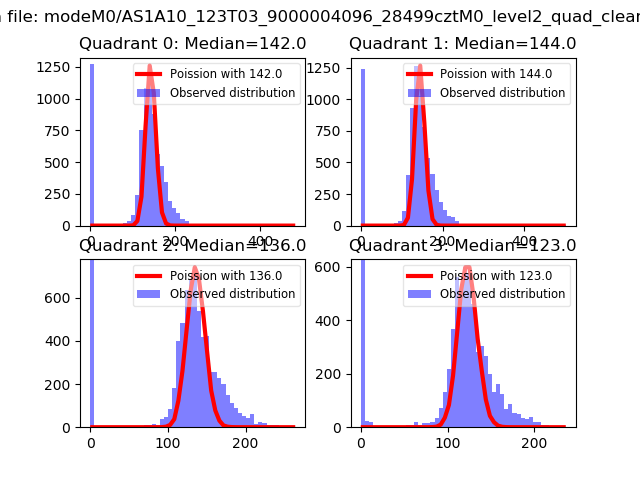

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

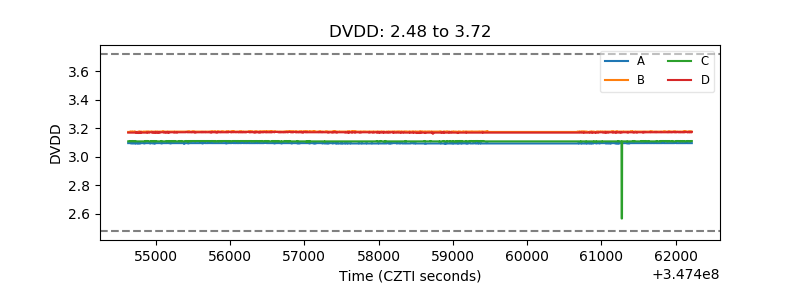

| D_VDD |  |

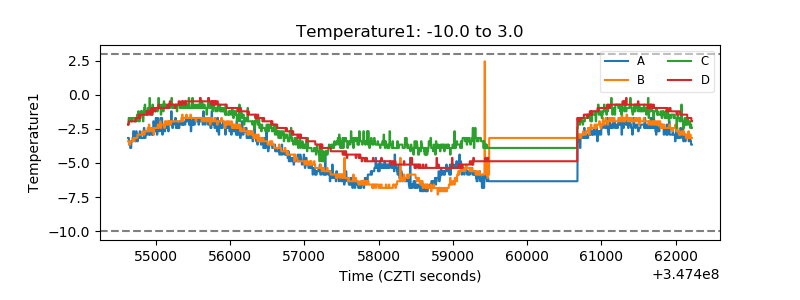

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

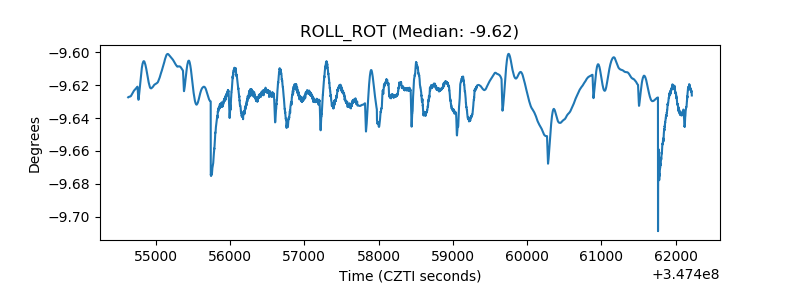

| _ROLL_ROT |  |
| _Roll_DEC |  |

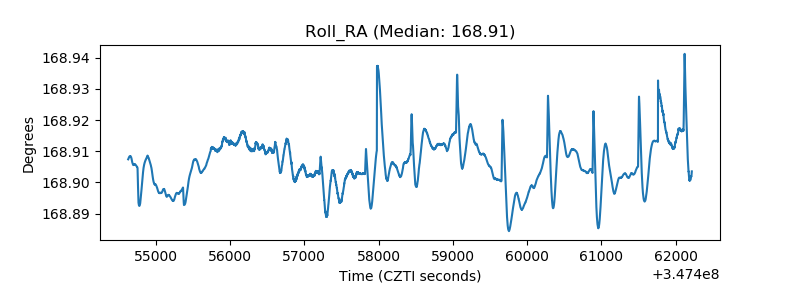

| _Roll_RA |  |
| Veto Counter |  |
