| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T03_9000004096_28500cztM0_level2.evt | modeM0/AS1A10_123T03_9000004096_28500cztM0_level2_quad_clean.evt |
| Size (bytes) | 700,171,200 | 67,590,720 |
| Size | 667.7 MB | 64.5 MB |
| Events in quadrant A | 3,572,547 | 416,250 |
| Events in quadrant B | 3,712,032 | 423,521 |
| Events in quadrant C | 3,695,804 | 408,253 |
| Events in quadrant D | 9,796,375 | 355,899 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14827 | 1 |
| B | 0 | 15101 | 1 |
| C | 0 | 15217 | 1 |
| D | 0 | 33525 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6340 | 88 | 1.388013% |
| B | 6340 | 101 | 1.593060% |
| C | 6340 | 162 | 2.555205% |
| D | 6339 | 1976 | 31.172109% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6340 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7610 | 6340 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7610 | 6340 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7608 | 6338 | 1928 | 1928 | 25.34% | 30.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 14203 | 72.68 | 921 | 906 | 182.9 |
| A | 13 | 254 | 12013 | 60.71 | 921 | 906 | 182.9 |
| A | 3 | 137 | 8136 | 39.52 | 921 | 906 | 182.9 |
| B | 0 | 230 | 125554 | 733.84 | 911 | 891 | 169.9 |
| B | 5 | 255 | 20568 | 115.83 | 911 | 891 | 169.9 |
| B | 12 | 111 | 19778 | 111.18 | 911 | 891 | 169.9 |
| C | 14 | 238 | 147315 | 716.14 | 894 | 904 | 204.4 |
| C | 7 | 247 | 39248 | 187.55 | 894 | 904 | 204.4 |
| C | 3 | 233 | 20814 | 97.39 | 894 | 904 | 204.4 |
| D | 1 | 52 | 5019216 | 26092.72 | 820 | 803 | 192.3 |
| D | 8 | 195 | 1555650 | 8084.27 | 820 | 803 | 192.3 |
| D | 2 | 250 | 46764 | 238.97 | 820 | 803 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

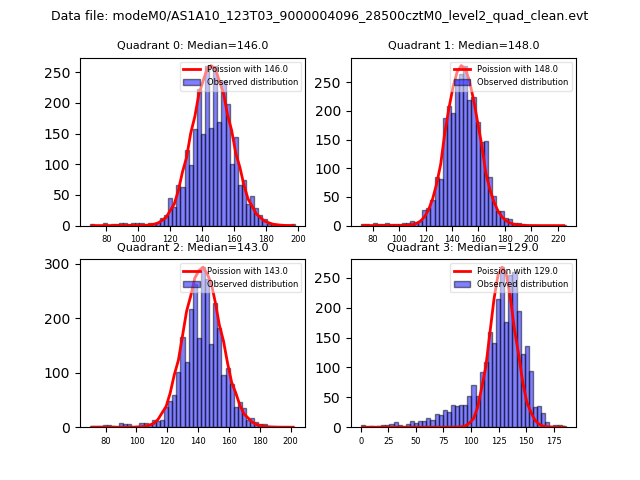

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

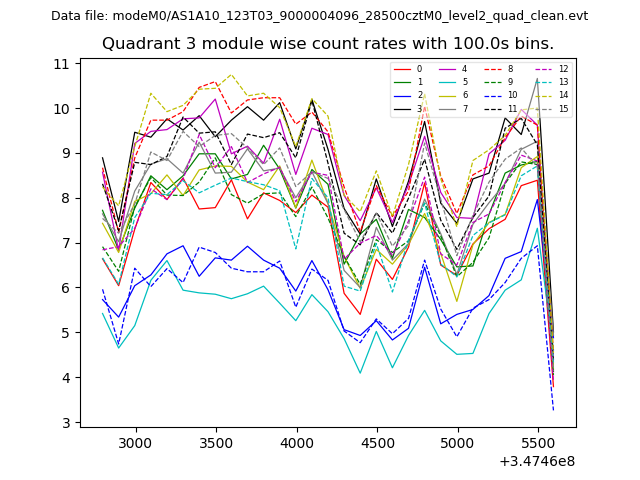

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

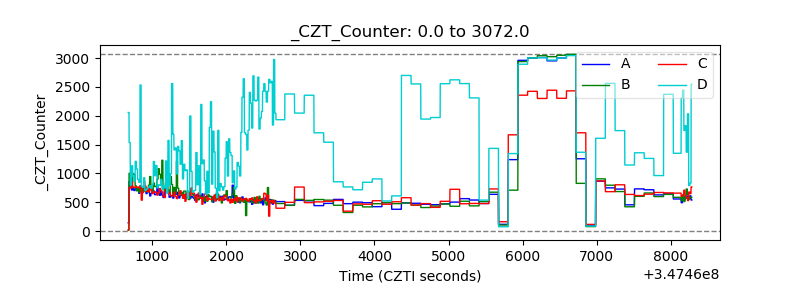

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

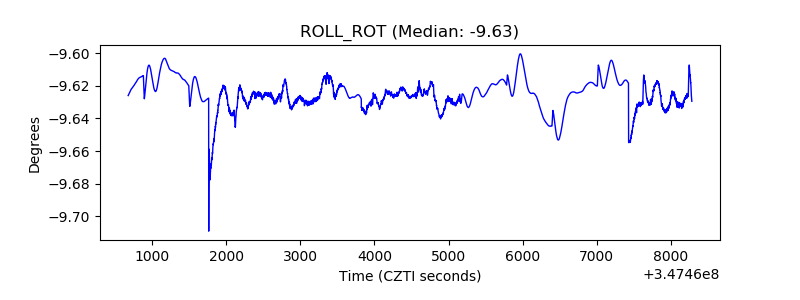

| _ROLL_ROT |  |

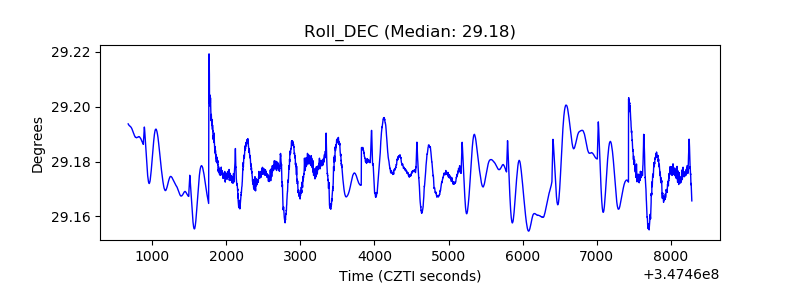

| _Roll_DEC |  |
| _Roll_RA |  |

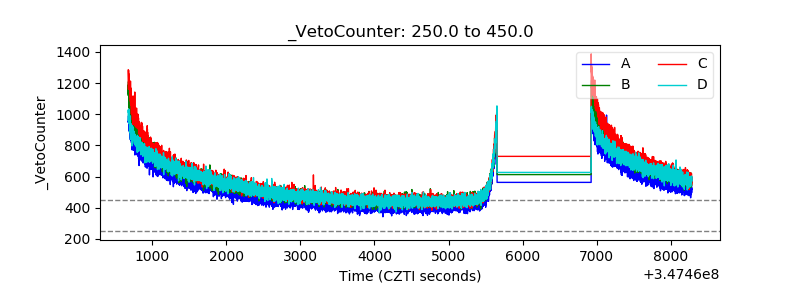

| Veto Counter |  |
