| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T09_9000004100_28517cztM0_level2.evt | modeM0/AS1A10_058T09_9000004100_28517cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,349,440 | 92,154,240 |
| Size | 509.6 MB | 87.9 MB |
| Events in quadrant A | 3,290,771 | 610,297 |
| Events in quadrant B | 3,555,673 | 619,705 |
| Events in quadrant C | 3,254,353 | 589,352 |
| Events in quadrant D | 5,649,888 | 526,549 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13763 | 2 |
| B | 0 | 14504 | 2 |
| C | 0 | 13524 | 2 |
| D | 0 | 21065 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6371 | 90 | 1.412651% |
| B | 6371 | 150 | 2.354418% |
| C | 6371 | 79 | 1.239994% |
| D | 6371 | 530 | 8.318945% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6371 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7561 | 6371 | 15 | 15 | 0.20% | 0.24% |  |
| C | 7561 | 6371 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7561 | 6372 | 531 | 531 | 7.02% | 8.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 49395 | 293.54 | 830 | 815 | 165.5 |
| A | 15 | 174 | 26149 | 153.08 | 830 | 815 | 165.5 |
| A | 13 | 254 | 11899 | 66.97 | 830 | 815 | 165.5 |
| B | 10 | 245 | 83694 | 535.78 | 826 | 806 | 154.7 |
| B | 0 | 230 | 68876 | 440.0 | 826 | 806 | 154.7 |
| B | 4 | 171 | 66020 | 421.54 | 826 | 806 | 154.7 |
| C | 14 | 238 | 127565 | 681.54 | 791 | 797 | 186.0 |
| C | 3 | 233 | 30519 | 159.79 | 791 | 797 | 186.0 |
| C | 7 | 247 | 11110 | 55.45 | 791 | 797 | 186.0 |
| D | 8 | 195 | 1386207 | 7519.74 | 764 | 744 | 184.2 |
| D | 12 | 233 | 992221 | 5381.34 | 764 | 744 | 184.2 |
| D | 1 | 52 | 214926 | 1162.49 | 764 | 744 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

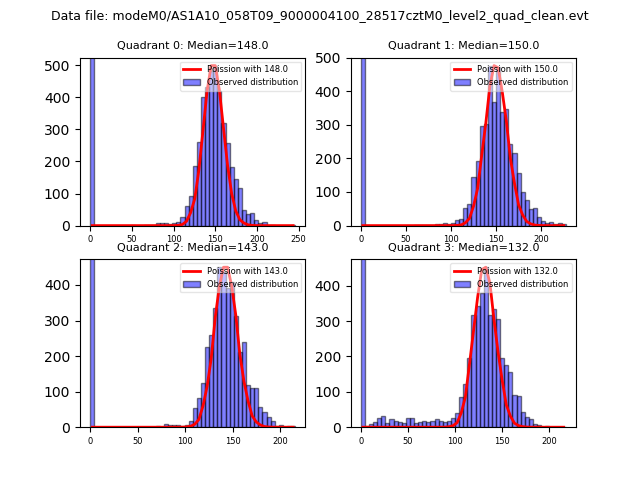

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

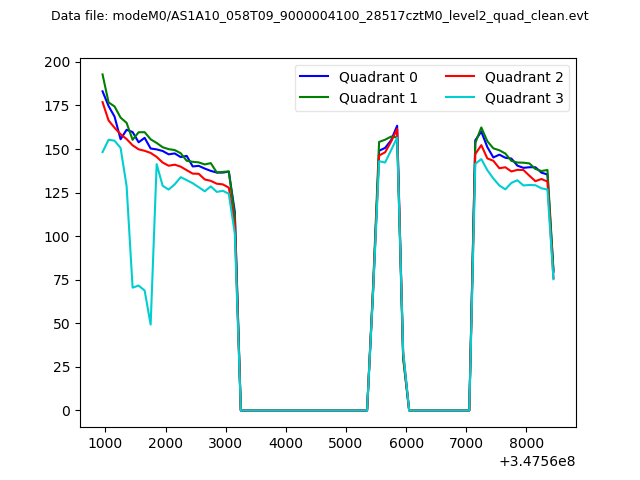

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

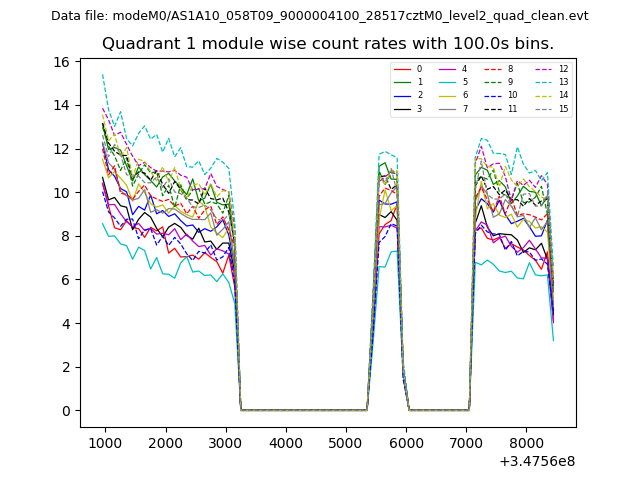

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

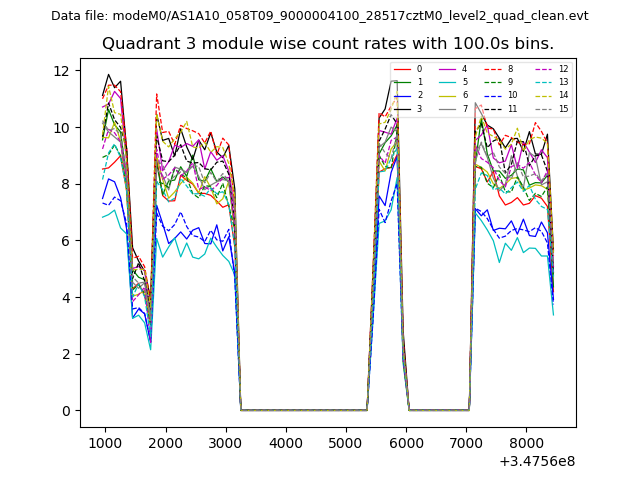

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

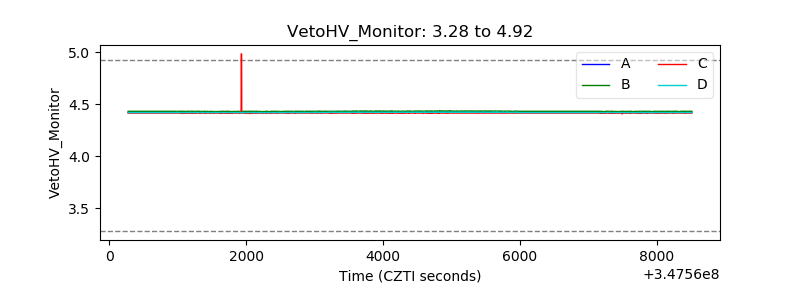

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

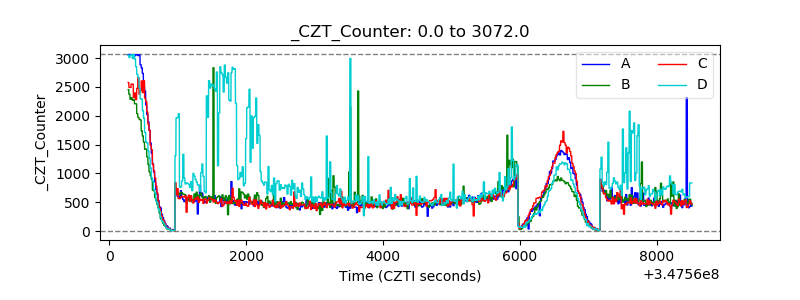

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

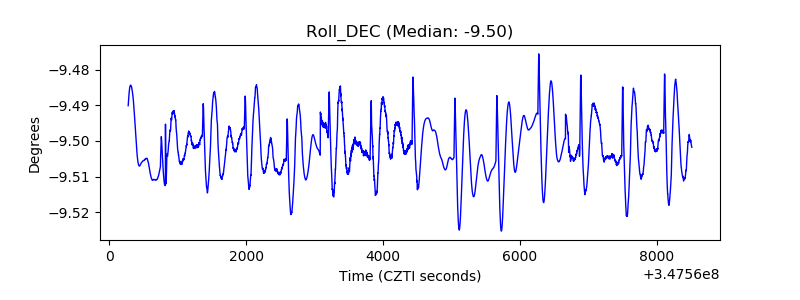

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

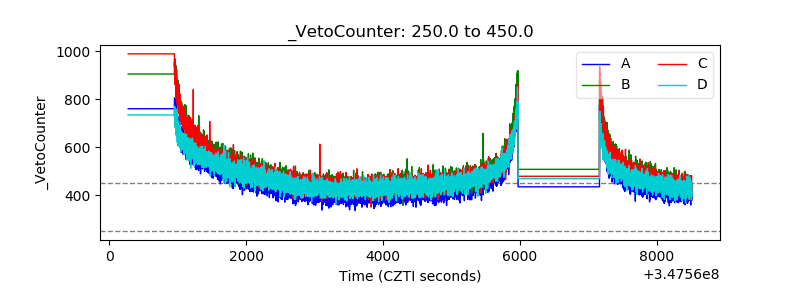

| Veto Counter |  |
