| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T09_9000004100_28518cztM0_level2.evt | modeM0/AS1A10_058T09_9000004100_28518cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,071,360 | 93,827,520 |
| Size | 507.4 MB | 89.5 MB |
| Events in quadrant A | 3,554,724 | 609,194 |
| Events in quadrant B | 3,918,356 | 617,212 |
| Events in quadrant C | 3,454,443 | 587,077 |
| Events in quadrant D | 4,736,381 | 565,283 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14906 | 2 |
| B | 0 | 15761 | 2 |
| C | 0 | 14257 | 2 |
| D | 0 | 18621 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6638 | 55 | 0.828563% |
| B | 6638 | 161 | 2.425429% |
| C | 6638 | 91 | 1.370895% |
| D | 6638 | 135 | 2.033745% |

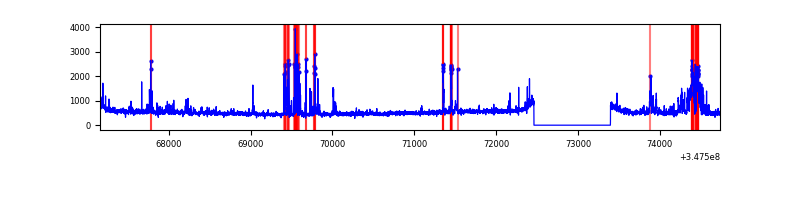

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7573 | 6638 | 18 | 18 | 0.24% | 0.27% |  |
| B | 7573 | 6639 | 72 | 72 | 0.95% | 1.08% |  |
| C | 7573 | 6638 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7573 | 6639 | 69 | 69 | 0.91% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 327547 | 1952.15 | 834 | 818 | 167.4 |
| A | 13 | 254 | 12239 | 68.24 | 834 | 818 | 167.4 |
| A | 3 | 137 | 7928 | 42.48 | 834 | 818 | 167.4 |
| B | 10 | 245 | 476528 | 3008.38 | 829 | 807 | 158.1 |
| B | 0 | 230 | 93150 | 583.96 | 829 | 807 | 158.1 |
| B | 5 | 172 | 57702 | 359.79 | 829 | 807 | 158.1 |
| C | 3 | 233 | 212854 | 1134.55 | 795 | 799 | 186.9 |
| C | 14 | 238 | 128576 | 683.64 | 795 | 799 | 186.9 |
| C | 7 | 247 | 11746 | 58.57 | 795 | 799 | 186.9 |
| D | 8 | 195 | 1407586 | 7359.12 | 795 | 774 | 191.2 |
| D | 1 | 52 | 132347 | 688.27 | 795 | 774 | 191.2 |
| D | 2 | 250 | 87621 | 454.3 | 795 | 774 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

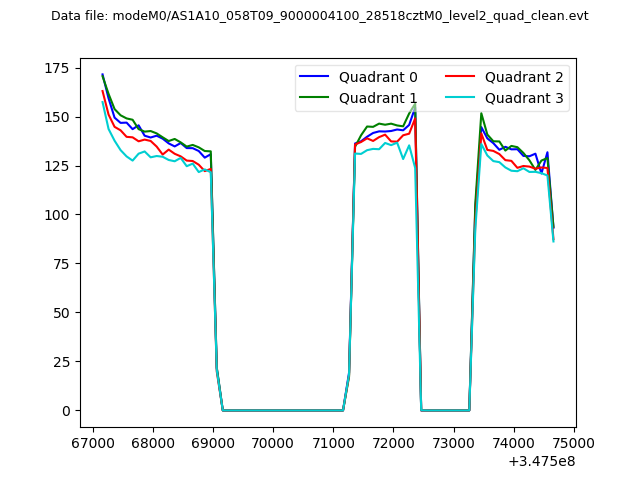

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

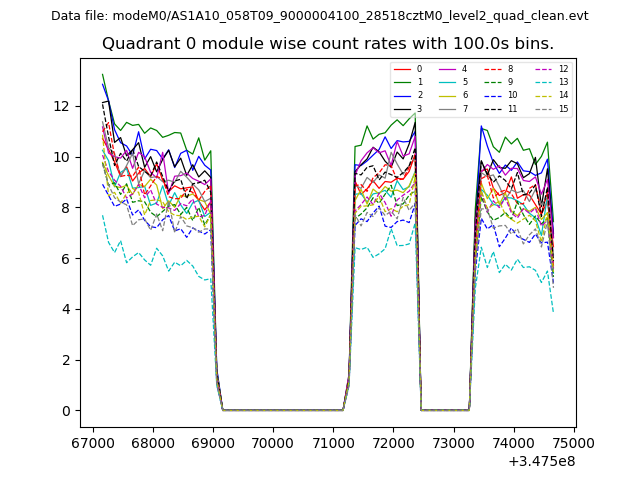

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

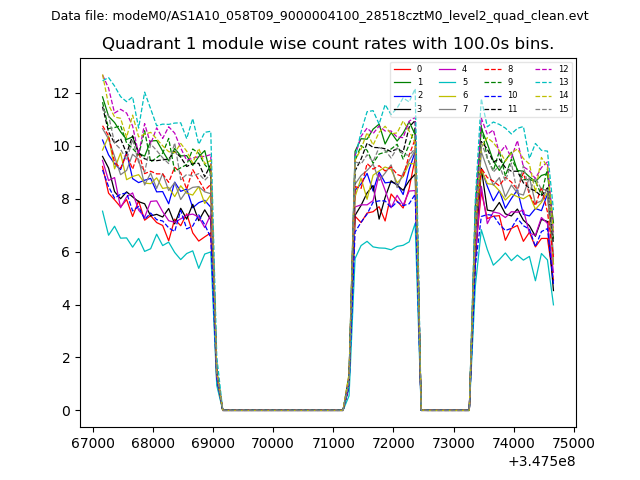

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

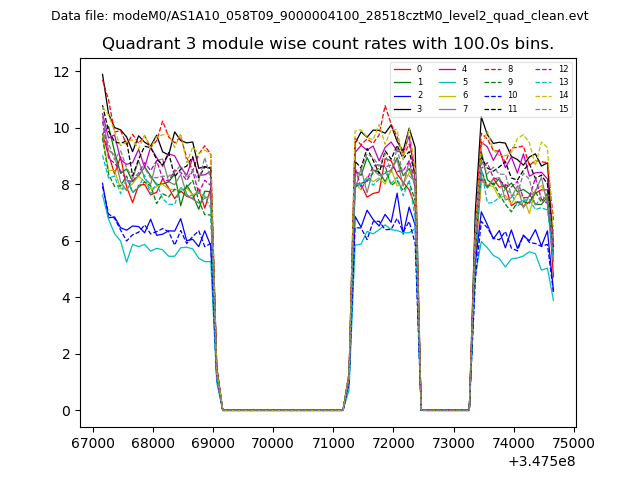

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

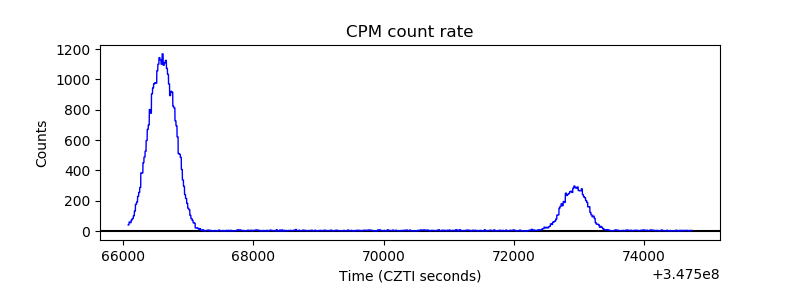

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

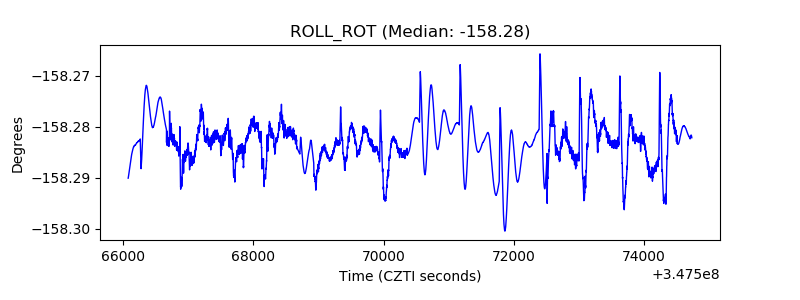

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

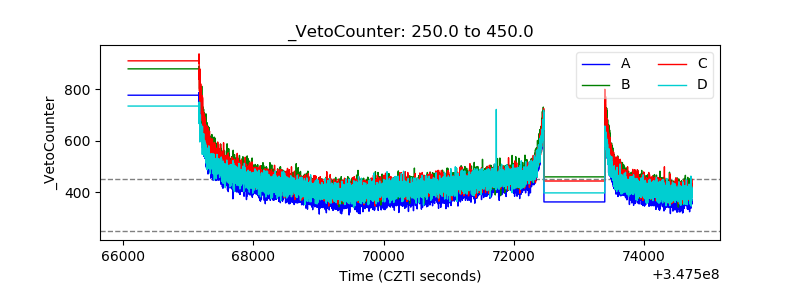

| Veto Counter |  |
