| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T09_9000004100_28521cztM0_level2.evt | modeM0/AS1A10_058T09_9000004100_28521cztM0_level2_quad_clean.evt |
| Size (bytes) | 675,164,160 | 95,042,880 |
| Size | 643.9 MB | 90.6 MB |
| Events in quadrant A | 4,328,159 | 591,356 |
| Events in quadrant B | 4,267,826 | 604,187 |
| Events in quadrant C | 4,048,117 | 579,461 |
| Events in quadrant D | 7,250,640 | 535,655 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18143 | 2 |
| B | 0 | 17861 | 2 |
| C | 0 | 17065 | 2 |
| D | 0 | 27092 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8165 | 164 | 2.008573% |
| B | 8165 | 153 | 1.873852% |
| C | 8165 | 138 | 1.690141% |
| D | 8166 | 716 | 8.768063% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8875 | 8165 | 63 | 63 | 0.71% | 0.77% |  |
| B | 8875 | 8165 | 29 | 29 | 0.33% | 0.36% |  |
| C | 8875 | 8165 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8876 | 8166 | 569 | 569 | 6.41% | 6.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 473849 | 2341.82 | 995 | 969 | 201.9 |
| A | 13 | 254 | 14309 | 66.06 | 995 | 969 | 201.9 |
| A | 8 | 192 | 11239 | 50.86 | 995 | 969 | 201.9 |
| B | 15 | 33 | 116608 | 596.02 | 1000 | 972 | 194.0 |
| B | 5 | 172 | 76437 | 388.97 | 1000 | 972 | 194.0 |
| B | 10 | 245 | 66561 | 338.07 | 1000 | 972 | 194.0 |
| C | 14 | 238 | 152960 | 669.72 | 963 | 968 | 226.9 |
| C | 3 | 233 | 132784 | 580.82 | 963 | 968 | 226.9 |
| C | 7 | 247 | 7024 | 26.68 | 963 | 968 | 226.9 |
| D | 1 | 52 | 2620279 | 11524.68 | 933 | 906 | 227.3 |
| D | 8 | 195 | 756575 | 3324.78 | 933 | 906 | 227.3 |
| D | 2 | 250 | 128227 | 560.19 | 933 | 906 | 227.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

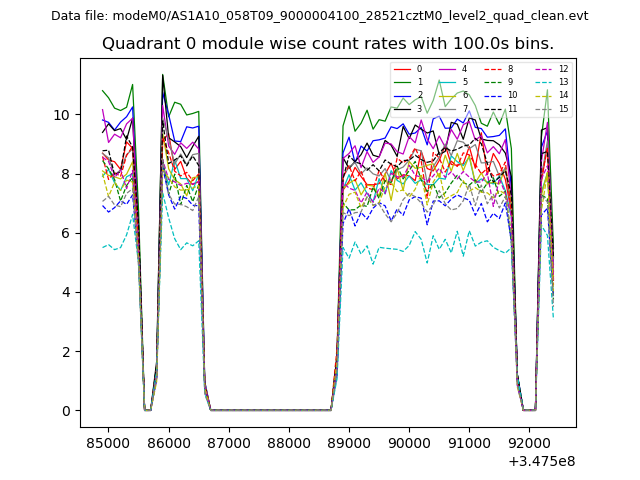

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

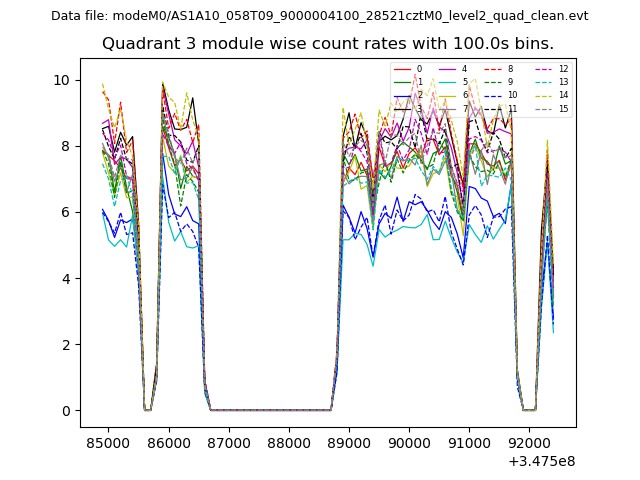

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

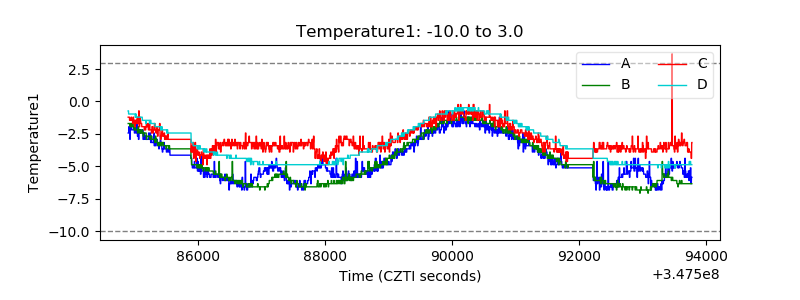

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

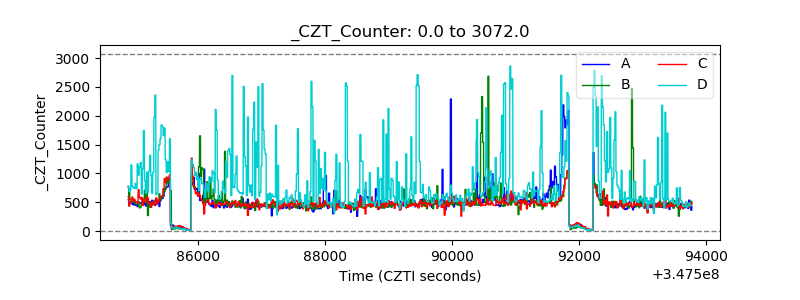

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

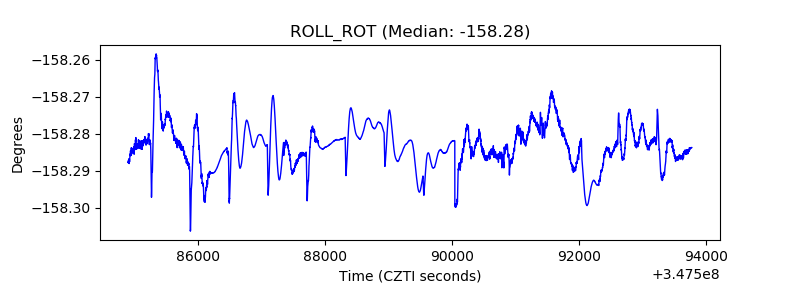

| _ROLL_ROT |  |
| _Roll_DEC |  |

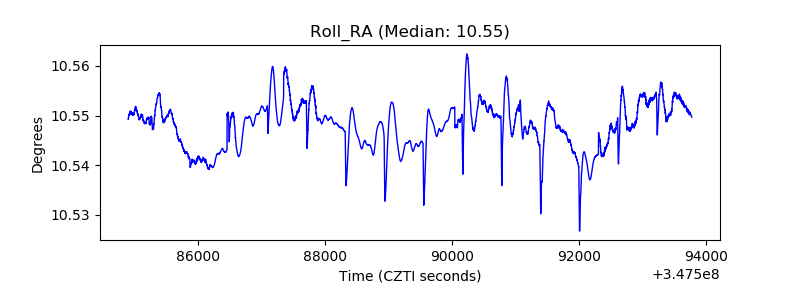

| _Roll_RA |  |

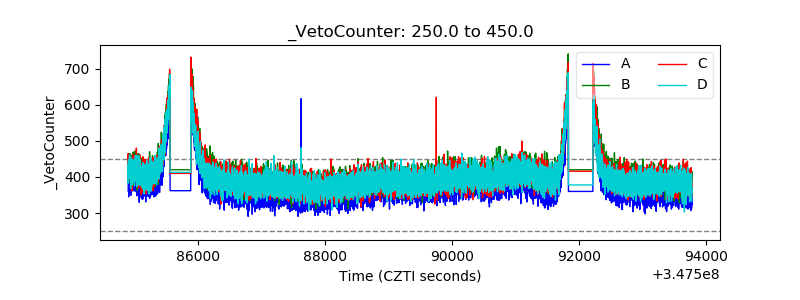

| Veto Counter |  |
