| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T09_9000004100_28530cztM0_level2.evt | modeM0/AS1A10_058T09_9000004100_28530cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,001,280 | 103,950,720 |
| Size | 556.0 MB | 99.1 MB |
| Events in quadrant A | 3,470,903 | 704,389 |
| Events in quadrant B | 4,007,818 | 706,724 |
| Events in quadrant C | 3,399,259 | 665,732 |
| Events in quadrant D | 6,345,393 | 624,814 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14362 | 2 |
| B | 0 | 16023 | 2 |
| C | 0 | 14088 | 2 |
| D | 0 | 23600 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6391 | 107 | 1.674229% |
| B | 6391 | 258 | 4.036927% |
| C | 6391 | 140 | 2.190581% |
| D | 6390 | 470 | 7.355243% |

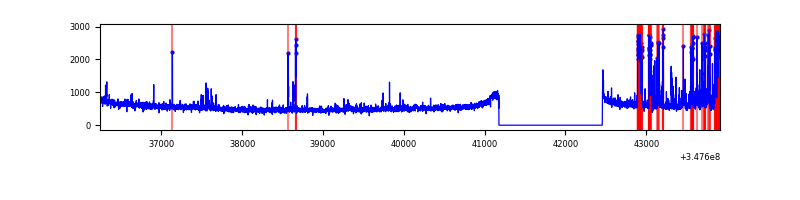

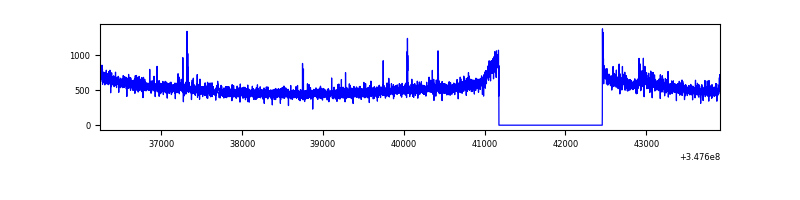

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7671 | 6391 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7671 | 6391 | 137 | 137 | 1.79% | 2.14% |  |
| C | 7671 | 6391 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7669 | 6389 | 447 | 447 | 5.83% | 7.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 93705 | 541.94 | 872 | 860 | 171.3 |
| A | 13 | 254 | 12918 | 70.38 | 872 | 860 | 171.3 |
| A | 3 | 137 | 7795 | 40.48 | 872 | 860 | 171.3 |
| B | 10 | 245 | 551398 | 3440.38 | 857 | 839 | 160.0 |
| B | 0 | 230 | 41560 | 254.46 | 857 | 839 | 160.0 |
| B | 14 | 207 | 23227 | 139.9 | 857 | 839 | 160.0 |
| C | 14 | 238 | 136251 | 715.58 | 816 | 825 | 189.3 |
| C | 3 | 233 | 58521 | 304.86 | 816 | 825 | 189.3 |
| C | 7 | 247 | 13254 | 65.67 | 816 | 825 | 189.3 |
| D | 8 | 195 | 2031817 | 10548.91 | 810 | 790 | 192.5 |
| D | 1 | 52 | 1020771 | 5297.66 | 810 | 790 | 192.5 |
| D | 2 | 250 | 97012 | 499.77 | 810 | 790 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

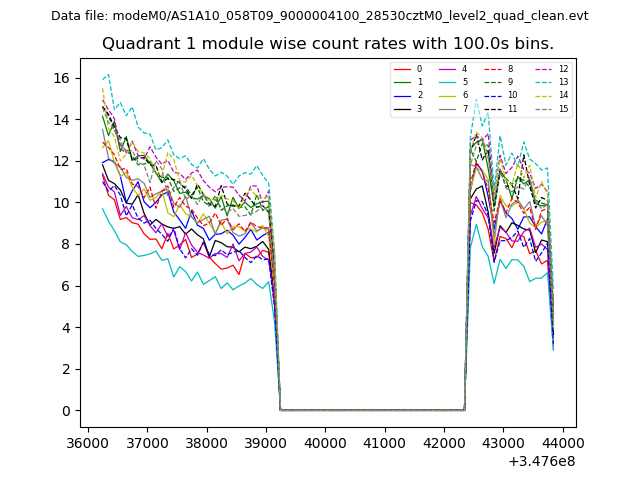

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

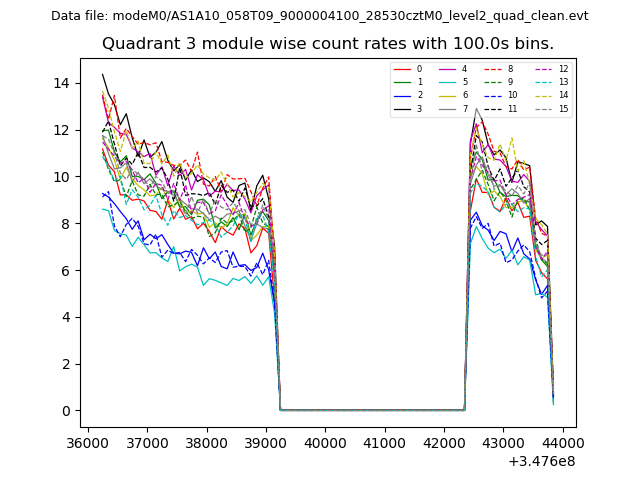

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

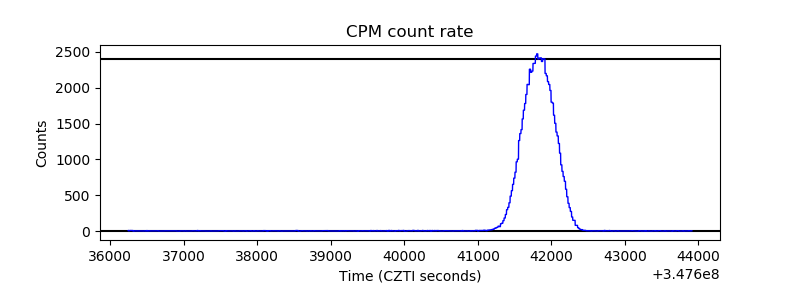

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

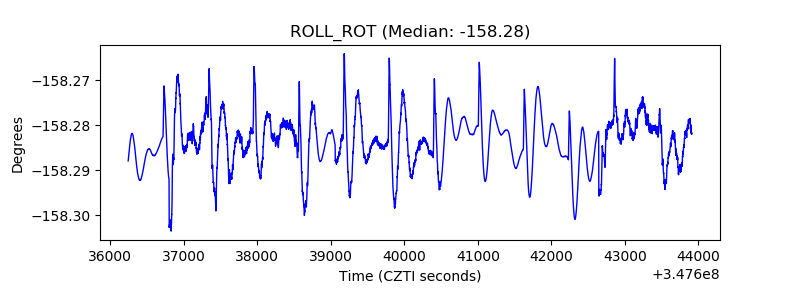

| _ROLL_ROT |  |

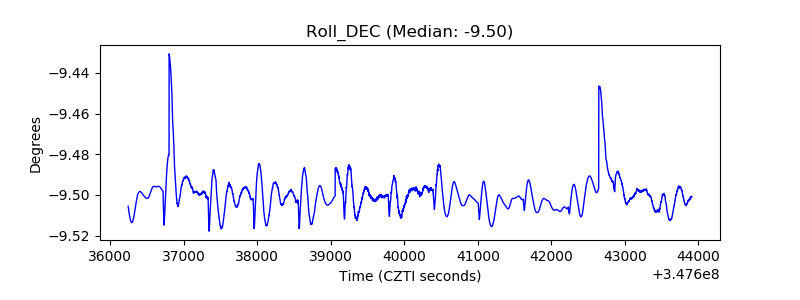

| _Roll_DEC |  |

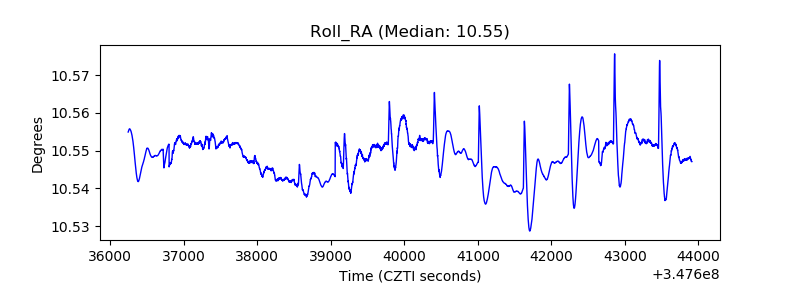

| _Roll_RA |  |
| Veto Counter |  |
