| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T09_9000004100_28532cztM0_level2.evt | modeM0/AS1A10_058T09_9000004100_28532cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,571,200 | 92,880,000 |
| Size | 509.8 MB | 88.6 MB |
| Events in quadrant A | 3,362,484 | 607,142 |
| Events in quadrant B | 3,506,848 | 618,163 |
| Events in quadrant C | 3,417,950 | 579,028 |
| Events in quadrant D | 5,458,899 | 552,309 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14177 | 2 |
| B | 0 | 14470 | 2 |
| C | 0 | 14359 | 2 |
| D | 0 | 20708 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6541 | 90 | 1.375936% |
| B | 6541 | 108 | 1.651124% |
| C | 6541 | 307 | 4.693472% |
| D | 6541 | 314 | 4.800489% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7640 | 6540 | 16 | 16 | 0.21% | 0.24% |  |
| B | 7641 | 6541 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7641 | 6541 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7641 | 6541 | 292 | 292 | 3.82% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 134990 | 806.7 | 830 | 813 | 166.3 |
| A | 8 | 192 | 16265 | 92.9 | 830 | 813 | 166.3 |
| A | 13 | 254 | 13264 | 74.86 | 830 | 813 | 166.3 |
| B | 5 | 172 | 48201 | 299.16 | 830 | 810 | 158.4 |
| B | 0 | 230 | 46689 | 289.61 | 830 | 810 | 158.4 |
| B | 10 | 245 | 39339 | 243.22 | 830 | 810 | 158.4 |
| C | 14 | 238 | 188842 | 1031.85 | 779 | 786 | 182.3 |
| C | 14 | 254 | 88126 | 479.23 | 779 | 786 | 182.3 |
| C | 3 | 233 | 42723 | 230.11 | 779 | 786 | 182.3 |
| D | 1 | 52 | 1315422 | 7030.36 | 783 | 763 | 187.0 |
| D | 8 | 195 | 938493 | 5014.67 | 783 | 763 | 187.0 |
| D | 6 | 242 | 91681 | 486.2 | 783 | 763 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

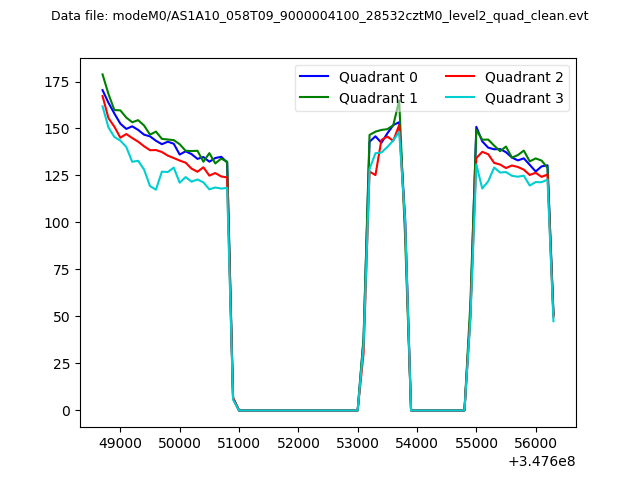

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

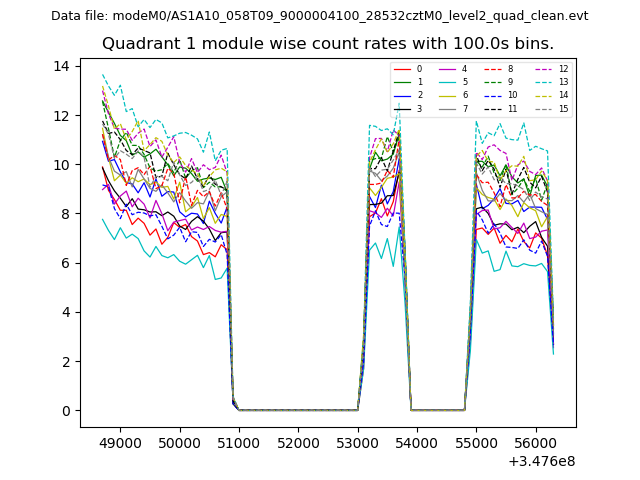

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

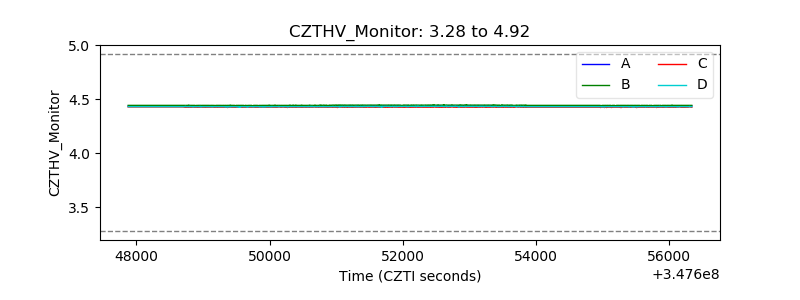

| CZT HV Monitor |  |

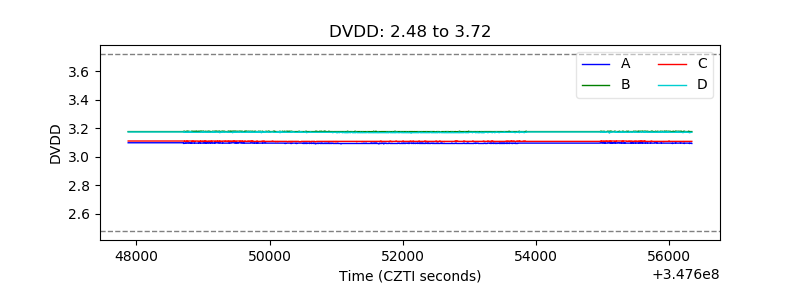

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

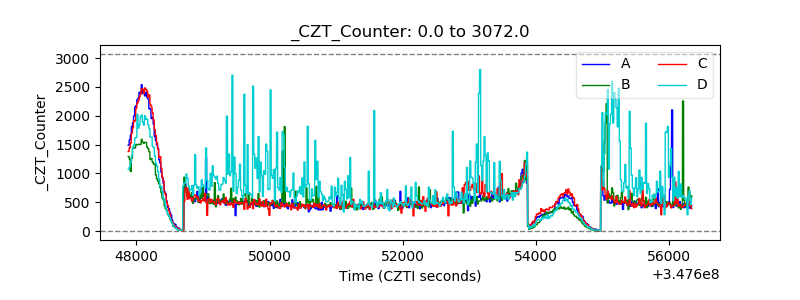

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

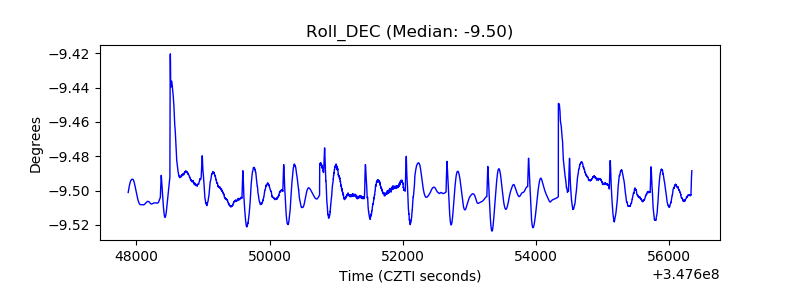

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
