| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T09_9000004100_28535cztM0_level2.evt | modeM0/AS1A10_058T09_9000004100_28535cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,757,760 | 102,150,720 |
| Size | 665.4 MB | 97.4 MB |
| Events in quadrant A | 4,217,413 | 652,400 |
| Events in quadrant B | 4,438,674 | 654,576 |
| Events in quadrant C | 4,087,189 | 630,794 |
| Events in quadrant D | 7,830,249 | 582,316 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17855 | 3 |
| B | 0 | 18386 | 3 |
| C | 0 | 17309 | 3 |
| D | 0 | 28969 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8243 | 94 | 1.140362% |
| B | 8243 | 221 | 2.681063% |
| C | 8243 | 138 | 1.674148% |
| D | 8244 | 871 | 10.565260% |

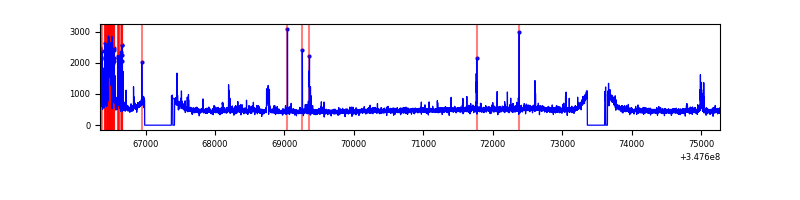

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

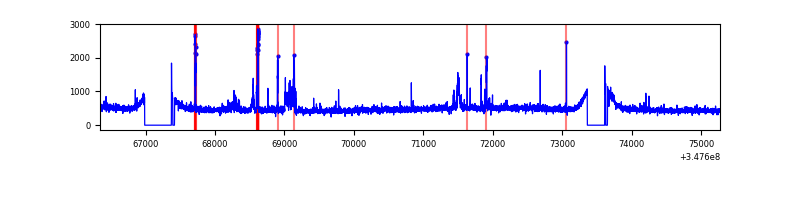

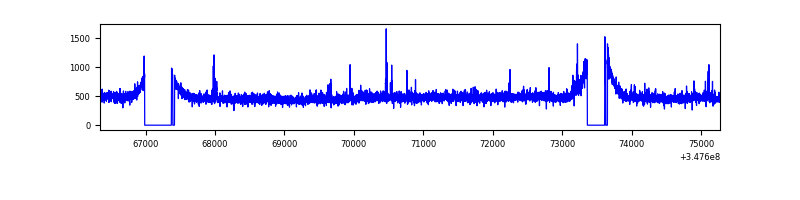

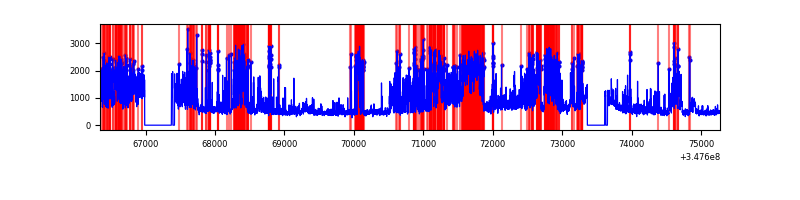

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8928 | 8246 | 28 | 28 | 0.31% | 0.34% |  |
| B | 8928 | 8244 | 71 | 71 | 0.80% | 0.86% |  |
| C | 8928 | 8245 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8929 | 8246 | 626 | 626 | 7.01% | 7.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 287275 | 1379.03 | 1014 | 991 | 207.6 |
| A | 13 | 254 | 16826 | 76.28 | 1014 | 991 | 207.6 |
| A | 3 | 137 | 9997 | 43.38 | 1014 | 991 | 207.6 |
| B | 5 | 172 | 207609 | 1068.52 | 1006 | 980 | 193.4 |
| B | 5 | 255 | 72838 | 371.59 | 1006 | 980 | 193.4 |
| B | 0 | 230 | 49539 | 251.11 | 1006 | 980 | 193.4 |
| C | 14 | 238 | 153529 | 658.49 | 971 | 975 | 231.7 |
| C | 7 | 247 | 69566 | 296.07 | 971 | 975 | 231.7 |
| C | 3 | 233 | 67896 | 288.86 | 971 | 975 | 231.7 |
| D | 1 | 52 | 2017084 | 8745.84 | 950 | 921 | 230.5 |
| D | 8 | 195 | 1645896 | 7135.68 | 950 | 921 | 230.5 |
| D | 2 | 250 | 364051 | 1575.21 | 950 | 921 | 230.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

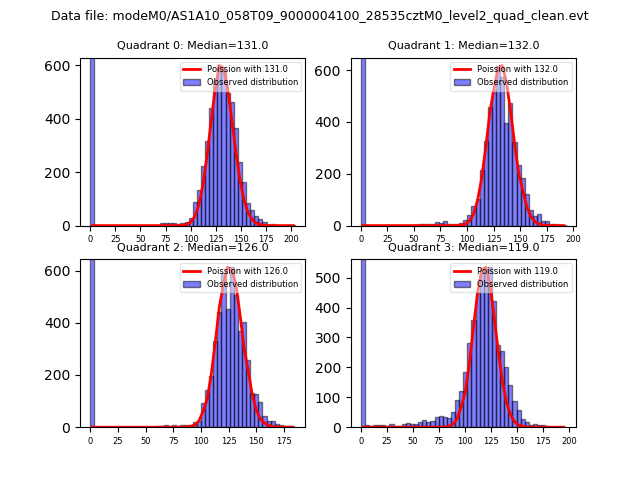

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

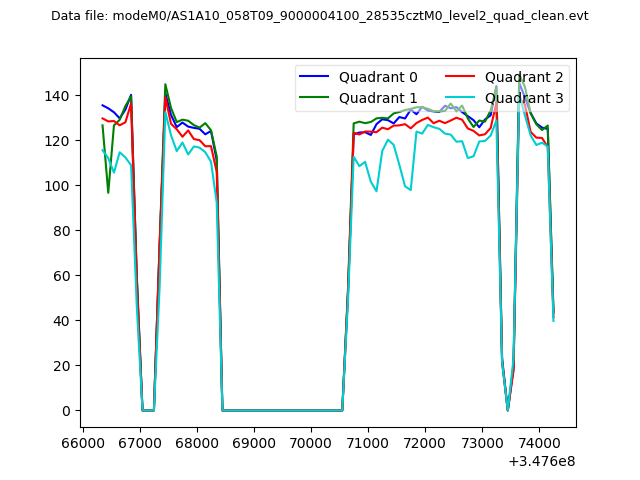

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

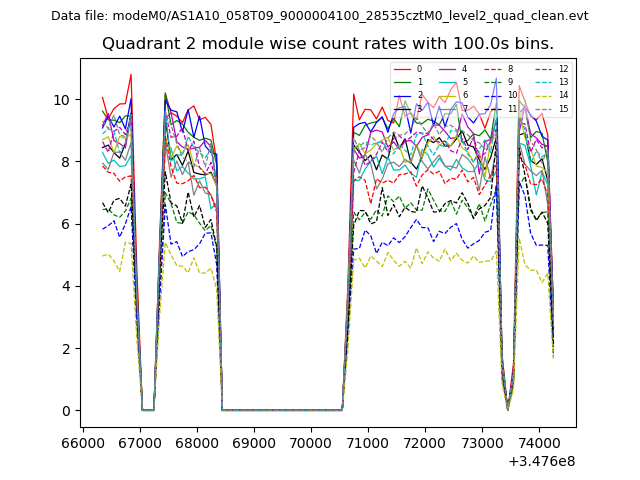

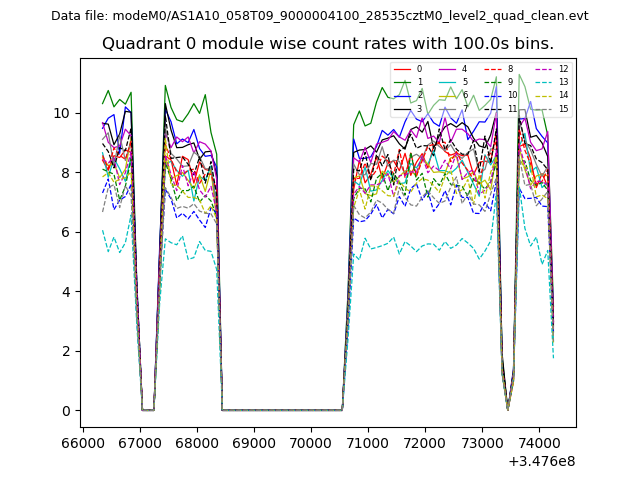

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

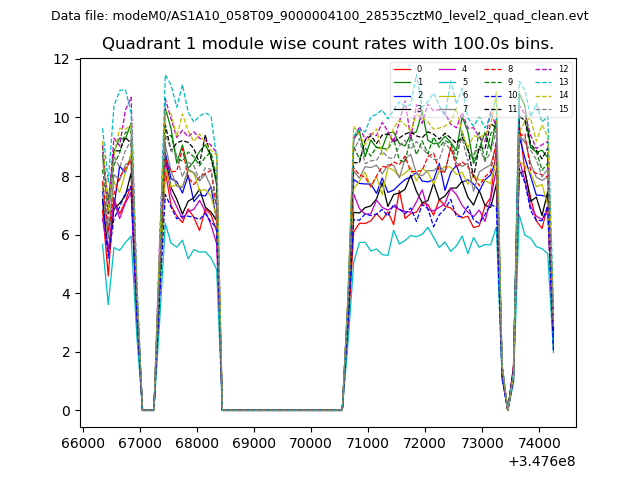

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

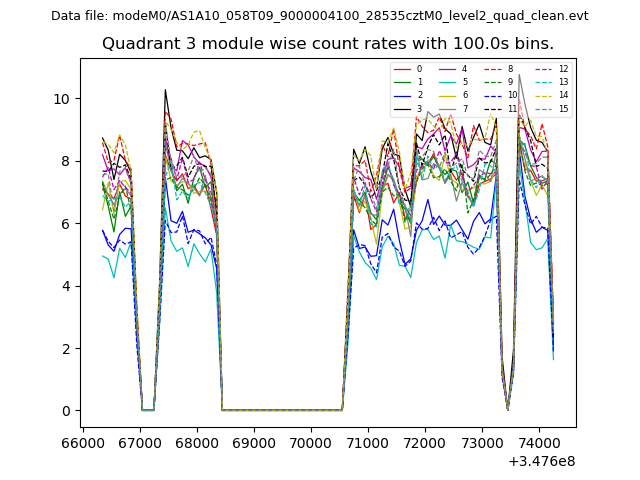

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

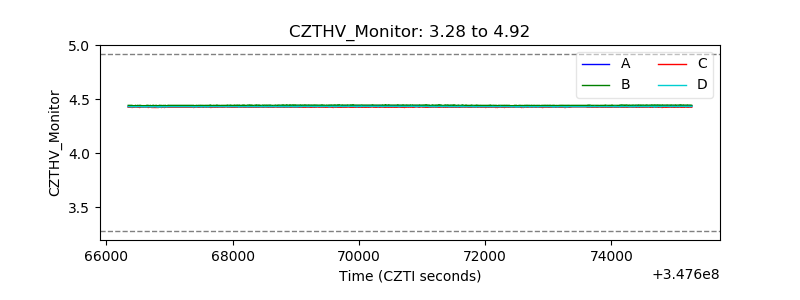

| CZT HV Monitor |  |

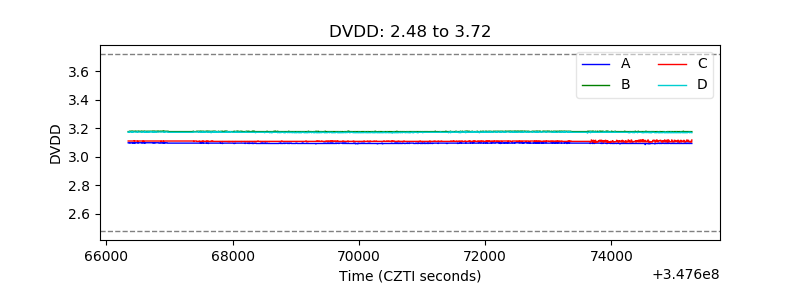

| D_VDD |  |

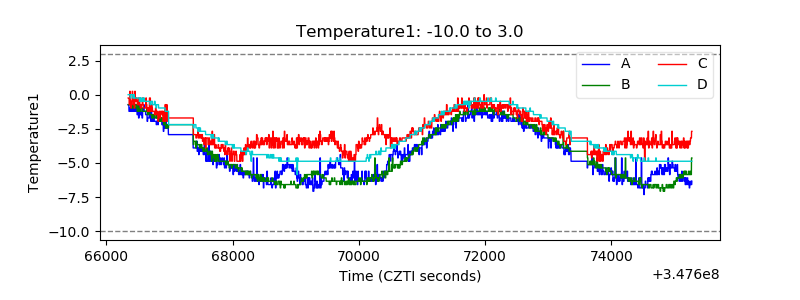

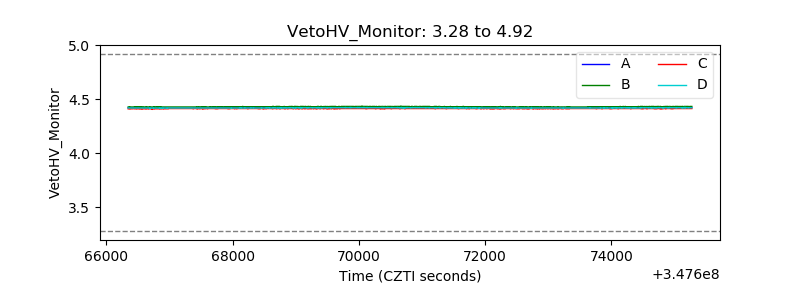

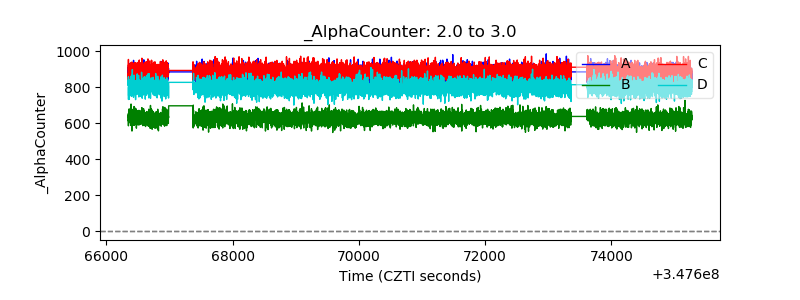

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

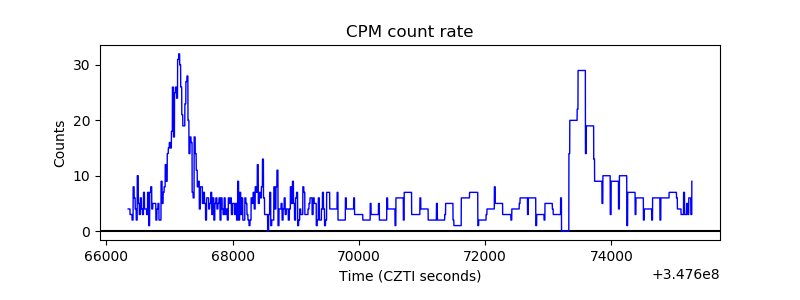

| _CPM_Rate |  |

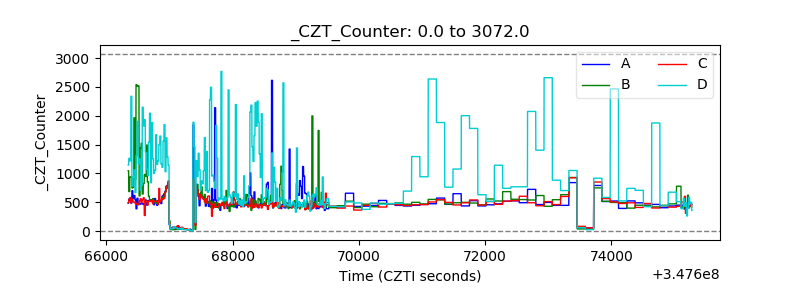

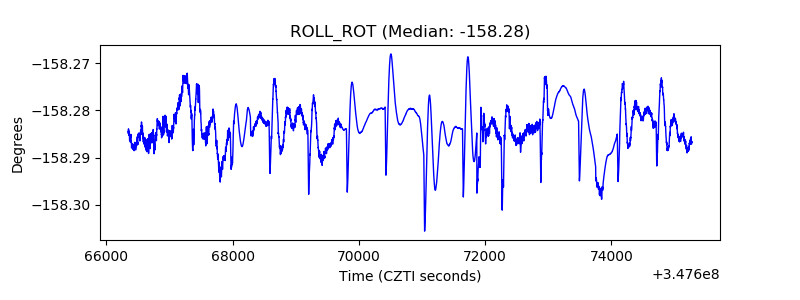

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

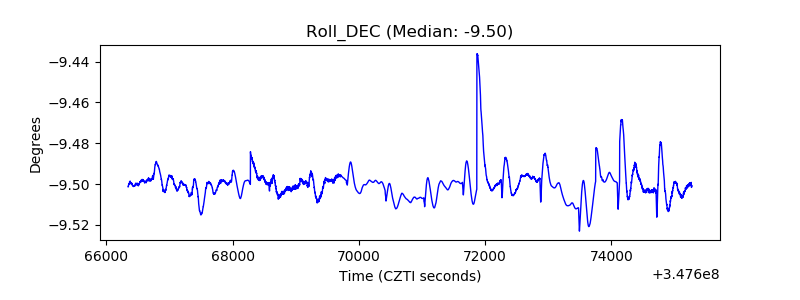

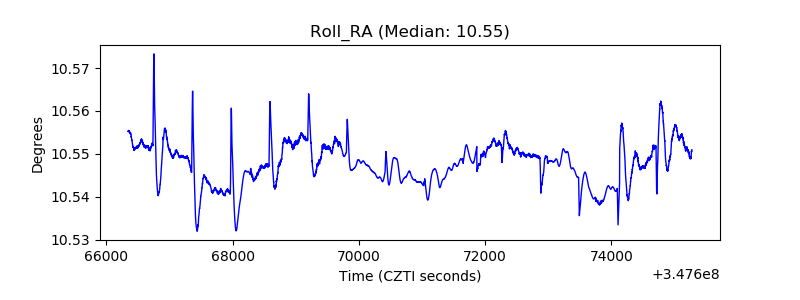

| _Roll_DEC |  |
| _Roll_RA |  |

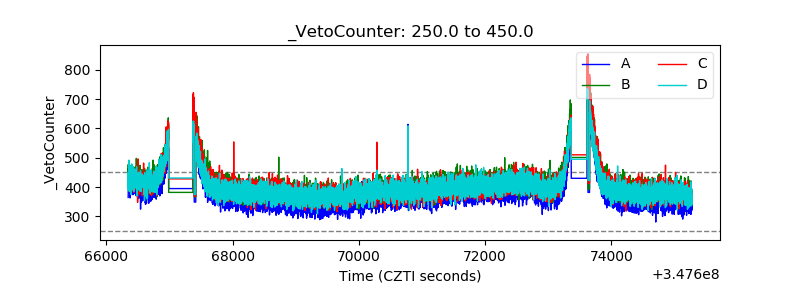

| Veto Counter |  |
