| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T07_9000004102_28545cztM0_level2.evt | modeM0/AS1A10_102T07_9000004102_28545cztM0_level2_quad_clean.evt |
| Size (bytes) | 636,667,200 | 113,503,680 |
| Size | 607.2 MB | 108.2 MB |
| Events in quadrant A | 4,647,389 | 788,655 |
| Events in quadrant B | 3,888,737 | 790,261 |
| Events in quadrant C | 3,456,302 | 729,609 |
| Events in quadrant D | 6,848,306 | 674,368 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18025 | 2 |
| B | 0 | 15621 | 2 |
| C | 0 | 14272 | 2 |
| D | 0 | 24862 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6516 | 483 | 7.412523% |
| B | 6516 | 262 | 4.020872% |
| C | 6516 | 115 | 1.764886% |
| D | 6515 | 773 | 11.864927% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

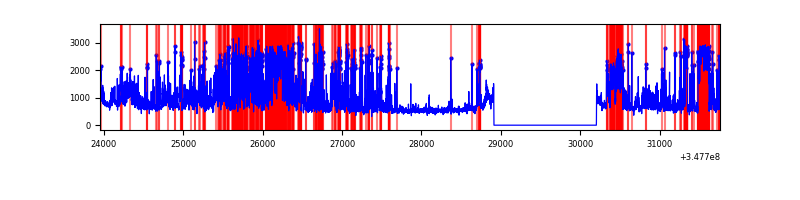

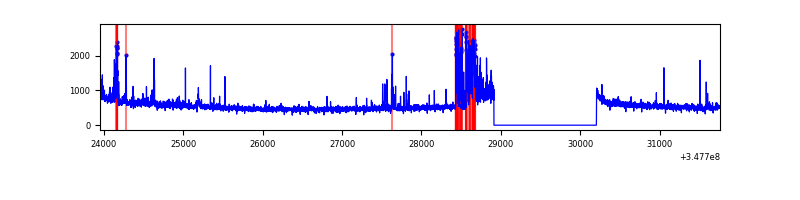

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7807 | 6516 | 342 | 342 | 4.38% | 5.25% |  |
| B | 7807 | 6516 | 60 | 60 | 0.77% | 0.92% |  |
| C | 7807 | 6516 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7806 | 6515 | 748 | 748 | 9.58% | 11.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1255194 | 7186.94 | 878 | 865 | 174.5 |
| A | 13 | 254 | 12713 | 67.89 | 878 | 865 | 174.5 |
| A | 3 | 137 | 7948 | 40.58 | 878 | 865 | 174.5 |
| B | 10 | 245 | 422765 | 2540.64 | 874 | 857 | 166.1 |
| B | 12 | 111 | 19440 | 111.9 | 874 | 857 | 166.1 |
| B | 11 | 111 | 17298 | 99.0 | 874 | 857 | 166.1 |
| C | 14 | 238 | 137570 | 713.67 | 829 | 836 | 191.6 |
| C | 7 | 247 | 45376 | 232.47 | 829 | 836 | 191.6 |
| C | 3 | 233 | 33329 | 169.59 | 829 | 836 | 191.6 |
| D | 1 | 52 | 2627243 | 13468.51 | 817 | 796 | 195.0 |
| D | 8 | 195 | 794269 | 4068.96 | 817 | 796 | 195.0 |
| D | 2 | 250 | 145292 | 740.98 | 817 | 796 | 195.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

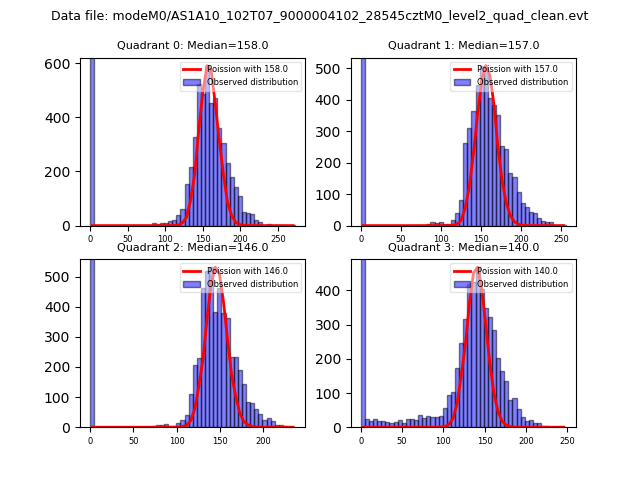

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

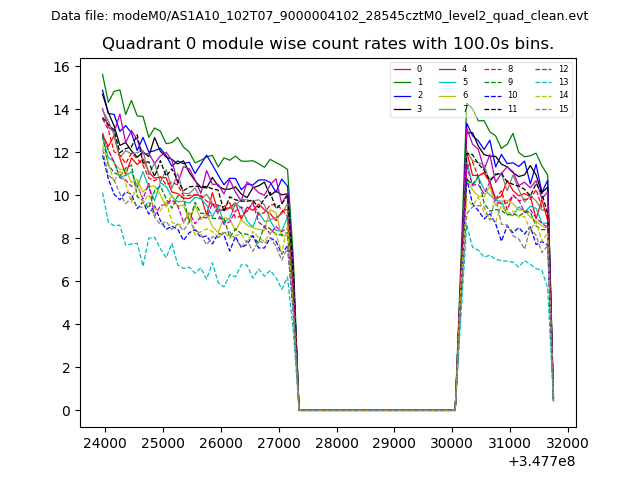

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

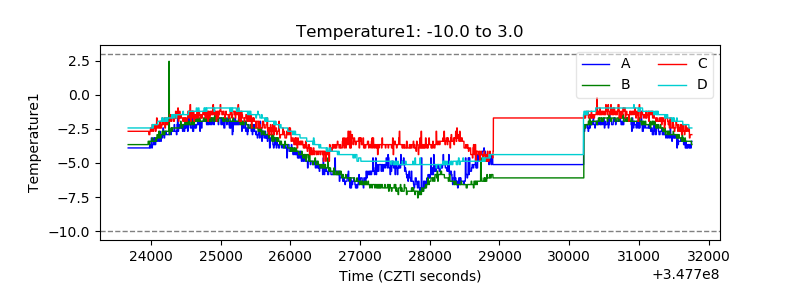

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

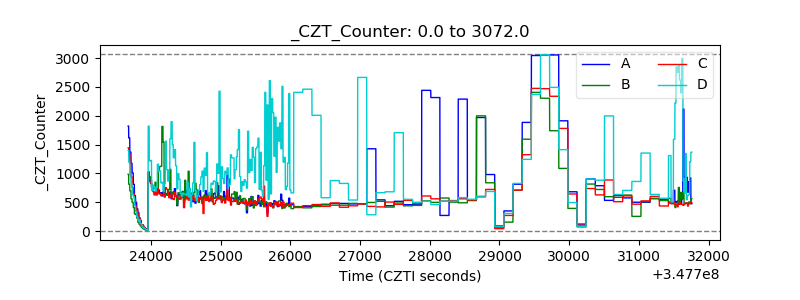

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

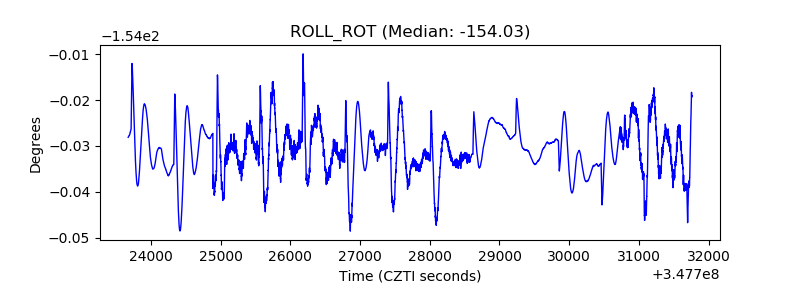

| _ROLL_ROT |  |

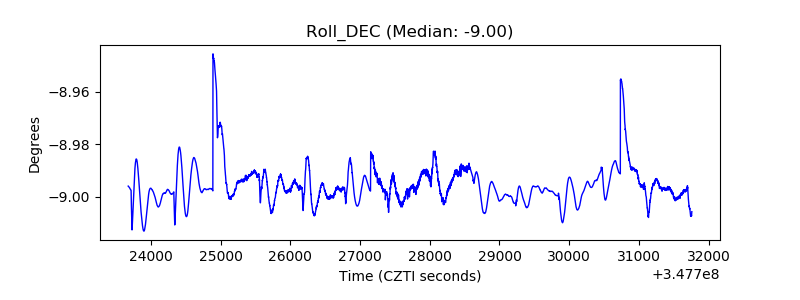

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
