| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T07_9000004102_28554cztM0_level2.evt | modeM0/AS1A10_102T07_9000004102_28554cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,005,120 | 74,891,520 |
| Size | 524.5 MB | 71.4 MB |
| Events in quadrant A | 3,457,369 | 466,277 |
| Events in quadrant B | 3,632,744 | 465,666 |
| Events in quadrant C | 3,389,905 | 448,093 |
| Events in quadrant D | 5,717,292 | 415,136 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14431 | 2 |
| B | 0 | 14926 | 2 |
| C | 0 | 14299 | 2 |
| D | 0 | 21244 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6782 | 75 | 1.105868% |
| B | 6782 | 174 | 2.565615% |
| C | 6782 | 109 | 1.607196% |
| D | 6781 | 667 | 9.836307% |

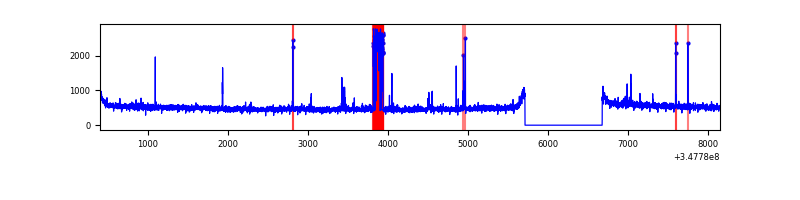

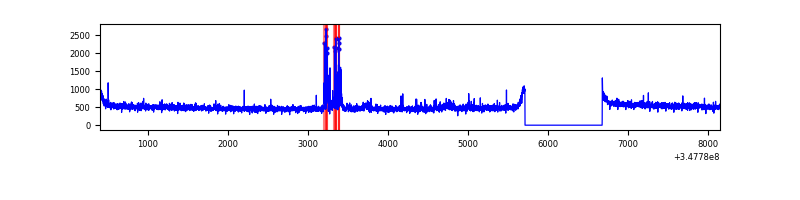

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7747 | 6782 | 13 | 13 | 0.17% | 0.19% |  |
| B | 7747 | 6782 | 84 | 84 | 1.08% | 1.24% |  |
| C | 7747 | 6782 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7746 | 6781 | 637 | 637 | 8.22% | 9.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 130177 | 744.55 | 861 | 842 | 173.7 |
| A | 13 | 254 | 10292 | 54.4 | 861 | 842 | 173.7 |
| A | 3 | 137 | 8430 | 43.68 | 861 | 842 | 173.7 |
| B | 10 | 245 | 227467 | 1398.31 | 850 | 829 | 162.1 |
| B | 4 | 171 | 29619 | 177.63 | 850 | 829 | 162.1 |
| B | 0 | 230 | 22117 | 131.34 | 850 | 829 | 162.1 |
| C | 14 | 238 | 131456 | 676.0 | 822 | 828 | 193.2 |
| C | 7 | 247 | 43583 | 221.26 | 822 | 828 | 193.2 |
| C | 3 | 233 | 13965 | 67.98 | 822 | 828 | 193.2 |
| D | 1 | 52 | 2109875 | 10909.33 | 804 | 781 | 193.3 |
| D | 8 | 195 | 462188 | 2386.64 | 804 | 781 | 193.3 |
| D | 6 | 112 | 32530 | 164.22 | 804 | 781 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

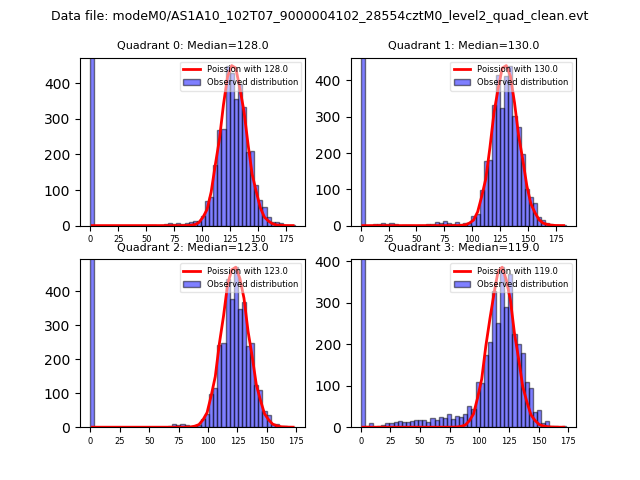

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

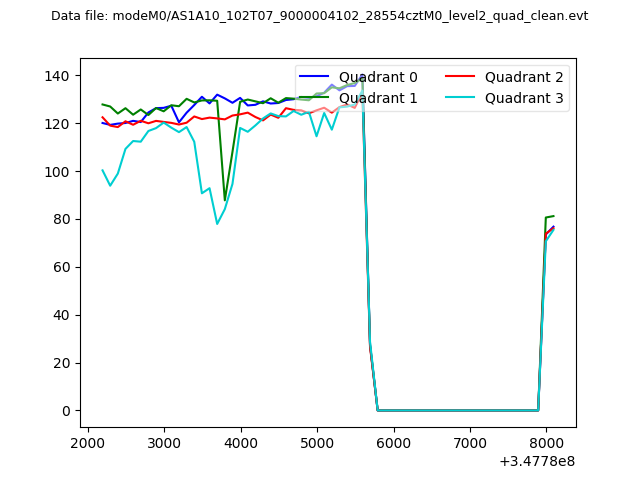

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

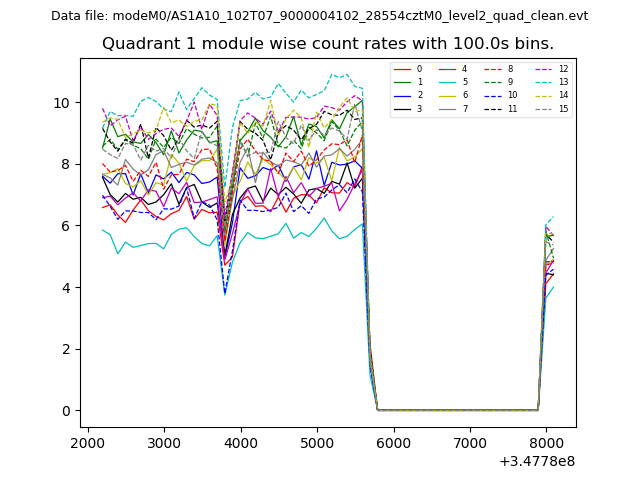

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

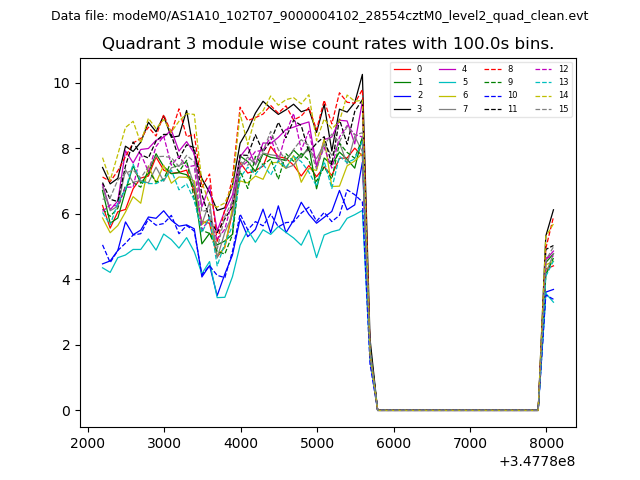

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

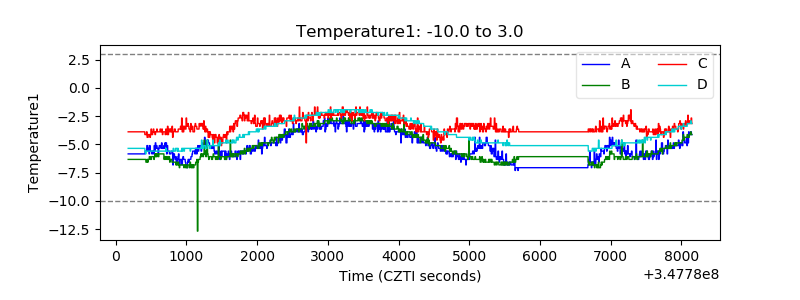

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

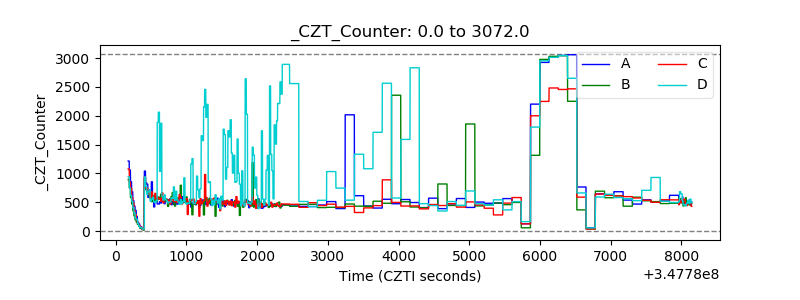

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
