| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T07_9000004102_28560cztM0_level2.evt | modeM0/AS1A10_102T07_9000004102_28560cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,367,680 | 109,537,920 |
| Size | 503.9 MB | 104.5 MB |
| Events in quadrant A | 3,590,821 | 745,665 |
| Events in quadrant B | 3,854,376 | 745,577 |
| Events in quadrant C | 3,380,164 | 691,806 |
| Events in quadrant D | 4,734,126 | 679,732 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14751 | 2 |
| B | 0 | 15519 | 3 |
| C | 0 | 14039 | 2 |
| D | 0 | 18474 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6516 | 135 | 2.071823% |
| B | 6515 | 170 | 2.609363% |
| C | 6515 | 129 | 1.980046% |
| D | 6515 | 159 | 2.440522% |

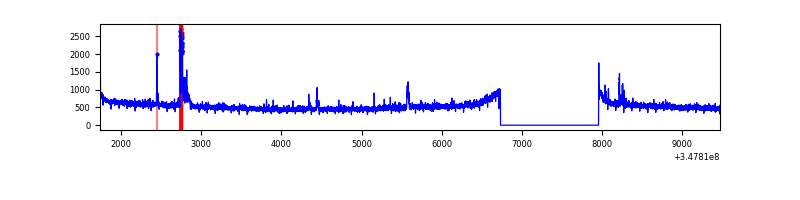

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7741 | 6516 | 24 | 24 | 0.31% | 0.37% |  |
| B | 7740 | 6515 | 41 | 41 | 0.53% | 0.63% |  |
| C | 7740 | 6515 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7740 | 6515 | 132 | 132 | 1.71% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 173396 | 978.86 | 884 | 872 | 176.3 |
| A | 8 | 192 | 11013 | 57.54 | 884 | 872 | 176.3 |
| A | 13 | 254 | 10985 | 57.38 | 884 | 872 | 176.3 |
| B | 10 | 245 | 318041 | 1936.04 | 865 | 847 | 163.8 |
| B | 4 | 171 | 92715 | 560.73 | 865 | 847 | 163.8 |
| B | 15 | 33 | 22091 | 129.67 | 865 | 847 | 163.8 |
| C | 14 | 238 | 133403 | 690.39 | 820 | 826 | 192.0 |
| C | 7 | 247 | 40607 | 207.16 | 820 | 826 | 192.0 |
| C | 3 | 233 | 9204 | 43.63 | 820 | 826 | 192.0 |
| D | 1 | 52 | 782517 | 3948.12 | 839 | 820 | 198.0 |
| D | 8 | 195 | 660807 | 3333.4 | 839 | 820 | 198.0 |
| D | 10 | 199 | 31317 | 154.03 | 839 | 820 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

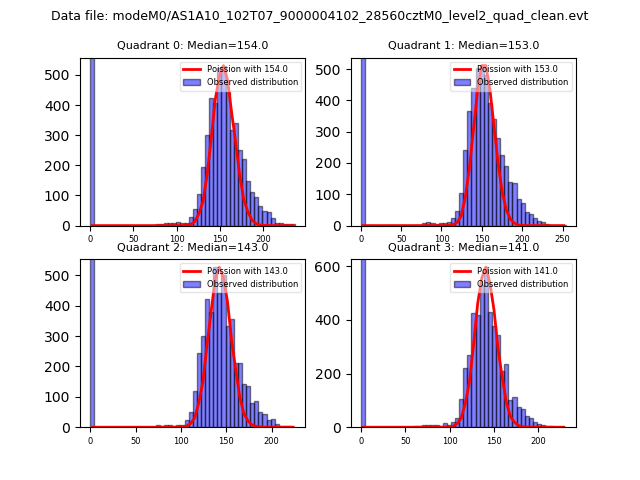

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

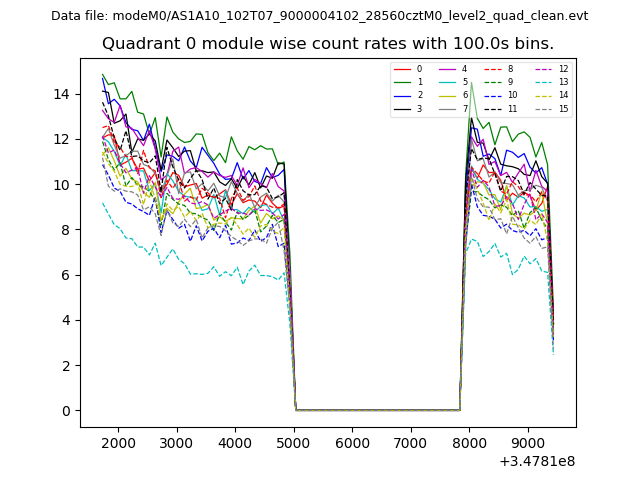

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

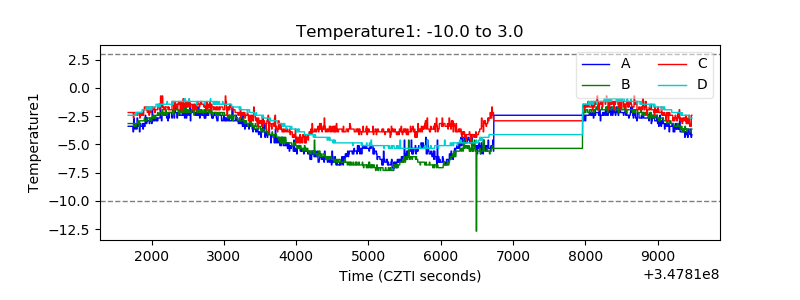

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

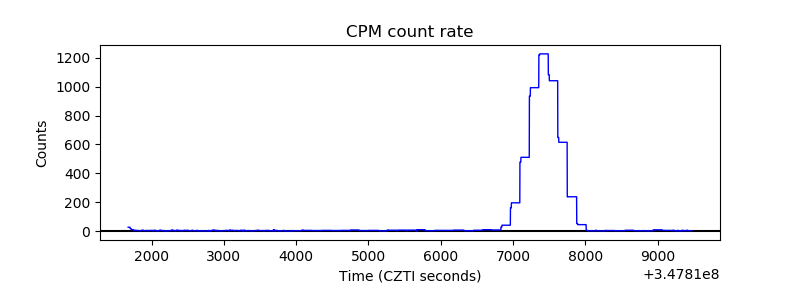

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

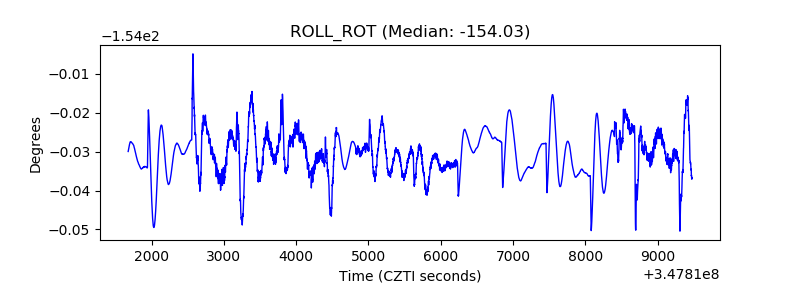

| _ROLL_ROT |  |

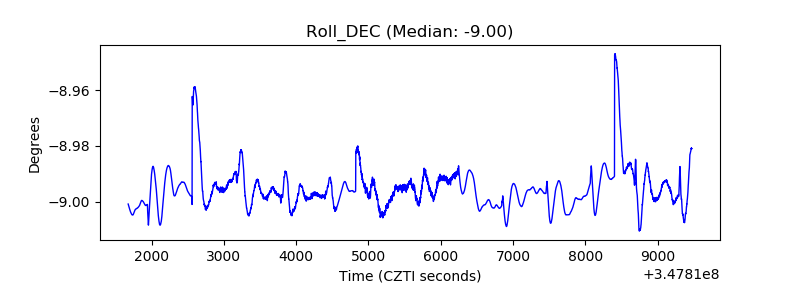

| _Roll_DEC |  |
| _Roll_RA |  |

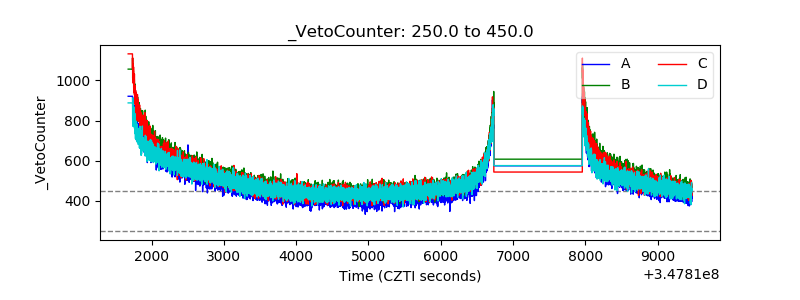

| Veto Counter |  |
