| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_110T01_9000004104_28576cztM0_level2.evt | modeM0/AS1A10_110T01_9000004104_28576cztM0_level2_quad_clean.evt |
| Size (bytes) | 175,703,040 | 24,716,160 |
| Size | 167.6 MB | 23.6 MB |
| Events in quadrant A | 1,154,891 | 148,538 |
| Events in quadrant B | 1,156,586 | 151,244 |
| Events in quadrant C | 1,157,593 | 145,756 |
| Events in quadrant D | 1,700,714 | 143,761 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4743 | 1 |
| B | 0 | 4735 | 1 |
| C | 0 | 4720 | 1 |
| D | 0 | 6509 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2191 | 13 | 0.593336% |
| B | 2191 | 18 | 0.821543% |
| C | 2191 | 35 | 1.597444% |
| D | 2191 | 339 | 15.472387% |

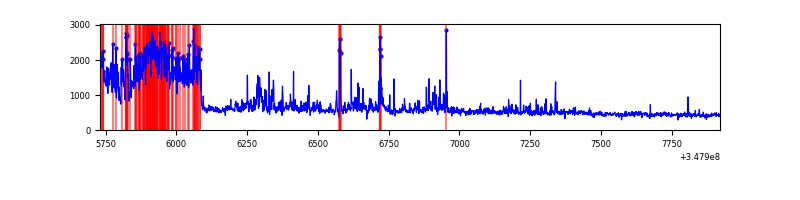

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2191 | 2191 | 3 | 3 | 0.14% | 0.14% |  |
| B | 2191 | 2191 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2191 | 2191 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2191 | 2191 | 124 | 124 | 5.66% | 5.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 29027 | 487.76 | 289 | 284 | 58.9 |
| A | 8 | 192 | 6464 | 104.87 | 289 | 284 | 58.9 |
| A | 13 | 254 | 3876 | 60.95 | 289 | 284 | 58.9 |
| B | 5 | 255 | 6879 | 116.74 | 290 | 283 | 56.5 |
| B | 12 | 111 | 6588 | 111.59 | 290 | 283 | 56.5 |
| B | 4 | 171 | 6530 | 110.56 | 290 | 283 | 56.5 |
| C | 14 | 238 | 45069 | 667.63 | 280 | 282 | 67.1 |
| C | 7 | 247 | 8963 | 129.41 | 280 | 282 | 67.1 |
| C | 0 | 207 | 6788 | 96.98 | 280 | 282 | 67.1 |
| D | 1 | 52 | 687298 | 11355.8 | 246 | 239 | 60.5 |
| D | 8 | 195 | 46003 | 756.39 | 246 | 239 | 60.5 |
| D | 2 | 250 | 16869 | 274.86 | 246 | 239 | 60.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

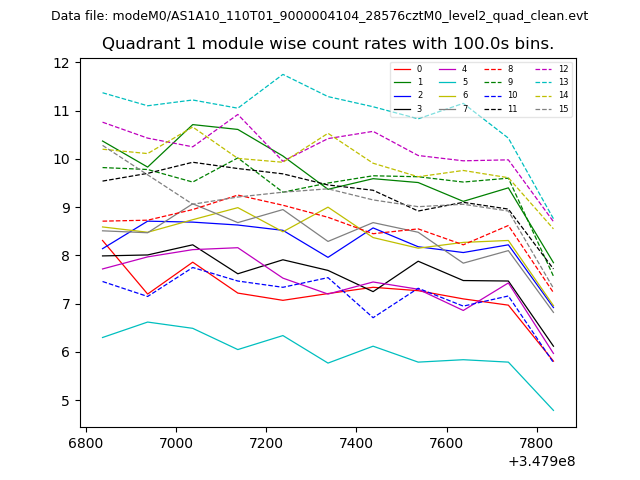

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

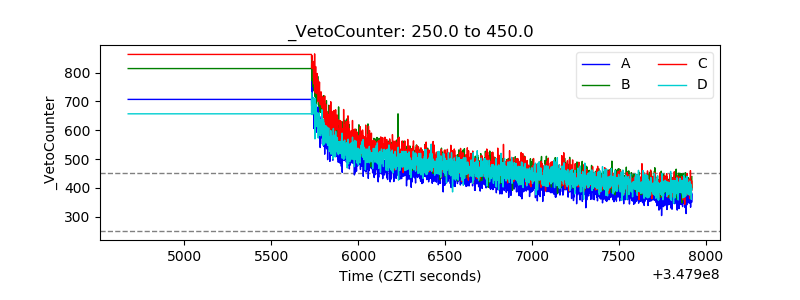

| Veto HV Monitor |  |
| Veto LLD |  |

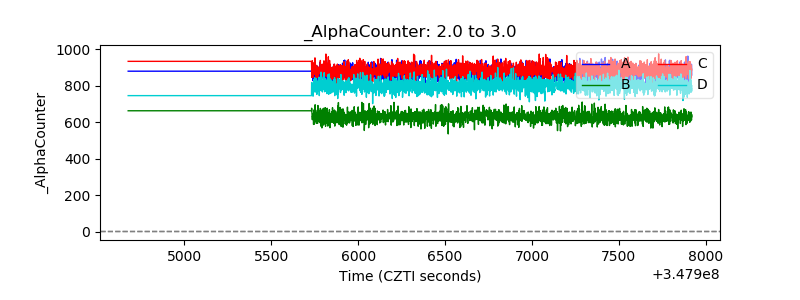

| Alpha Counter |  |

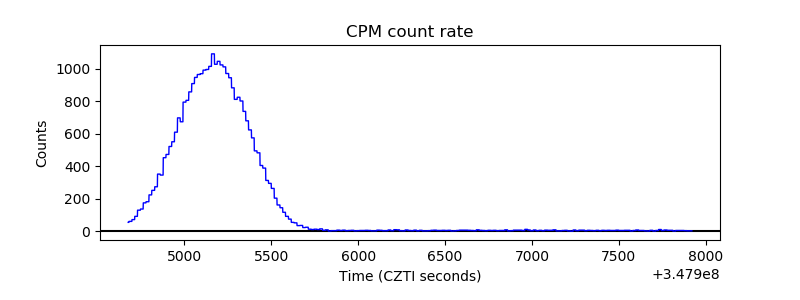

| _CPM_Rate |  |

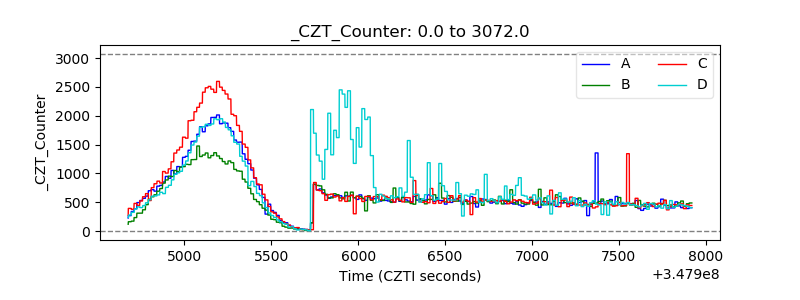

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

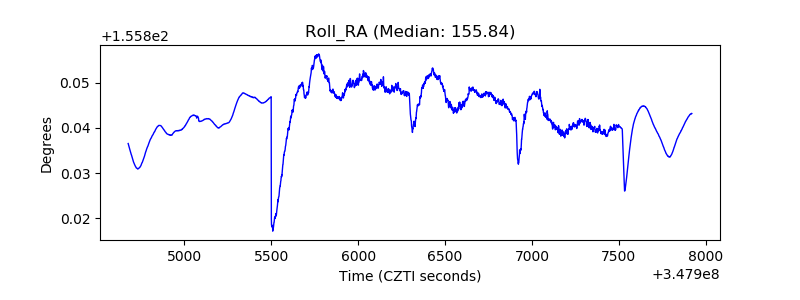

| _Roll_RA |  |
| Veto Counter |  |
