| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T03_9000004106_28576cztM0_level2.evt | modeM0/AS1A10_102T03_9000004106_28576cztM0_level2_quad_clean.evt |
| Size (bytes) | 364,043,520 | 56,430,720 |
| Size | 347.2 MB | 53.8 MB |
| Events in quadrant A | 3,087,722 | 349,550 |
| Events in quadrant B | 2,223,891 | 368,819 |
| Events in quadrant C | 2,030,135 | 356,873 |
| Events in quadrant D | 3,408,384 | 348,373 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11729 | 1 |
| B | 0 | 9102 | 1 |
| C | 0 | 8541 | 1 |
| D | 0 | 12889 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4034 | 263 | 6.519584% |
| B | 4034 | 65 | 1.611304% |
| C | 4034 | 63 | 1.561725% |
| D | 4034 | 374 | 9.271195% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

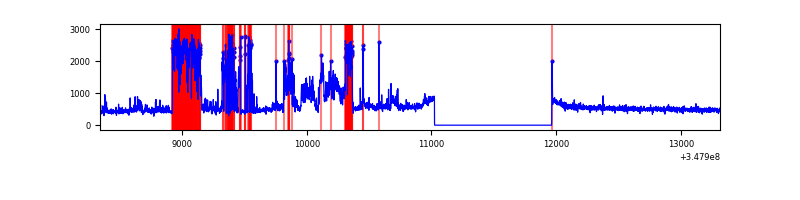

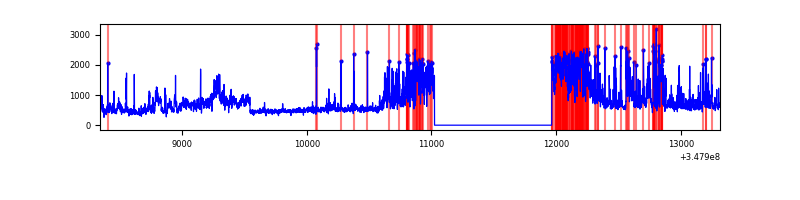

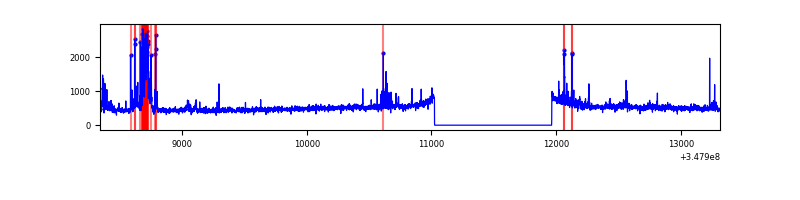

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4974 | 4035 | 265 | 265 | 5.33% | 6.57% |  |
| B | 4974 | 4035 | 37 | 37 | 0.74% | 0.92% |  |
| C | 4974 | 4035 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4974 | 4034 | 180 | 180 | 3.62% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1133640 | 11049.57 | 503 | 494 | 102.6 |
| A | 8 | 192 | 7640 | 69.68 | 503 | 494 | 102.6 |
| A | 13 | 254 | 6513 | 58.69 | 503 | 494 | 102.6 |
| B | 5 | 255 | 146861 | 1487.49 | 507 | 495 | 98.4 |
| B | 4 | 171 | 28959 | 289.27 | 507 | 495 | 98.4 |
| B | 4 | 80 | 20892 | 207.29 | 507 | 495 | 98.4 |
| C | 14 | 238 | 79323 | 674.71 | 493 | 496 | 116.8 |
| C | 0 | 207 | 16649 | 138.26 | 493 | 496 | 116.8 |
| C | 7 | 247 | 9013 | 72.9 | 493 | 496 | 116.8 |
| D | 1 | 52 | 1350870 | 11684.9 | 480 | 468 | 115.6 |
| D | 8 | 195 | 203104 | 1753.39 | 480 | 468 | 115.6 |
| D | 2 | 250 | 23591 | 200.08 | 480 | 468 | 115.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

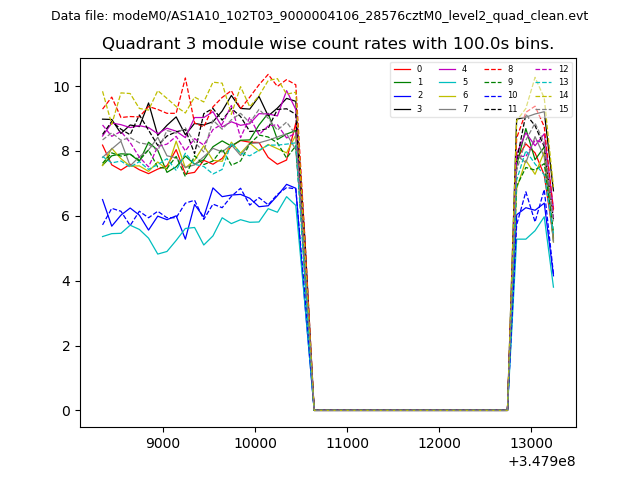

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

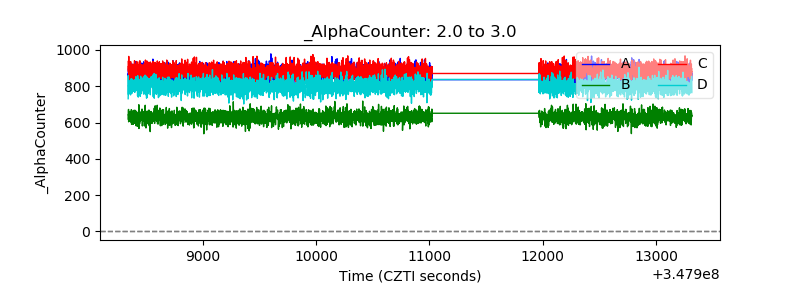

| Alpha Counter |  |

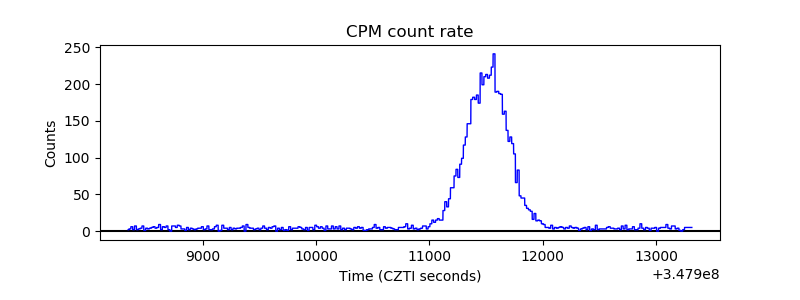

| _CPM_Rate |  |

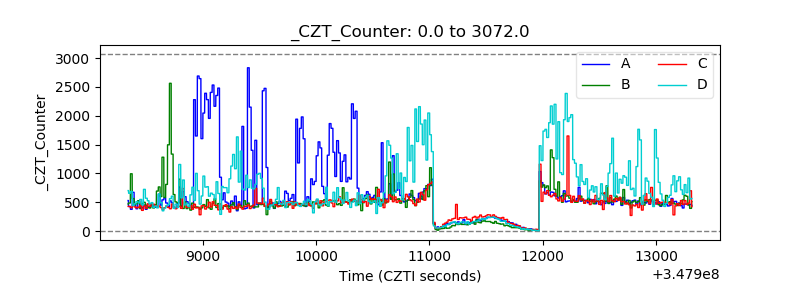

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

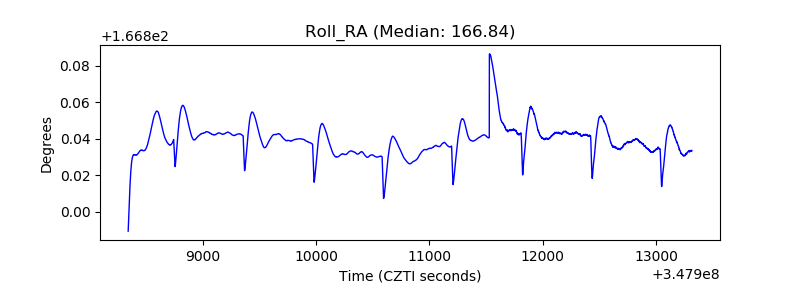

| _Roll_RA |  |
| Veto Counter |  |
