| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T03_9000004106_28586cztM0_level2.evt | modeM0/AS1A10_102T03_9000004106_28586cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,177,600 | 81,241,920 |
| Size | 538.0 MB | 77.5 MB |
| Events in quadrant A | 3,467,081 | 515,498 |
| Events in quadrant B | 3,524,791 | 523,407 |
| Events in quadrant C | 3,462,807 | 504,268 |
| Events in quadrant D | 6,205,725 | 477,931 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14233 | 1 |
| B | 0 | 14430 | 1 |
| C | 0 | 14106 | 1 |
| D | 0 | 22942 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6287 | 91 | 1.447431% |
| B | 6288 | 70 | 1.113232% |
| C | 6288 | 117 | 1.860687% |
| D | 6287 | 709 | 11.277239% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7502 | 6287 | 11 | 11 | 0.15% | 0.17% |  |
| B | 7503 | 6288 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7503 | 6288 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7502 | 6287 | 656 | 656 | 8.74% | 10.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 98981 | 568.46 | 869 | 854 | 172.6 |
| A | 13 | 254 | 10244 | 54.4 | 869 | 854 | 172.6 |
| A | 1 | 113 | 8189 | 42.49 | 869 | 854 | 172.6 |
| B | 15 | 33 | 88577 | 548.88 | 852 | 833 | 159.9 |
| B | 4 | 171 | 62055 | 382.97 | 852 | 833 | 159.9 |
| B | 12 | 111 | 18939 | 113.26 | 852 | 833 | 159.9 |
| C | 14 | 238 | 137725 | 716.3 | 833 | 843 | 191.1 |
| C | 0 | 207 | 49535 | 254.8 | 833 | 843 | 191.1 |
| C | 7 | 247 | 26958 | 136.66 | 833 | 843 | 191.1 |
| D | 1 | 52 | 2302666 | 11884.36 | 814 | 796 | 193.7 |
| D | 7 | 80 | 412222 | 2124.16 | 814 | 796 | 193.7 |
| D | 8 | 195 | 357707 | 1842.7 | 814 | 796 | 193.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

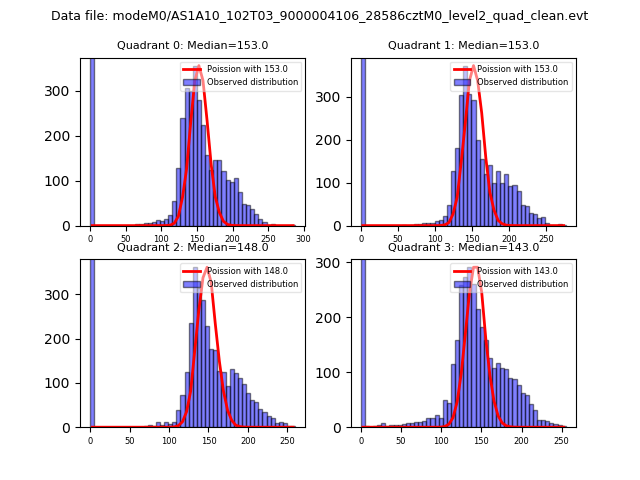

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

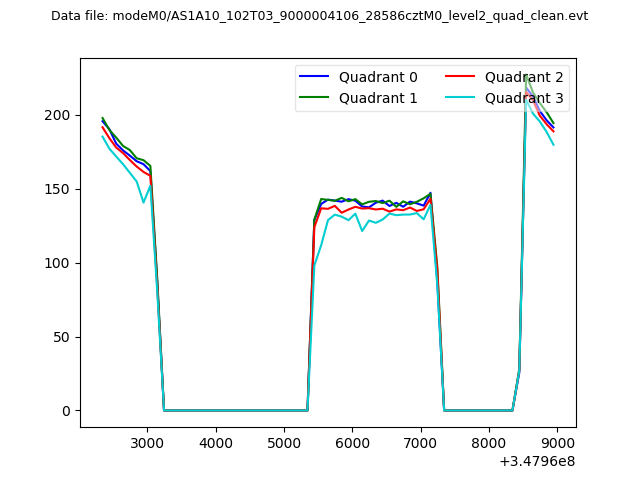

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
