| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T06_9000004108_28603cztM0_level2.evt | modeM0/AS1A10_045T06_9000004108_28603cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,680,320 | 72,374,400 |
| Size | 488.9 MB | 69.0 MB |
| Events in quadrant A | 3,611,461 | 442,991 |
| Events in quadrant B | 3,660,221 | 454,676 |
| Events in quadrant C | 3,380,934 | 442,922 |
| Events in quadrant D | 4,462,864 | 427,359 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14341 | 1 |
| B | 0 | 14713 | 1 |
| C | 0 | 13650 | 1 |
| D | 0 | 17292 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6068 | 182 | 2.999341% |
| B | 6068 | 156 | 2.570864% |
| C | 6068 | 126 | 2.076467% |
| D | 6068 | 222 | 3.658537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7358 | 6068 | 62 | 62 | 0.84% | 1.02% |  |
| B | 7358 | 6068 | 43 | 43 | 0.58% | 0.71% |  |
| C | 7358 | 6068 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7358 | 6068 | 125 | 125 | 1.70% | 2.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 326240 | 1927.09 | 850 | 835 | 168.9 |
| A | 13 | 254 | 10540 | 57.47 | 850 | 835 | 168.9 |
| A | 3 | 137 | 7532 | 39.66 | 850 | 835 | 168.9 |
| B | 10 | 245 | 353327 | 2255.46 | 832 | 813 | 156.3 |
| B | 15 | 33 | 21475 | 132.2 | 832 | 813 | 156.3 |
| B | 12 | 111 | 18220 | 111.37 | 832 | 813 | 156.3 |
| C | 14 | 238 | 134480 | 706.78 | 821 | 832 | 189.1 |
| C | 7 | 247 | 18285 | 92.3 | 821 | 832 | 189.1 |
| C | 3 | 233 | 11827 | 58.15 | 821 | 832 | 189.1 |
| D | 1 | 52 | 1046083 | 5358.09 | 828 | 808 | 195.1 |
| D | 8 | 195 | 173022 | 882.77 | 828 | 808 | 195.1 |
| D | 2 | 250 | 45681 | 230.02 | 828 | 808 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

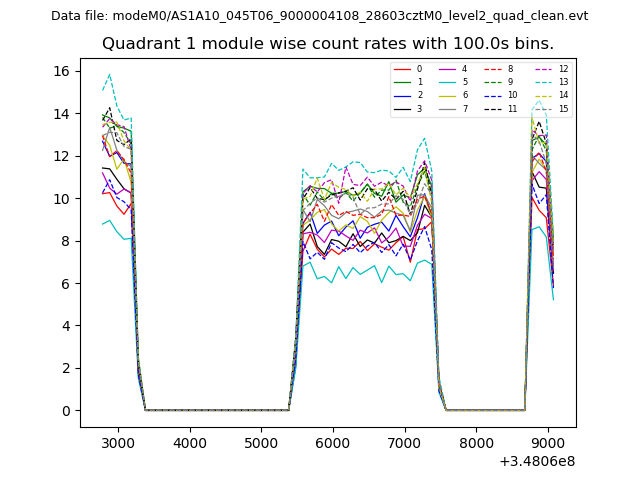

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

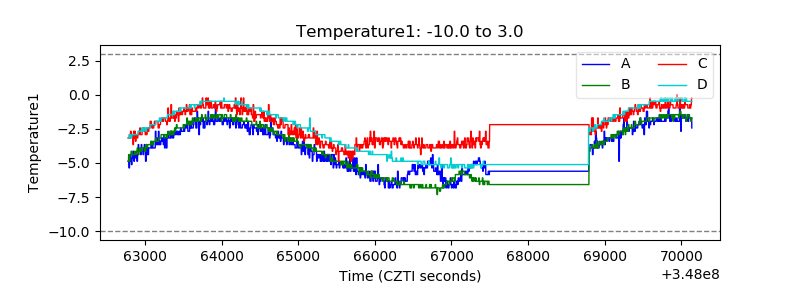

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

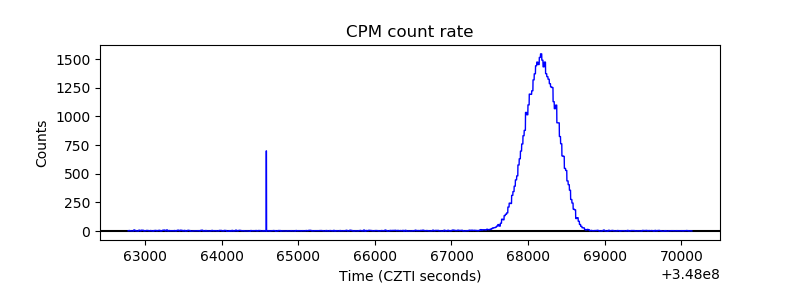

| _CPM_Rate |  |

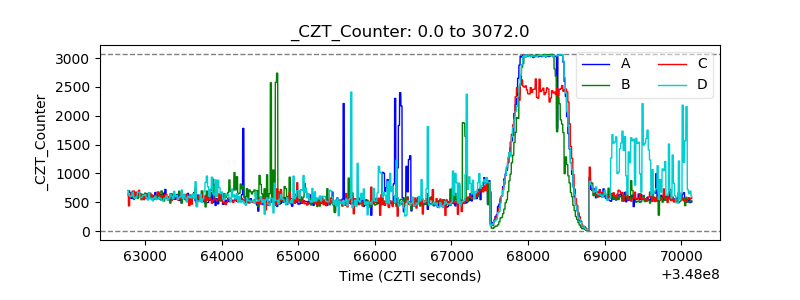

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

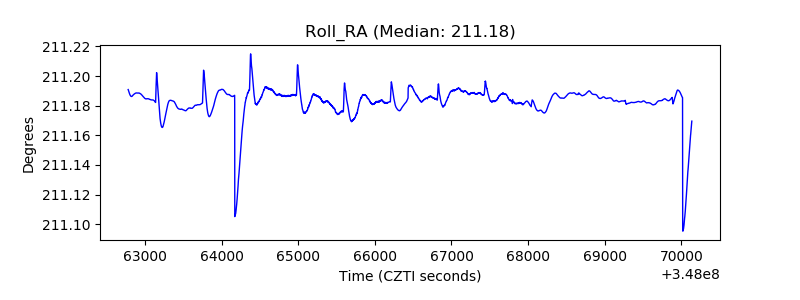

| _Roll_RA |  |

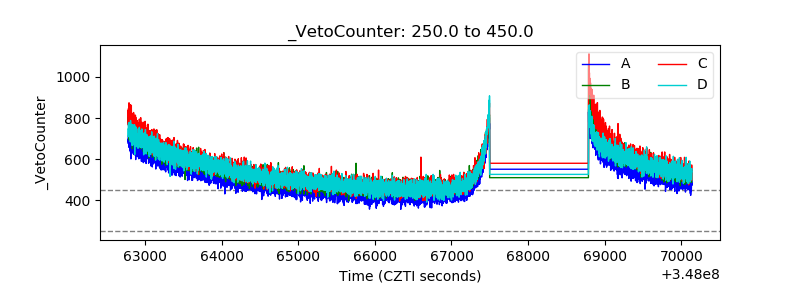

| Veto Counter |  |
