| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T06_9000004108_28611cztM0_level2.evt | modeM0/AS1A10_045T06_9000004108_28611cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,300,587,840 | 195,439,680 |
| Size | 1.2 GB | 186.4 MB |
| Events in quadrant A | 9,998,550 | 1,224,396 |
| Events in quadrant B | 8,202,887 | 1,246,322 |
| Events in quadrant C | 7,454,831 | 1,218,152 |
| Events in quadrant D | 12,710,566 | 1,184,860 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40036 | 4 |
| B | 0 | 34574 | 4 |
| C | 0 | 31968 | 4 |
| D | 0 | 48336 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 308 | 0 |
| B | 0 | 308 | 0 |
| C | 0 | 308 | 0 |
| D | 0 | 308 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15156 | 382 | 2.520454% |
| B | 15157 | 358 | 2.361945% |
| C | 15157 | 319 | 2.104638% |
| D | 15157 | 1074 | 7.085835% |

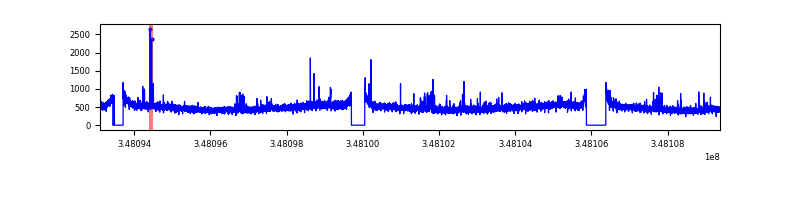

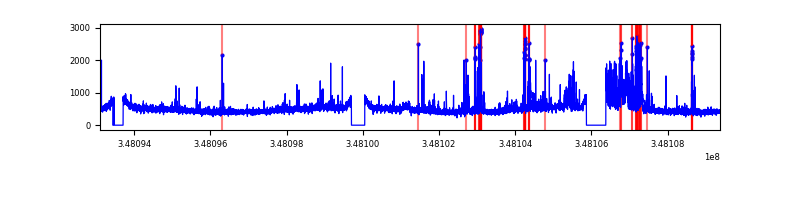

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16266 | 15158 | 87 | 87 | 0.53% | 0.57% |  |
| B | 16267 | 15158 | 67 | 67 | 0.41% | 0.44% |  |
| C | 16267 | 15159 | 2 | 2 | 0.01% | 0.01% |  |
| D | 16267 | 15159 | 696 | 696 | 4.28% | 4.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 2730068 | 7349.32 | 1830 | 1789 | 371.2 |
| A | 15 | 174 | 191522 | 511.09 | 1830 | 1789 | 371.2 |
| A | 13 | 254 | 29348 | 74.24 | 1830 | 1789 | 371.2 |
| B | 10 | 245 | 658548 | 1885.15 | 1814 | 1763 | 348.4 |
| B | 4 | 80 | 292253 | 833.78 | 1814 | 1763 | 348.4 |
| B | 10 | 247 | 79367 | 222.74 | 1814 | 1763 | 348.4 |
| C | 14 | 238 | 322703 | 776.09 | 1763 | 1778 | 413.5 |
| C | 3 | 233 | 89161 | 211.32 | 1763 | 1778 | 413.5 |
| C | 7 | 247 | 67488 | 158.91 | 1763 | 1778 | 413.5 |
| D | 1 | 52 | 3275620 | 7954.18 | 1742 | 1700 | 411.6 |
| D | 8 | 195 | 1975642 | 4795.8 | 1742 | 1700 | 411.6 |
| D | 12 | 233 | 466823 | 1130.04 | 1742 | 1700 | 411.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

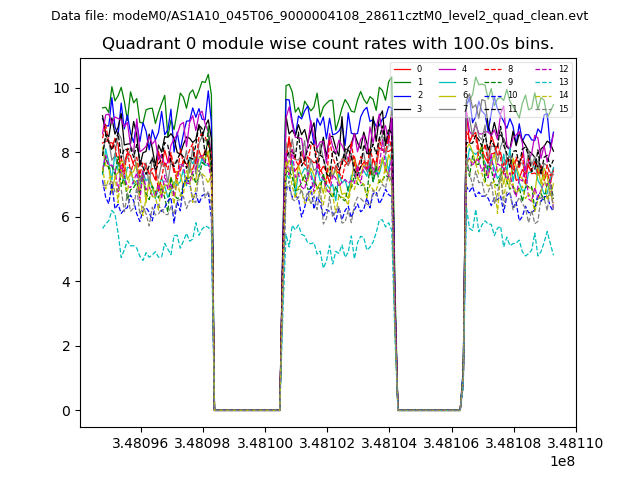

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

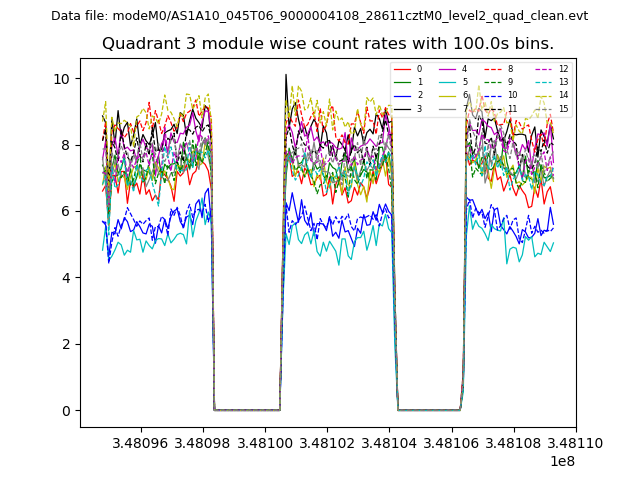

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

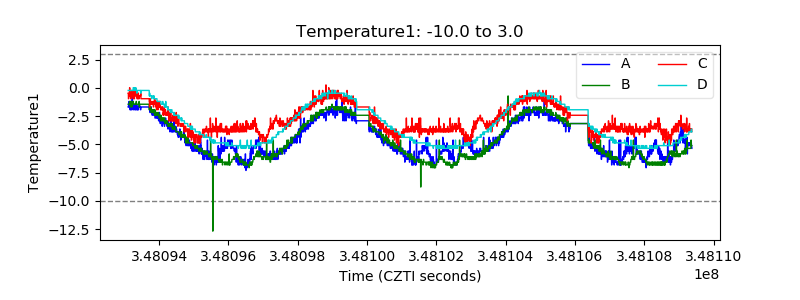

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

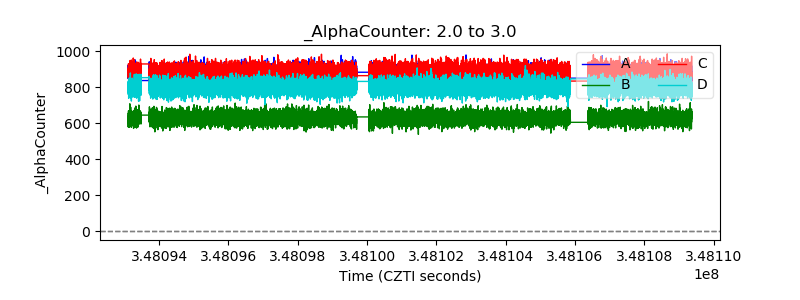

| Alpha Counter |  |

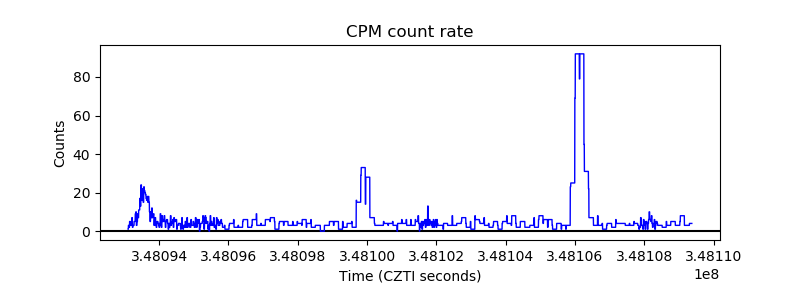

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

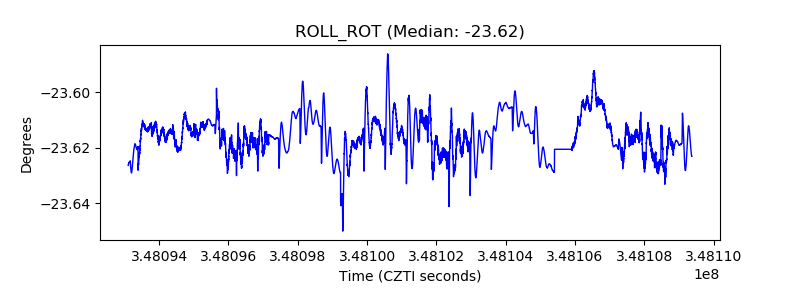

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
