| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T06_9000004108_28627cztM0_level2.evt | modeM0/AS1A10_045T06_9000004108_28627cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,011,840 | 96,269,760 |
| Size | 475.9 MB | 91.8 MB |
| Events in quadrant A | 3,239,274 | 617,382 |
| Events in quadrant B | 4,147,372 | 629,860 |
| Events in quadrant C | 3,308,780 | 607,521 |
| Events in quadrant D | 3,959,712 | 590,754 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13854 | 2 |
| B | 0 | 16654 | 2 |
| C | 0 | 14035 | 2 |
| D | 0 | 16337 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6736 | 31 | 0.460214% |
| B | 6736 | 157 | 2.330760% |
| C | 6736 | 81 | 1.202494% |
| D | 6736 | 87 | 1.291568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7830 | 6735 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7830 | 6735 | 99 | 99 | 1.26% | 1.47% |  |
| C | 7830 | 6735 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7830 | 6735 | 73 | 73 | 0.93% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11855 | 66.6 | 831 | 815 | 165.8 |
| A | 8 | 192 | 9506 | 52.43 | 831 | 815 | 165.8 |
| A | 15 | 47 | 9330 | 51.37 | 831 | 815 | 165.8 |
| B | 10 | 245 | 908741 | 5787.7 | 820 | 799 | 156.9 |
| B | 0 | 190 | 22025 | 135.31 | 820 | 799 | 156.9 |
| B | 12 | 111 | 19229 | 117.48 | 820 | 799 | 156.9 |
| C | 14 | 238 | 145511 | 774.03 | 798 | 804 | 187.0 |
| C | 14 | 254 | 26028 | 134.92 | 798 | 804 | 187.0 |
| C | 7 | 247 | 21683 | 111.68 | 798 | 804 | 187.0 |
| D | 1 | 52 | 550294 | 2883.16 | 802 | 783 | 190.6 |
| D | 8 | 195 | 292682 | 1531.53 | 802 | 783 | 190.6 |
| D | 2 | 250 | 55384 | 286.48 | 802 | 783 | 190.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

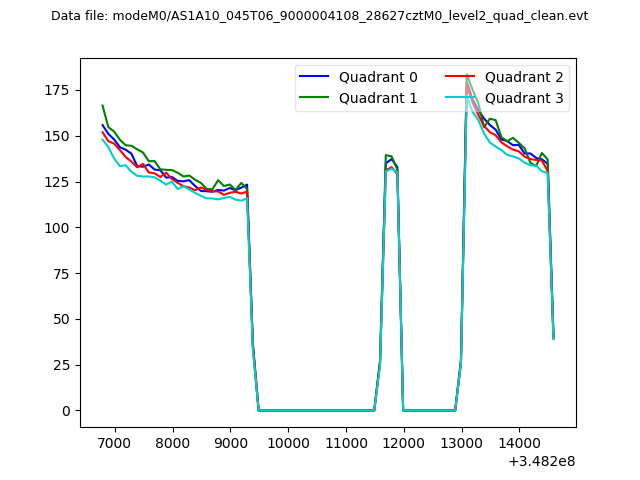

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

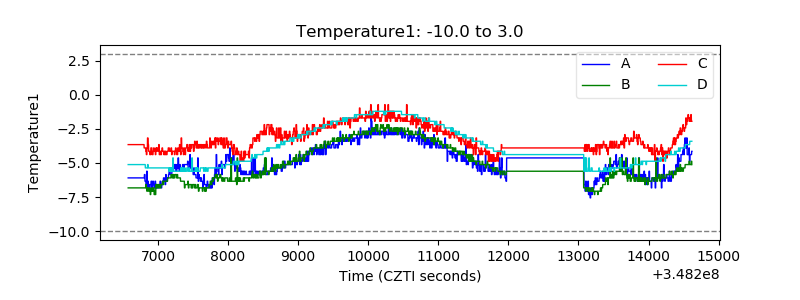

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

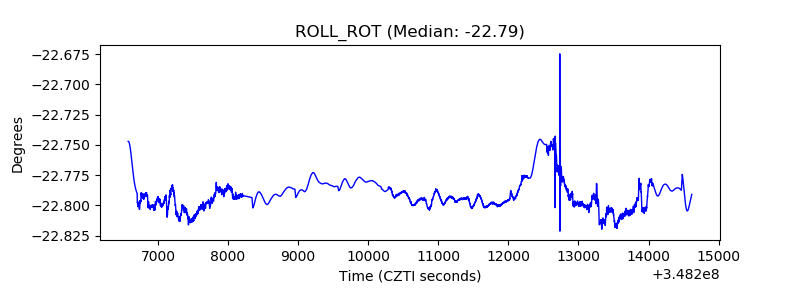

| _ROLL_ROT |  |
| _Roll_DEC |  |

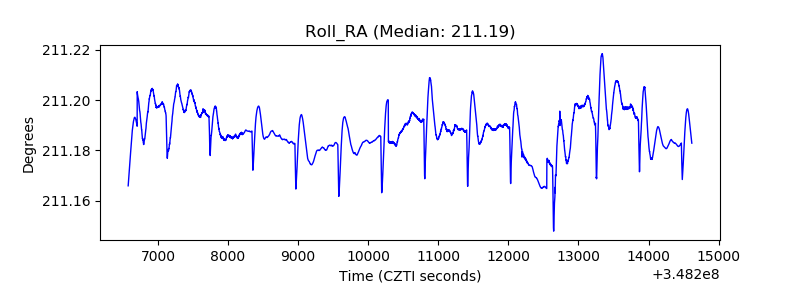

| _Roll_RA |  |
| Veto Counter |  |
