| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T07_9000004110_28633cztM0_level2.evt | modeM0/AS1A10_045T07_9000004110_28633cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,286,720 | 69,937,920 |
| Size | 508.6 MB | 66.7 MB |
| Events in quadrant A | 3,494,167 | 425,799 |
| Events in quadrant B | 3,972,416 | 423,642 |
| Events in quadrant C | 3,378,209 | 420,631 |
| Events in quadrant D | 4,877,554 | 406,724 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14021 | 0 |
| B | 0 | 15508 | 0 |
| C | 0 | 13565 | 0 |
| D | 0 | 18842 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6314 | 145 | 2.296484% |
| B | 6314 | 249 | 3.943617% |
| C | 6315 | 171 | 2.707838% |
| D | 6315 | 504 | 7.980998% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7399 | 6315 | 18 | 18 | 0.24% | 0.29% |  |
| B | 7399 | 6315 | 82 | 82 | 1.11% | 1.30% |  |
| C | 7400 | 6316 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7400 | 6316 | 309 | 309 | 4.18% | 4.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 196388 | 1151.31 | 852 | 833 | 169.9 |
| A | 13 | 254 | 11188 | 60.96 | 852 | 833 | 169.9 |
| A | 15 | 47 | 9175 | 49.11 | 852 | 833 | 169.9 |
| B | 10 | 245 | 663796 | 4176.98 | 832 | 812 | 158.7 |
| B | 12 | 111 | 19069 | 115.02 | 832 | 812 | 158.7 |
| B | 11 | 111 | 17367 | 104.3 | 832 | 812 | 158.7 |
| C | 14 | 238 | 142784 | 743.23 | 821 | 827 | 191.0 |
| C | 14 | 254 | 17277 | 86.13 | 821 | 827 | 191.0 |
| C | 0 | 10 | 12219 | 59.64 | 821 | 827 | 191.0 |
| D | 1 | 52 | 1219238 | 6464.17 | 801 | 783 | 188.5 |
| D | 8 | 195 | 345495 | 1828.77 | 801 | 783 | 188.5 |
| D | 2 | 250 | 151203 | 798.01 | 801 | 783 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

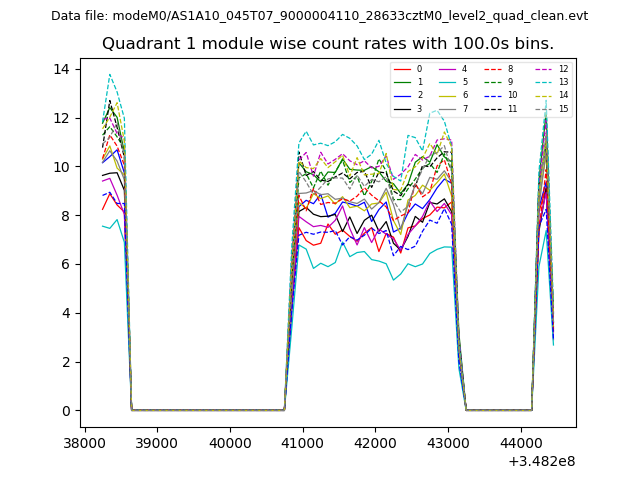

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

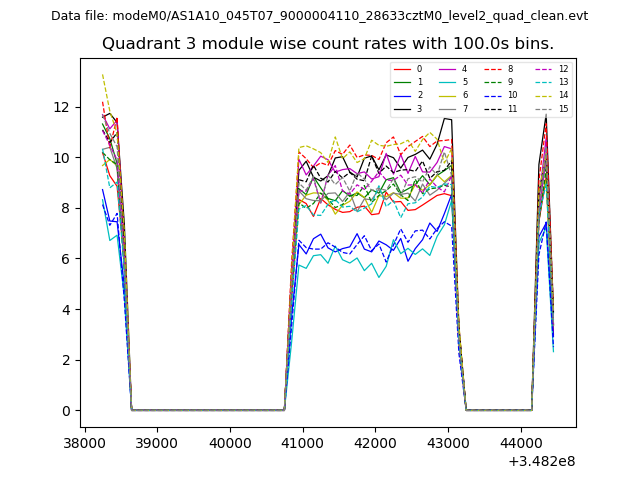

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

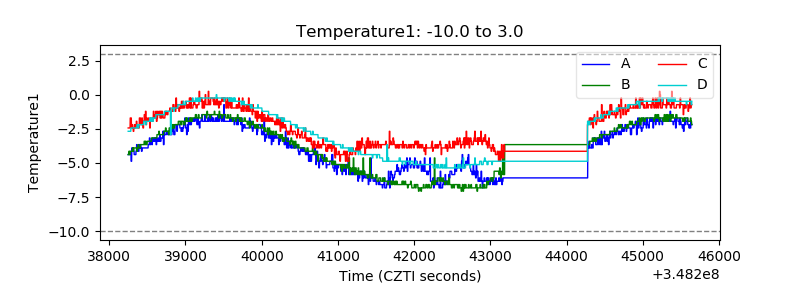

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

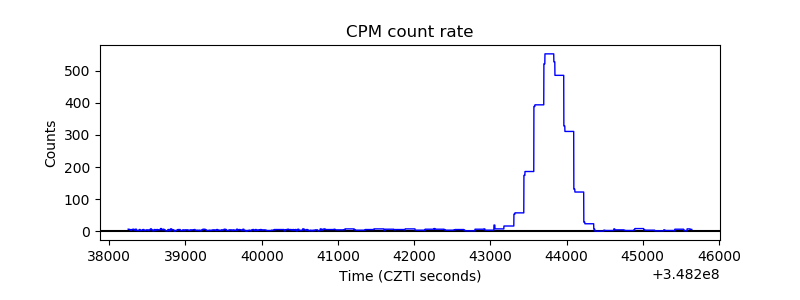

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

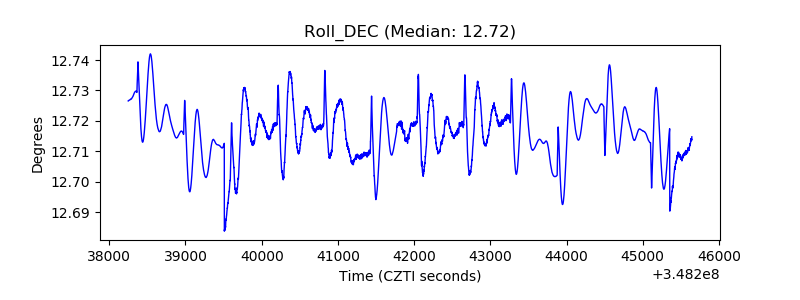

| _Roll_DEC |  |
| _Roll_RA |  |

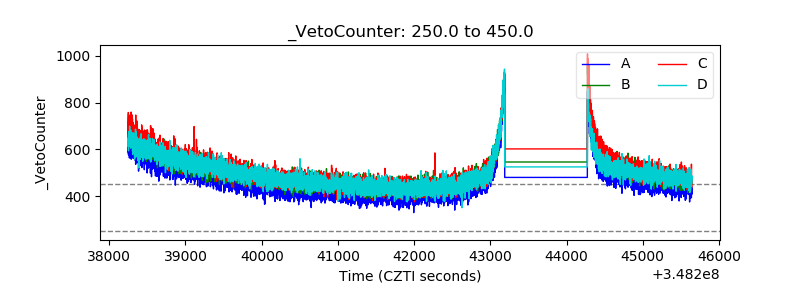

| Veto Counter |  |
