| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T07_9000004110_28637cztM0_level2.evt | modeM0/AS1A10_045T07_9000004110_28637cztM0_level2_quad_clean.evt |
| Size (bytes) | 403,983,360 | 63,267,840 |
| Size | 385.3 MB | 60.3 MB |
| Events in quadrant A | 2,329,076 | 408,003 |
| Events in quadrant B | 2,813,825 | 398,387 |
| Events in quadrant C | 2,357,237 | 399,704 |
| Events in quadrant D | 4,421,034 | 385,823 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | -1 | -1 |
| D | 0 | -1 | -1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10317 | 1 |
| B | 0 | 11709 | 1 |
| C | 0 | 10312 | 1 |
| D | 0 | 16565 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4932 | 66 | 1.338200% |
| B | 4933 | 257 | 5.209811% |
| C | 4932 | 138 | 2.798054% |
| D | 4932 | 549 | 11.131387% |

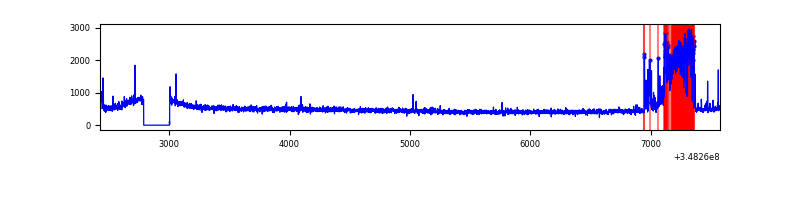

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5147 | 4933 | 4 | 4 | 0.08% | 0.08% |  |
| B | 5148 | 4934 | 153 | 153 | 2.97% | 3.10% |  |
| C | 5147 | 4933 | 1 | 1 | 0.02% | 0.02% |  |
| D | 5147 | 4933 | 375 | 375 | 7.29% | 7.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 34152 | 277.0 | 592 | 579 | 121.2 |
| A | 13 | 254 | 9313 | 72.06 | 592 | 579 | 121.2 |
| A | 8 | 192 | 6599 | 49.67 | 592 | 579 | 121.2 |
| B | 10 | 245 | 518193 | 4594.11 | 579 | 564 | 112.7 |
| B | 12 | 111 | 13985 | 119.12 | 579 | 564 | 112.7 |
| B | 11 | 111 | 12524 | 106.15 | 579 | 564 | 112.7 |
| C | 14 | 238 | 99171 | 734.8 | 570 | 573 | 134.2 |
| C | 0 | 207 | 14846 | 106.37 | 570 | 573 | 134.2 |
| C | 7 | 247 | 10446 | 73.58 | 570 | 573 | 134.2 |
| D | 1 | 52 | 1646397 | 12362.6 | 552 | 537 | 133.1 |
| D | 8 | 195 | 526012 | 3947.02 | 552 | 537 | 133.1 |
| D | 2 | 250 | 62360 | 464.37 | 552 | 537 | 133.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

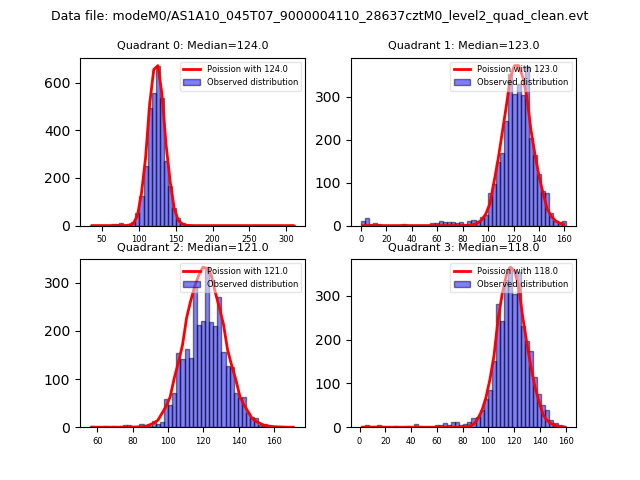

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

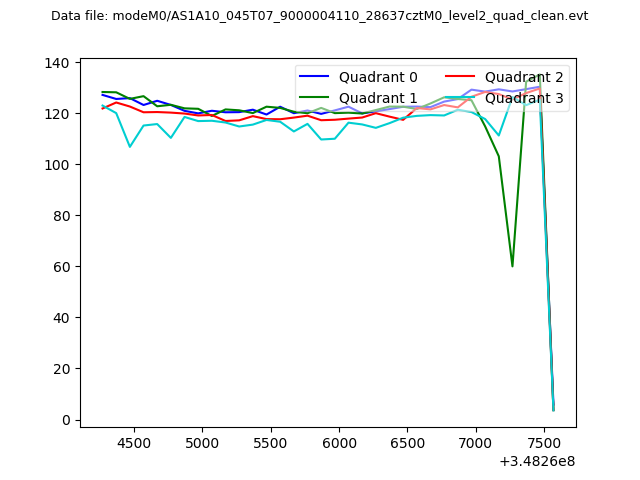

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

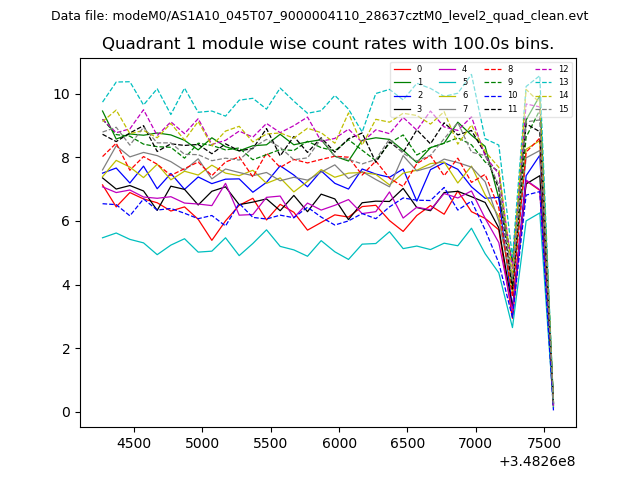

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

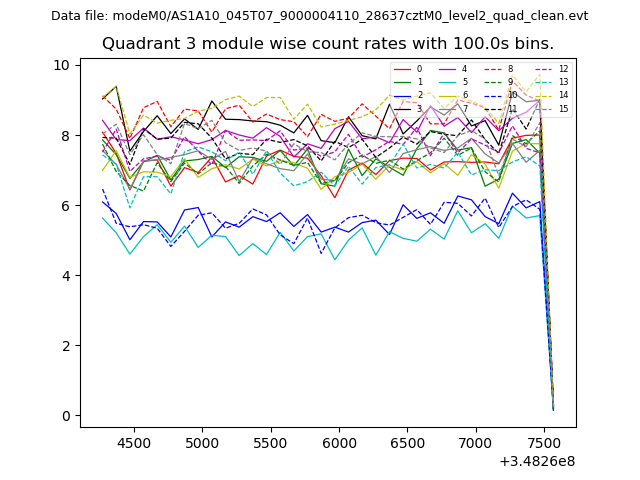

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

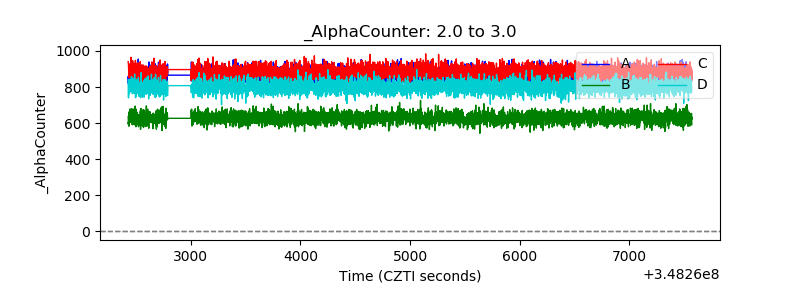

| Alpha Counter |  |

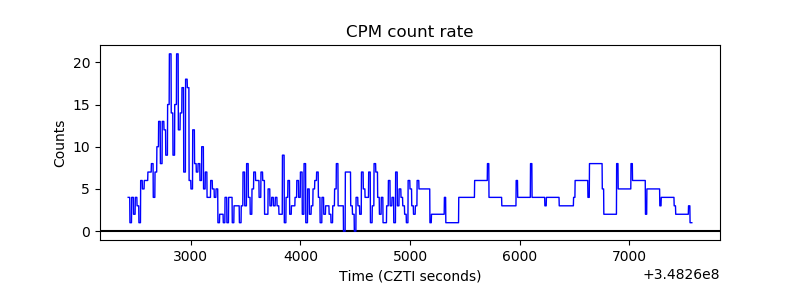

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

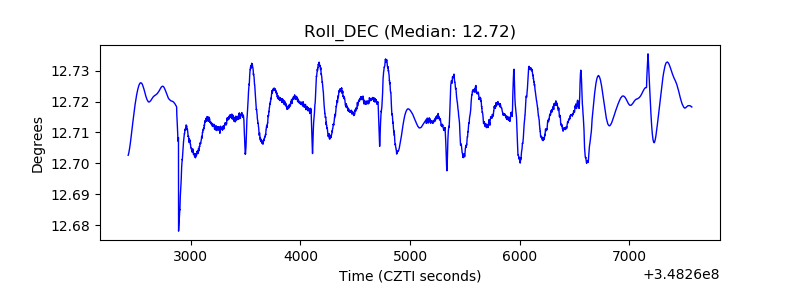

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
