| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T08_9000004112_28657cztM0_level2.evt | modeM0/AS1A10_073T08_9000004112_28657cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,019,840 | 71,498,880 |
| Size | 468.3 MB | 68.2 MB |
| Events in quadrant A | 3,452,420 | 439,647 |
| Events in quadrant B | 3,872,085 | 441,895 |
| Events in quadrant C | 3,248,009 | 423,738 |
| Events in quadrant D | 3,863,156 | 412,627 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14229 | 1 |
| B | 0 | 15443 | 1 |
| C | 0 | 13541 | 2 |
| D | 0 | 15678 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6405 | 93 | 1.451991% |
| B | 6406 | 211 | 3.293787% |
| C | 6405 | 192 | 2.997658% |
| D | 6405 | 140 | 2.185792% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7500 | 6406 | 53 | 53 | 0.71% | 0.83% |  |
| B | 7501 | 6407 | 120 | 120 | 1.60% | 1.87% |  |
| C | 7500 | 6406 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7500 | 6406 | 92 | 92 | 1.23% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 318160 | 1945.29 | 812 | 799 | 163.1 |
| A | 13 | 254 | 11240 | 64.0 | 812 | 799 | 163.1 |
| A | 3 | 137 | 7787 | 42.83 | 812 | 799 | 163.1 |
| B | 10 | 245 | 689887 | 4509.46 | 805 | 787 | 152.8 |
| B | 12 | 111 | 18655 | 116.93 | 805 | 787 | 152.8 |
| B | 11 | 111 | 17141 | 107.02 | 805 | 787 | 152.8 |
| C | 14 | 238 | 167870 | 926.05 | 773 | 779 | 180.4 |
| C | 14 | 254 | 62162 | 340.2 | 773 | 779 | 180.4 |
| C | 13 | 61 | 5364 | 25.41 | 773 | 779 | 180.4 |
| D | 1 | 52 | 647015 | 3494.92 | 775 | 754 | 184.9 |
| D | 8 | 195 | 224150 | 1208.11 | 775 | 754 | 184.9 |
| D | 2 | 120 | 25785 | 135.37 | 775 | 754 | 184.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

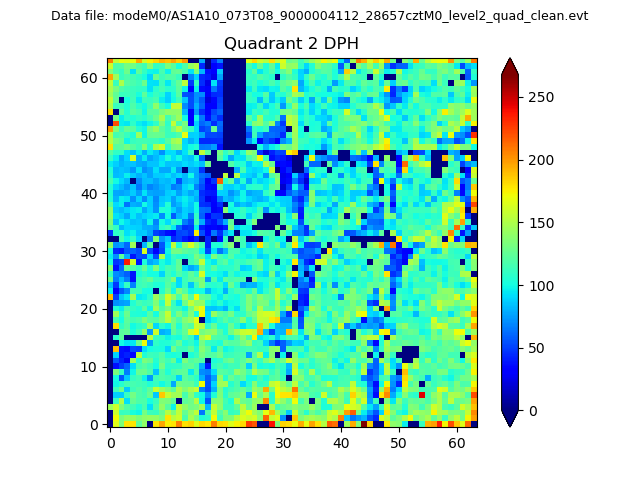

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

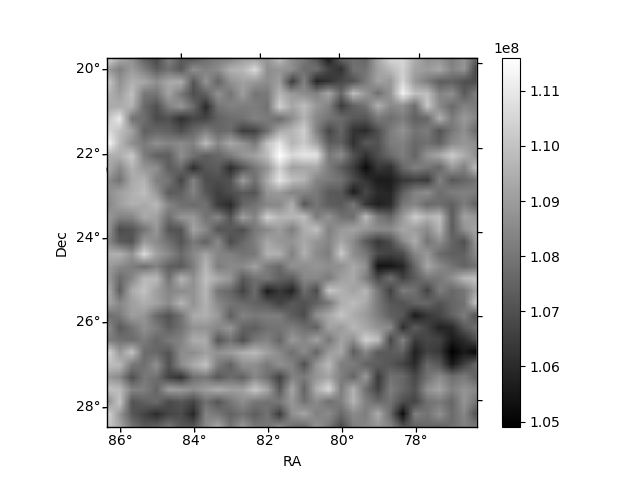

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

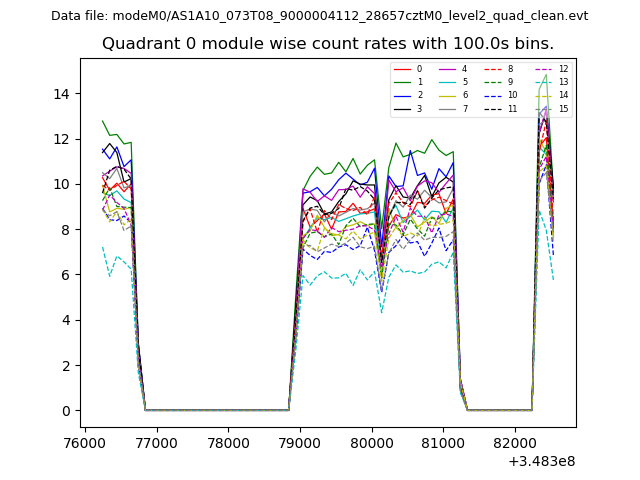

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

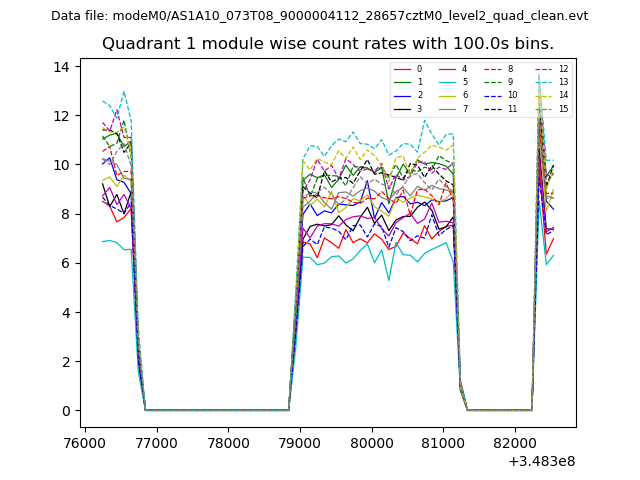

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

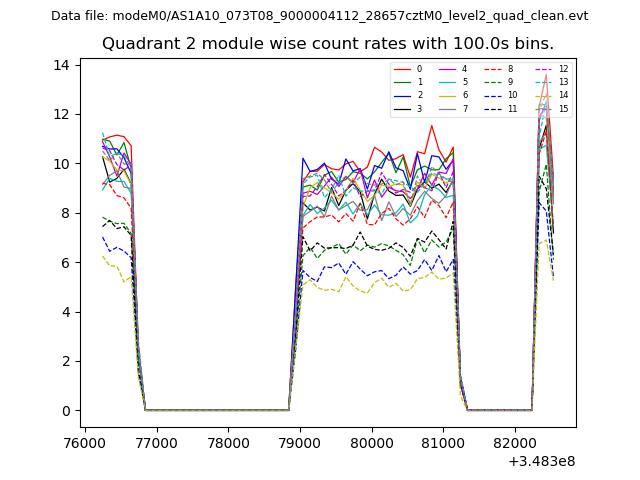

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

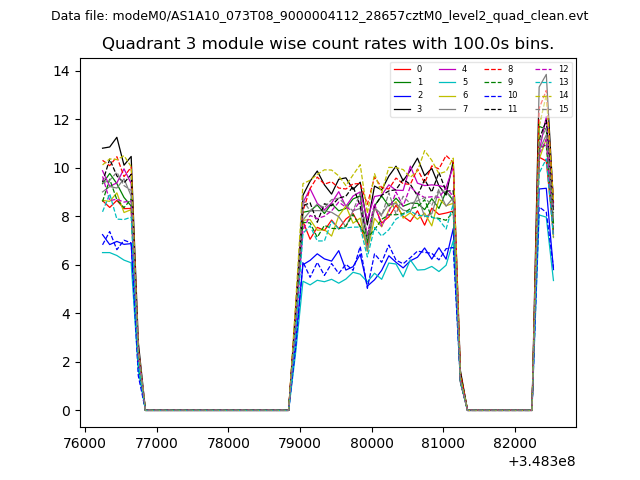

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

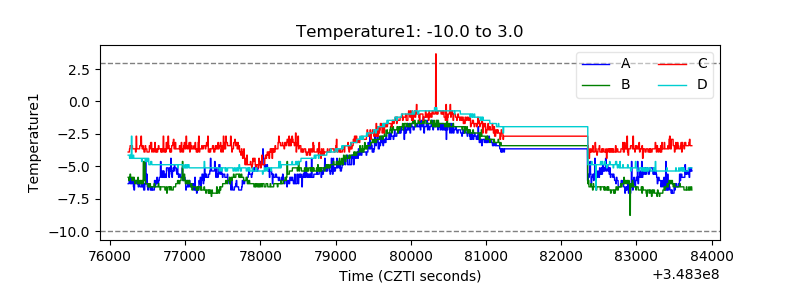

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

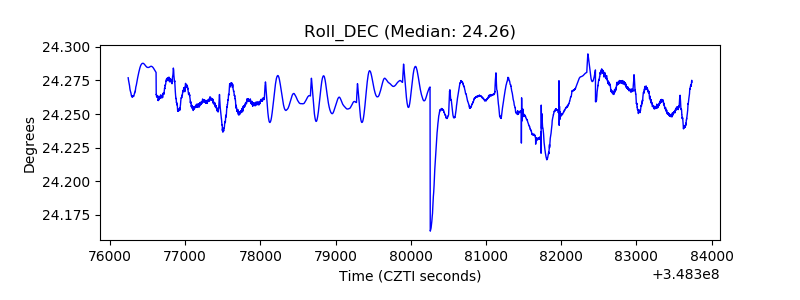

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
