| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T08_9000004112_28658cztM0_level2.evt | modeM0/AS1A10_073T08_9000004112_28658cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,010,880 | 67,317,120 |
| Size | 507.4 MB | 64.2 MB |
| Events in quadrant A | 3,580,292 | 417,162 |
| Events in quadrant B | 4,463,376 | 399,205 |
| Events in quadrant C | 3,482,190 | 387,363 |
| Events in quadrant D | 4,151,444 | 387,144 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14604 | 3 |
| B | 0 | 17310 | 2 |
| C | 0 | 14323 | 2 |
| D | 0 | 16427 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 71 | 1.109202% |
| B | 6401 | 429 | 6.702078% |
| C | 6401 | 362 | 5.655366% |
| D | 6401 | 164 | 2.562100% |

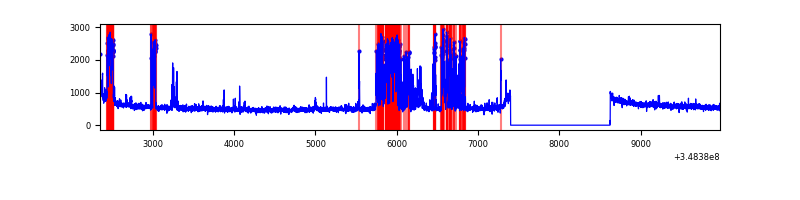

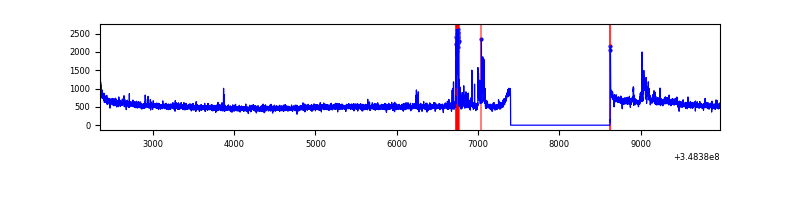

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7626 | 6402 | 25 | 25 | 0.33% | 0.39% |  |
| B | 7626 | 6402 | 306 | 306 | 4.01% | 4.78% |  |
| C | 7626 | 6402 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7626 | 6402 | 111 | 111 | 1.46% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 222589 | 1285.84 | 868 | 857 | 172.4 |
| A | 13 | 254 | 11878 | 63.91 | 868 | 857 | 172.4 |
| A | 8 | 192 | 10181 | 54.07 | 868 | 857 | 172.4 |
| B | 10 | 245 | 1116321 | 7049.31 | 850 | 832 | 158.2 |
| B | 12 | 111 | 18976 | 114.66 | 850 | 832 | 158.2 |
| B | 11 | 111 | 17188 | 103.36 | 850 | 832 | 158.2 |
| C | 14 | 238 | 208944 | 1113.97 | 807 | 814 | 186.8 |
| C | 14 | 254 | 113847 | 604.99 | 807 | 814 | 186.8 |
| C | 0 | 10 | 14493 | 73.21 | 807 | 814 | 186.8 |
| D | 7 | 80 | 464537 | 2395.83 | 817 | 798 | 193.6 |
| D | 1 | 52 | 373475 | 1925.37 | 817 | 798 | 193.6 |
| D | 8 | 195 | 174356 | 896.66 | 817 | 798 | 193.6 |

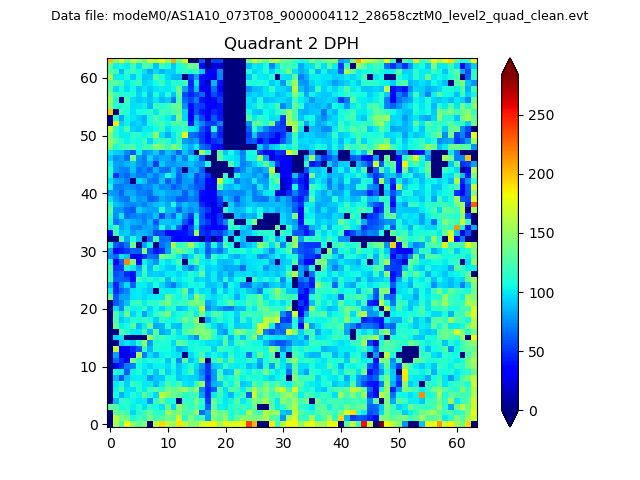

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

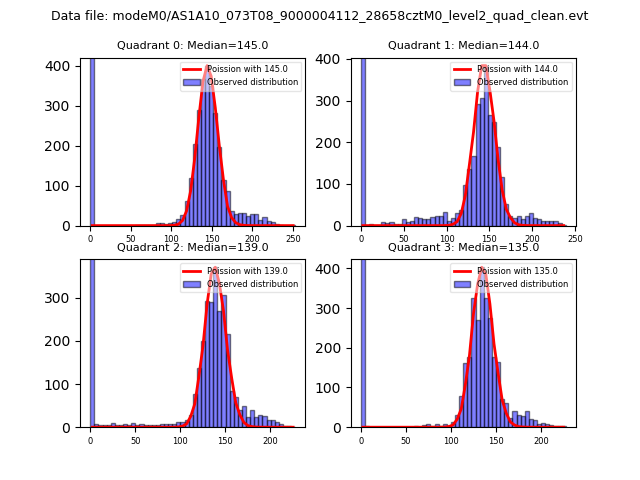

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

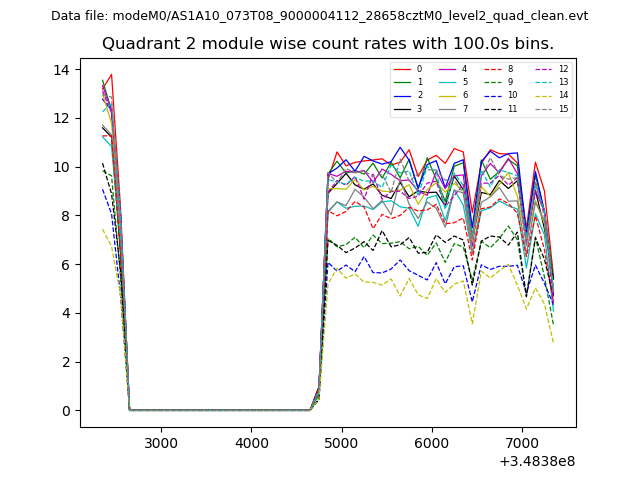

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

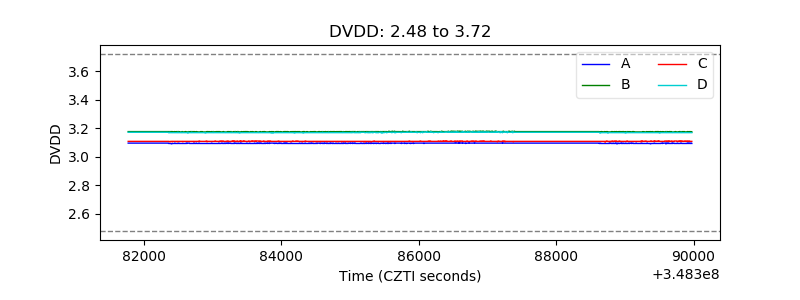

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

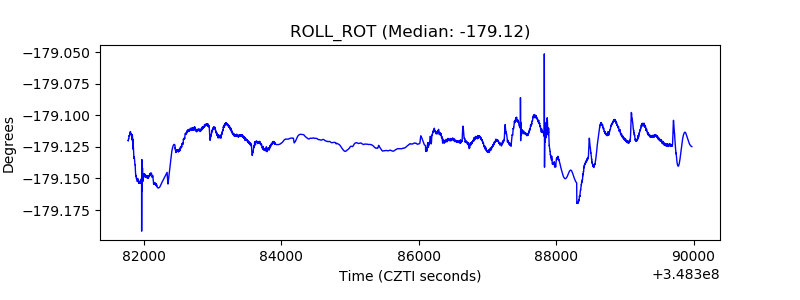

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
