| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T08_9000004112_28660cztM0_level2.evt | modeM0/AS1A10_073T08_9000004112_28660cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,672,320 | 81,829,440 |
| Size | 539.5 MB | 78.0 MB |
| Events in quadrant A | 3,649,228 | 529,061 |
| Events in quadrant B | 5,159,764 | 532,473 |
| Events in quadrant C | 3,656,021 | 494,002 |
| Events in quadrant D | 4,241,773 | 484,729 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14673 | 2 |
| B | 0 | 19228 | 2 |
| C | 0 | 14760 | 2 |
| D | 0 | 16949 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6275 | 106 | 1.689243% |
| B | 6275 | 683 | 10.884462% |
| C | 6275 | 273 | 4.350598% |
| D | 6275 | 101 | 1.609562% |

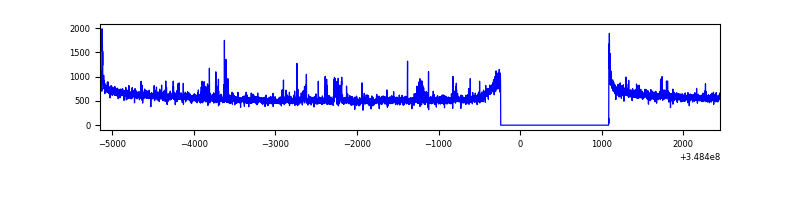

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

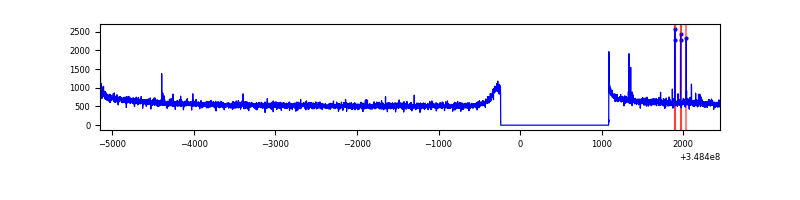

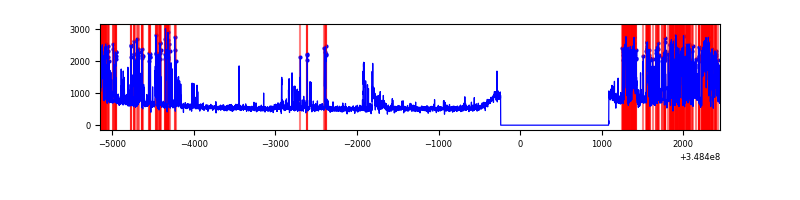

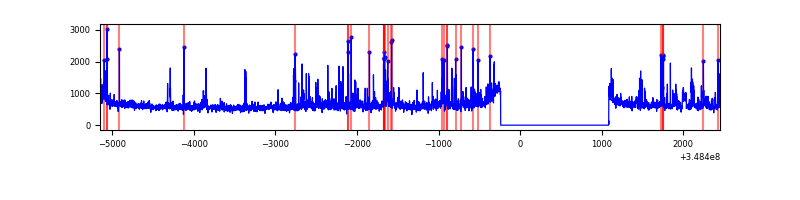

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6276 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7600 | 6276 | 385 | 385 | 5.07% | 6.13% |  |
| C | 7600 | 6276 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7600 | 6276 | 33 | 33 | 0.43% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 26357 | 138.61 | 937 | 925 | 183.5 |
| A | 13 | 254 | 12006 | 60.39 | 937 | 925 | 183.5 |
| A | 8 | 192 | 9821 | 48.48 | 937 | 925 | 183.5 |
| B | 10 | 245 | 1627164 | 9784.31 | 900 | 884 | 166.2 |
| B | 12 | 111 | 19509 | 112.06 | 900 | 884 | 166.2 |
| B | 11 | 111 | 17455 | 99.7 | 900 | 884 | 166.2 |
| C | 14 | 238 | 188508 | 948.11 | 861 | 870 | 197.9 |
| C | 14 | 254 | 66990 | 334.09 | 861 | 870 | 197.9 |
| C | 0 | 10 | 21651 | 105.0 | 861 | 870 | 197.9 |
| D | 1 | 52 | 529301 | 2551.57 | 880 | 861 | 207.1 |
| D | 8 | 195 | 204267 | 982.14 | 880 | 861 | 207.1 |
| D | 7 | 80 | 144071 | 691.49 | 880 | 861 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

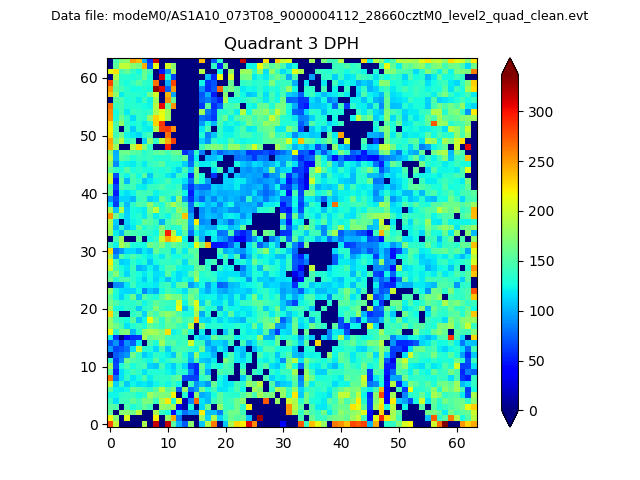

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

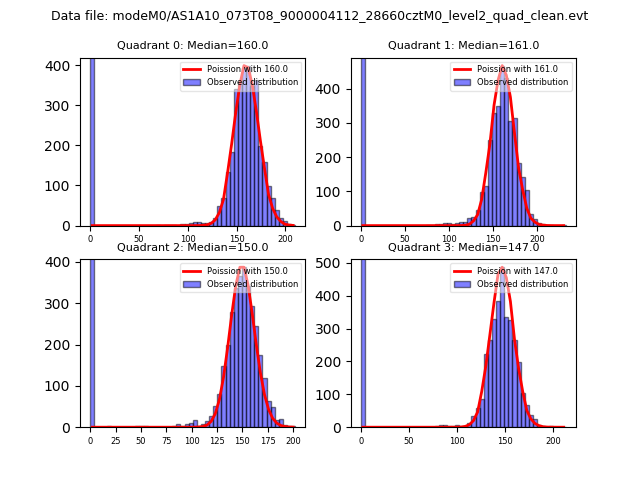

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

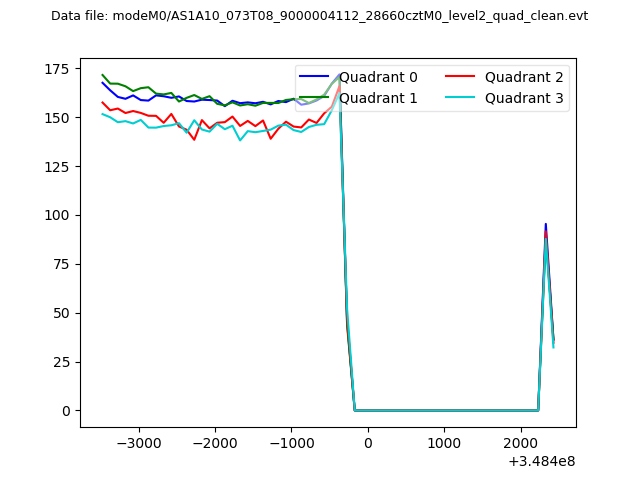

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

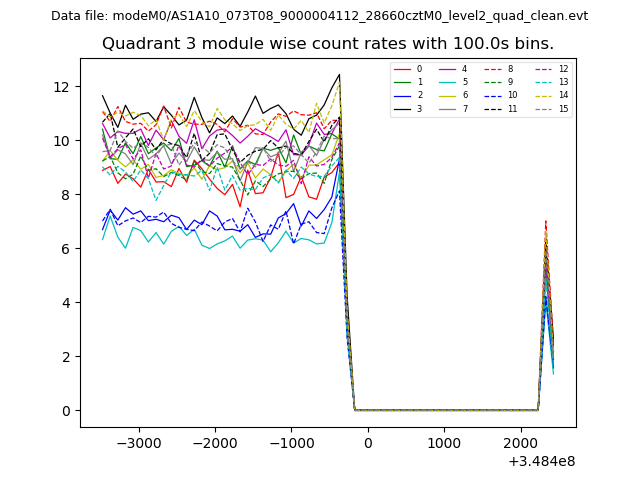

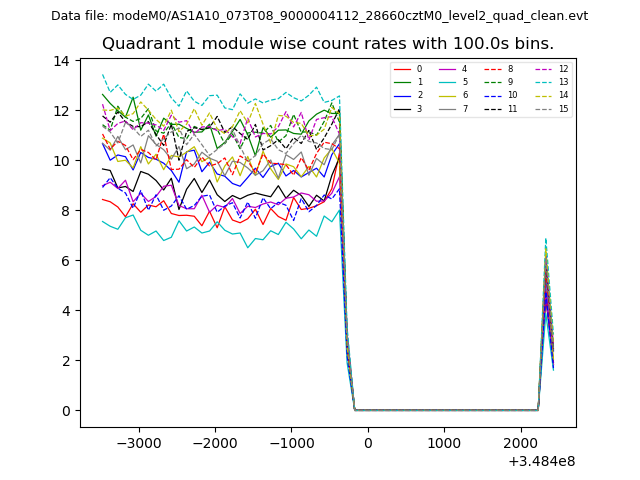

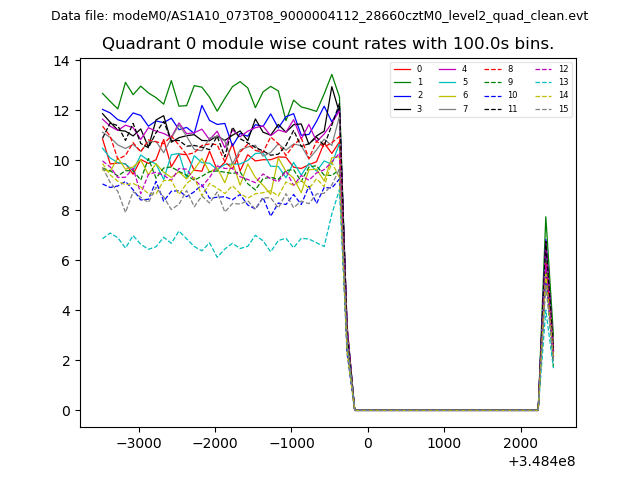

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

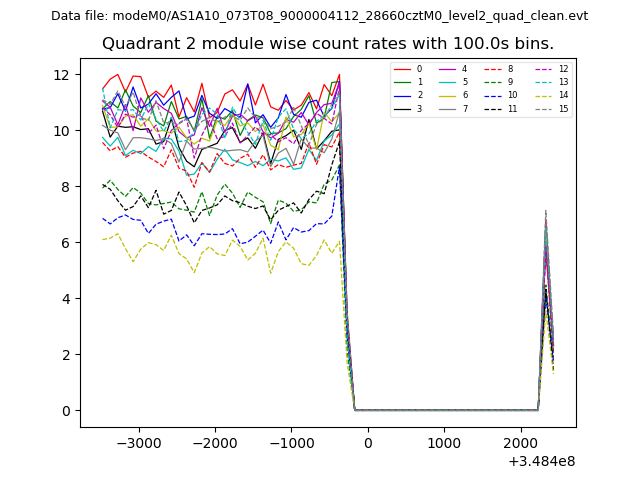

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

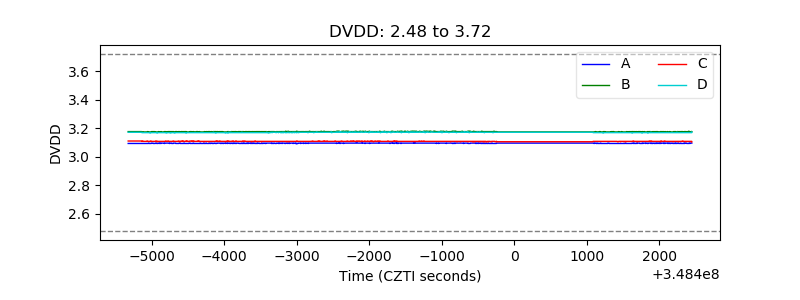

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

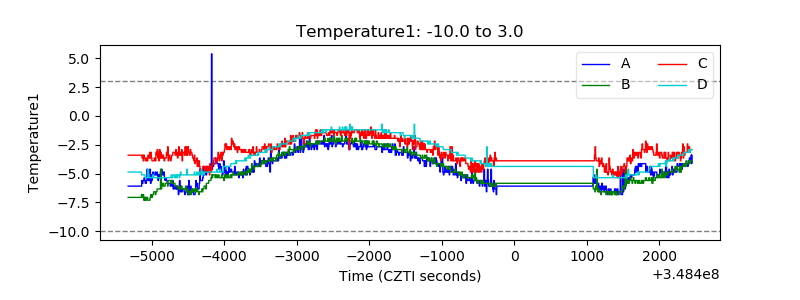

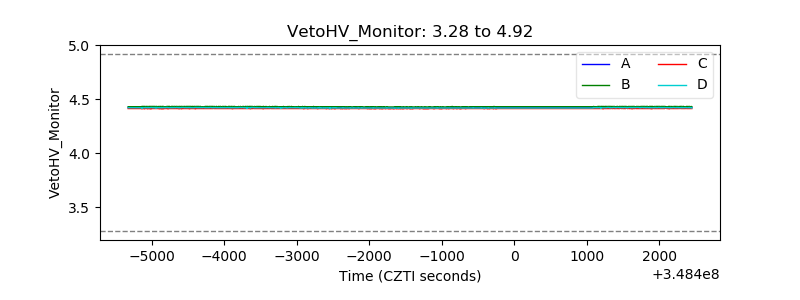

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

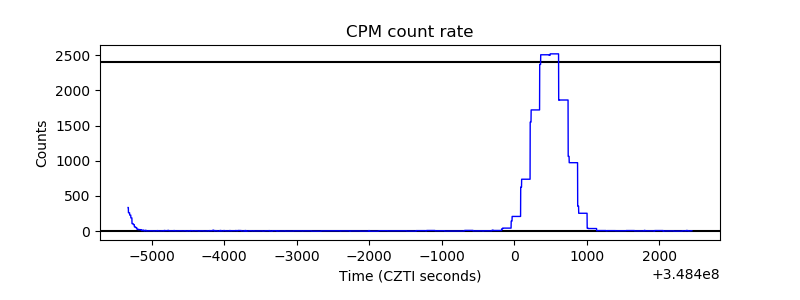

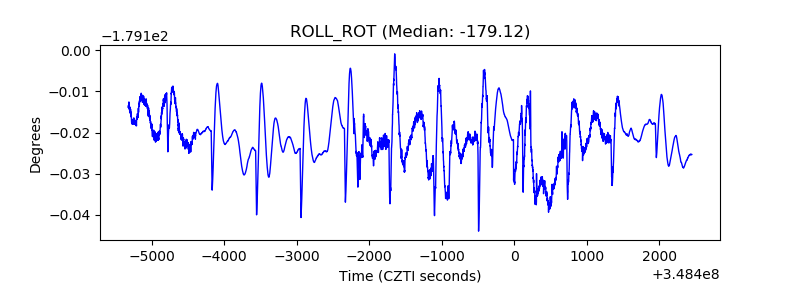

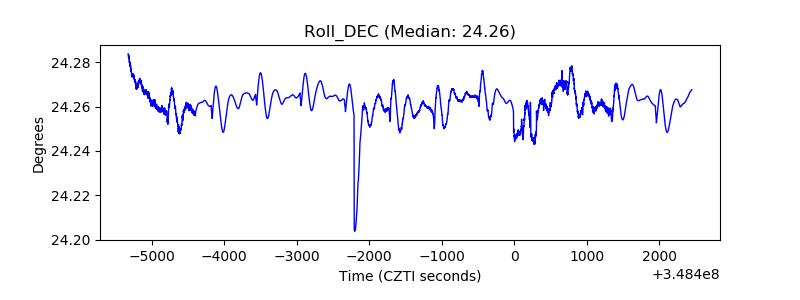

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

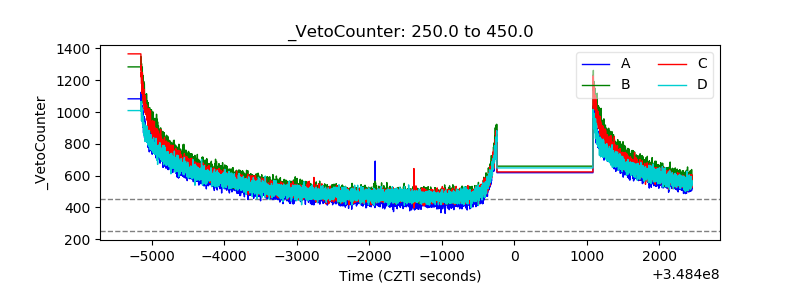

| Veto Counter |  |
