| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_110T03_9000004114_28678cztM0_level2.evt | modeM0/AS1A10_110T03_9000004114_28678cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,507,200 | 77,644,800 |
| Size | 570.8 MB | 74.0 MB |
| Events in quadrant A | 3,309,049 | 482,199 |
| Events in quadrant B | 4,265,985 | 483,728 |
| Events in quadrant C | 3,508,122 | 466,994 |
| Events in quadrant D | 6,586,783 | 449,185 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13983 | 1 |
| B | 0 | 16946 | 1 |
| C | 0 | 14559 | 1 |
| D | 0 | 24148 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6736 | 107 | 1.588480% |
| B | 6737 | 271 | 4.022562% |
| C | 6737 | 273 | 4.052249% |
| D | 6737 | 929 | 13.789521% |

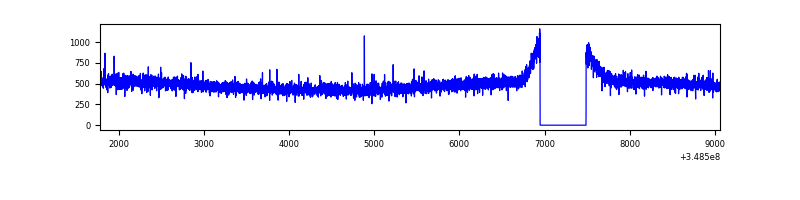

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7276 | 6736 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7277 | 6737 | 58 | 58 | 0.80% | 0.86% |  |
| C | 7277 | 6737 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7277 | 6737 | 713 | 713 | 9.80% | 10.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11828 | 63.22 | 858 | 841 | 173.8 |
| A | 3 | 137 | 8292 | 42.87 | 858 | 841 | 173.8 |
| A | 0 | 226 | 7296 | 37.14 | 858 | 841 | 173.8 |
| B | 10 | 245 | 535534 | 3259.07 | 844 | 822 | 164.1 |
| B | 15 | 33 | 399768 | 2431.57 | 844 | 822 | 164.1 |
| B | 12 | 111 | 19923 | 116.42 | 844 | 822 | 164.1 |
| C | 14 | 238 | 177126 | 909.61 | 819 | 825 | 193.8 |
| C | 14 | 254 | 68021 | 346.69 | 819 | 825 | 193.8 |
| C | 3 | 233 | 59833 | 304.45 | 819 | 825 | 193.8 |
| D | 1 | 52 | 2846771 | 14895.46 | 792 | 772 | 191.1 |
| D | 8 | 195 | 365216 | 1907.44 | 792 | 772 | 191.1 |
| D | 2 | 250 | 183715 | 957.49 | 792 | 772 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

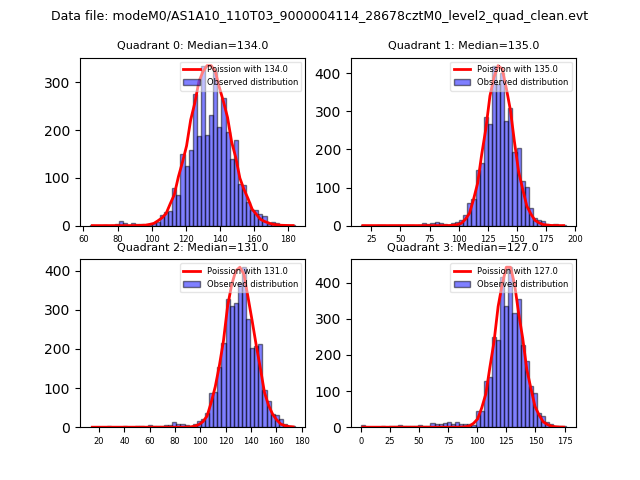

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

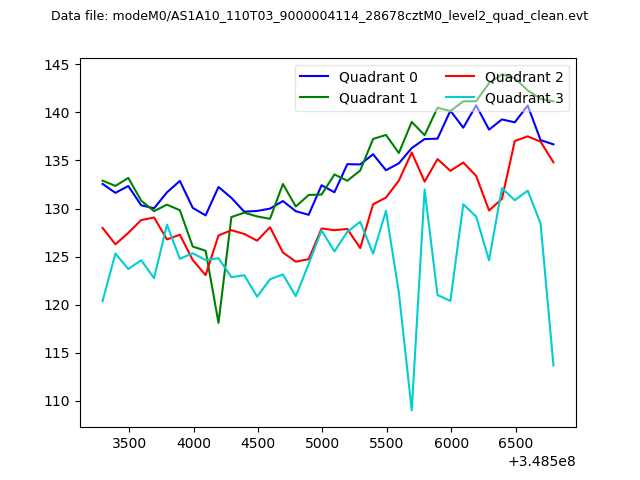

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

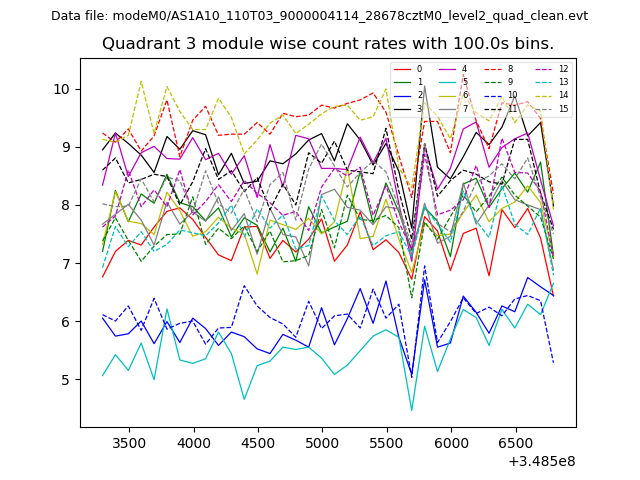

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

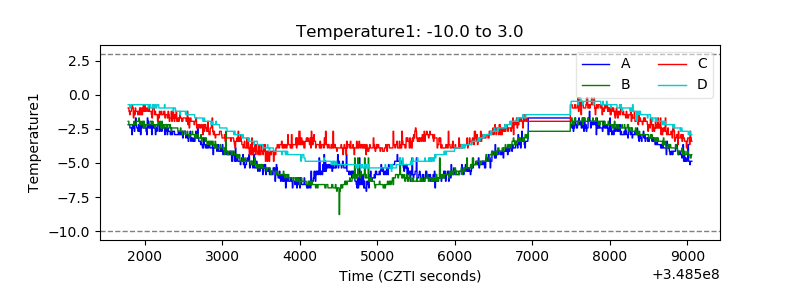

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

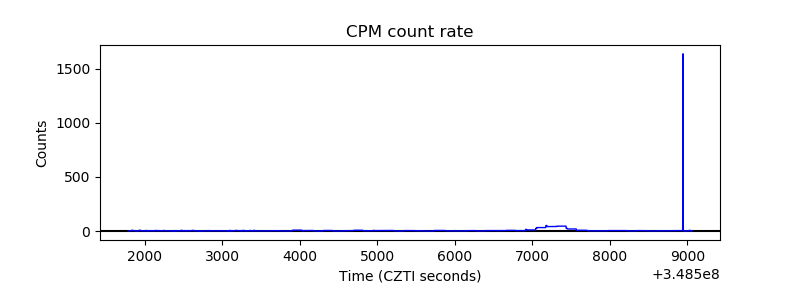

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

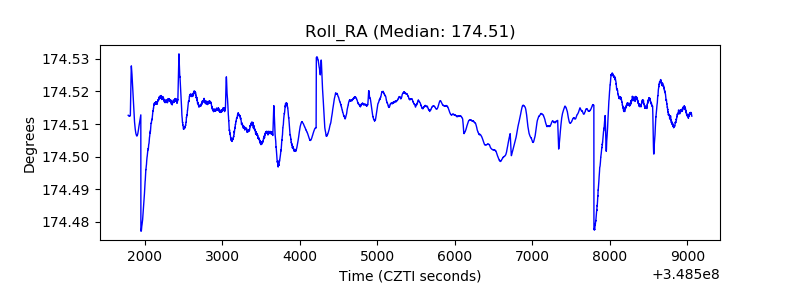

| _Roll_RA |  |

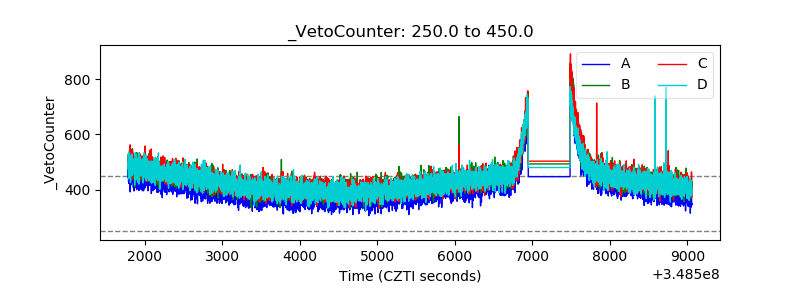

| Veto Counter |  |
