| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T04_9000004116_28693cztM0_level2.evt | modeM0/AS1A10_021T04_9000004116_28693cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,145,600 | 77,892,480 |
| Size | 568.5 MB | 74.3 MB |
| Events in quadrant A | 3,567,864 | 472,382 |
| Events in quadrant B | 4,921,030 | 471,140 |
| Events in quadrant C | 3,921,713 | 459,679 |
| Events in quadrant D | 5,150,908 | 448,809 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15117 | 2 |
| B | 0 | 19253 | 2 |
| C | 0 | 16039 | 2 |
| D | 0 | 20258 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7281 | 32 | 0.439500% |
| B | 7281 | 381 | 5.232798% |
| C | 7281 | 163 | 2.238703% |
| D | 7281 | 166 | 2.279907% |

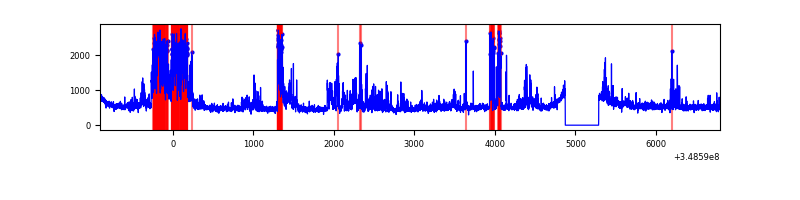

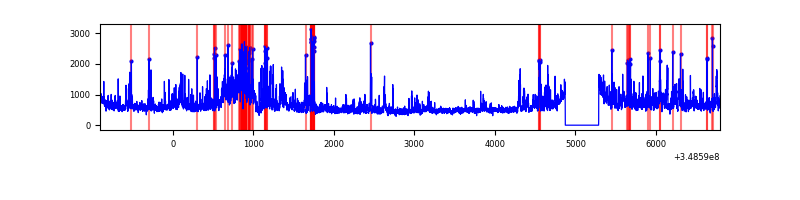

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7696 | 7282 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7696 | 7281 | 211 | 211 | 2.74% | 2.90% |  |
| C | 7696 | 7282 | 12 | 12 | 0.16% | 0.16% |  |
| D | 7696 | 7281 | 100 | 100 | 1.30% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13969 | 70.19 | 919 | 900 | 186.2 |
| A | 15 | 174 | 12049 | 59.88 | 919 | 900 | 186.2 |
| A | 3 | 137 | 9012 | 43.57 | 919 | 900 | 186.2 |
| B | 10 | 245 | 1375171 | 7958.85 | 897 | 875 | 172.7 |
| B | 12 | 111 | 21653 | 120.33 | 897 | 875 | 172.7 |
| B | 11 | 111 | 19515 | 107.95 | 897 | 875 | 172.7 |
| C | 3 | 233 | 188428 | 903.14 | 878 | 884 | 207.7 |
| C | 14 | 238 | 154462 | 739.57 | 878 | 884 | 207.7 |
| C | 2 | 16 | 138877 | 664.52 | 878 | 884 | 207.7 |
| D | 1 | 52 | 1183100 | 5531.72 | 889 | 864 | 213.7 |
| D | 8 | 195 | 384531 | 1795.19 | 889 | 864 | 213.7 |
| D | 7 | 80 | 67997 | 314.12 | 889 | 864 | 213.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

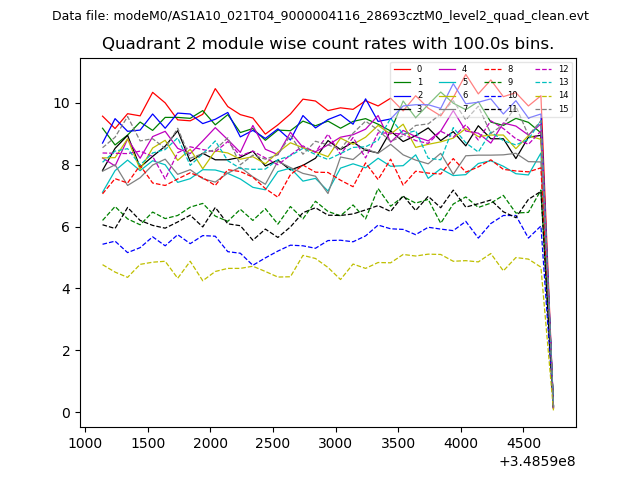

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

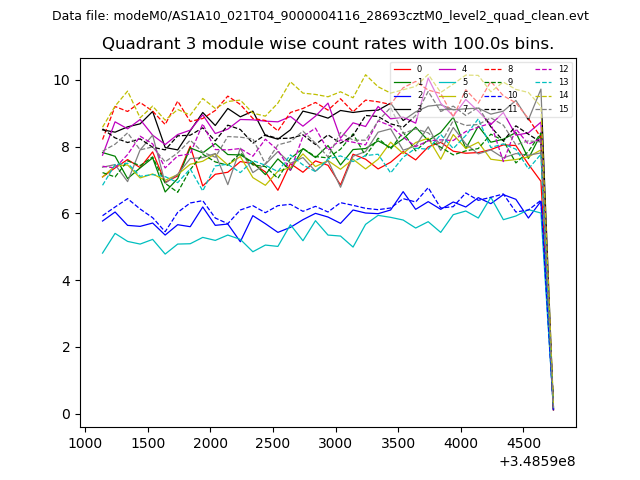

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

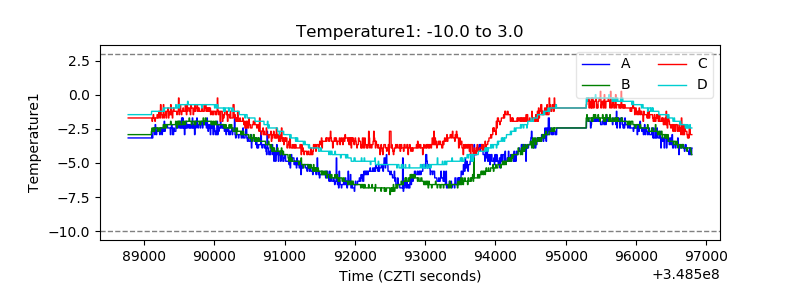

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

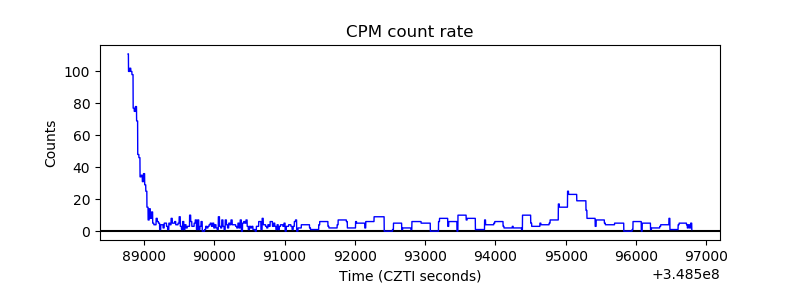

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

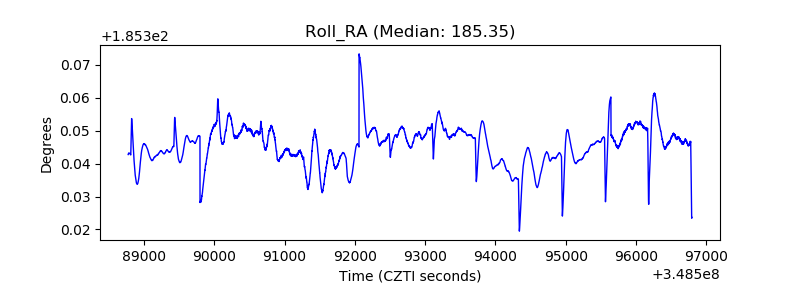

| _Roll_RA |  |

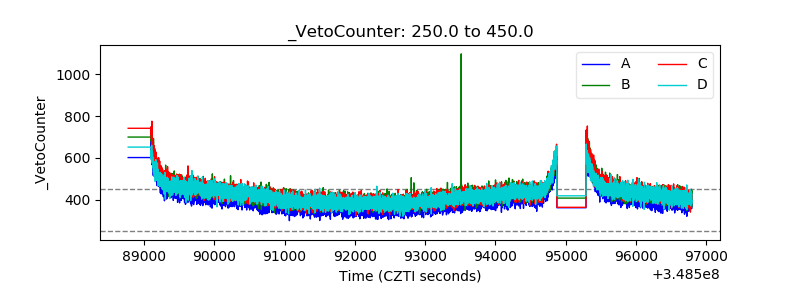

| Veto Counter |  |
