| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T04_9000004116_28699cztM0_level2.evt | modeM0/AS1A10_021T04_9000004116_28699cztM0_level2_quad_clean.evt |
| Size (bytes) | 396,233,280 | 70,908,480 |
| Size | 377.9 MB | 67.6 MB |
| Events in quadrant A | 2,602,121 | 443,944 |
| Events in quadrant B | 2,789,659 | 453,064 |
| Events in quadrant C | 2,660,148 | 435,156 |
| Events in quadrant D | 3,569,899 | 425,951 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11418 | 2 |
| B | 0 | 11895 | 2 |
| C | 0 | 11498 | 2 |
| D | 0 | 14348 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5556 | 27 | 0.485961% |
| B | 5556 | 66 | 1.187905% |
| C | 5556 | 65 | 1.169906% |
| D | 5556 | 114 | 2.051836% |

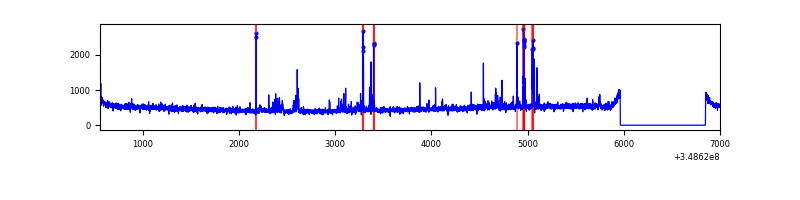

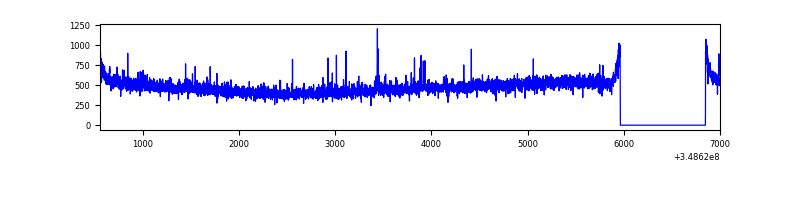

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

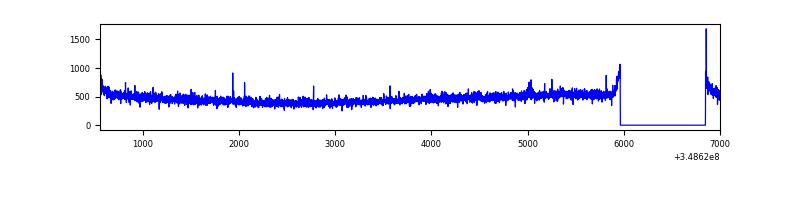

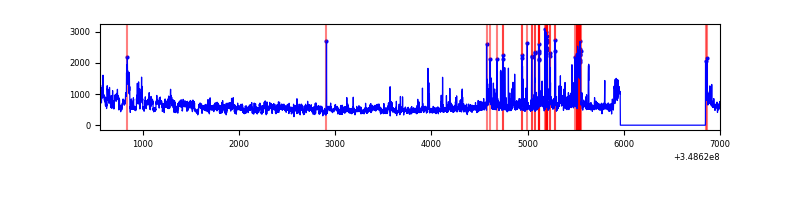

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6441 | 5556 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6441 | 5556 | 20 | 20 | 0.31% | 0.36% |  |
| C | 6441 | 5556 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6441 | 5557 | 56 | 56 | 0.87% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10425 | 71.65 | 669 | 654 | 136.4 |
| A | 3 | 137 | 6749 | 44.69 | 669 | 654 | 136.4 |
| A | 0 | 226 | 5616 | 36.38 | 669 | 654 | 136.4 |
| B | 10 | 247 | 109886 | 844.49 | 665 | 649 | 129.4 |
| B | 10 | 245 | 54256 | 414.42 | 665 | 649 | 129.4 |
| B | 0 | 190 | 16524 | 122.73 | 665 | 649 | 129.4 |
| C | 14 | 238 | 112531 | 730.01 | 643 | 647 | 153.3 |
| C | 3 | 233 | 27774 | 177.0 | 643 | 647 | 153.3 |
| C | 14 | 254 | 14406 | 89.77 | 643 | 647 | 153.3 |
| D | 8 | 195 | 677822 | 4288.4 | 646 | 626 | 157.9 |
| D | 1 | 52 | 363668 | 2298.99 | 646 | 626 | 157.9 |
| D | 7 | 80 | 43014 | 268.43 | 646 | 626 | 157.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

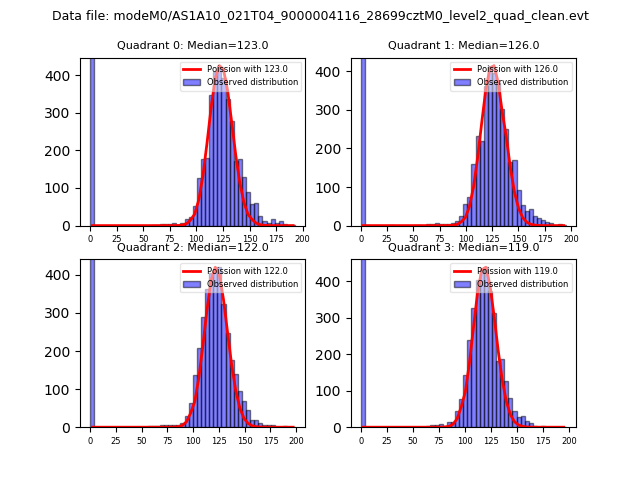

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

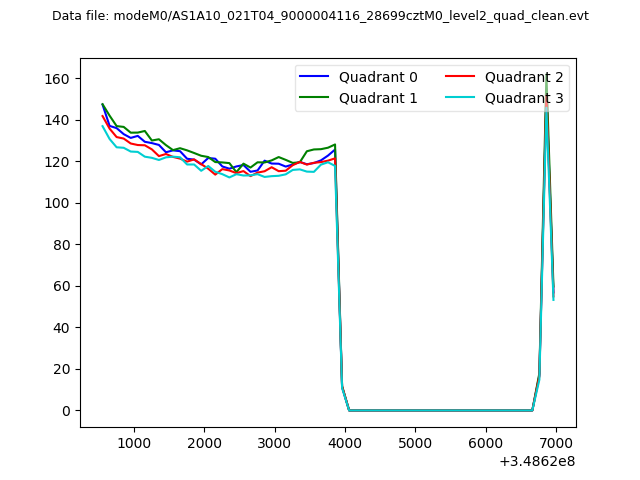

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

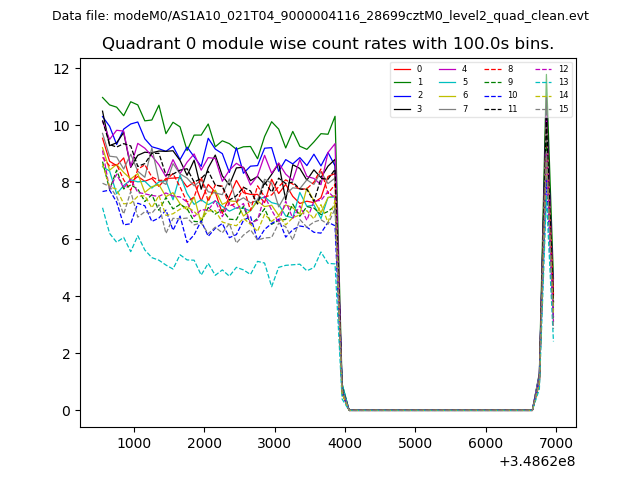

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

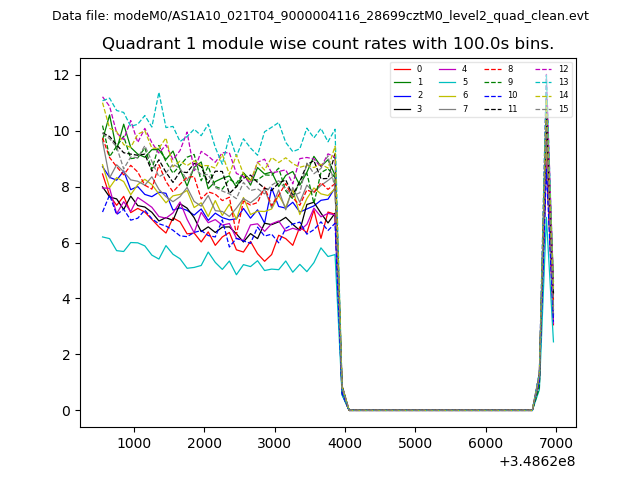

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

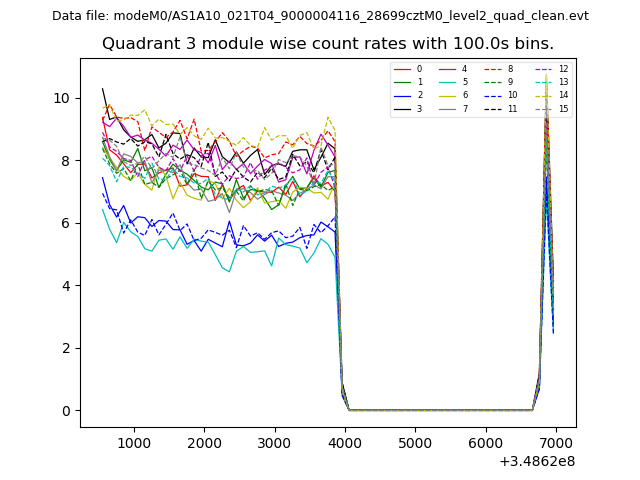

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

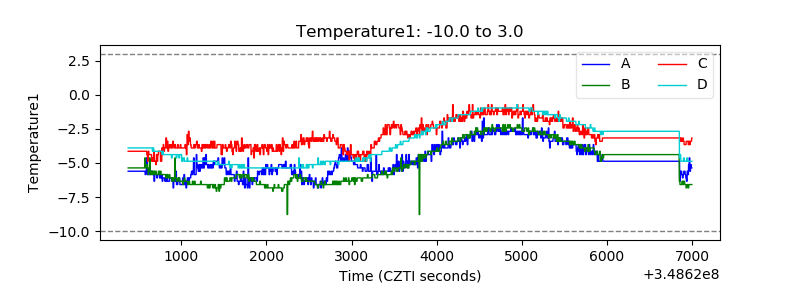

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

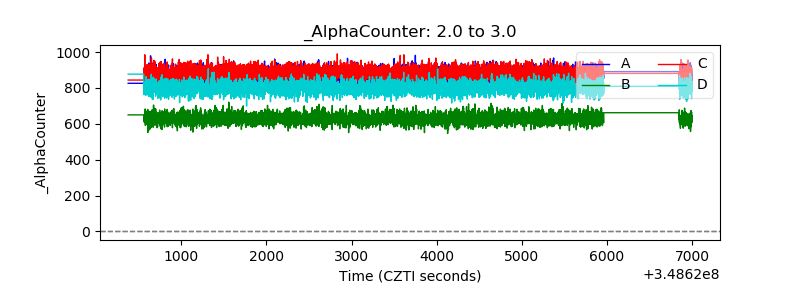

| Alpha Counter |  |

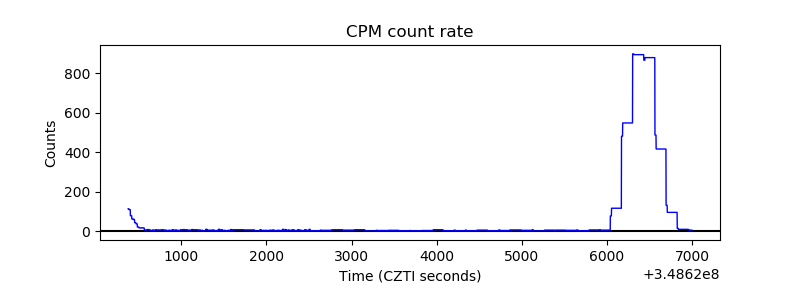

| _CPM_Rate |  |

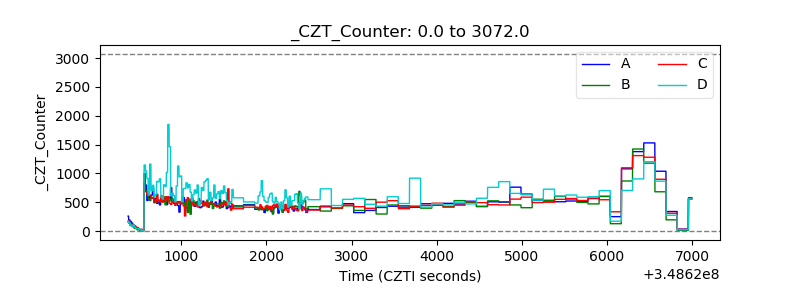

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

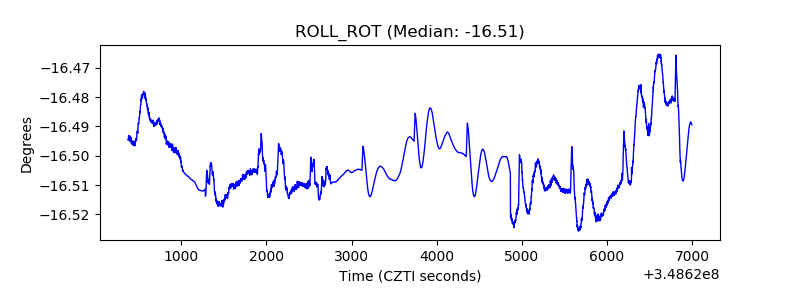

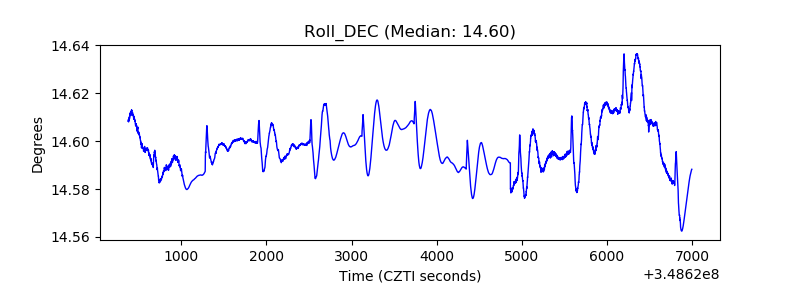

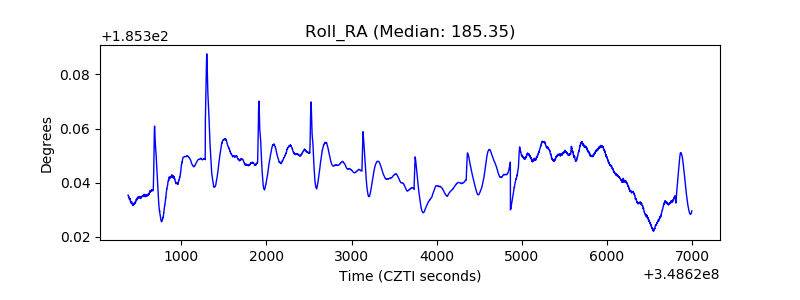

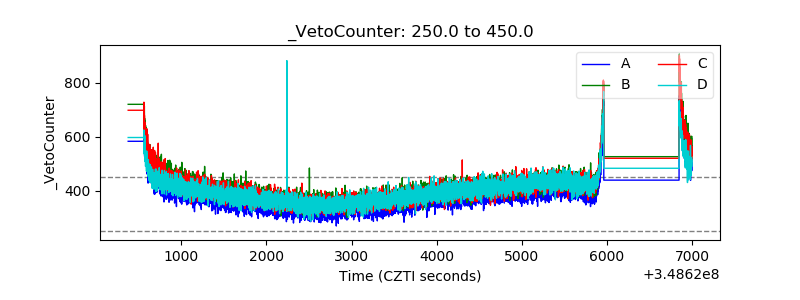

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
