| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T08_9000004118_28701cztM0_level2.evt | modeM0/AS1A10_021T08_9000004118_28701cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,954,240 | 99,587,520 |
| Size | 450.1 MB | 95.0 MB |
| Events in quadrant A | 3,271,189 | 646,883 |
| Events in quadrant B | 3,377,127 | 664,569 |
| Events in quadrant C | 3,327,511 | 630,839 |
| Events in quadrant D | 3,865,540 | 609,931 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13788 | 2 |
| B | 0 | 14059 | 2 |
| C | 0 | 13947 | 2 |
| D | 0 | 15793 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6650 | 31 | 0.466165% |
| B | 6650 | 39 | 0.586466% |
| C | 6650 | 69 | 1.037594% |
| D | 6650 | 29 | 0.436090% |

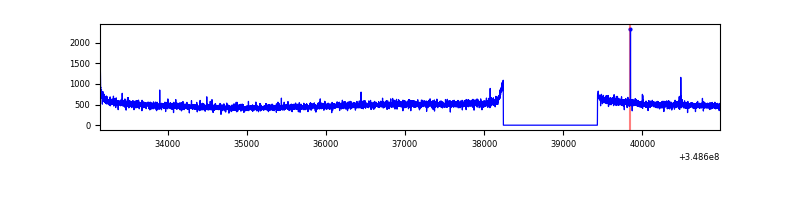

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7840 | 6651 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7840 | 6650 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7840 | 6651 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7840 | 6650 | 11 | 11 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 10728 | 58.69 | 844 | 826 | 168.7 |
| A | 13 | 254 | 10673 | 58.36 | 844 | 826 | 168.7 |
| A | 3 | 137 | 7926 | 42.08 | 844 | 826 | 168.7 |
| B | 10 | 245 | 67278 | 420.16 | 840 | 820 | 158.2 |
| B | 12 | 111 | 19223 | 116.34 | 840 | 820 | 158.2 |
| B | 11 | 111 | 17607 | 106.13 | 840 | 820 | 158.2 |
| C | 14 | 238 | 138019 | 727.64 | 810 | 816 | 188.6 |
| C | 3 | 233 | 12290 | 60.85 | 810 | 816 | 188.6 |
| C | 10 | 22 | 11869 | 58.62 | 810 | 816 | 188.6 |
| D | 8 | 195 | 325329 | 1693.17 | 812 | 794 | 191.7 |
| D | 1 | 52 | 204302 | 1061.74 | 812 | 794 | 191.7 |
| D | 13 | 104 | 186978 | 971.36 | 812 | 794 | 191.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

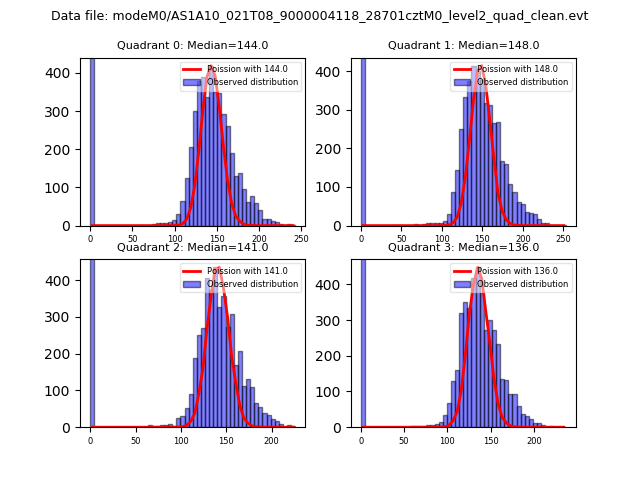

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

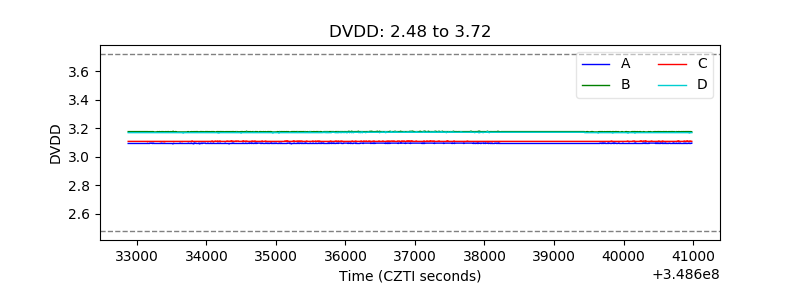

| D_VDD |  |

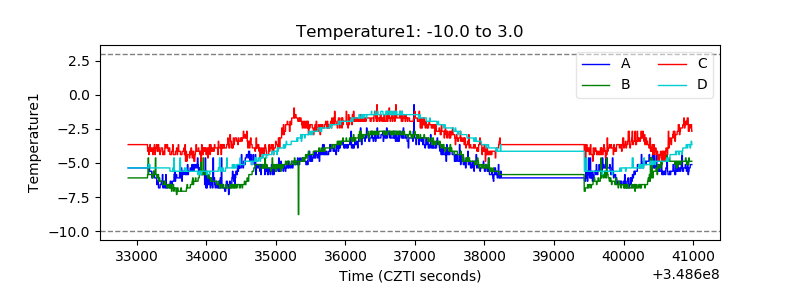

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

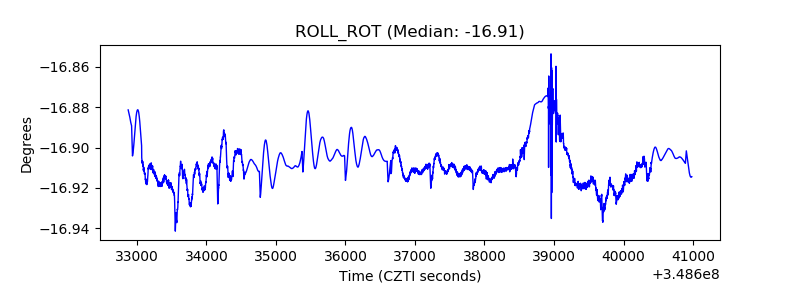

| _ROLL_ROT |  |
| _Roll_DEC |  |

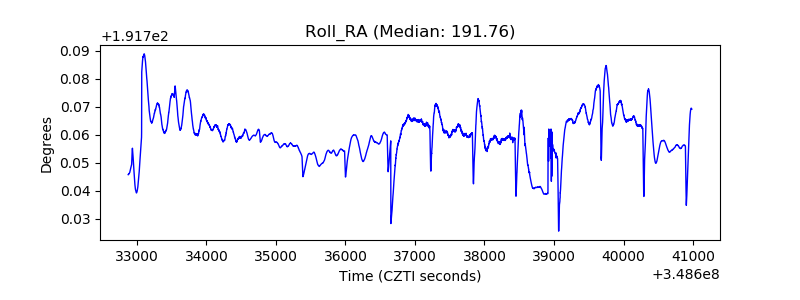

| _Roll_RA |  |

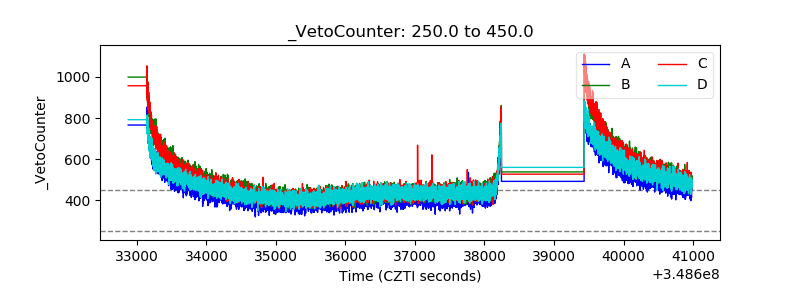

| Veto Counter |  |
