| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T03_9000004120_28708cztM0_level2.evt | modeM0/AS1A10_123T03_9000004120_28708cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,166,080 | 83,888,640 |
| Size | 555.2 MB | 80.0 MB |
| Events in quadrant A | 4,386,826 | 506,595 |
| Events in quadrant B | 3,799,652 | 516,041 |
| Events in quadrant C | 3,761,265 | 500,606 |
| Events in quadrant D | 5,170,715 | 491,200 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17888 | 2 |
| B | 0 | 16095 | 2 |
| C | 0 | 15838 | 2 |
| D | 0 | 20522 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7552 | 336 | 4.449153% |
| B | 7553 | 186 | 2.462598% |
| C | 7553 | 241 | 3.190785% |
| D | 7553 | 325 | 4.302926% |

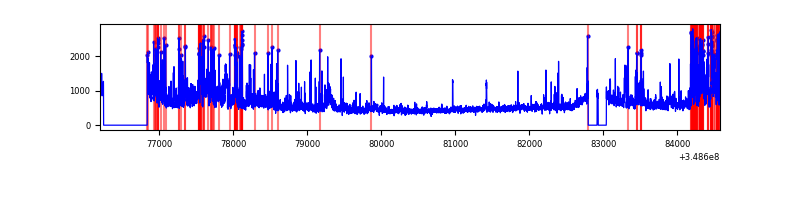

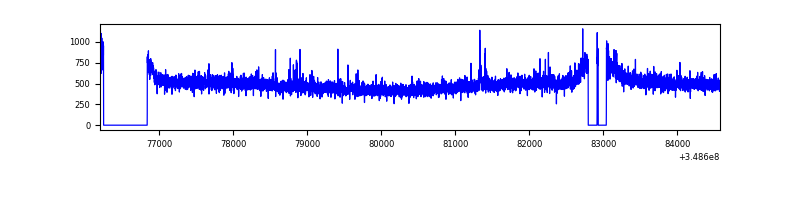

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8372 | 7554 | 190 | 190 | 2.27% | 2.52% |  |
| B | 8373 | 7554 | 10 | 10 | 0.12% | 0.13% |  |
| C | 8373 | 7553 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8372 | 7552 | 157 | 157 | 1.88% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 641049 | 3401.23 | 940 | 919 | 188.2 |
| A | 14 | 239 | 79839 | 419.33 | 940 | 919 | 188.2 |
| A | 14 | 254 | 26039 | 133.47 | 940 | 919 | 188.2 |
| B | 0 | 156 | 41168 | 223.83 | 935 | 913 | 179.8 |
| B | 4 | 80 | 29315 | 157.92 | 935 | 913 | 179.8 |
| B | 0 | 230 | 28758 | 154.83 | 935 | 913 | 179.8 |
| C | 14 | 238 | 155914 | 729.46 | 906 | 912 | 212.5 |
| C | 3 | 233 | 46492 | 214.51 | 906 | 912 | 212.5 |
| C | 14 | 254 | 16619 | 73.92 | 906 | 912 | 212.5 |
| D | 1 | 52 | 691349 | 3156.78 | 912 | 887 | 218.7 |
| D | 8 | 195 | 452668 | 2065.54 | 912 | 887 | 218.7 |
| D | 7 | 80 | 333301 | 1519.79 | 912 | 887 | 218.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

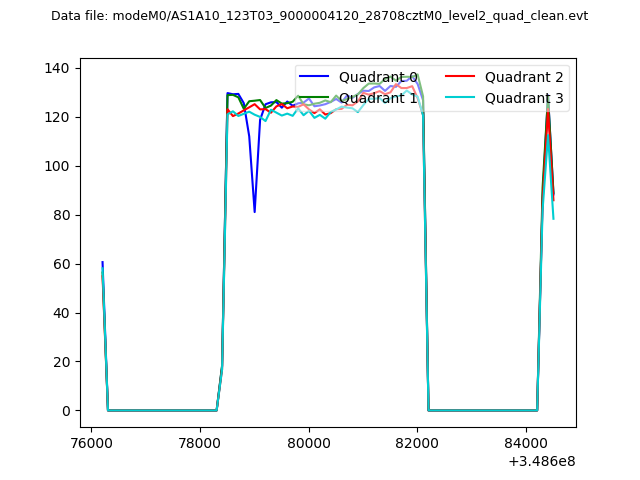

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

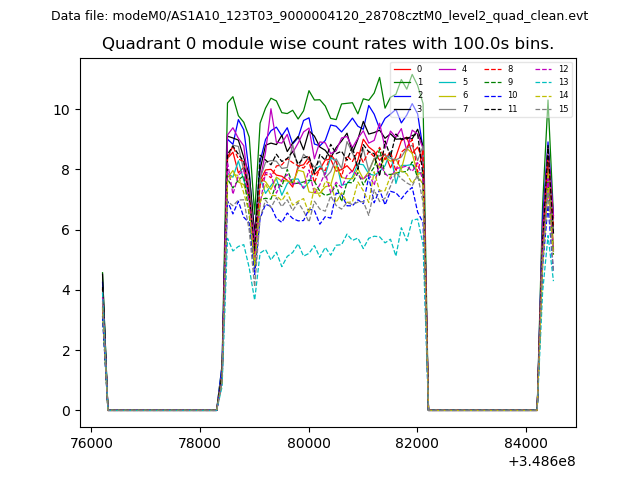

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

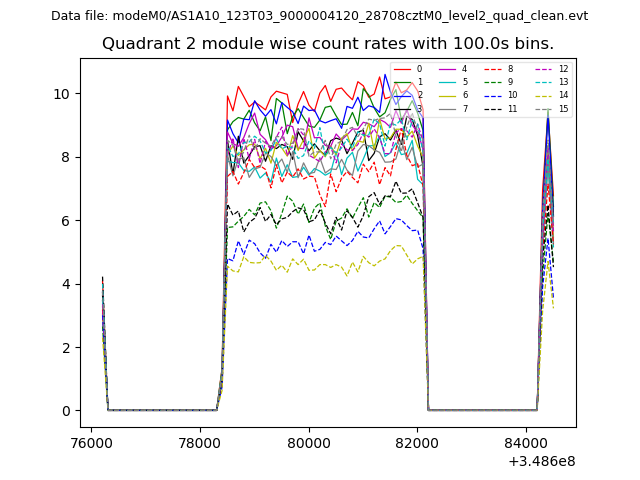

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

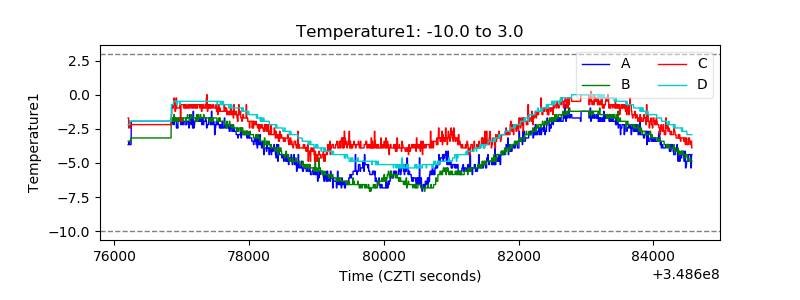

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

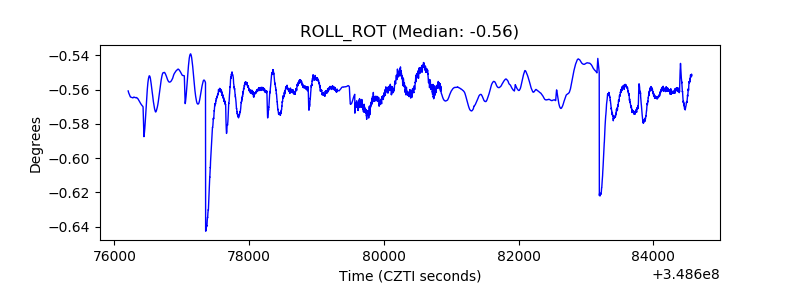

| _ROLL_ROT |  |

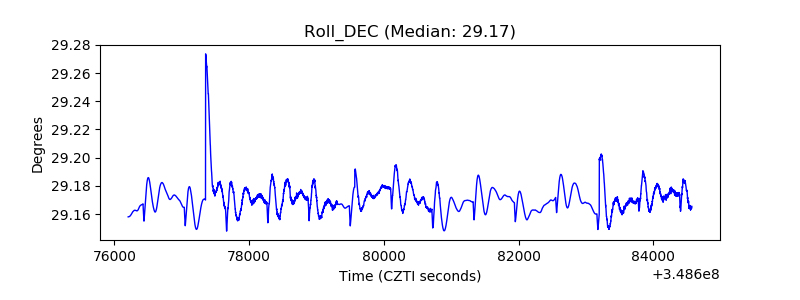

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
