| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T06_9000004122_28726cztM0_level2.evt | modeM0/AS1A10_123T06_9000004122_28726cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,827,520 | 76,075,200 |
| Size | 527.2 MB | 72.6 MB |
| Events in quadrant A | 2,621,881 | 490,989 |
| Events in quadrant B | 2,633,564 | 497,112 |
| Events in quadrant C | 7,588,418 | 449,233 |
| Events in quadrant D | 3,517,144 | 472,148 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11605 | 1 |
| B | 0 | 11589 | 1 |
| C | 0 | 26536 | 1 |
| D | 0 | 14382 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5627 | 26 | 0.462058% |
| B | 5628 | 47 | 0.835110% |
| C | 5628 | 1030 | 18.301350% |
| D | 5628 | 182 | 3.233831% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

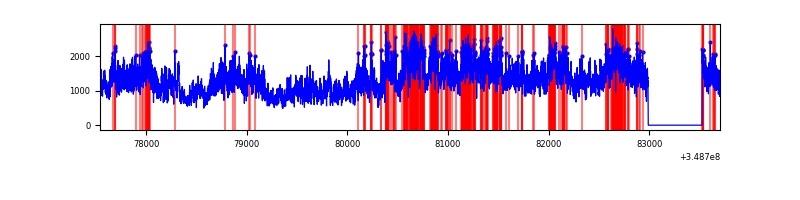

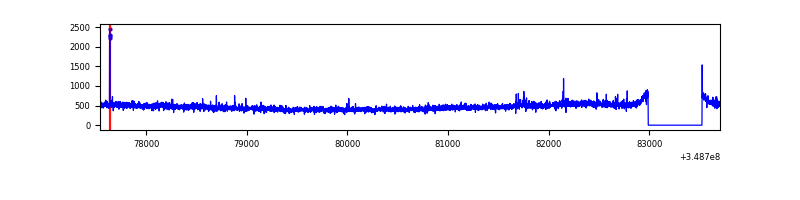

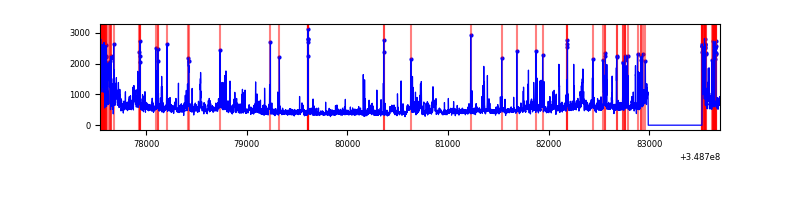

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6162 | 5627 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6163 | 5628 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6163 | 5628 | 422 | 422 | 6.85% | 7.50% |  |
| D | 6163 | 5628 | 130 | 130 | 2.11% | 2.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 26937 | 192.23 | 670 | 656 | 136.7 |
| A | 13 | 254 | 10762 | 73.92 | 670 | 656 | 136.7 |
| A | 3 | 137 | 6595 | 43.44 | 670 | 656 | 136.7 |
| B | 0 | 229 | 19694 | 148.11 | 664 | 647 | 128.6 |
| B | 12 | 111 | 15925 | 118.8 | 664 | 647 | 128.6 |
| B | 11 | 111 | 14371 | 106.72 | 664 | 647 | 128.6 |
| C | 3 | 233 | 5075105 | 35217.48 | 615 | 619 | 144.1 |
| C | 14 | 238 | 101848 | 702.54 | 615 | 619 | 144.1 |
| C | 14 | 254 | 9248 | 59.89 | 615 | 619 | 144.1 |
| D | 1 | 52 | 495867 | 3214.61 | 640 | 623 | 154.1 |
| D | 8 | 195 | 297879 | 1929.48 | 640 | 623 | 154.1 |
| D | 12 | 233 | 218243 | 1412.56 | 640 | 623 | 154.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

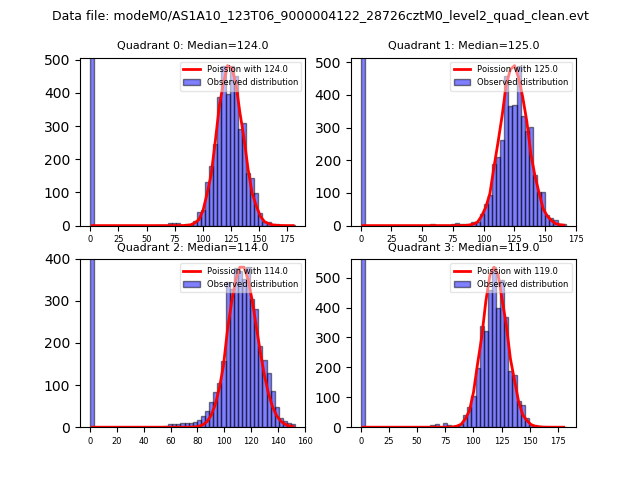

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

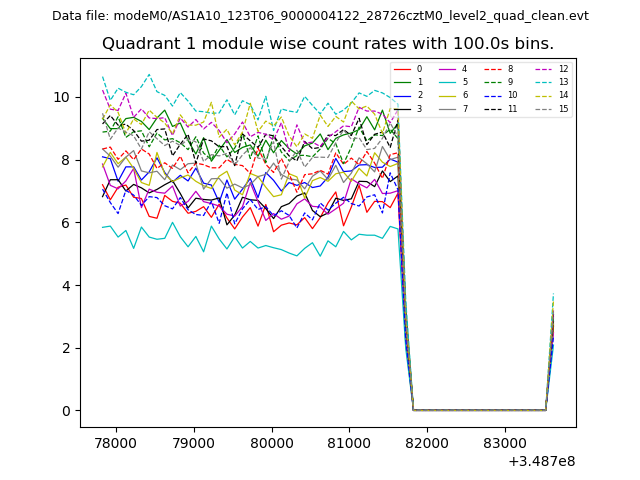

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

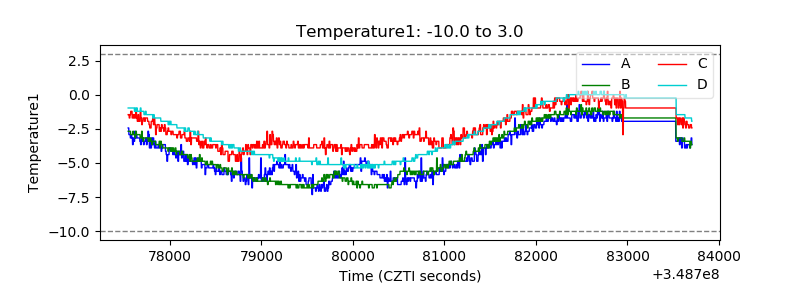

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

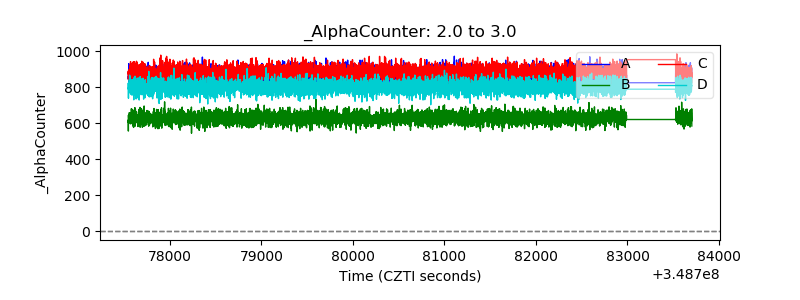

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

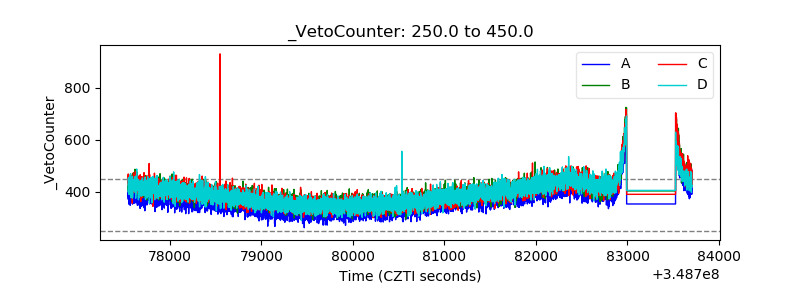

| Veto Counter |  |
