| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T07_9000004124_28730cztM0_level2.evt | modeM0/AS1A10_123T07_9000004124_28730cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,937,920 | 96,667,200 |
| Size | 470.1 MB | 92.2 MB |
| Events in quadrant A | 3,149,426 | 633,111 |
| Events in quadrant B | 3,225,640 | 644,268 |
| Events in quadrant C | 3,095,070 | 615,541 |
| Events in quadrant D | 5,026,872 | 591,018 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 2 |
| D | 0 | 22 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13722 | 304 |
| B | 0 | 13940 | 375 |
| C | 0 | 13516 | 313 |
| D | 0 | 19703 | 388 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 6 |
| B | 0 | 134 | 2 |
| C | 0 | 134 | 2 |
| D | 0 | 134 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6362 | 36 | 0.565860% |
| B | 6333 | 64 | 1.010580% |
| C | 6360 | 73 | 1.147799% |
| D | 6344 | 496 | 7.818411% |

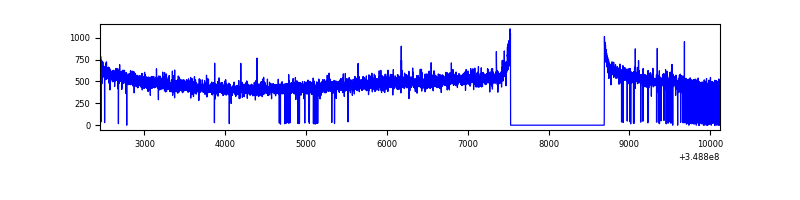

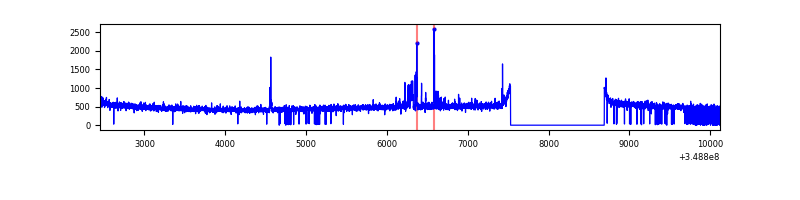

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 6488 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7672 | 6477 | 11 | 11 | 0.14% | 0.17% |  |
| C | 7672 | 6492 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7672 | 6485 | 390 | 390 | 5.08% | 6.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 78699 | 493.87 | 794 | 779 | 157.8 |
| A | 13 | 254 | 11249 | 66.36 | 794 | 779 | 157.8 |
| A | 3 | 137 | 7369 | 41.77 | 794 | 779 | 157.8 |
| B | 4 | 80 | 131457 | 880.38 | 786 | 768 | 148.4 |
| B | 12 | 111 | 17693 | 114.01 | 786 | 768 | 148.4 |
| B | 11 | 111 | 16031 | 102.82 | 786 | 768 | 148.4 |
| C | 14 | 238 | 130700 | 738.52 | 756 | 761 | 175.9 |
| C | 14 | 254 | 12357 | 65.91 | 756 | 761 | 175.9 |
| C | 3 | 233 | 7810 | 40.06 | 756 | 761 | 175.9 |
| D | 1 | 52 | 1568370 | 9093.76 | 737 | 720 | 172.4 |
| D | 8 | 195 | 596344 | 3455.15 | 737 | 720 | 172.4 |
| D | 12 | 233 | 29373 | 166.21 | 737 | 720 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

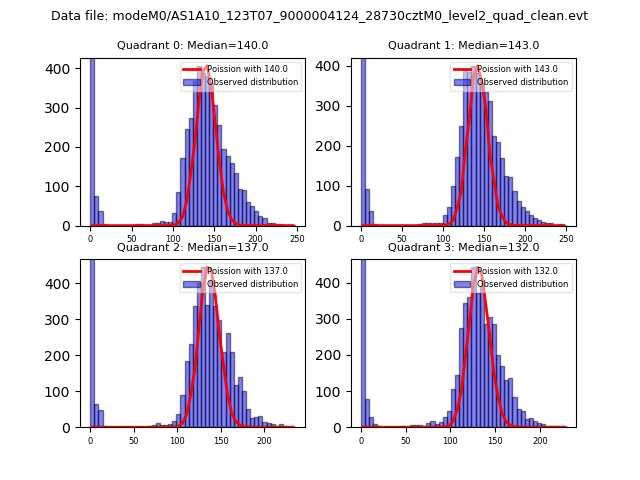

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

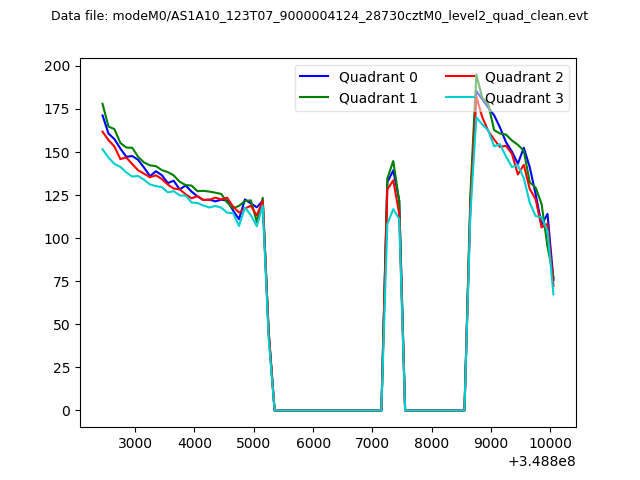

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

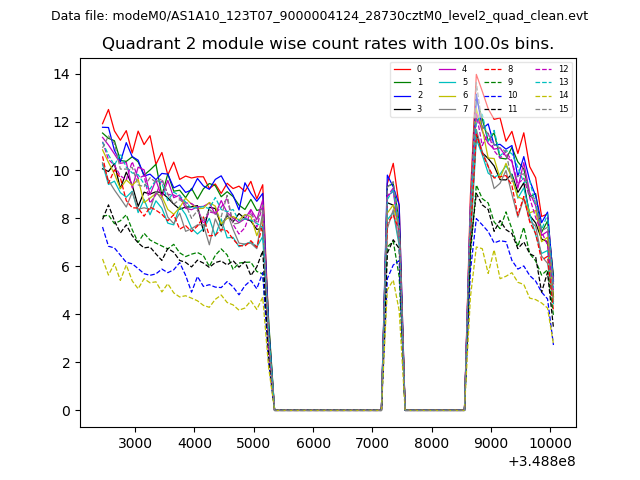

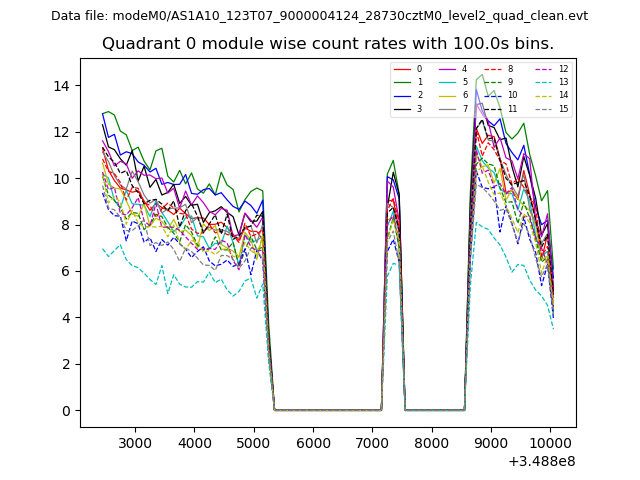

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

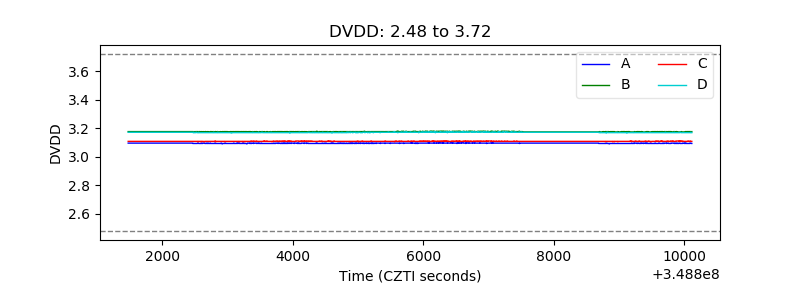

| D_VDD |  |
| Temperature 1 |  |

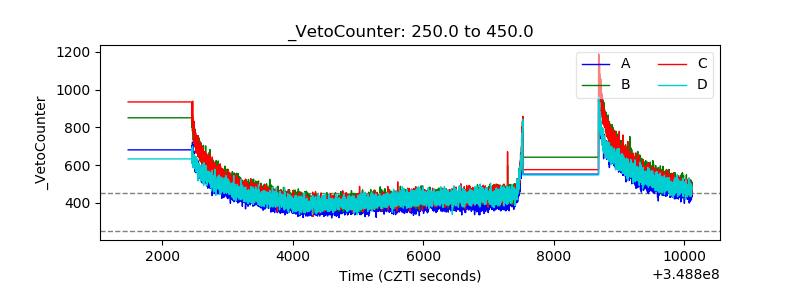

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
