| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T07_9000004124_28734cztM0_level2.evt | modeM0/AS1A10_123T07_9000004124_28734cztM0_level2_quad_clean.evt |
| Size (bytes) | 669,980,160 | 83,952,000 |
| Size | 638.9 MB | 80.1 MB |
| Events in quadrant A | 5,434,141 | 544,825 |
| Events in quadrant B | 4,385,353 | 546,980 |
| Events in quadrant C | 3,163,198 | 524,003 |
| Events in quadrant D | 6,902,352 | 506,645 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19785 | 1 |
| B | 0 | 16779 | 5 |
| C | 0 | 12727 | 1 |
| D | 0 | 24715 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6000 | 874 | 14.566667% |
| B | 6000 | 406 | 6.766667% |
| C | 6000 | 184 | 3.066667% |
| D | 6000 | 464 | 7.733333% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

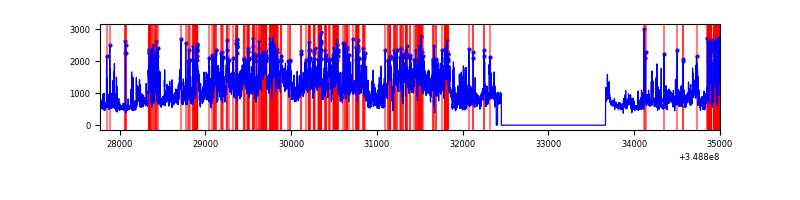

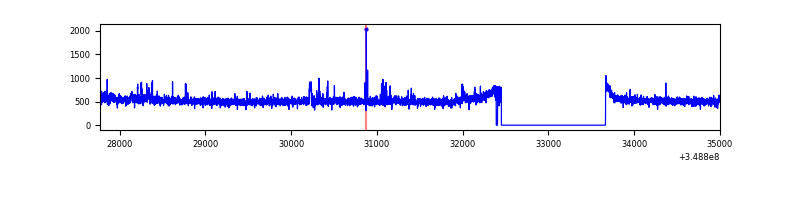

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 6000 | 733 | 733 | 10.14% | 12.22% |  |
| B | 7229 | 6000 | 212 | 212 | 2.93% | 3.53% |  |
| C | 7230 | 6001 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7230 | 6001 | 408 | 408 | 5.64% | 6.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 2438514 | 15882.02 | 769 | 754 | 153.5 |
| A | 7 | 192 | 21742 | 136.74 | 769 | 754 | 153.5 |
| A | 13 | 254 | 11415 | 69.46 | 769 | 754 | 153.5 |
| B | 5 | 255 | 1259567 | 8709.52 | 772 | 754 | 144.5 |
| B | 4 | 80 | 56434 | 385.24 | 772 | 754 | 144.5 |
| B | 10 | 245 | 18672 | 123.97 | 772 | 754 | 144.5 |
| C | 14 | 238 | 156591 | 899.5 | 756 | 762 | 173.2 |
| C | 14 | 254 | 45361 | 257.44 | 756 | 762 | 173.2 |
| C | 3 | 233 | 6870 | 35.26 | 756 | 762 | 173.2 |
| D | 8 | 195 | 2111374 | 11614.78 | 766 | 746 | 181.7 |
| D | 1 | 52 | 1352134 | 7436.69 | 766 | 746 | 181.7 |
| D | 12 | 233 | 332517 | 1825.74 | 766 | 746 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

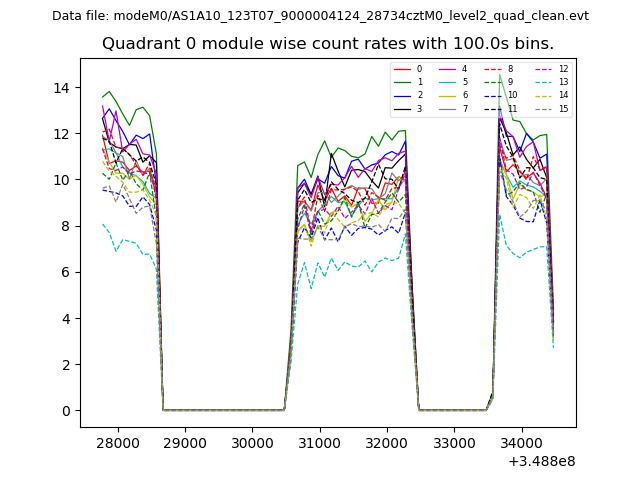

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

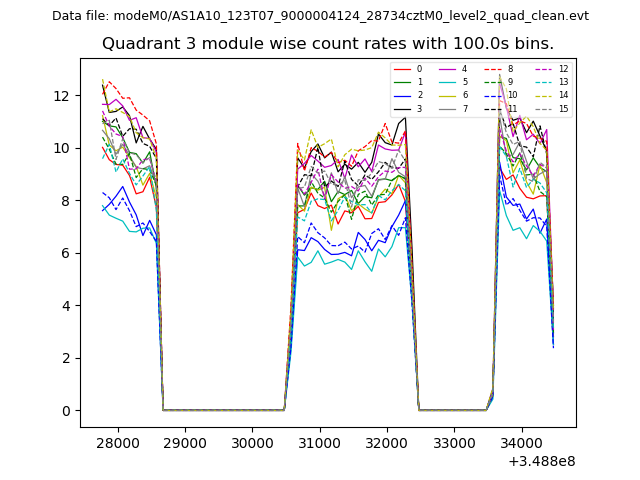

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

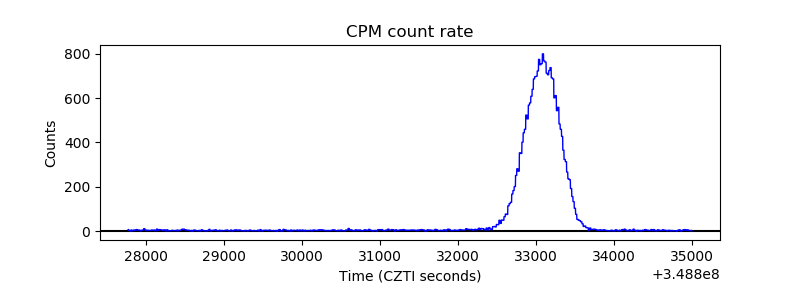

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

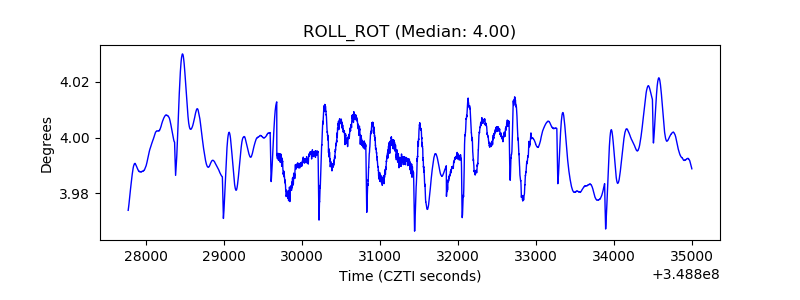

| _ROLL_ROT |  |

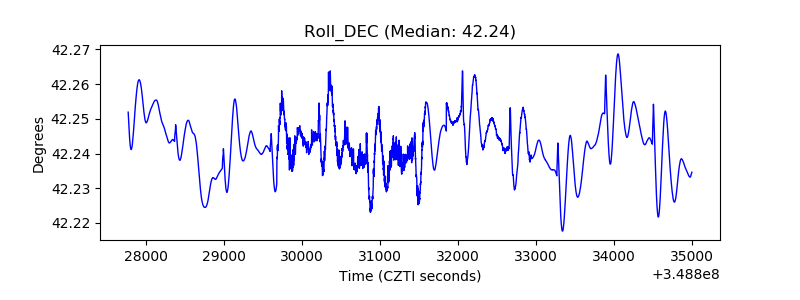

| _Roll_DEC |  |

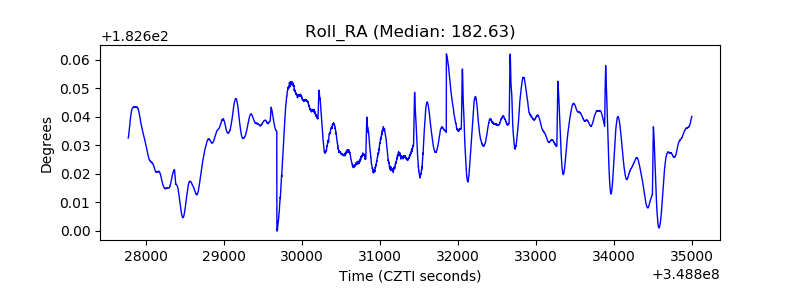

| _Roll_RA |  |
| Veto Counter |  |
