| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T07_9000004124_28736cztM0_level2.evt | modeM0/AS1A10_123T07_9000004124_28736cztM0_level2_quad_clean.evt |
| Size (bytes) | 808,375,680 | 78,811,200 |
| Size | 770.9 MB | 75.2 MB |
| Events in quadrant A | 5,941,756 | 503,025 |
| Events in quadrant B | 3,805,213 | 515,860 |
| Events in quadrant C | 4,290,504 | 495,664 |
| Events in quadrant D | 9,947,112 | 358,822 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22523 | 9 |
| B | 0 | 15902 | 2 |
| C | 0 | 17483 | 2 |
| D | 0 | 34800 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7359 | 731 | 9.933415% |
| B | 7359 | 189 | 2.568284% |
| C | 7359 | 444 | 6.033428% |
| D | 7359 | 2310 | 31.390135% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7863 | 7358 | 527 | 527 | 6.70% | 7.16% |  |
| B | 7864 | 7359 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7864 | 7359 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7864 | 7359 | 2168 | 2168 | 27.57% | 29.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 2447748 | 13458.28 | 899 | 879 | 181.8 |
| A | 5 | 98 | 16570 | 86.3 | 899 | 879 | 181.8 |
| A | 13 | 254 | 13749 | 70.79 | 899 | 879 | 181.8 |
| B | 4 | 80 | 120595 | 684.35 | 912 | 888 | 174.9 |
| B | 5 | 255 | 40435 | 226.08 | 912 | 888 | 174.9 |
| B | 0 | 190 | 34038 | 189.51 | 912 | 888 | 174.9 |
| C | 3 | 233 | 581971 | 2883.78 | 869 | 873 | 201.5 |
| C | 14 | 238 | 208386 | 1029.81 | 869 | 873 | 201.5 |
| C | 14 | 254 | 100641 | 495.11 | 869 | 873 | 201.5 |
| D | 12 | 233 | 4940409 | 26527.82 | 774 | 751 | 186.2 |
| D | 1 | 52 | 1139413 | 6115.04 | 774 | 751 | 186.2 |
| D | 8 | 195 | 902377 | 4842.07 | 774 | 751 | 186.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

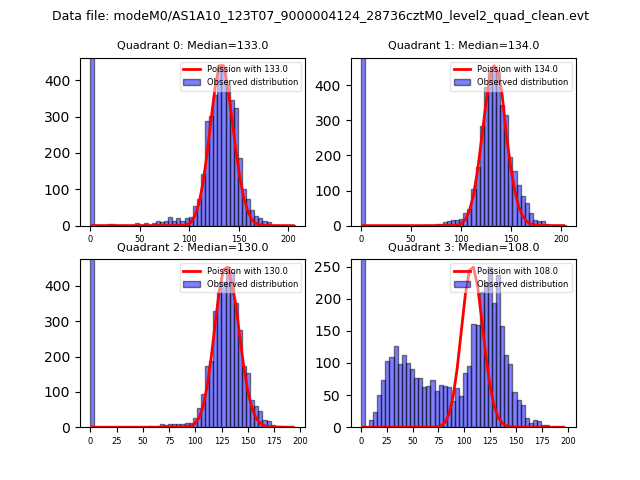

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

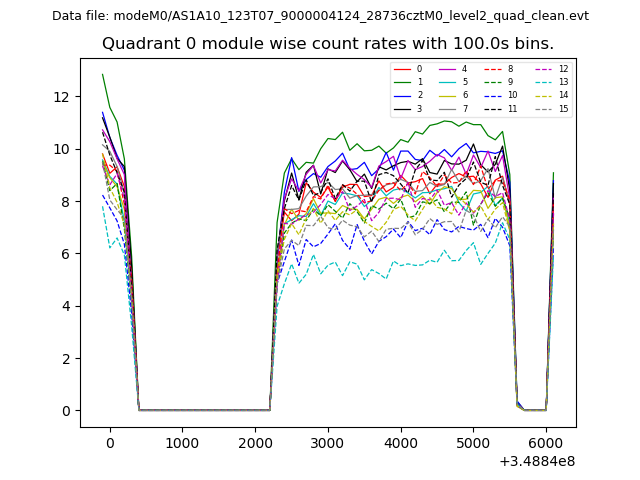

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

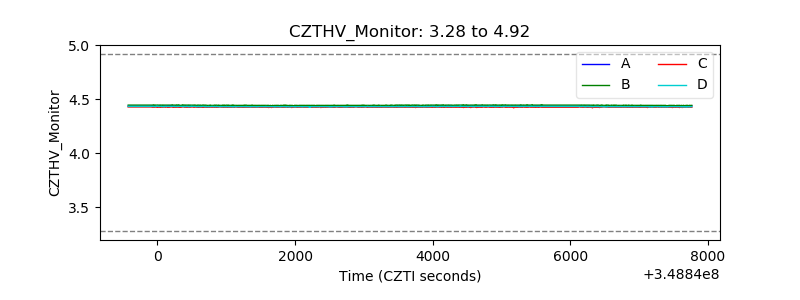

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

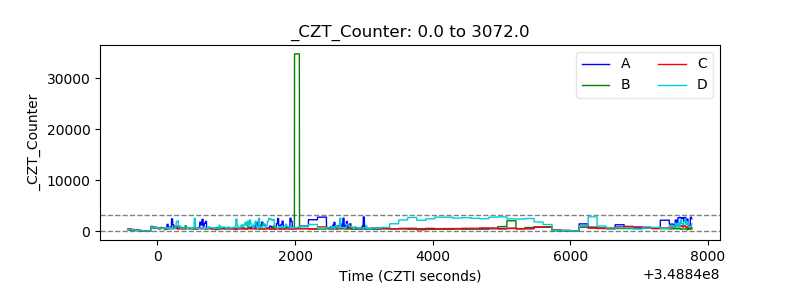

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

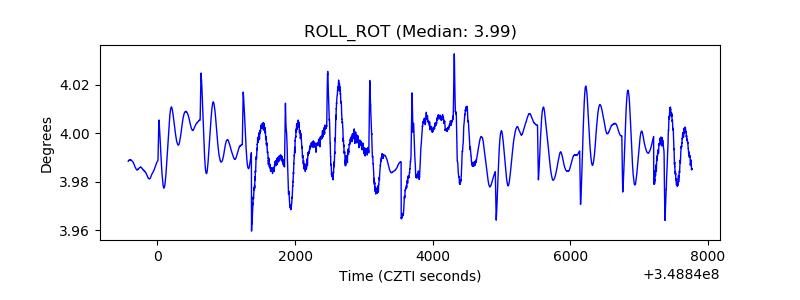

| _ROLL_ROT |  |
