| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T08_9000004126_28749cztM0_level2.evt | modeM0/AS1A10_123T08_9000004126_28749cztM0_level2_quad_clean.evt |
| Size (bytes) | 715,109,760 | 97,568,640 |
| Size | 682.0 MB | 93.0 MB |
| Events in quadrant A | 3,252,268 | 655,022 |
| Events in quadrant B | 3,726,560 | 654,503 |
| Events in quadrant C | 7,686,703 | 600,413 |
| Events in quadrant D | 6,556,923 | 594,782 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13323 | 2 |
| B | 0 | 14902 | 2 |
| C | 0 | 27413 | 5 |
| D | 0 | 24099 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6443 | 93 | 1.443427% |
| B | 6443 | 221 | 3.430079% |
| C | 6442 | 936 | 14.529649% |
| D | 6442 | 517 | 8.025458% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6443 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7578 | 6443 | 100 | 100 | 1.32% | 1.55% |  |
| C | 7576 | 6441 | 424 | 424 | 5.60% | 6.58% |  |
| D | 7577 | 6442 | 487 | 487 | 6.43% | 7.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14097 | 79.56 | 840 | 823 | 166.8 |
| A | 3 | 137 | 7597 | 40.6 | 840 | 823 | 166.8 |
| A | 15 | 174 | 7292 | 38.77 | 840 | 823 | 166.8 |
| B | 5 | 255 | 496582 | 3284.91 | 812 | 794 | 150.9 |
| B | 4 | 80 | 24682 | 158.27 | 812 | 794 | 150.9 |
| B | 12 | 111 | 18148 | 114.98 | 812 | 794 | 150.9 |
| C | 3 | 233 | 4539981 | 26281.91 | 759 | 765 | 172.7 |
| C | 14 | 238 | 143350 | 825.56 | 759 | 765 | 172.7 |
| C | 14 | 254 | 27085 | 152.39 | 759 | 765 | 172.7 |
| D | 8 | 195 | 1773210 | 9626.16 | 785 | 763 | 184.1 |
| D | 1 | 52 | 1487327 | 8073.53 | 785 | 763 | 184.1 |
| D | 12 | 233 | 223988 | 1212.33 | 785 | 763 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

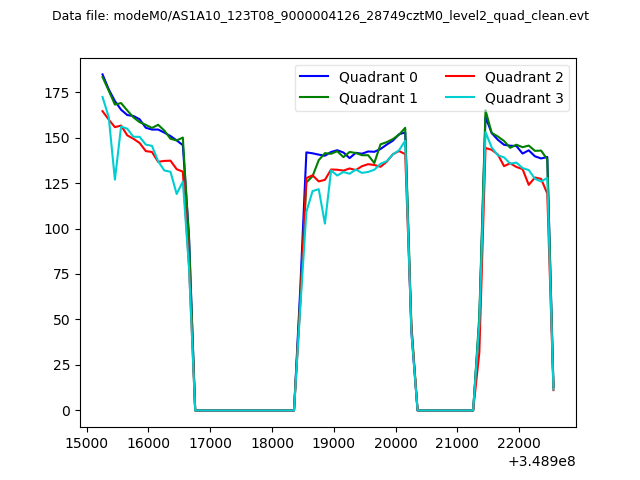

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

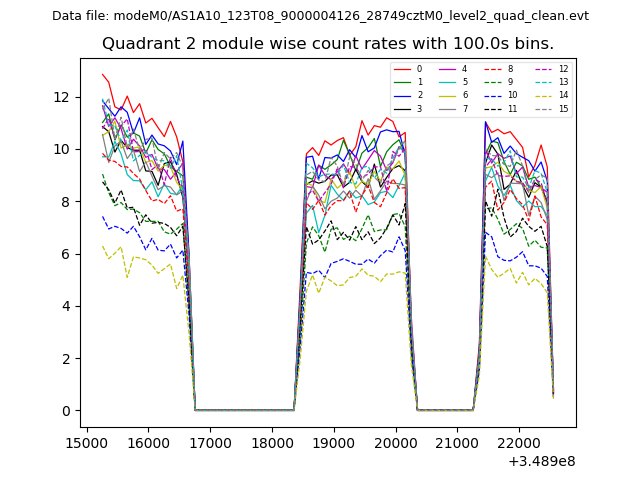

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

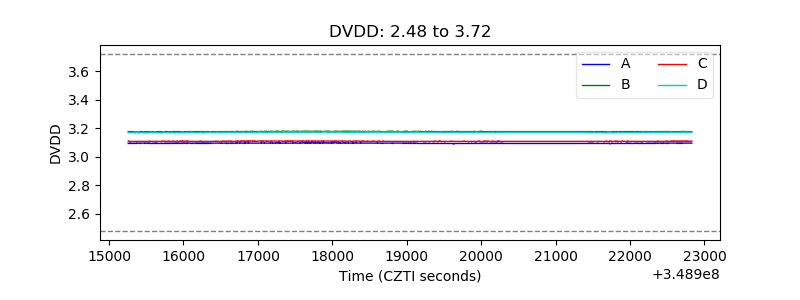

| D_VDD |  |

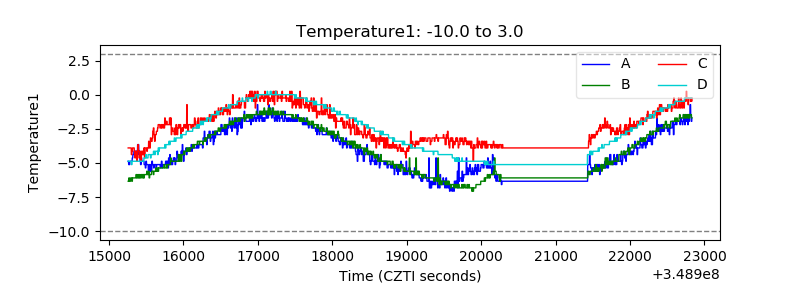

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

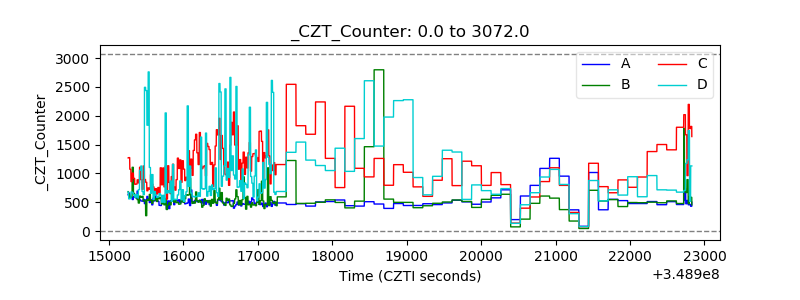

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

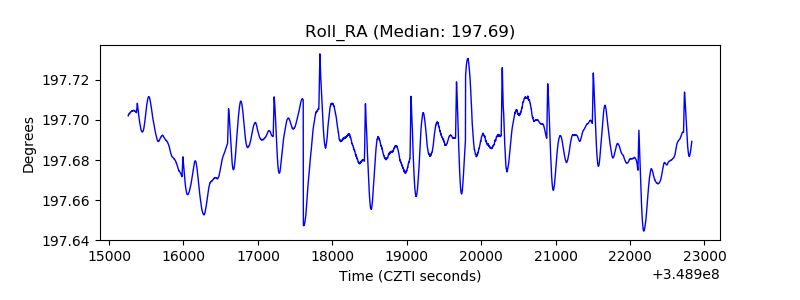

| _Roll_RA |  |

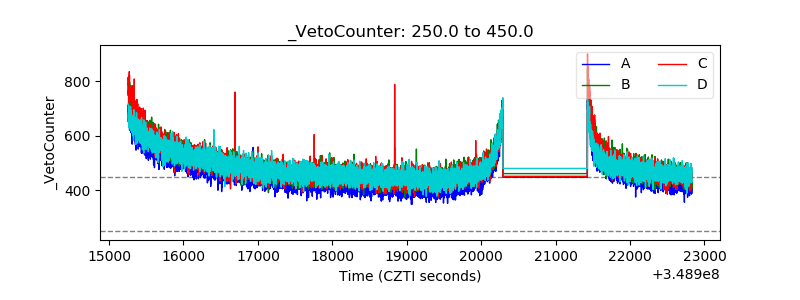

| Veto Counter |  |
