| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004130_28767cztM0_level2.evt | modeM0/AS1C05_019T04_9000004130_28767cztM0_level2_quad_clean.evt |
| Size (bytes) | 340,678,080 | 62,475,840 |
| Size | 324.9 MB | 59.6 MB |
| Events in quadrant A | 1,852,162 | 419,340 |
| Events in quadrant B | 2,432,950 | 423,820 |
| Events in quadrant C | 2,705,495 | 397,803 |
| Events in quadrant D | 3,070,096 | 384,461 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7848 | 1 |
| B | 0 | 9648 | 1 |
| C | 0 | 10745 | 1 |
| D | 0 | 11710 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3770 | 78 | 2.068966% |
| B | 3770 | 328 | 8.700265% |
| C | 3770 | 167 | 4.429708% |
| D | 3769 | 352 | 9.339347% |

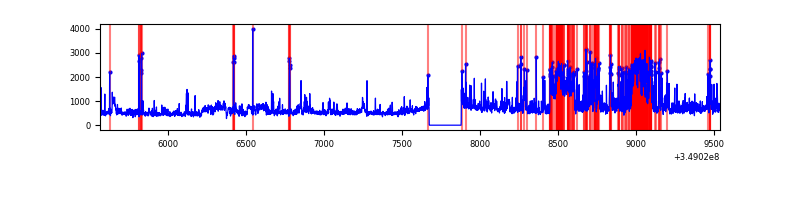

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3975 | 3770 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3975 | 3770 | 168 | 168 | 4.23% | 4.46% |  |
| C | 3975 | 3771 | 3 | 3 | 0.08% | 0.08% |  |
| D | 3974 | 3770 | 233 | 233 | 5.86% | 6.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 9046 | 88.94 | 473 | 462 | 96.5 |
| A | 1 | 113 | 6937 | 67.09 | 473 | 462 | 96.5 |
| A | 13 | 254 | 5984 | 57.22 | 473 | 462 | 96.5 |
| B | 4 | 80 | 579708 | 6548.46 | 453 | 442 | 88.5 |
| B | 5 | 255 | 63437 | 712.14 | 453 | 442 | 88.5 |
| B | 12 | 111 | 10772 | 116.78 | 453 | 442 | 88.5 |
| C | 3 | 233 | 897004 | 8571.69 | 443 | 444 | 104.6 |
| C | 14 | 238 | 71580 | 680.11 | 443 | 444 | 104.6 |
| C | 8 | 128 | 4093 | 34.89 | 443 | 444 | 104.6 |
| D | 1 | 52 | 651967 | 6190.24 | 440 | 427 | 105.3 |
| D | 8 | 195 | 357465 | 3392.19 | 440 | 427 | 105.3 |
| D | 12 | 227 | 190334 | 1804.29 | 440 | 427 | 105.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

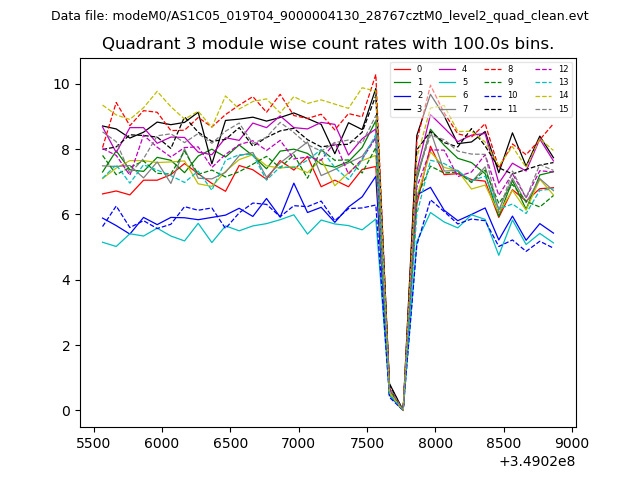

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

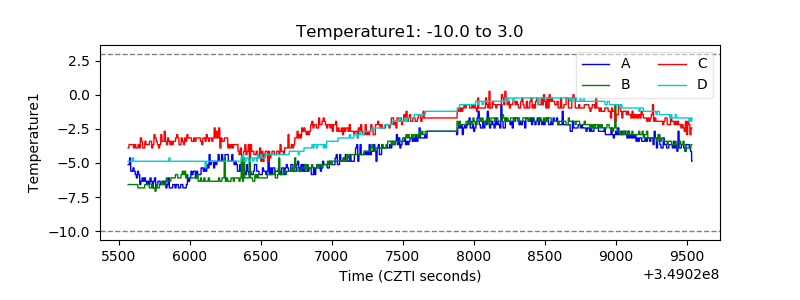

| Temperature 1 |  |

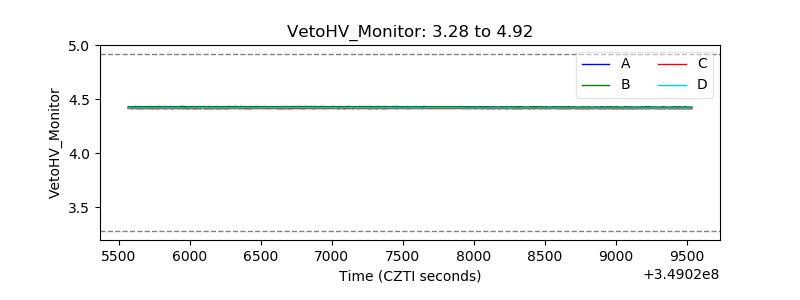

| Veto HV Monitor |  |
| Veto LLD |  |

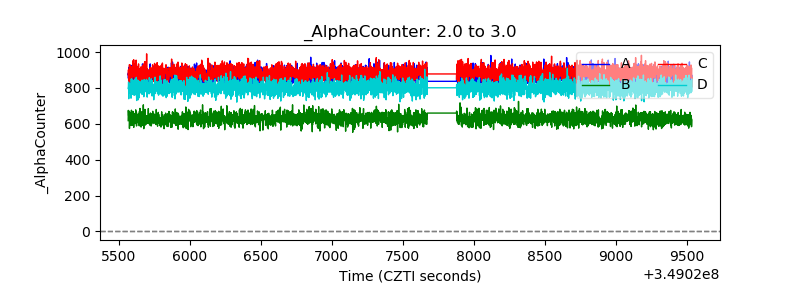

| Alpha Counter |  |

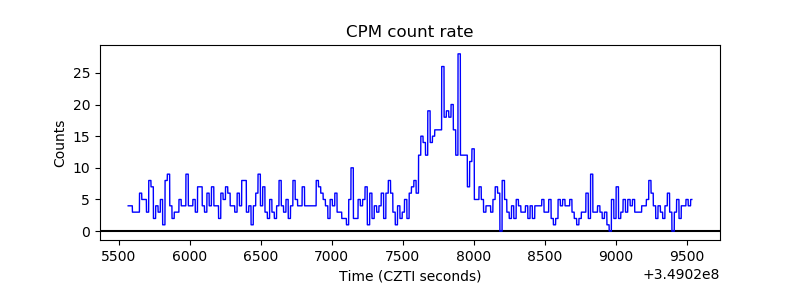

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

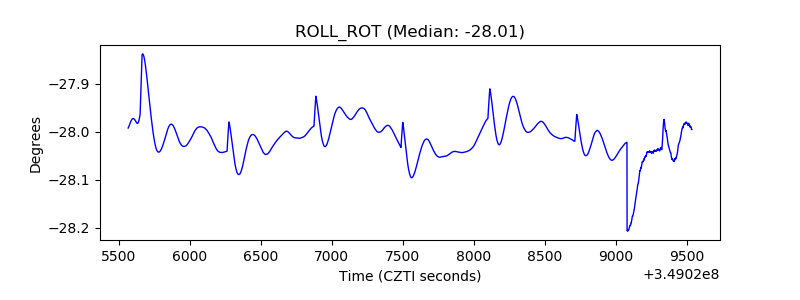

| _ROLL_ROT |  |
| _Roll_DEC |  |

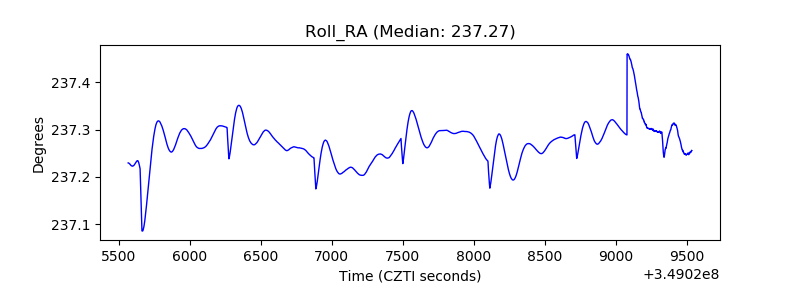

| _Roll_RA |  |
| Veto Counter |  |
