| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004130_28774cztM0_level2.evt | modeM0/AS1C05_019T04_9000004130_28774cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,322,560 | 125,657,280 |
| Size | 455.2 MB | 119.8 MB |
| Events in quadrant A | 3,110,154 | 854,890 |
| Events in quadrant B | 3,193,506 | 880,734 |
| Events in quadrant C | 3,561,248 | 823,000 |
| Events in quadrant D | 4,151,362 | 795,901 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13453 | 2 |
| B | 0 | 13686 | 2 |
| C | 0 | 14910 | 2 |
| D | 0 | 16827 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6471 | 10 | 0.154536% |
| B | 6471 | 28 | 0.432700% |
| C | 6471 | 134 | 2.070777% |
| D | 6471 | 107 | 1.653531% |

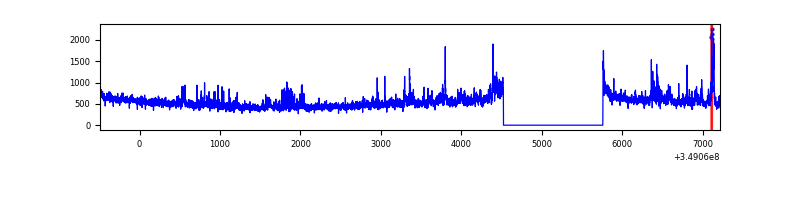

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

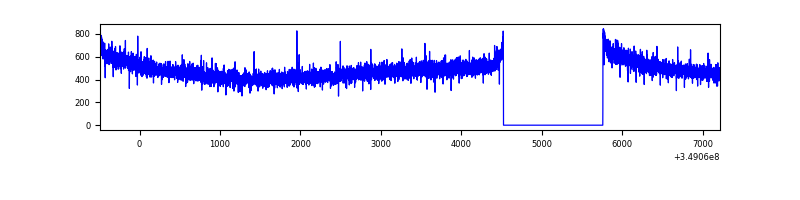

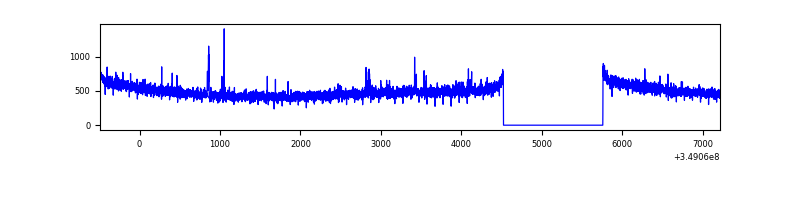

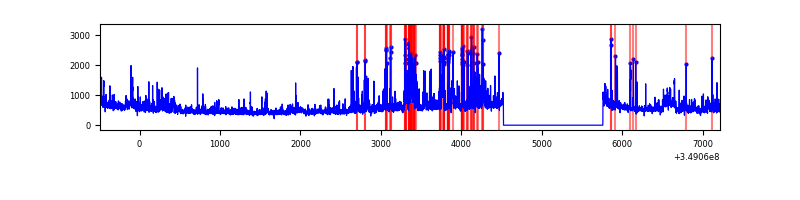

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7707 | 6472 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7707 | 6471 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7707 | 6471 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7707 | 6472 | 95 | 95 | 1.23% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10810 | 62.58 | 805 | 790 | 160.1 |
| A | 3 | 137 | 7289 | 40.59 | 805 | 790 | 160.1 |
| A | 0 | 226 | 6716 | 37.01 | 805 | 790 | 160.1 |
| B | 10 | 245 | 20350 | 130.9 | 806 | 789 | 149.4 |
| B | 12 | 111 | 17992 | 115.12 | 806 | 789 | 149.4 |
| B | 11 | 111 | 16255 | 103.49 | 806 | 789 | 149.4 |
| C | 3 | 233 | 339502 | 1919.88 | 768 | 774 | 176.4 |
| C | 14 | 238 | 158269 | 892.67 | 768 | 774 | 176.4 |
| C | 14 | 254 | 47685 | 265.89 | 768 | 774 | 176.4 |
| D | 8 | 195 | 558944 | 3059.31 | 763 | 741 | 182.5 |
| D | 1 | 52 | 446001 | 2440.31 | 763 | 741 | 182.5 |
| D | 7 | 69 | 167147 | 912.01 | 763 | 741 | 182.5 |

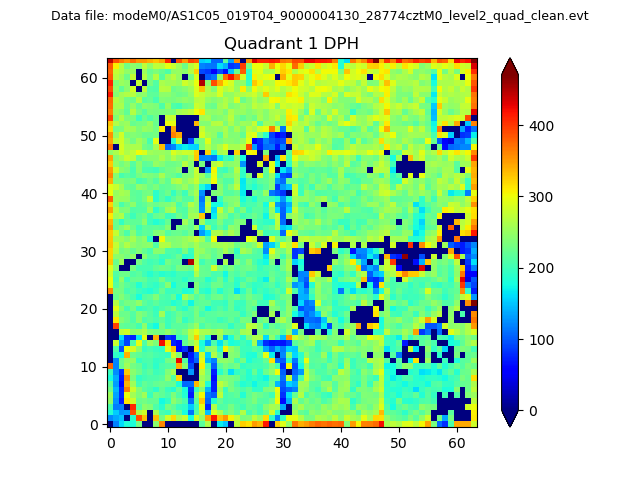

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

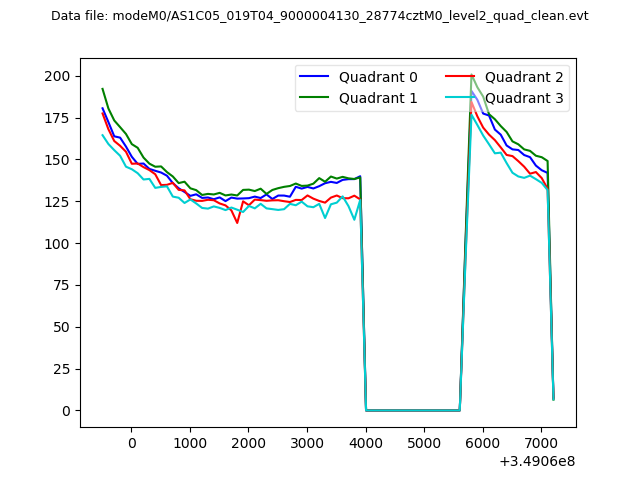

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

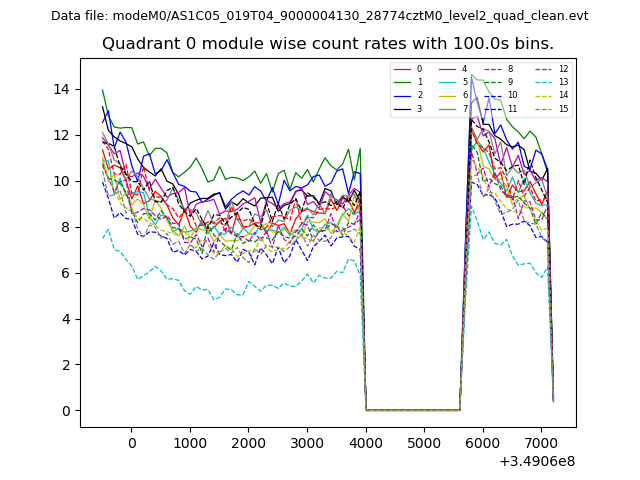

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

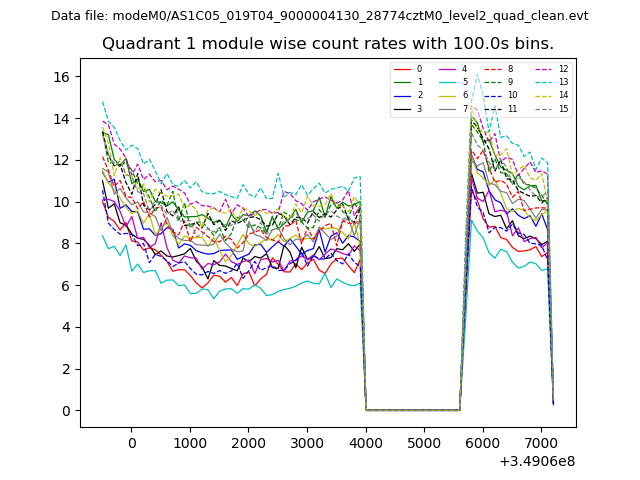

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

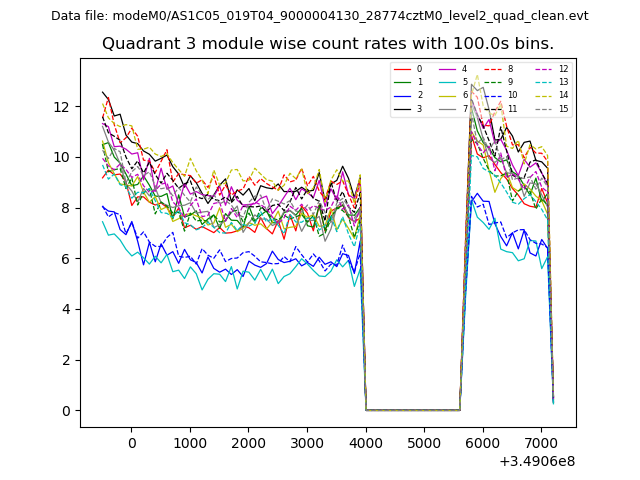

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

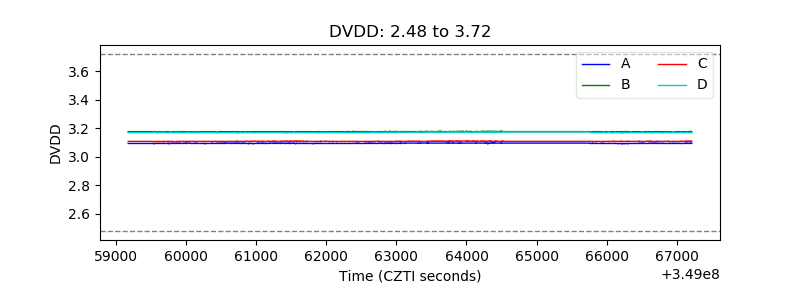

| D_VDD |  |

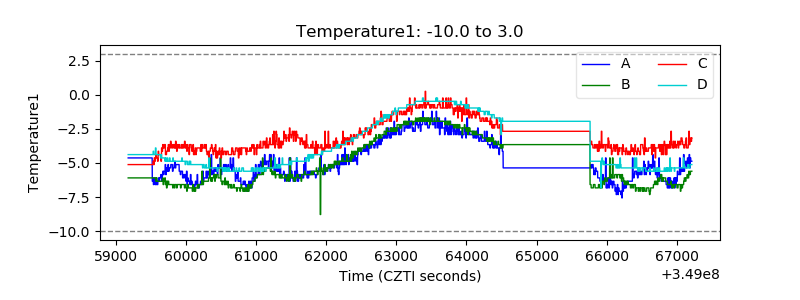

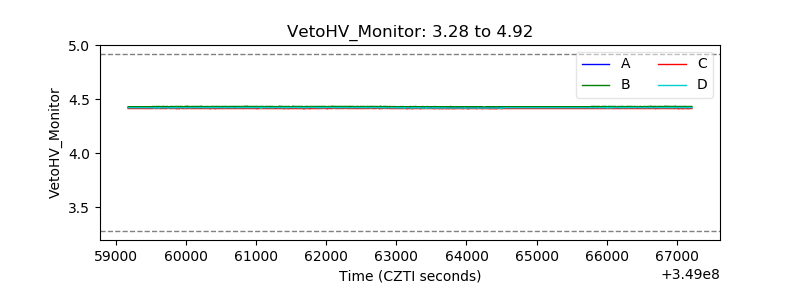

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

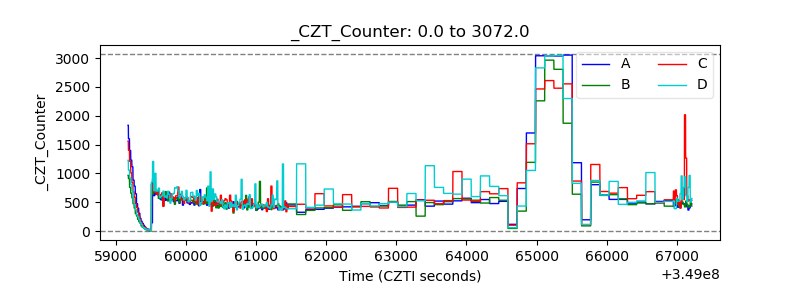

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

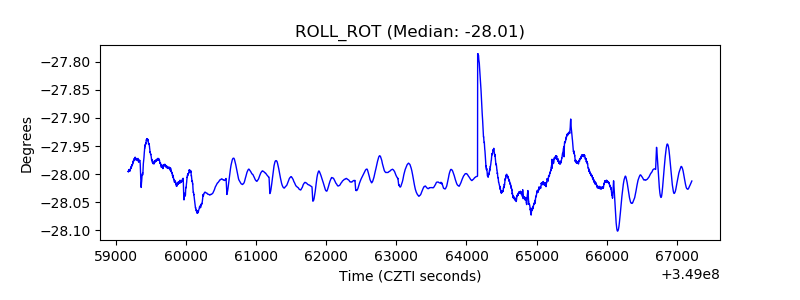

| _ROLL_ROT |  |

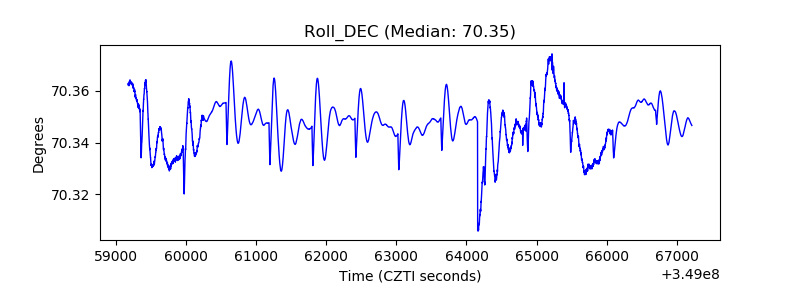

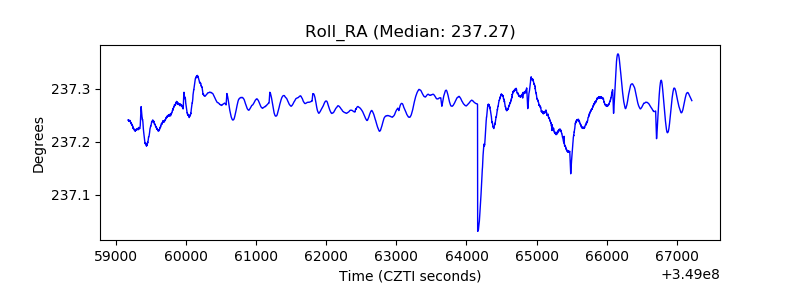

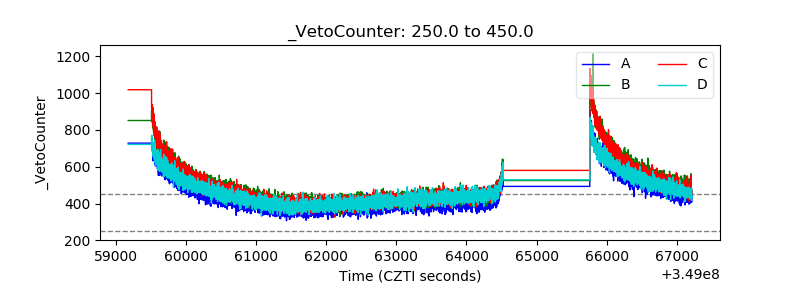

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
