| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004130_28775cztM0_level2.evt | modeM0/AS1C05_019T04_9000004130_28775cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,181,440 | 118,195,200 |
| Size | 489.4 MB | 112.7 MB |
| Events in quadrant A | 3,102,026 | 816,558 |
| Events in quadrant B | 3,124,471 | 840,235 |
| Events in quadrant C | 3,866,937 | 773,895 |
| Events in quadrant D | 5,026,154 | 714,621 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13045 | 3 |
| B | 0 | 13146 | 1 |
| C | 0 | 15630 | 1 |
| D | 0 | 19106 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6215 | 12 | 0.193081% |
| B | 6216 | 41 | 0.659588% |
| C | 6216 | 113 | 1.817889% |
| D | 6217 | 583 | 9.377513% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6217 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7546 | 6217 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7546 | 6217 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7547 | 6218 | 558 | 558 | 7.39% | 8.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 24803 | 152.49 | 797 | 783 | 157.5 |
| A | 13 | 254 | 11032 | 65.06 | 797 | 783 | 157.5 |
| A | 0 | 226 | 7110 | 40.17 | 797 | 783 | 157.5 |
| B | 12 | 111 | 17132 | 111.36 | 793 | 776 | 146.9 |
| B | 11 | 111 | 15584 | 100.82 | 793 | 776 | 146.9 |
| B | 14 | 111 | 14491 | 93.38 | 793 | 776 | 146.9 |
| C | 3 | 233 | 782694 | 4553.59 | 750 | 756 | 171.7 |
| C | 14 | 238 | 136675 | 791.52 | 750 | 756 | 171.7 |
| C | 14 | 254 | 17081 | 95.07 | 750 | 756 | 171.7 |
| D | 1 | 52 | 1569134 | 9260.55 | 721 | 703 | 169.4 |
| D | 8 | 195 | 499363 | 2944.26 | 721 | 703 | 169.4 |
| D | 12 | 233 | 102385 | 600.37 | 721 | 703 | 169.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

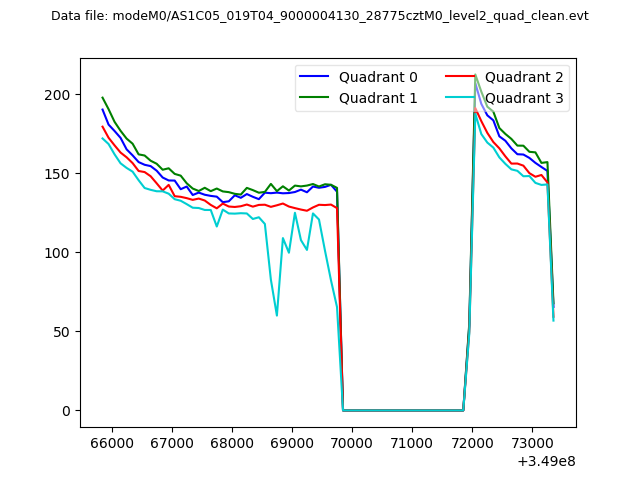

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

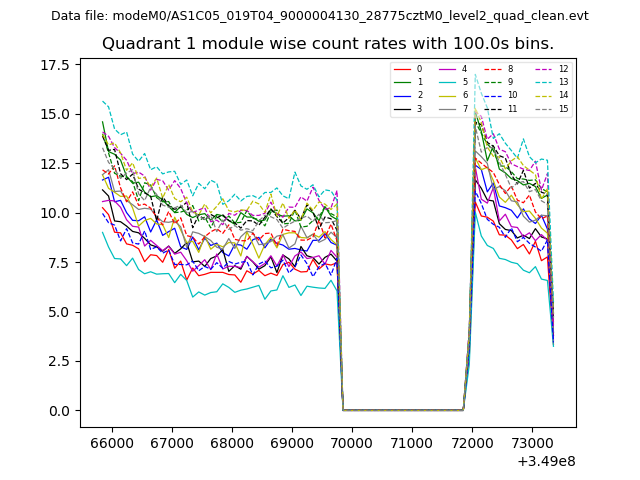

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

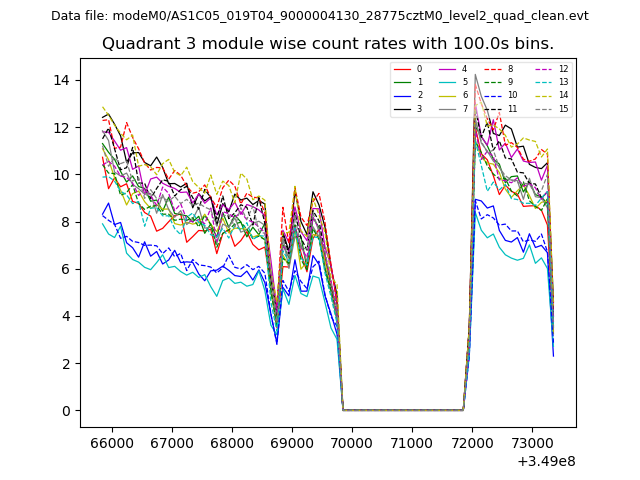

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

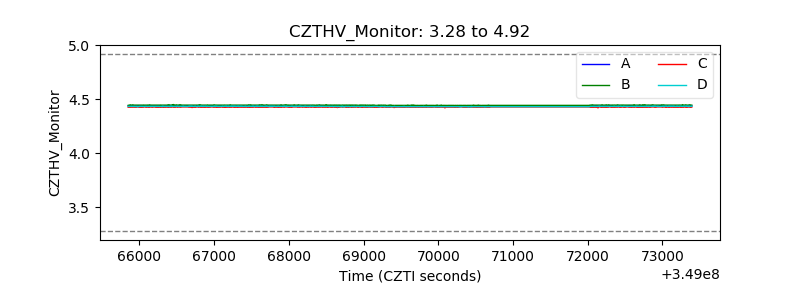

| CZT HV Monitor |  |
| D_VDD |  |

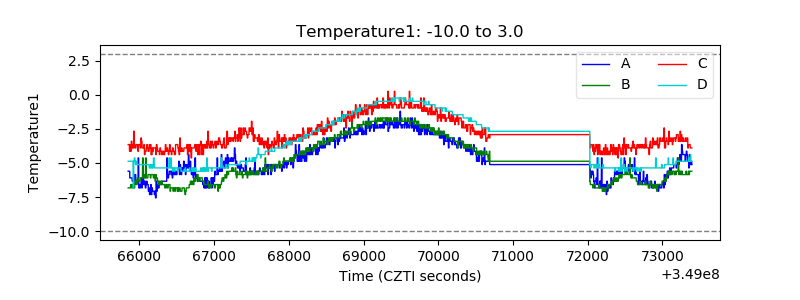

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

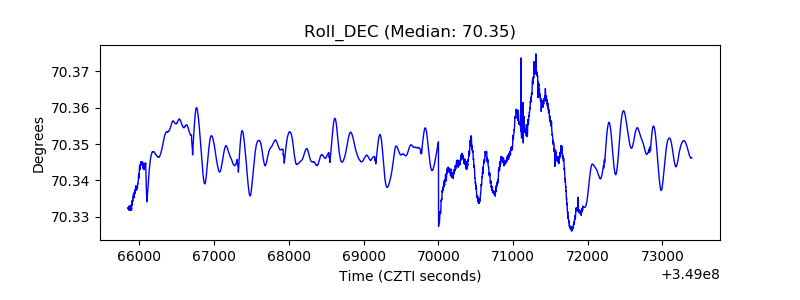

| _Roll_DEC |  |

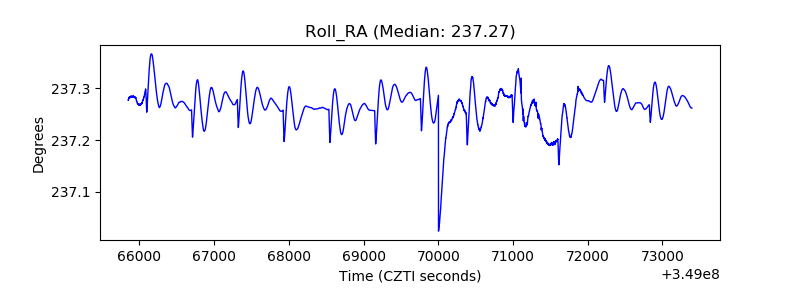

| _Roll_RA |  |

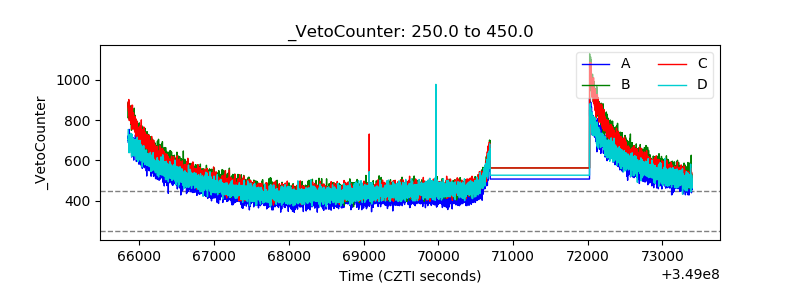

| Veto Counter |  |
