| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004130_28777cztM0_level2.evt | modeM0/AS1C05_019T04_9000004130_28777cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,793,600 | 117,688,320 |
| Size | 534.8 MB | 112.2 MB |
| Events in quadrant A | 3,165,071 | 818,673 |
| Events in quadrant B | 3,149,644 | 830,340 |
| Events in quadrant C | 5,000,136 | 745,721 |
| Events in quadrant D | 5,246,180 | 733,874 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13031 | 1 |
| B | 0 | 13071 | 2 |
| C | 0 | 19160 | 1 |
| D | 0 | 19831 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6246 | 43 | 0.688441% |
| B | 6246 | 54 | 0.864553% |
| C | 6246 | 338 | 5.411463% |
| D | 6246 | 400 | 6.404099% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 6246 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7551 | 6246 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7551 | 6246 | 19 | 19 | 0.25% | 0.30% |  |
| D | 7551 | 6246 | 334 | 334 | 4.42% | 5.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11466 | 66.74 | 816 | 801 | 159.8 |
| A | 3 | 137 | 7074 | 39.26 | 816 | 801 | 159.8 |
| A | 0 | 226 | 7044 | 39.07 | 816 | 801 | 159.8 |
| B | 12 | 111 | 17371 | 113.18 | 800 | 783 | 146.6 |
| B | 11 | 111 | 15843 | 102.75 | 800 | 783 | 146.6 |
| B | 14 | 111 | 14857 | 96.03 | 800 | 783 | 146.6 |
| C | 3 | 233 | 1888821 | 11108.67 | 745 | 749 | 170.0 |
| C | 14 | 238 | 141247 | 826.63 | 745 | 749 | 170.0 |
| C | 4 | 254 | 35049 | 201.81 | 745 | 749 | 170.0 |
| D | 1 | 52 | 1304937 | 7440.27 | 755 | 737 | 175.3 |
| D | 8 | 195 | 910298 | 5188.91 | 755 | 737 | 175.3 |
| D | 12 | 233 | 148519 | 843.07 | 755 | 737 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

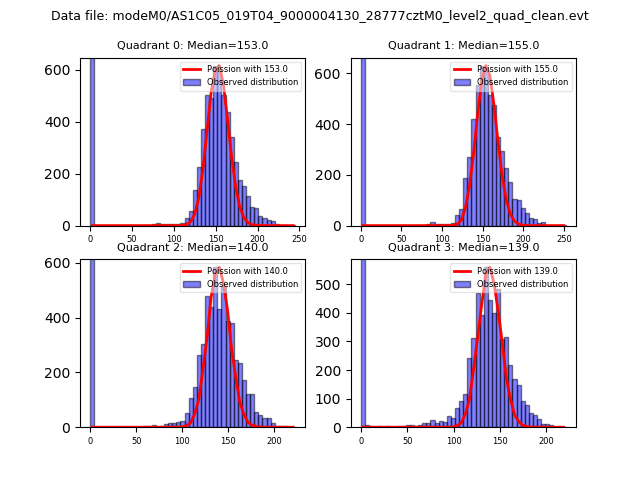

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
