| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T01_9000004132_28786cztM0_level2.evt | modeM0/AS1A10_103T01_9000004132_28786cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,941,440 | 55,641,600 |
| Size | 400.5 MB | 53.1 MB |
| Events in quadrant A | 1,998,691 | 361,672 |
| Events in quadrant B | 2,064,011 | 373,529 |
| Events in quadrant C | 2,794,335 | 351,276 |
| Events in quadrant D | 5,579,921 | 306,626 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8549 | 1 |
| B | 0 | 8707 | 1 |
| C | 0 | 11142 | 1 |
| D | 0 | 19417 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4134 | 24 | 0.580552% |
| B | 4134 | 35 | 0.846638% |
| C | 4134 | 117 | 2.830189% |
| D | 4134 | 1263 | 30.551524% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5194 | 4135 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5194 | 4134 | 1 | 1 | 0.02% | 0.02% |  |
| C | 5194 | 4134 | 4 | 4 | 0.08% | 0.10% |  |
| D | 5194 | 4134 | 1242 | 1242 | 23.91% | 30.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7387 | 65.4 | 516 | 505 | 105.2 |
| A | 3 | 137 | 4976 | 42.49 | 516 | 505 | 105.2 |
| A | 0 | 226 | 4490 | 37.87 | 516 | 505 | 105.2 |
| B | 0 | 229 | 24573 | 244.07 | 514 | 501 | 98.6 |
| B | 12 | 111 | 11943 | 116.01 | 514 | 501 | 98.6 |
| B | 11 | 111 | 10883 | 105.26 | 514 | 501 | 98.6 |
| C | 3 | 233 | 753694 | 6455.94 | 497 | 501 | 116.7 |
| C | 14 | 238 | 83021 | 707.31 | 497 | 501 | 116.7 |
| C | 15 | 208 | 8748 | 70.69 | 497 | 501 | 116.7 |
| D | 1 | 52 | 3153909 | 31334.81 | 418 | 406 | 100.6 |
| D | 13 | 104 | 502255 | 4986.63 | 418 | 406 | 100.6 |
| D | 8 | 195 | 265260 | 2631.72 | 418 | 406 | 100.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

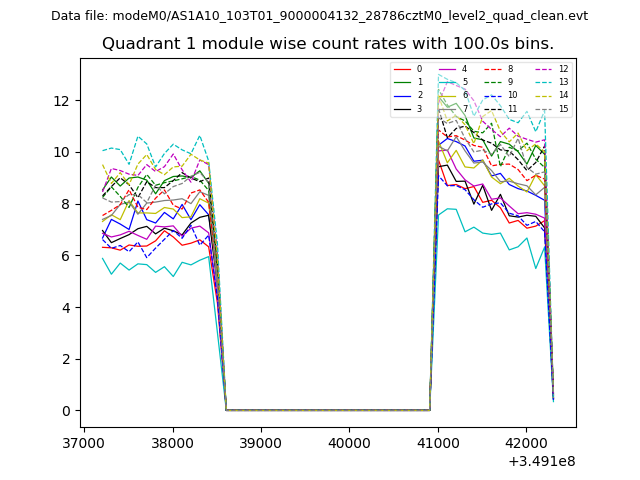

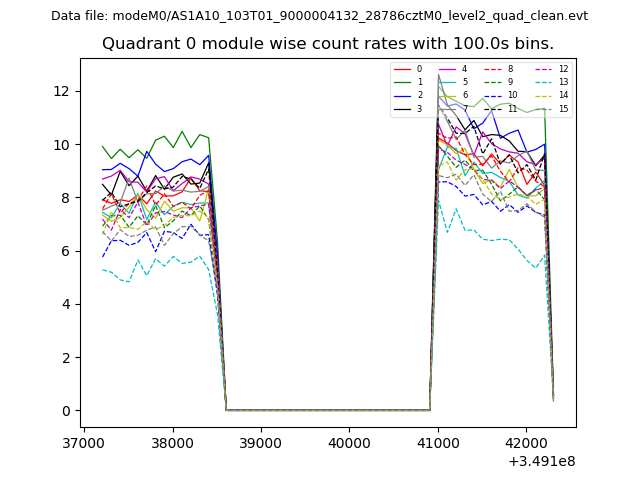

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

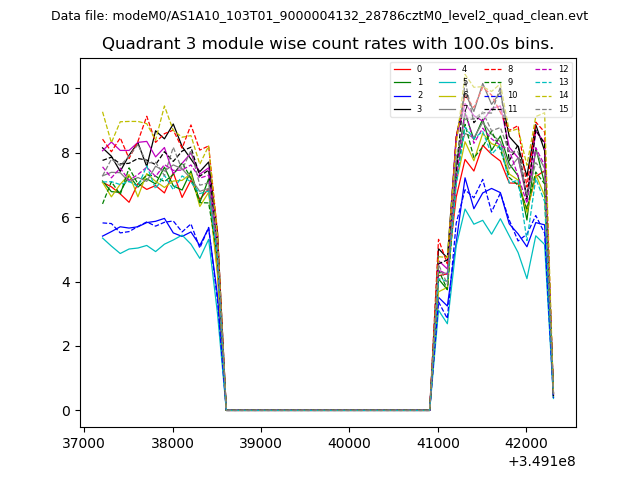

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

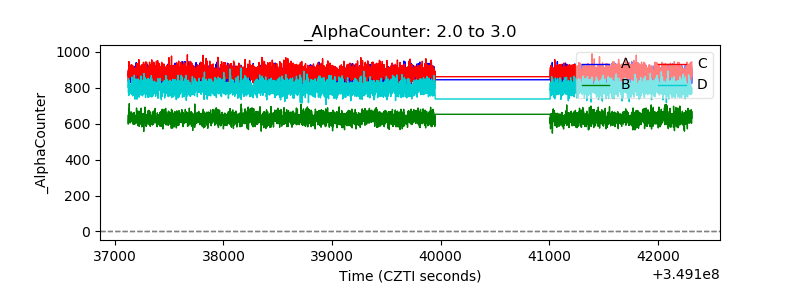

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

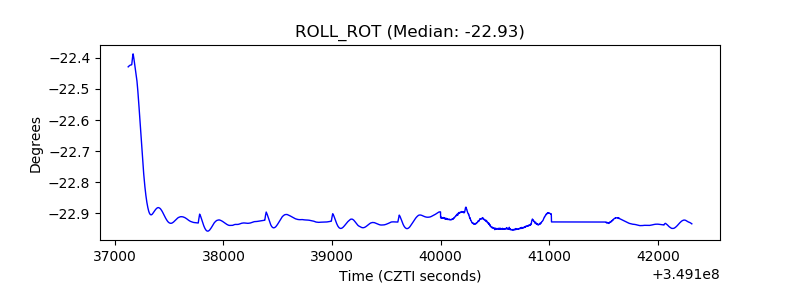

| _ROLL_ROT |  |

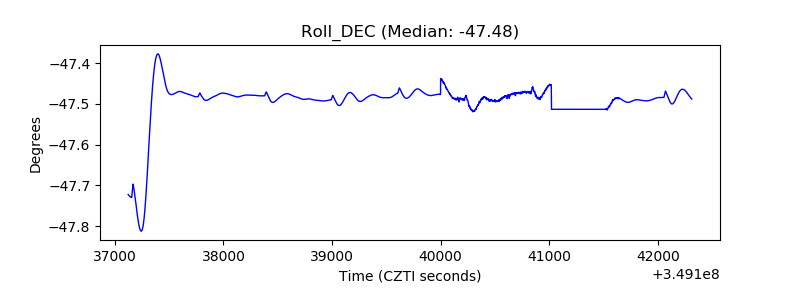

| _Roll_DEC |  |

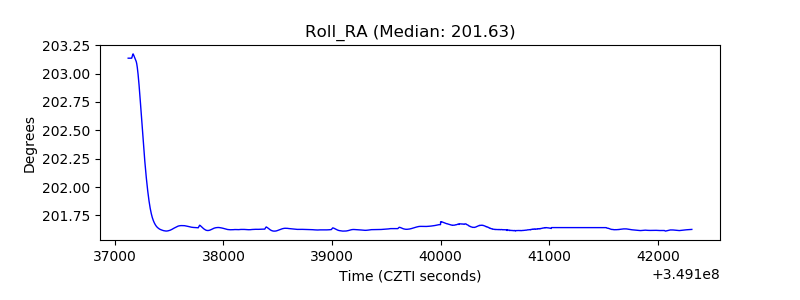

| _Roll_RA |  |

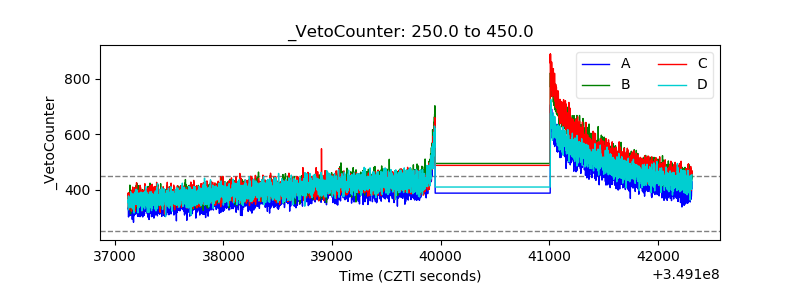

| Veto Counter |  |
