| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T01_9000004132_28793cztM0_level2.evt | modeM0/AS1A10_103T01_9000004132_28793cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,541,440 | 85,109,760 |
| Size | 549.8 MB | 81.2 MB |
| Events in quadrant A | 3,148,673 | 550,016 |
| Events in quadrant B | 3,293,866 | 558,349 |
| Events in quadrant C | 3,707,816 | 536,767 |
| Events in quadrant D | 6,891,274 | 499,930 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13027 | 1 |
| B | 0 | 13437 | 1 |
| C | 0 | 14793 | 1 |
| D | 0 | 24854 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 111 | 1.793794% |
| B | 6188 | 167 | 2.698772% |
| C | 6187 | 198 | 3.200259% |
| D | 6187 | 817 | 13.205107% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

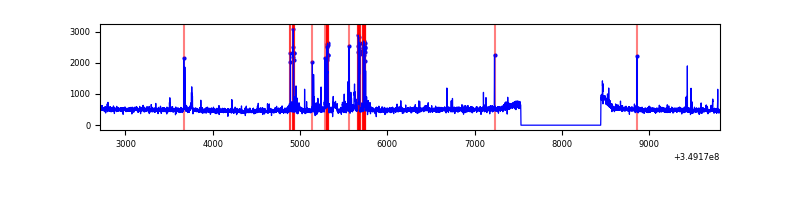

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 6188 | 13 | 13 | 0.18% | 0.21% |  |
| B | 7103 | 6188 | 50 | 50 | 0.70% | 0.81% |  |
| C | 7102 | 6187 | 17 | 17 | 0.24% | 0.27% |  |
| D | 7102 | 6187 | 783 | 783 | 11.03% | 12.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 102442 | 647.51 | 782 | 767 | 157.0 |
| A | 13 | 254 | 11827 | 70.44 | 782 | 767 | 157.0 |
| A | 14 | 239 | 11034 | 65.38 | 782 | 767 | 157.0 |
| B | 5 | 172 | 145595 | 992.49 | 772 | 752 | 145.9 |
| B | 10 | 246 | 73828 | 500.73 | 772 | 752 | 145.9 |
| B | 5 | 255 | 21509 | 142.23 | 772 | 752 | 145.9 |
| C | 3 | 233 | 399394 | 2271.46 | 757 | 762 | 175.5 |
| C | 4 | 254 | 181538 | 1030.09 | 757 | 762 | 175.5 |
| C | 14 | 238 | 136674 | 774.45 | 757 | 762 | 175.5 |
| D | 8 | 195 | 2100359 | 11919.74 | 738 | 719 | 176.1 |
| D | 1 | 52 | 1275992 | 7239.78 | 738 | 719 | 176.1 |
| D | 2 | 250 | 339641 | 1924.07 | 738 | 719 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

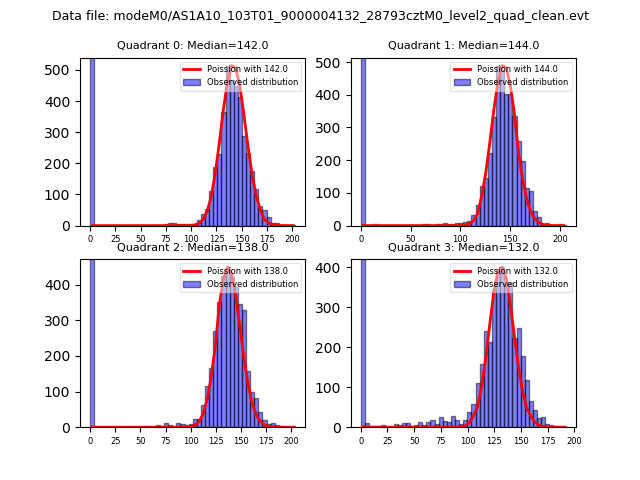

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

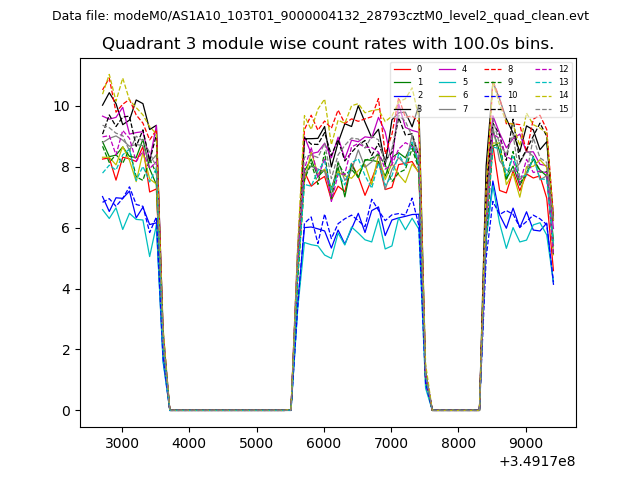

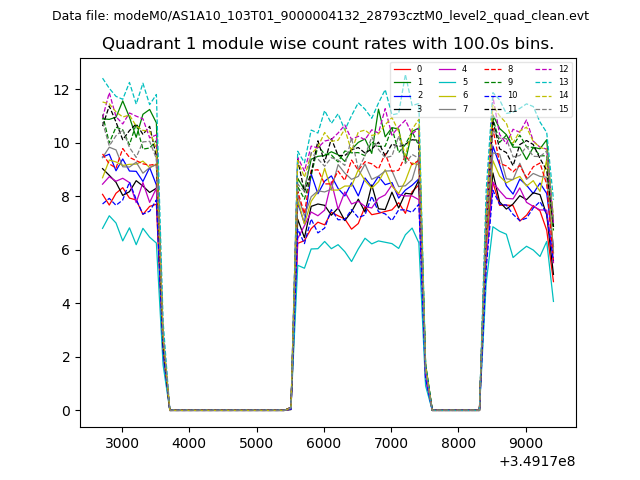

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

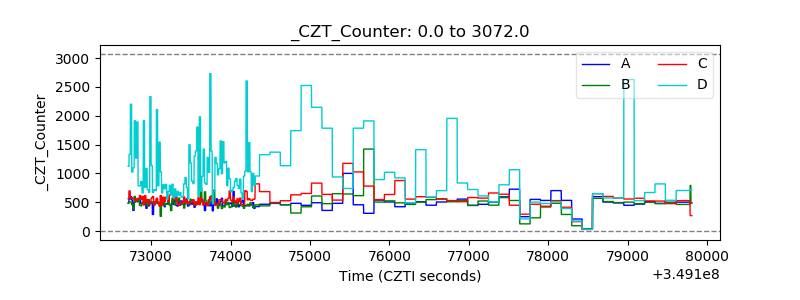

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

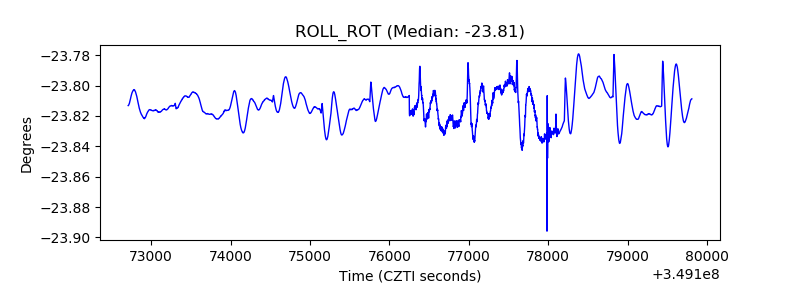

| _ROLL_ROT |  |

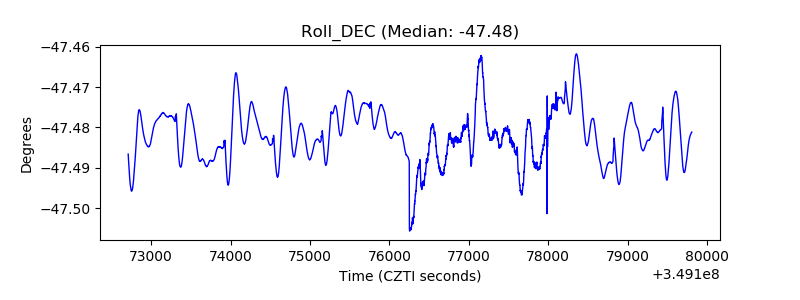

| _Roll_DEC |  |

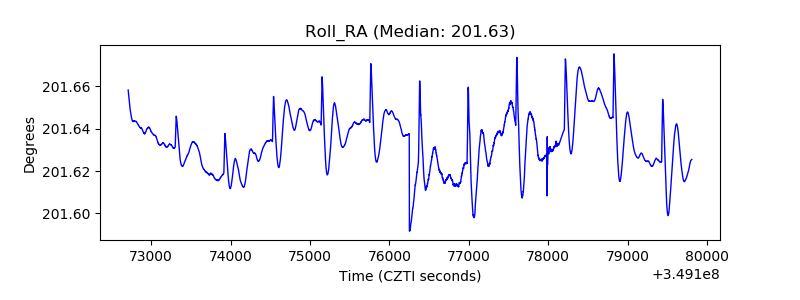

| _Roll_RA |  |
| Veto Counter |  |
