| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T01_9000004132_28803cztM0_level2.evt | modeM0/AS1A10_103T01_9000004132_28803cztM0_level2_quad_clean.evt |
| Size (bytes) | 338,365,440 | 68,688,000 |
| Size | 322.7 MB | 65.5 MB |
| Events in quadrant A | 1,804,842 | 461,452 |
| Events in quadrant B | 1,819,029 | 483,463 |
| Events in quadrant C | 1,907,863 | 458,482 |
| Events in quadrant D | 4,461,949 | 413,298 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7807 | 1 |
| B | 0 | 7824 | 1 |
| C | 0 | 7980 | 1 |
| D | 0 | 15852 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3725 | 4 | 0.107383% |
| B | 3725 | 7 | 0.187919% |
| C | 3725 | 70 | 1.879195% |
| D | 3725 | 526 | 14.120805% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3725 | 3725 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3725 | 3725 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3725 | 3725 | 1 | 1 | 0.03% | 0.03% |  |
| D | 3725 | 3725 | 557 | 557 | 14.95% | 14.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 38038 | 412.55 | 449 | 441 | 91.1 |
| A | 5 | 98 | 12542 | 132.79 | 449 | 441 | 91.1 |
| A | 15 | 174 | 11791 | 124.54 | 449 | 441 | 91.1 |
| B | 0 | 190 | 12193 | 136.15 | 457 | 446 | 86.3 |
| B | 12 | 111 | 10135 | 112.3 | 457 | 446 | 86.3 |
| B | 0 | 183 | 10000 | 110.73 | 457 | 446 | 86.3 |
| C | 14 | 238 | 91047 | 870.96 | 444 | 449 | 104.0 |
| C | 14 | 254 | 30909 | 292.83 | 444 | 449 | 104.0 |
| C | 4 | 254 | 30827 | 292.04 | 444 | 449 | 104.0 |
| D | 1 | 52 | 1769733 | 17884.05 | 419 | 408 | 98.9 |
| D | 8 | 195 | 767506 | 7753.7 | 419 | 408 | 98.9 |
| D | 12 | 233 | 324126 | 3272.09 | 419 | 408 | 98.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

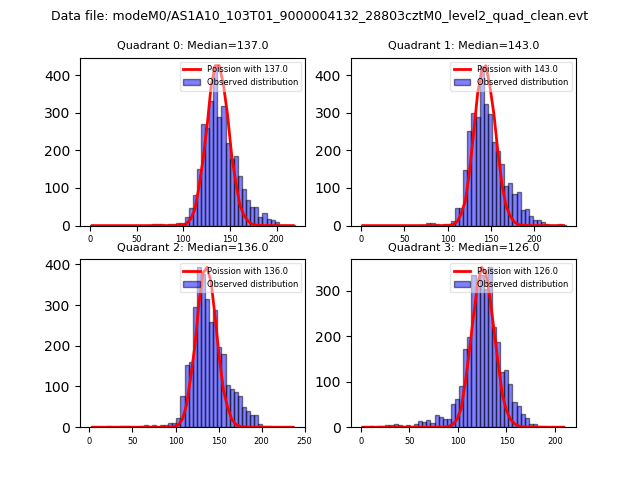

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

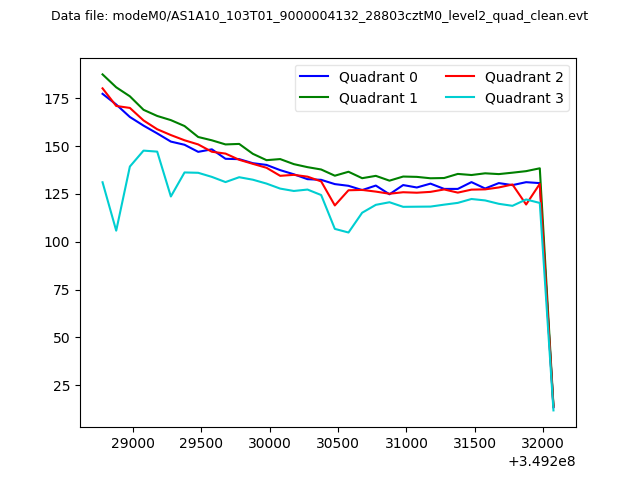

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

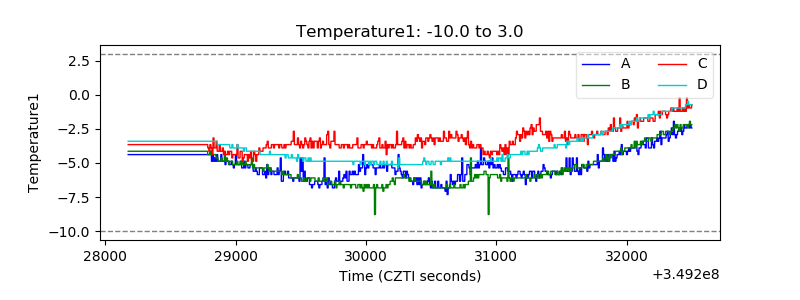

| Temperature 1 |  |
| Veto HV Monitor |  |

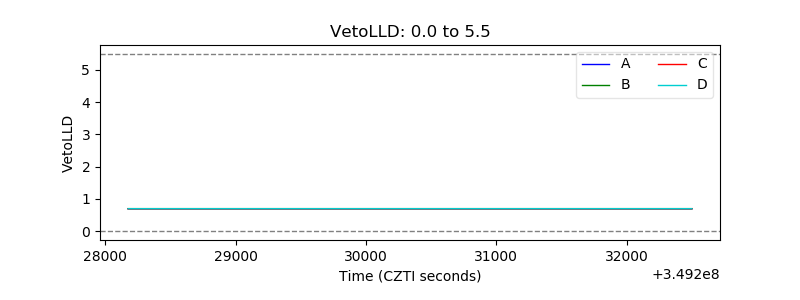

| Veto LLD |  |

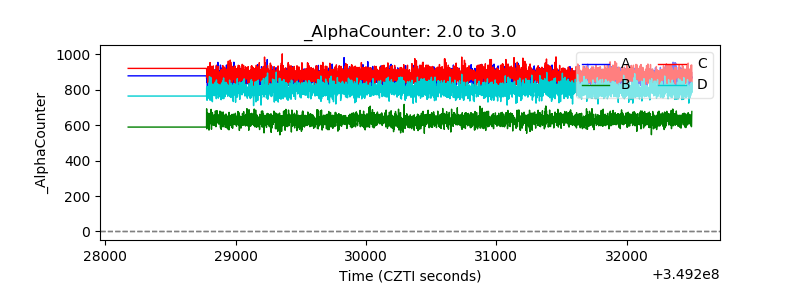

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

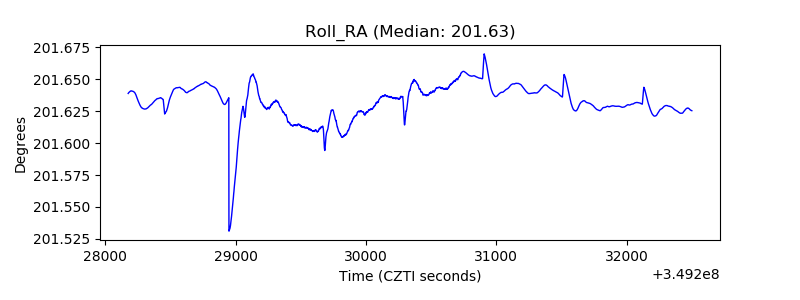

| _Roll_RA |  |

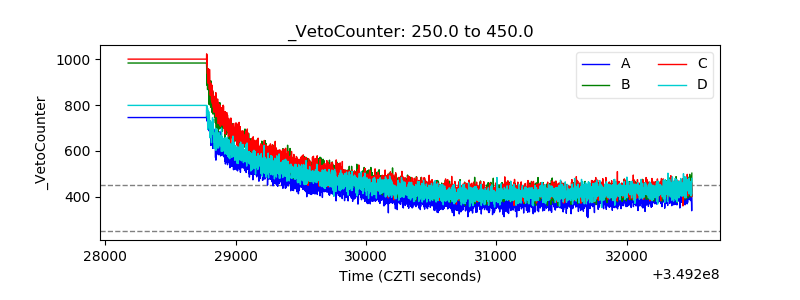

| Veto Counter |  |
