| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28806cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28806cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,496,000 | 101,096,640 |
| Size | 583.2 MB | 96.4 MB |
| Events in quadrant A | 3,044,184 | 701,966 |
| Events in quadrant B | 3,315,278 | 724,079 |
| Events in quadrant C | 6,341,899 | 566,845 |
| Events in quadrant D | 5,422,343 | 660,273 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12373 | 1 |
| B | 0 | 13294 | 1 |
| C | 0 | 22793 | 1 |
| D | 0 | 20011 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5832 | 56 | 0.960219% |
| B | 5833 | 99 | 1.697240% |
| C | 5833 | 1836 | 31.476084% |
| D | 5832 | 596 | 10.219479% |

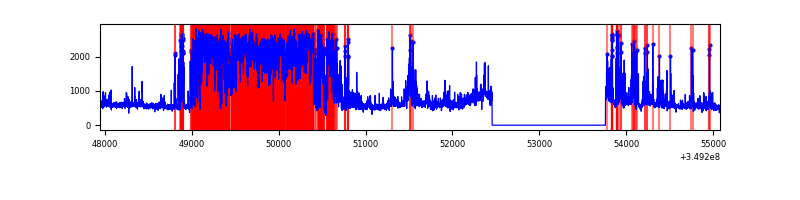

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7137 | 5832 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7138 | 5833 | 20 | 20 | 0.28% | 0.34% |  |
| C | 7138 | 5833 | 1094 | 1094 | 15.33% | 18.76% |  |
| D | 7137 | 5832 | 484 | 484 | 6.78% | 8.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 46095 | 301.48 | 766 | 752 | 150.4 |
| A | 15 | 174 | 29654 | 192.17 | 766 | 752 | 150.4 |
| A | 13 | 254 | 11970 | 74.59 | 766 | 752 | 150.4 |
| B | 5 | 255 | 209710 | 1493.03 | 763 | 745 | 140.0 |
| B | 0 | 183 | 37182 | 260.34 | 763 | 745 | 140.0 |
| B | 0 | 229 | 28112 | 195.53 | 763 | 745 | 140.0 |
| C | 4 | 254 | 3418001 | 23613.31 | 624 | 628 | 144.7 |
| C | 3 | 233 | 177705 | 1223.56 | 624 | 628 | 144.7 |
| C | 14 | 238 | 146131 | 1005.39 | 624 | 628 | 144.7 |
| D | 1 | 52 | 902855 | 5147.01 | 737 | 720 | 175.3 |
| D | 8 | 195 | 697320 | 3974.36 | 737 | 720 | 175.3 |
| D | 12 | 233 | 507183 | 2889.56 | 737 | 720 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

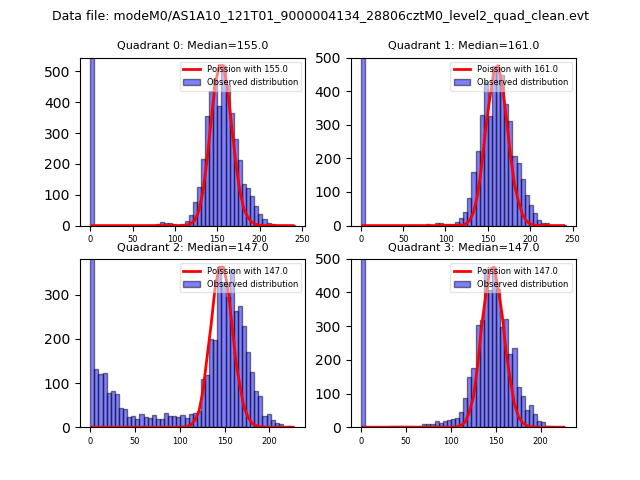

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

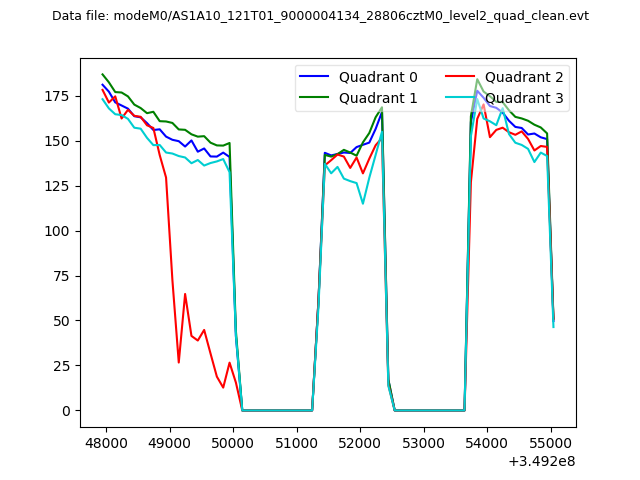

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

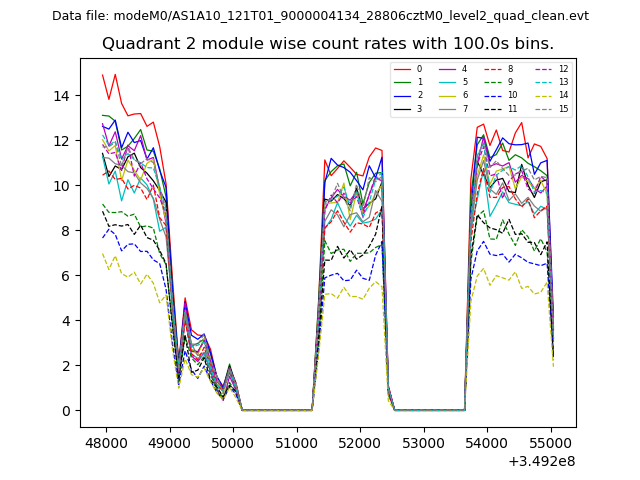

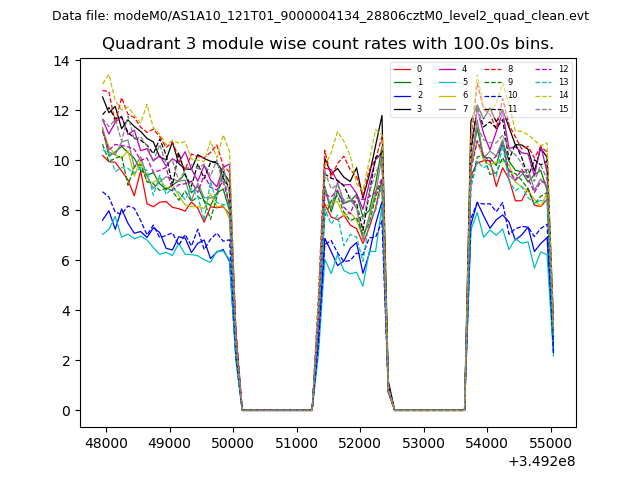

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

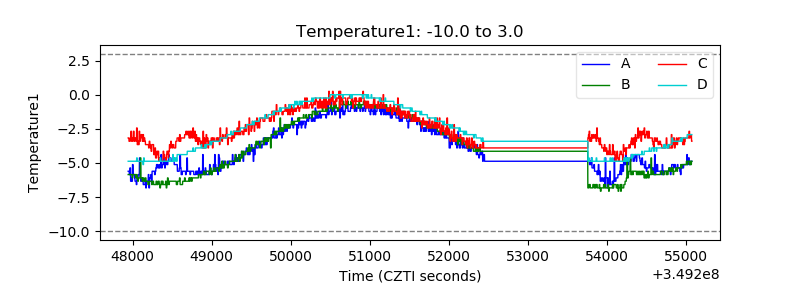

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

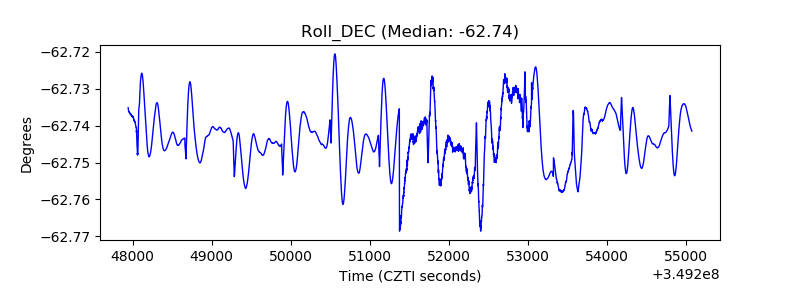

| _Roll_DEC |  |
| _Roll_RA |  |

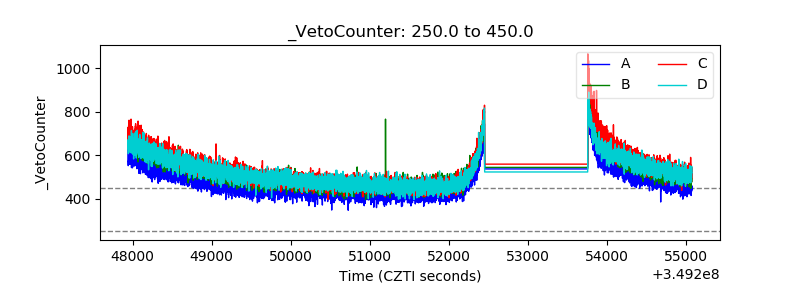

| Veto Counter |  |
