| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28811cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28811cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,168,000 | 88,153,920 |
| Size | 603.8 MB | 84.1 MB |
| Events in quadrant A | 4,185,607 | 555,814 |
| Events in quadrant B | 3,401,810 | 571,930 |
| Events in quadrant C | 3,560,025 | 544,212 |
| Events in quadrant D | 7,557,356 | 512,694 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16889 | 2 |
| B | 0 | 14543 | 2 |
| C | 0 | 14804 | 2 |
| D | 0 | 27376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6954 | 136 | 1.955709% |
| B | 6955 | 96 | 1.380302% |
| C | 6955 | 187 | 2.688713% |
| D | 6954 | 798 | 11.475410% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

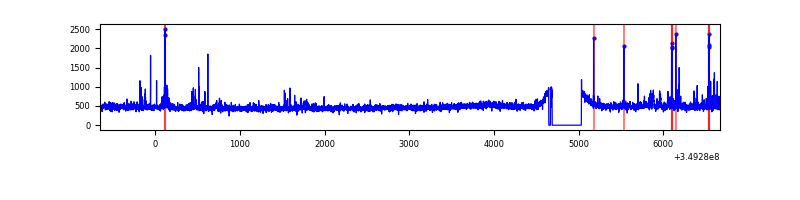

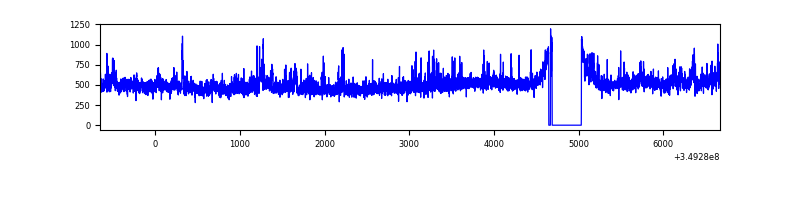

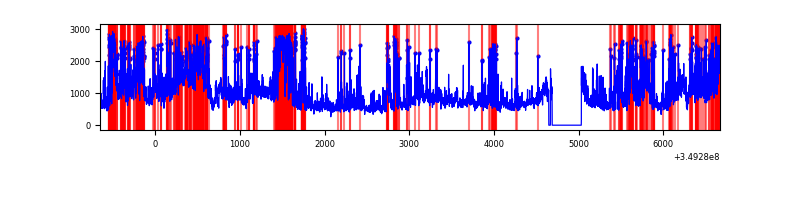

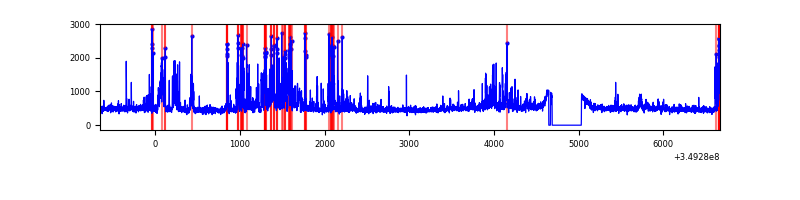

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7318 | 6954 | 82 | 82 | 1.12% | 1.18% |  |
| B | 7320 | 6955 | 11 | 11 | 0.15% | 0.16% |  |
| C | 7320 | 6955 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7319 | 6955 | 706 | 706 | 9.65% | 10.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 870648 | 5190.36 | 829 | 812 | 167.6 |
| A | 15 | 174 | 78022 | 460.72 | 829 | 812 | 167.6 |
| A | 4 | 2 | 17837 | 101.59 | 829 | 812 | 167.6 |
| B | 5 | 172 | 42019 | 261.08 | 827 | 804 | 157.9 |
| B | 0 | 229 | 32607 | 201.46 | 827 | 804 | 157.9 |
| B | 4 | 67 | 32060 | 197.99 | 827 | 804 | 157.9 |
| C | 3 | 233 | 237990 | 1264.8 | 794 | 799 | 187.5 |
| C | 14 | 238 | 165375 | 877.59 | 794 | 799 | 187.5 |
| C | 14 | 254 | 57588 | 302.82 | 794 | 799 | 187.5 |
| D | 8 | 195 | 1336990 | 7031.19 | 781 | 756 | 190.0 |
| D | 1 | 52 | 1174543 | 6176.4 | 781 | 756 | 190.0 |
| D | 13 | 104 | 1085441 | 5707.55 | 781 | 756 | 190.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

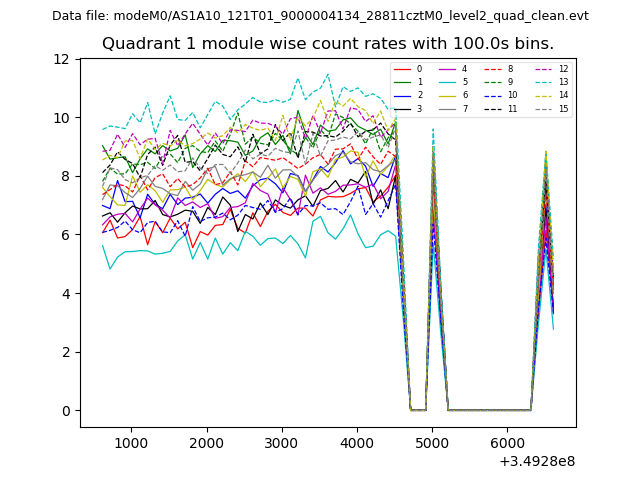

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

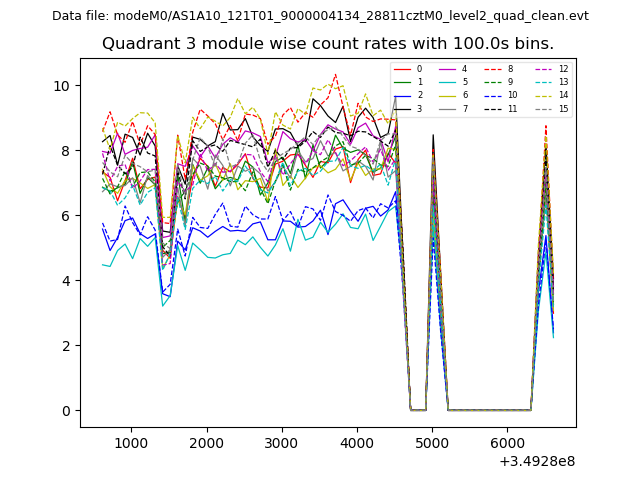

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

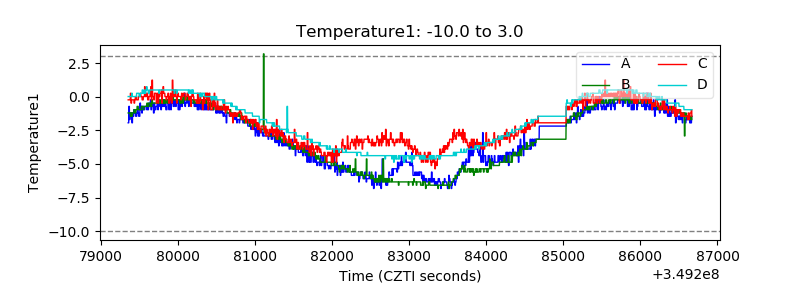

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

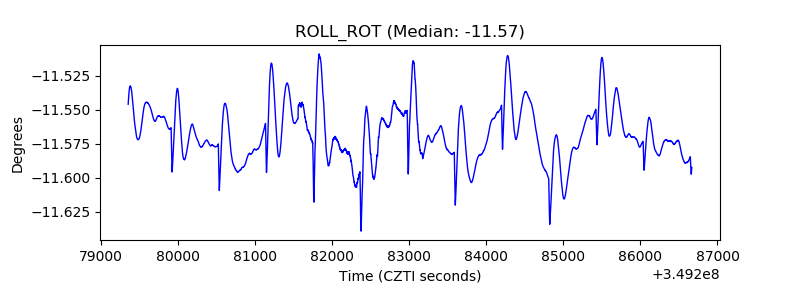

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
