| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28813cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28813cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,376,579,520 | 186,713,280 |
| Size | 1.3 GB | 178.1 MB |
| Events in quadrant A | 6,291,389 | 1,265,905 |
| Events in quadrant B | 6,412,584 | 1,286,160 |
| Events in quadrant C | 8,248,993 | 1,206,443 |
| Events in quadrant D | 19,872,735 | 1,008,214 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27074 | 3 |
| B | 0 | 27155 | 2 |
| C | 0 | 33113 | 2 |
| D | 0 | 68047 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 262 | 0 |
| B | 0 | 262 | 0 |
| C | 0 | 262 | 0 |
| D | 0 | 262 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12827 | 147 | 1.146020% |
| B | 12828 | 155 | 1.208294% |
| C | 12828 | 605 | 4.716246% |
| D | 12828 | 4407 | 34.354537% |

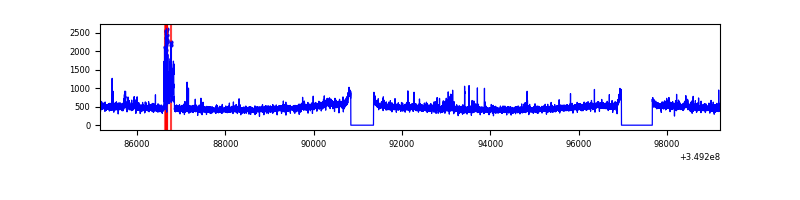

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14042 | 12827 | 20 | 20 | 0.14% | 0.16% |  |
| B | 14043 | 12828 | 16 | 16 | 0.11% | 0.12% |  |
| C | 14043 | 12828 | 39 | 39 | 0.28% | 0.30% |  |
| D | 14042 | 12827 | 4275 | 4275 | 30.44% | 33.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 239469 | 771.13 | 1535 | 1501 | 308.6 |
| A | 14 | 235 | 62357 | 197.2 | 1535 | 1501 | 308.6 |
| A | 4 | 2 | 29630 | 91.15 | 1535 | 1501 | 308.6 |
| B | 5 | 172 | 103514 | 352.63 | 1528 | 1488 | 289.3 |
| B | 0 | 229 | 70607 | 238.89 | 1528 | 1488 | 289.3 |
| B | 10 | 245 | 68928 | 233.09 | 1528 | 1488 | 289.3 |
| C | 3 | 233 | 2014123 | 5964.73 | 1451 | 1459 | 337.4 |
| C | 14 | 238 | 306058 | 902.71 | 1451 | 1459 | 337.4 |
| C | 0 | 207 | 140037 | 410.69 | 1451 | 1459 | 337.4 |
| D | 8 | 195 | 7783682 | 25008.58 | 1302 | 1265 | 311.2 |
| D | 1 | 52 | 4660275 | 14971.6 | 1302 | 1265 | 311.2 |
| D | 13 | 104 | 1519492 | 4878.78 | 1302 | 1265 | 311.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

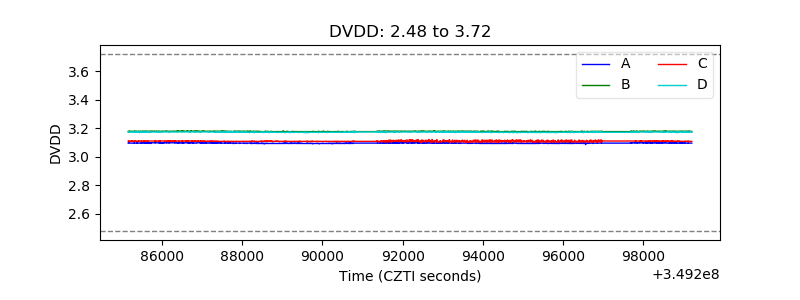

| D_VDD |  |

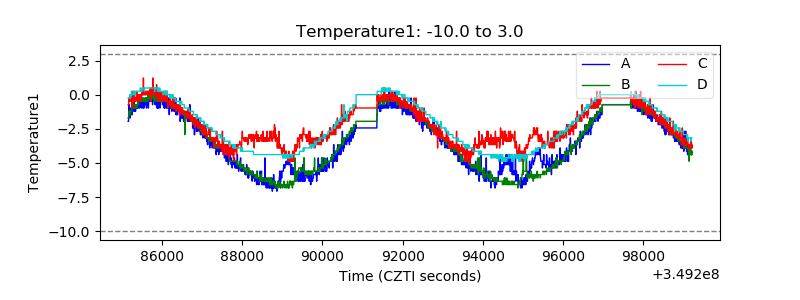

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

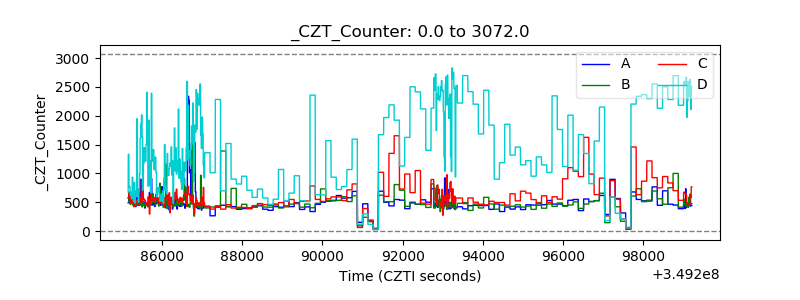

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

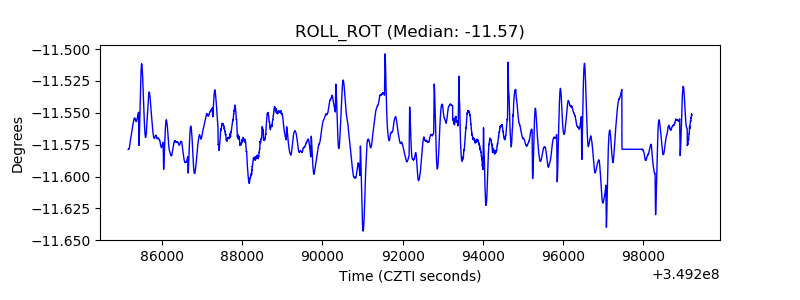

| _ROLL_ROT |  |

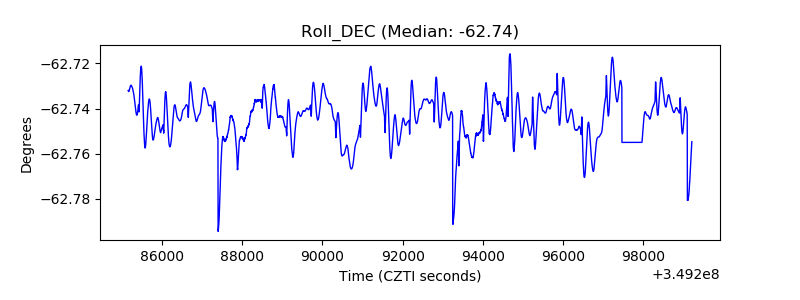

| _Roll_DEC |  |
| _Roll_RA |  |

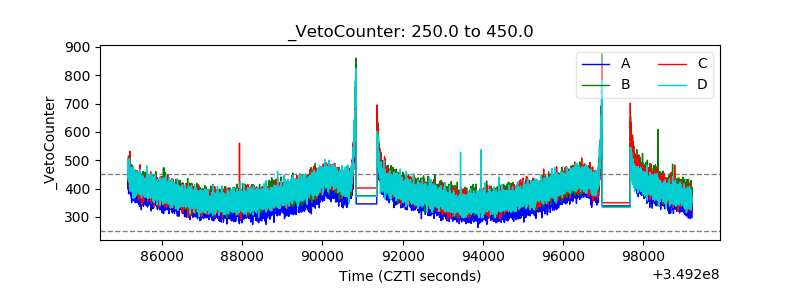

| Veto Counter |  |
