| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28814cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28814cztM0_level2_quad_clean.evt |
| Size (bytes) | 827,219,520 | 107,959,680 |
| Size | 788.9 MB | 103.0 MB |
| Events in quadrant A | 3,376,554 | 758,904 |
| Events in quadrant B | 3,436,380 | 778,511 |
| Events in quadrant C | 4,597,561 | 723,262 |
| Events in quadrant D | 13,181,723 | 532,735 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14395 | 2 |
| B | 0 | 14560 | 2 |
| C | 0 | 18371 | 2 |
| D | 0 | 43846 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6812 | 89 | 1.306518% |
| B | 6812 | 82 | 1.203758% |
| C | 6812 | 320 | 4.697592% |
| D | 6813 | 3932 | 57.713195% |

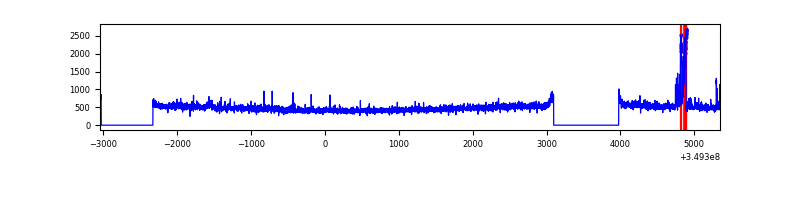

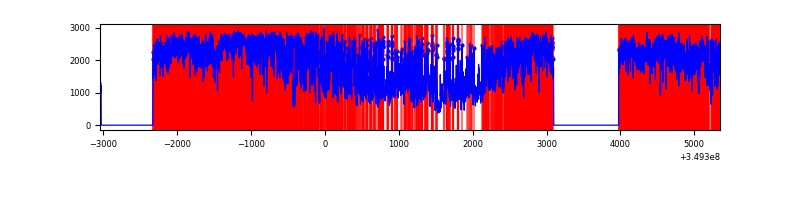

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8392 | 6812 | 26 | 26 | 0.31% | 0.38% |  |
| B | 8392 | 6812 | 5 | 5 | 0.06% | 0.07% |  |
| C | 8392 | 6812 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8393 | 6813 | 3726 | 3726 | 44.39% | 54.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 106625 | 641.93 | 823 | 808 | 164.8 |
| A | 14 | 235 | 42788 | 254.67 | 823 | 808 | 164.8 |
| A | 15 | 190 | 25606 | 150.43 | 823 | 808 | 164.8 |
| B | 5 | 172 | 76896 | 488.45 | 823 | 801 | 155.8 |
| B | 0 | 229 | 39762 | 250.09 | 823 | 801 | 155.8 |
| B | 0 | 180 | 28281 | 176.39 | 823 | 801 | 155.8 |
| C | 3 | 233 | 1305660 | 7219.1 | 774 | 780 | 180.8 |
| C | 14 | 238 | 180265 | 992.98 | 774 | 780 | 180.8 |
| C | 14 | 254 | 79588 | 436.0 | 774 | 780 | 180.8 |
| D | 8 | 195 | 6325371 | 43358.68 | 603 | 584 | 145.9 |
| D | 1 | 52 | 3025510 | 20736.95 | 603 | 584 | 145.9 |
| D | 13 | 104 | 1059098 | 7256.49 | 603 | 584 | 145.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

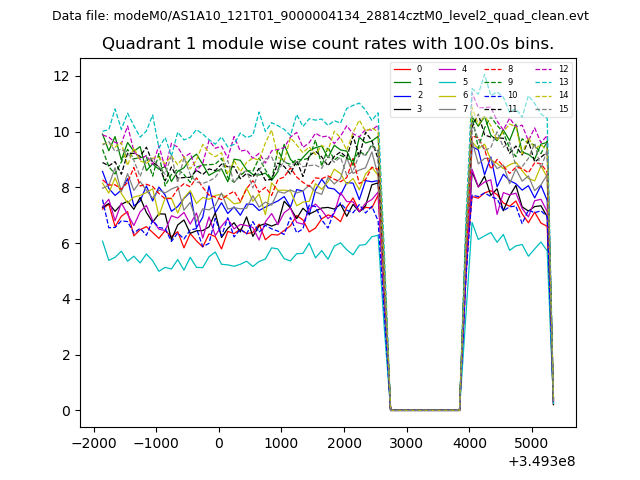

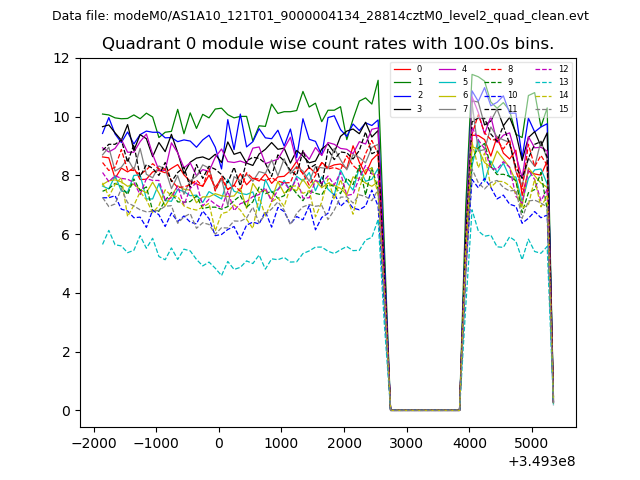

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

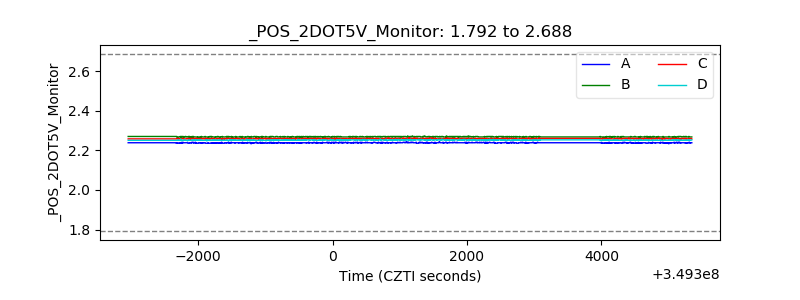

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

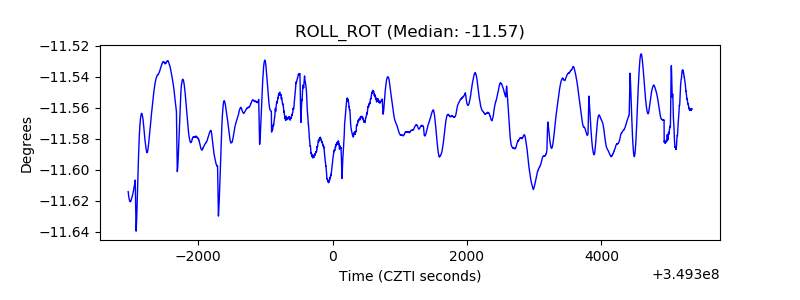

| _ROLL_ROT |  |

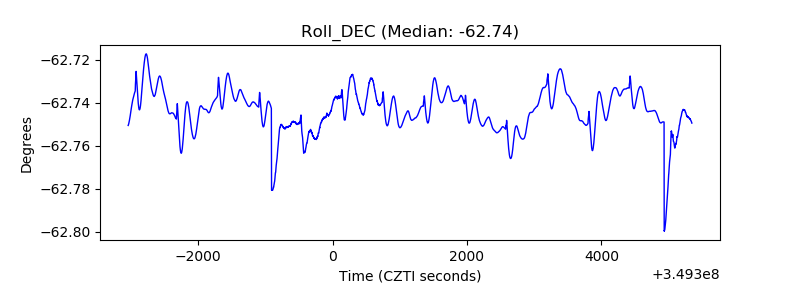

| _Roll_DEC |  |

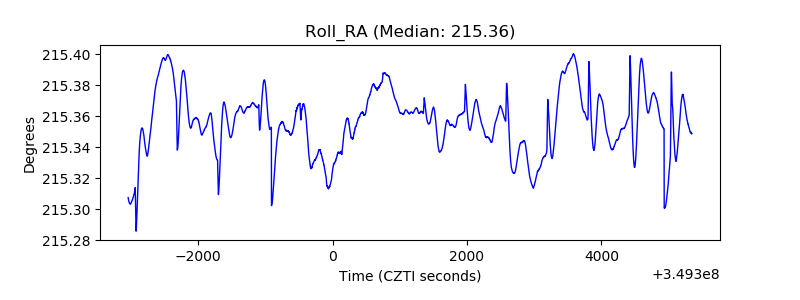

| _Roll_RA |  |
| Veto Counter |  |
