| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28821cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28821cztM0_level2_quad_clean.evt |
| Size (bytes) | 692,432,640 | 105,480,000 |
| Size | 660.4 MB | 100.6 MB |
| Events in quadrant A | 3,456,977 | 711,120 |
| Events in quadrant B | 3,246,180 | 749,386 |
| Events in quadrant C | 3,870,460 | 712,755 |
| Events in quadrant D | 9,981,608 | 591,719 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13925 | 1 |
| B | 0 | 13305 | 1 |
| C | 0 | 15398 | 1 |
| D | 0 | 33935 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6137 | 201 | 3.275216% |
| B | 6138 | 68 | 1.107853% |
| C | 6138 | 200 | 3.258390% |
| D | 6138 | 2339 | 38.106875% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7377 | 6137 | 137 | 137 | 1.86% | 2.23% |  |
| B | 7378 | 6138 | 22 | 22 | 0.30% | 0.36% |  |
| C | 7378 | 6138 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7378 | 6138 | 2353 | 2353 | 31.89% | 38.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 451489 | 2898.78 | 777 | 761 | 155.5 |
| A | 13 | 254 | 11841 | 71.26 | 777 | 761 | 155.5 |
| A | 6 | 16 | 7406 | 42.74 | 777 | 761 | 155.5 |
| B | 5 | 172 | 93504 | 637.64 | 784 | 764 | 145.4 |
| B | 0 | 156 | 23245 | 154.57 | 784 | 764 | 145.4 |
| B | 10 | 246 | 22915 | 152.3 | 784 | 764 | 145.4 |
| C | 3 | 233 | 660877 | 3753.83 | 769 | 776 | 175.8 |
| C | 14 | 238 | 154856 | 876.21 | 769 | 776 | 175.8 |
| C | 14 | 254 | 44928 | 251.08 | 769 | 776 | 175.8 |
| D | 8 | 195 | 4113205 | 26164.54 | 667 | 652 | 157.2 |
| D | 1 | 52 | 3031151 | 19280.39 | 667 | 652 | 157.2 |
| D | 12 | 233 | 195382 | 1238.9 | 667 | 652 | 157.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

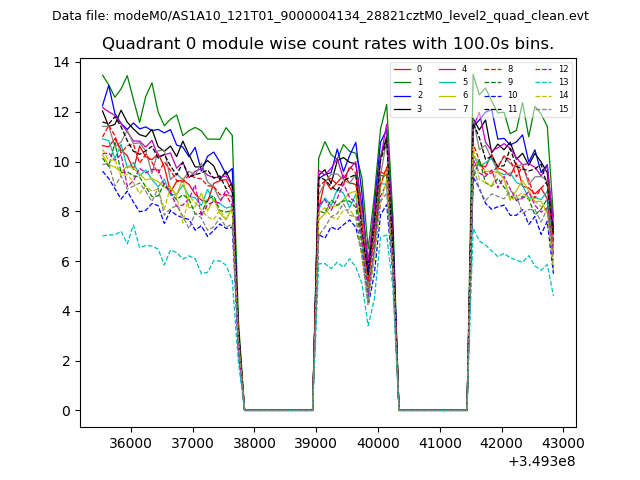

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

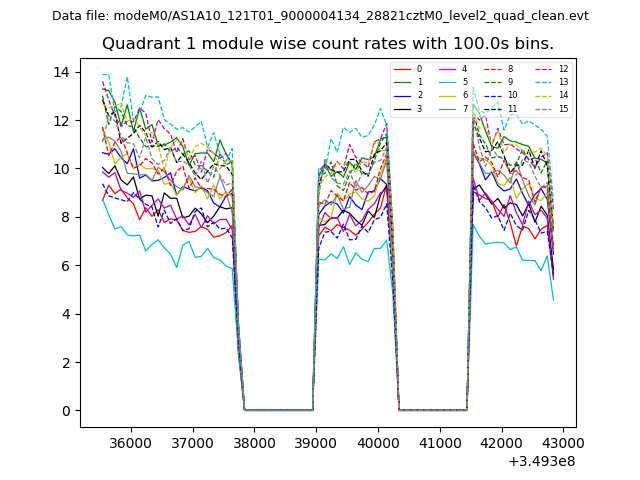

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

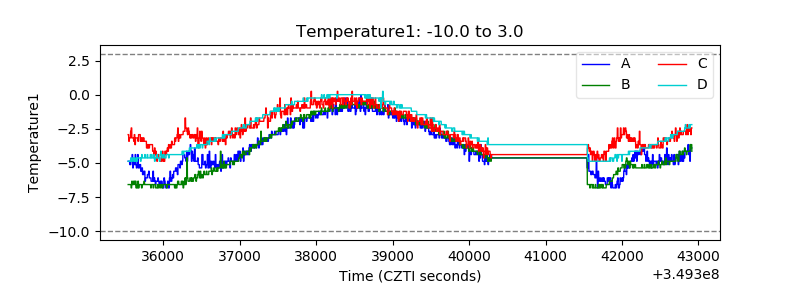

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

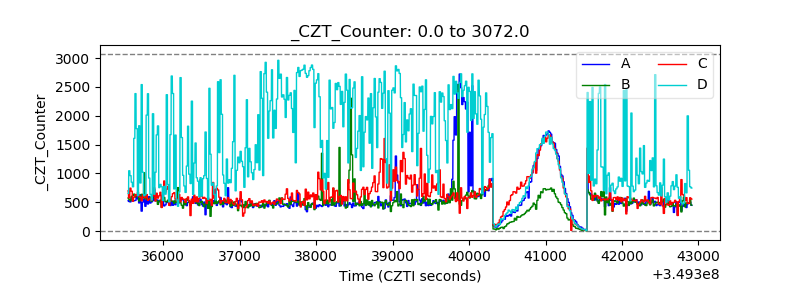

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

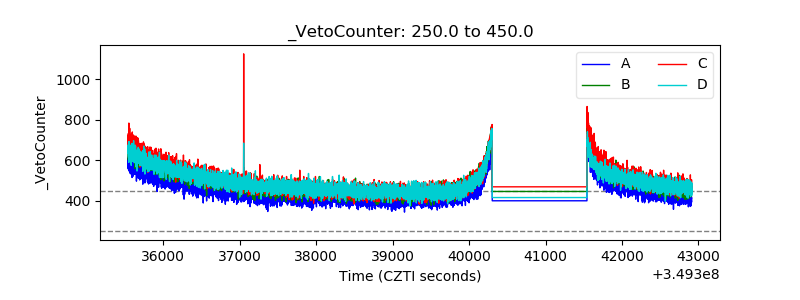

| Veto Counter |  |
