| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28834cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28834cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,895,360 | 107,951,040 |
| Size | 606.4 MB | 103.0 MB |
| Events in quadrant A | 3,002,046 | 732,791 |
| Events in quadrant B | 3,284,909 | 763,860 |
| Events in quadrant C | 3,541,667 | 731,449 |
| Events in quadrant D | 9,028,259 | 625,984 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12417 | 1 |
| B | 0 | 13332 | 1 |
| C | 0 | 14341 | 1 |
| D | 0 | 31007 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5946 | 16 | 0.269088% |
| B | 5947 | 84 | 1.412477% |
| C | 5947 | 222 | 3.732975% |
| D | 5947 | 1565 | 26.315789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7296 | 5946 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7297 | 5947 | 15 | 15 | 0.21% | 0.25% |  |
| C | 7297 | 5947 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7297 | 5947 | 1419 | 1419 | 19.45% | 23.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 25949 | 165.67 | 769 | 754 | 152.1 |
| A | 13 | 254 | 10937 | 66.96 | 769 | 754 | 152.1 |
| A | 0 | 226 | 6633 | 38.66 | 769 | 754 | 152.1 |
| B | 5 | 255 | 179960 | 1261.23 | 775 | 756 | 142.1 |
| B | 0 | 156 | 27703 | 189.65 | 775 | 756 | 142.1 |
| B | 5 | 172 | 27131 | 185.63 | 775 | 756 | 142.1 |
| C | 3 | 233 | 296405 | 1684.42 | 761 | 768 | 175.5 |
| C | 14 | 238 | 172478 | 978.33 | 761 | 768 | 175.5 |
| C | 14 | 254 | 70615 | 397.96 | 761 | 768 | 175.5 |
| D | 1 | 52 | 3396219 | 20763.58 | 696 | 680 | 163.5 |
| D | 8 | 195 | 1675162 | 10239.39 | 696 | 680 | 163.5 |
| D | 12 | 33 | 1092824 | 6678.41 | 696 | 680 | 163.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

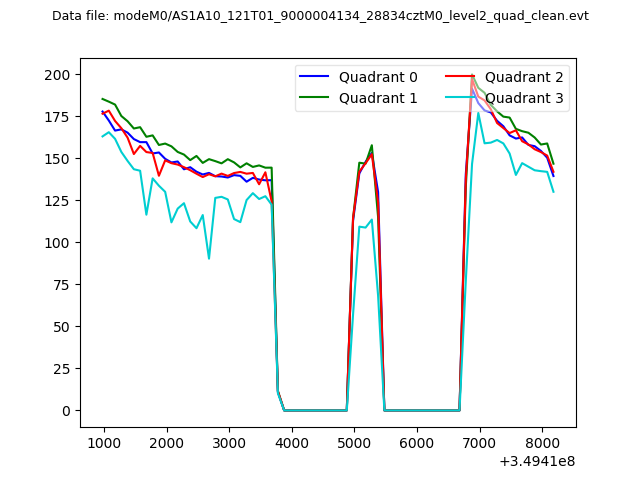

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

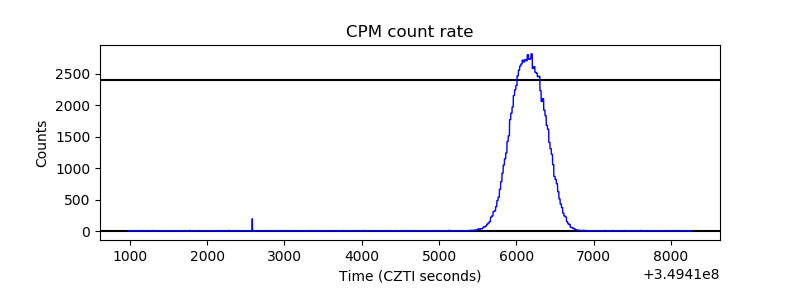

| _CPM_Rate |  |

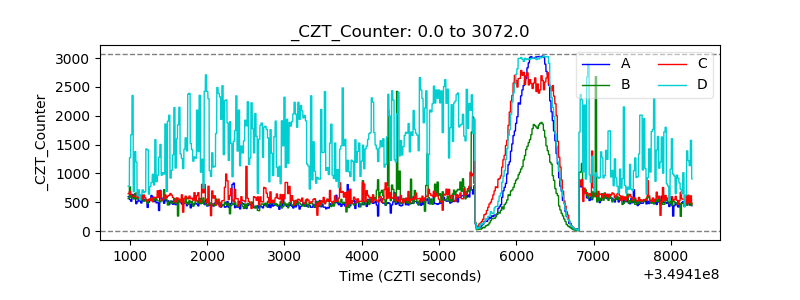

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
