| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28835cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28835cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,629,440 | 107,297,280 |
| Size | 577.6 MB | 102.3 MB |
| Events in quadrant A | 3,005,572 | 731,473 |
| Events in quadrant B | 3,094,534 | 759,828 |
| Events in quadrant C | 3,793,958 | 716,627 |
| Events in quadrant D | 8,039,597 | 620,232 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12453 | 1 |
| B | 0 | 12704 | 1 |
| C | 0 | 15316 | 1 |
| D | 0 | 28137 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6030 | 24 | 0.398010% |
| B | 6030 | 39 | 0.646766% |
| C | 6030 | 270 | 4.477612% |
| D | 6030 | 1335 | 22.139303% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7335 | 6030 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7335 | 6030 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7335 | 6030 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7335 | 6030 | 1158 | 1158 | 15.79% | 19.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10766 | 65.4 | 777 | 760 | 153.0 |
| A | 3 | 137 | 6614 | 38.26 | 777 | 760 | 153.0 |
| A | 0 | 226 | 6570 | 37.97 | 777 | 760 | 153.0 |
| B | 12 | 111 | 16582 | 110.66 | 779 | 762 | 143.0 |
| B | 0 | 229 | 15162 | 100.72 | 779 | 762 | 143.0 |
| B | 5 | 255 | 15021 | 99.74 | 779 | 762 | 143.0 |
| C | 3 | 233 | 571982 | 3258.37 | 761 | 768 | 175.3 |
| C | 14 | 238 | 164547 | 934.24 | 761 | 768 | 175.3 |
| C | 14 | 254 | 60695 | 341.84 | 761 | 768 | 175.3 |
| D | 1 | 52 | 3586133 | 21536.54 | 703 | 685 | 166.5 |
| D | 8 | 195 | 770468 | 4623.82 | 703 | 685 | 166.5 |
| D | 12 | 33 | 627137 | 3762.88 | 703 | 685 | 166.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

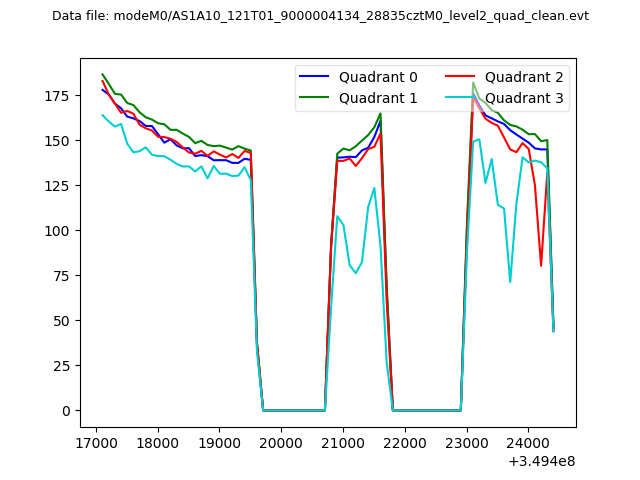

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

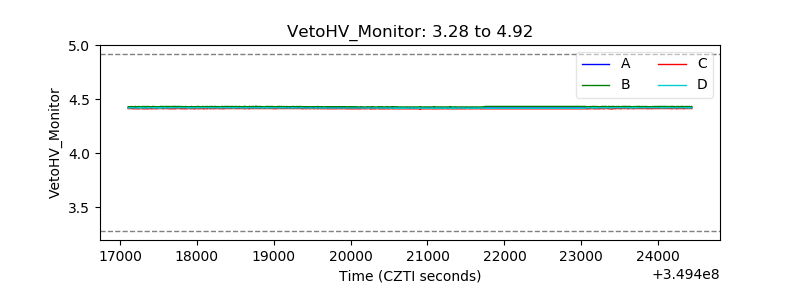

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

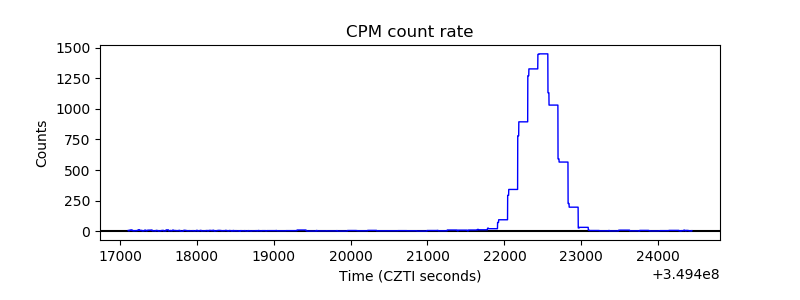

| _CPM_Rate |  |
| CZT Counter |  |

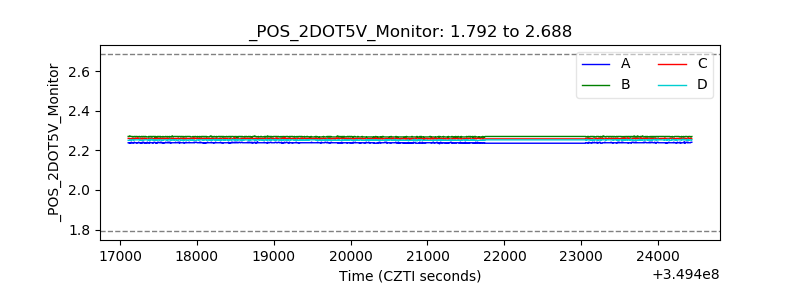

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

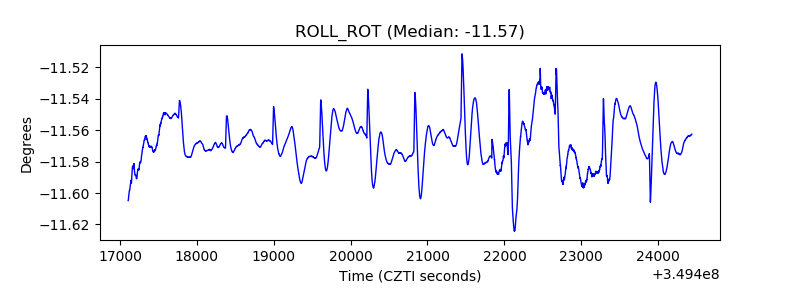

| _ROLL_ROT |  |
| _Roll_DEC |  |

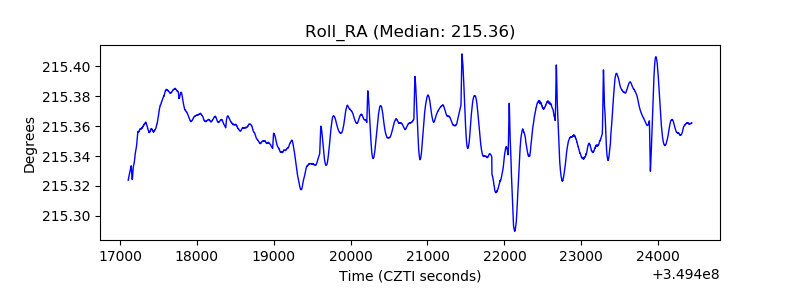

| _Roll_RA |  |
| Veto Counter |  |
